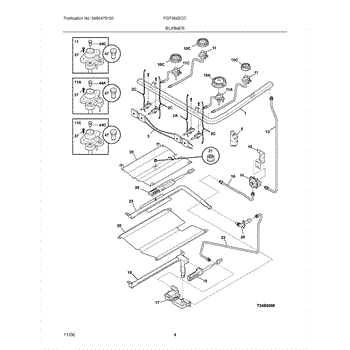

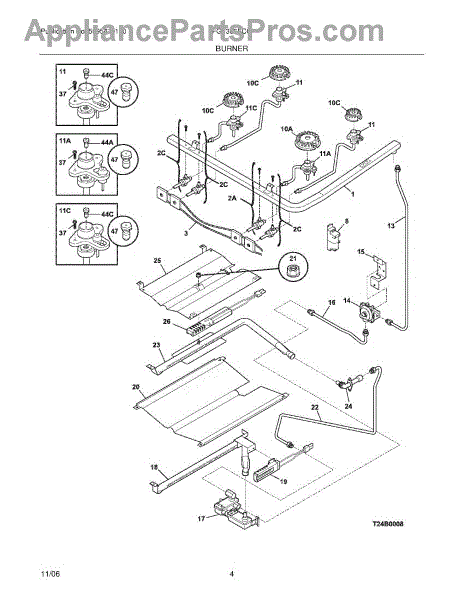

Parts for Frigidaire FGF366ECC: 05 - Burner Parts

This wiring harness with igniter switch links the controls to the spark ignition system on your range. Replacing a damaged harness or failed switch restores reliable burner lighting and helps stop issues like no-spark or constant clicking. What it does:

• Routes electrical power between the control/valve switch and spark ignition components
• Integrated igniter switch closes when a knob is turned to command the spark
• Helps resolve symptoms such as no spark, continuous clicking with knobs off, or intermittent ignition
• Can replace heat-damaged, brittle, or shorted wiring in the ignition circuit

• 1 wiring harness assembly with attached igniter switch

• Disconnect power and shut off gas before servicing
• Access may require removing the cooktop or control panel; note original routing and connections
• Transfer clips/ties and keep wiring clear of sharp edges and hot surfaces
• Restore power and gas, then test each burner for proper spark operation

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner head is used on gas ranges to provide the cooking heat. The burner head is attached to the burner tube assembly that supplies the gas. When the burner is ignited, the holes in the burner head produce the flame that is used for cooking. Over time, food spills and normal corrosion may cause the holes in the burner head to become clogged or damaged. If this occurs, food will not cook evenly, or the burner may not ignite. The burner head should be removed and replaced. Turn the gas and power off to the stove. Remove the burner grate and burner cap and set them aside. Lift the burner head off the stove and dispose of it. Place the new burner head over the burner base and make sure the pin goes inside it. Seat the burner head level over the hole and make sure it is level. Place the burner cap and grate back on the stove. Reconnect the gas and power.This burner head is an authentic OEM replacement part sourced directly from the manufacturer for use on gas ranges by Kenmore, Frigidaire, Crosley, and Electrolux. It is a silver metal part that is sold individually.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Igniter and orifice assembly includes: Igniter, orifice assembly and gas tube.

This assembly combines the spark igniter electrode with the orifice holder for a gas cooktop burner. It restores quick, reliable lighting and consistent burner performance when the original igniter/holder is cracked, shorted, or corroded. What it does:

• Generates the spark to ignite the surface burner gas
• Supports and positions the orifice to deliver gas to the burner head
• Helps resolve no-ignite, intermittent, or delayed ignition at a single burner
• Replaces cracked ceramic, shorted electrodes, and damaged orifice holders

• One surface burner igniter and orifice holder assembly

• Disconnect power and shut off gas supply before servicing
• Remove burner cap and head, then unfasten and lift out the old assembly
• Reconnect the spark wire and mount the new assembly; route the lead away from heat and sharp edges
• Restore gas and power; leak-check connections with an approved solution and verify proper ignition

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges and cooktops, designed to provide a reliable source of ignition for the gas burners. This assembly includes the igniter, which produces a spark to light the gas, and the orifice, which controls the flow of gas to the burner.

Causes for replacement may include wear and tear on the igniter, clogging or damage to the orifice, or electrical failures that prevent the igniter from sparking.

Symptoms of a bad Igniter and Orifice Assembly include:

• Difficulty lighting the burner or the burner not lighting at all
• An uneven or weak flame that does not adjust with the control knob
• Gas odor when the burner is turned on, indicating that gas is not igniting

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

The Regulator is an OEM part for Frigidaire ranges and cooktops. It's designed to maintain a safe and consistent gas flow to the burners, ensuring optimal performance and efficiency during cooking. This regulator adjusts the pressure of the gas coming from your home's supply line to match the requirements of the appliance, allowing for precise temperature control and reliable operation.

Causes of a bad regulator can include general wear and tear over time, exposure to high temperatures or cleaning chemicals that degrade its components, or a malfunction within the regulator itself, such as a stuck valve or broken diaphragm.

Symptoms of a bad Regulator include:

• Inconsistent flame size or color
• Burners not lighting
• A noticeable gas smell when the cooktop or range is on
• Weak or uneven heating performance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

This valve controls gas flow to a range/cooktop surface burner for smooth ignition and precise flame adjustment. Replacing a worn valve helps restore reliable burner lighting, accurate heat control, and safer shutoff.

• Regulates gas to a surface burner for ignition and flame size control
• Sticking or worn internal seals can cause hard-to-turn operation or gas odor
• Failure may prevent the burner from lighting or shutting off completely
• Inconsistent or unresponsive flame adjustment can indicate a failing valve

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; access the valve/manifold per your model's instructions
• Mark and disconnect tubing and any wires; transfer fittings or a separate spark switch from the old valve if applicable
• After installation, restore gas and check all joints with an approved leak-detection solution; verify proper burner operation

This replacement surface burner head restores proper flame on your gas range or cooktop. It mixes gas and air and directs the flame through the ports for even heat and reliable ignition when the original head is clogged or damaged.

• Distributes gas through flame ports for stable, even heating
• Supports quick, consistent ignition when paired with a working igniter
• Helps address weak, uneven, yellow, or noisy flames
• Replaces burner heads that are warped, pitted, cracked, or corroded

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, lift off the old head, and clear debris from the seating area
• Align the new head with the igniter/electrode and locating features; seat it fully and level
• Restore gas and power; verify ignition and check for a uniform flame around all ports

The Ignitor is an OEM replacement part for Frigidaire gas ovens and ranges. It is responsible for igniting the gas to produce a flame for cooking or baking. The ignitor heats up to a high temperature and then ignites the gas, ensuring efficient and reliable operation of your appliance.

Over time, ignitors can wear out due to repeated heating cycles, exposure to moisture, or general aging. A failing ignitor may struggle to reach the necessary temperature, preventing the oven or range from igniting properly.

Symptoms of a bad ignitor include:

• The oven not heating or taking an unusually long time to preheat
• Weak or inconsistent burner flames
• Clicking sounds without ignition of the burner
• A visible crack or damage to the ignitor element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement baffle is the internal guide that channels flow inside the appliance so it operates as designed. Replace a cracked or missing baffle to restore proper circulation and eliminate rattles from loose or damaged pieces.

• Directs internal airflow/circulation along the intended path
• Shields adjacent components from direct spray, debris, or heat
• Helps maintain consistent performance and reduce vibration/noise
• Replace if the original is cracked, warped, loose, or missing

• Disconnect power before service; allow any hot surfaces to cool
• Use your model's parts diagram to locate the baffle; retain screws/clips for reuse
• Install in the same orientation; do not overtighten to avoid cracking
• Run a brief test to check for proper operation and no noise

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This is the spark electrode used to ignite the gas in the oven. It creates a spark at the burner to light the flame so your oven can heat reliably.

• Generates the spark that lights the oven burner
• A failed electrode can cause no heat, delayed ignition, or the oven not lighting
• Intermittent sparking or clicking without ignition may indicate a worn or cracked tip
• Carbon buildup or damage to the ceramic insulator can prevent proper ignition

• Disconnect power and shut off gas before servicing
• Access the burner area, note wire routing, and handle the ceramic insulator carefully
• Position the electrode tip at the specified gap to the burner per service literature
• Test for proper spark and burner ignition after reassembly

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This top burner orifice meters gas to a 14,000-BTU surface burner on your range, maintaining the correct flame size and heat output. Replace a worn or incorrect orifice to restore consistent burner performance and control. What it does

• Regulates gas flow to the 14,000-BTU top burner for proper flame height and shape
• Helps resolve weak or oversized flames and uneven heating
• Can reduce yellow/orange flame tipping and improve simmer control
• Supports reliable ignition by ensuring correct fuel metering

• One 14,000-BTU top burner orifice

• Shut off gas supply and power; allow the cooktop/range to cool before service
• Remove burner cap and head to access the orifice; use the correct socket/wrench
• Install and snug—do not overtighten; verify it's the correct orifice for the burner position and gas type specified for your model
• Reassemble, check for leaks with a soapy-water solution, and verify a stable, blue flame (adjust air shutter if applicable)

For 9.5k burner.

The LP Conversion Kit is an OEM part for Frigidaire gas appliances. This kit includes all necessary parts to convert a gas appliance from natural gas to liquid propane (LP), ensuring proper and safe operation with the desired fuel type.

Over time, or when changing fuel sources, a conversion kit is essential. Causes for needing a conversion kit include moving to a location with a different gas supply, upgrading the appliance, or ensuring compatibility with available fuel types. Using the wrong type of gas without conversion can lead to inefficient performance or safety hazards.

Symptoms indicating the need for a conversion kit include:

• Poor burner performance
• Yellow or inconsistent flames
• Difficulty igniting burners
• Incorrect appliance function for the current gas type

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Size: 8-18ab x 0.5 inch.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Instructions only
