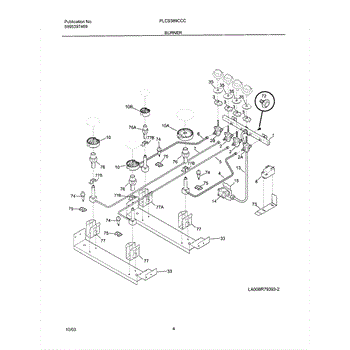

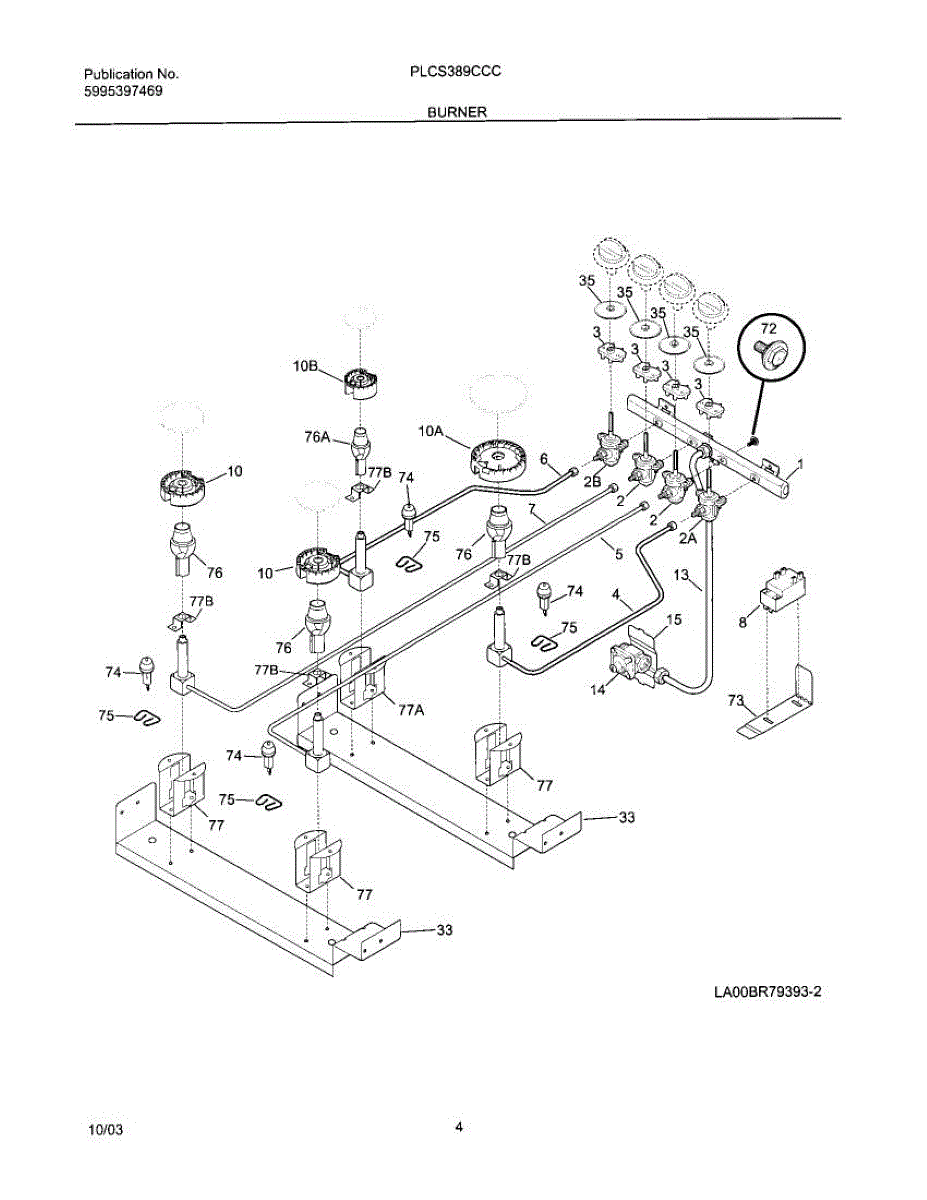

Parts for Frigidaire PLCS389CCC: 05 - Burner Parts

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement igniter lights the gas in your range or wall oven. It restores dependable burner ignition so cooking starts promptly and safely when you turn the control or select a bake/broil setting.

• Generates the ignition source (spark or heat) required to light the gas at the burner
• Common symptoms of a failed igniter: burner won't light, no spark/glow, intermittent or delayed ignition
• Replacing a weak or cracked igniter helps prevent raw gas buildup and improves lighting consistency

• Disconnect power and shut off the gas supply before servicing
• Handle the igniter element/ceramic carefully; avoid impact and contamination
• Reuse existing mounting hardware and route leads away from heat/flame as originally installed
• After installation, restore gas and power, then test for prompt ignition and proper flame; check for leaks

This replacement tube restores a damaged or missing refrigerator tubing connection so the appliance can route fluids where intended and operate reliably. It's a direct-fit service part for the matching OEM assembly. What it does

• Provides a sealed conduit for fluid flow inside the refrigerator
• Re-establishes a proper connection when the original tube is cracked or broken
• Helps stop leaks or pooling caused by a damaged line
• Supports normal operation of the associated water/defrost subsystem

• One replacement tube as shown

• Only install when the appliance is powered off and disconnected from its water supply if applicable
• Inspect adjoining fittings and replace any worn clamps or seals to ensure a leak-free connection
• Use appropriate tools; avoid sharp bends that can kink or restrict the tube

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components
