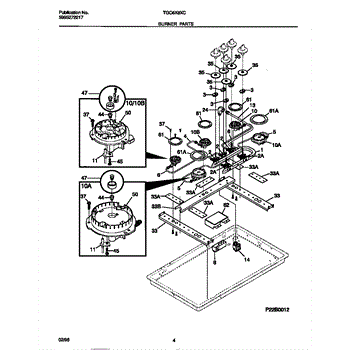

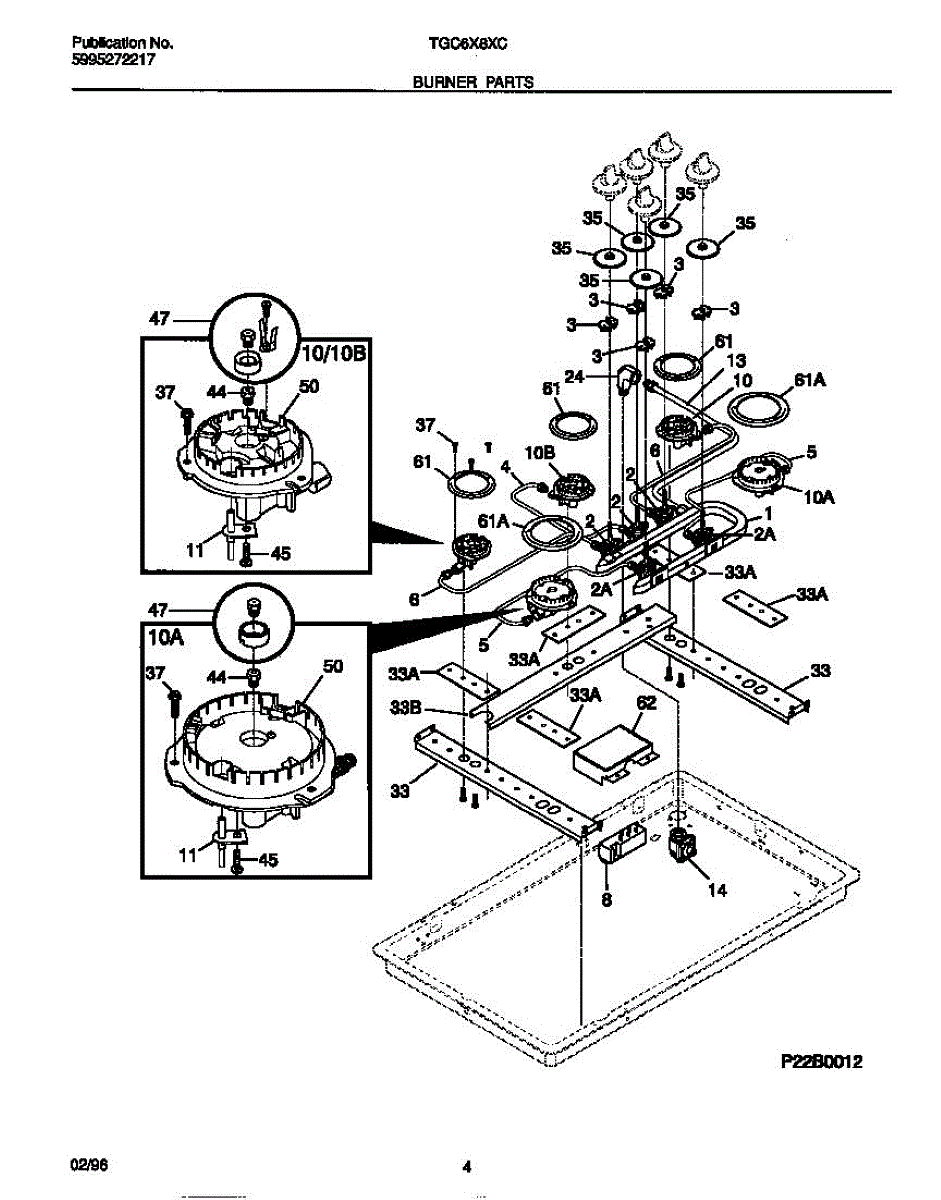

Parts for Frigidaire TGC6X8XCSA: 03 - Burner Parts

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

This part has been discontinued and is no longer available.

The Top Igniter Electrode is an OEM replacement part for Frigidaire gas ranges. This part provides the spark to ignite the surface burners.

Causes involve repetitive heat stresses and deterioration of internal wiring over extended use. Corrosion from possible gas or moisture intrusion may also degrade electrode performance.

Symptoms of a faulty top igniter electrode include:

• Burners failing to light or stay lit during cooking
• Potential gas leaks or explosions from unlit burners
• Difficult relighting requiring extended holds of ignition buttons

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This pressure regulator controls gas flow to the range valve, helping maintain steady burner operation for safe, consistent flames. It replaces a worn or failed regulator to restore proper gas delivery and reliable ignition performance. What it does:

• Regulates incoming gas pressure to the range's control valve for steady burner flames
• Helps correct issues like weak or uneven flames and burners that struggle to light
• Reduces risk of high-pressure surges that can affect burner performance
• Works as a direct replacement when the existing regulator is faulty or leaking

• Turn off the gas supply and power before starting any work; always follow appliance shutoff procedures
• Inspect fittings and seals; use proper thread sealant for gas-rated connections if required by the manufacturer
• After installation, perform a gas leak check and verify correct burner operation and flame appearance

This burner mounting screw fastens the surface burner assembly to its base on the cooktop, keeping it stable and properly aligned. Replace stripped, rusted, or missing screws to eliminate wobble and maintain even flame positioning.

• Secures the surface burner to the orifice holder/cooktop assembly
• Helps keep the burner level, stable, and properly seated
• Can address a loose or wobbly burner or one that lifts when removing the grate/cap
• Restores proper seating when original hardware is lost or corroded

• Disconnect power and shut off the gas supply; allow the cooktop to cool completely
• Remove grate, cap, and burner head (as designed) to access the fastener
• Start threads by hand and use the correct driver to avoid cross-threading
• Tighten snugly without overtightening; clean or chase threads if corrosion is present

A single gas burner orifice that meters fuel flow to a range or oven burner for consistent flame sizing and reliable cooking performance. Replaces a worn or clogged orifice to help restore steady ignition and even heat. What it does:

• Controls the amount of gas delivered to a burner for proper flame height and heat output
• Helps maintain consistent cooking and baking temperatures when functioning correctly
• A clogged or damaged orifice can cause weak or uneven flames, slow ignition, or poor heating
• Works as a small, precision-fit insert that sits in the burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use a wrench or socket sized to the orifice and avoid rounding the fitting
• Inspect burner ports and clean any debris before installing the new orifice

This burner top is the cooktop surface component that holds and aligns a single surface heating element, restoring safe, even heating and a finished look to the cooktop. It's a direct-replacement top piece for one burner location. What it does

• Supports and centers the surface burner so cookware sits flat and heats evenly.
• Protects internal cooktop components from spills and drips.
• Helps maintain proper spacing between the element and cooktop for reliable operation.
• Replace when the top is warped, cracked, badly corroded, or interfering with burner contact.

• One burner top

• Disconnect power to the range before starting any repairs; for gas ranges, turn off the gas supply.
• Handle enamelled or glass surfaces carefully to avoid chipping or cracking during removal and installation.
• Confirm element alignment and secure mounting so the burner element makes proper contact.
