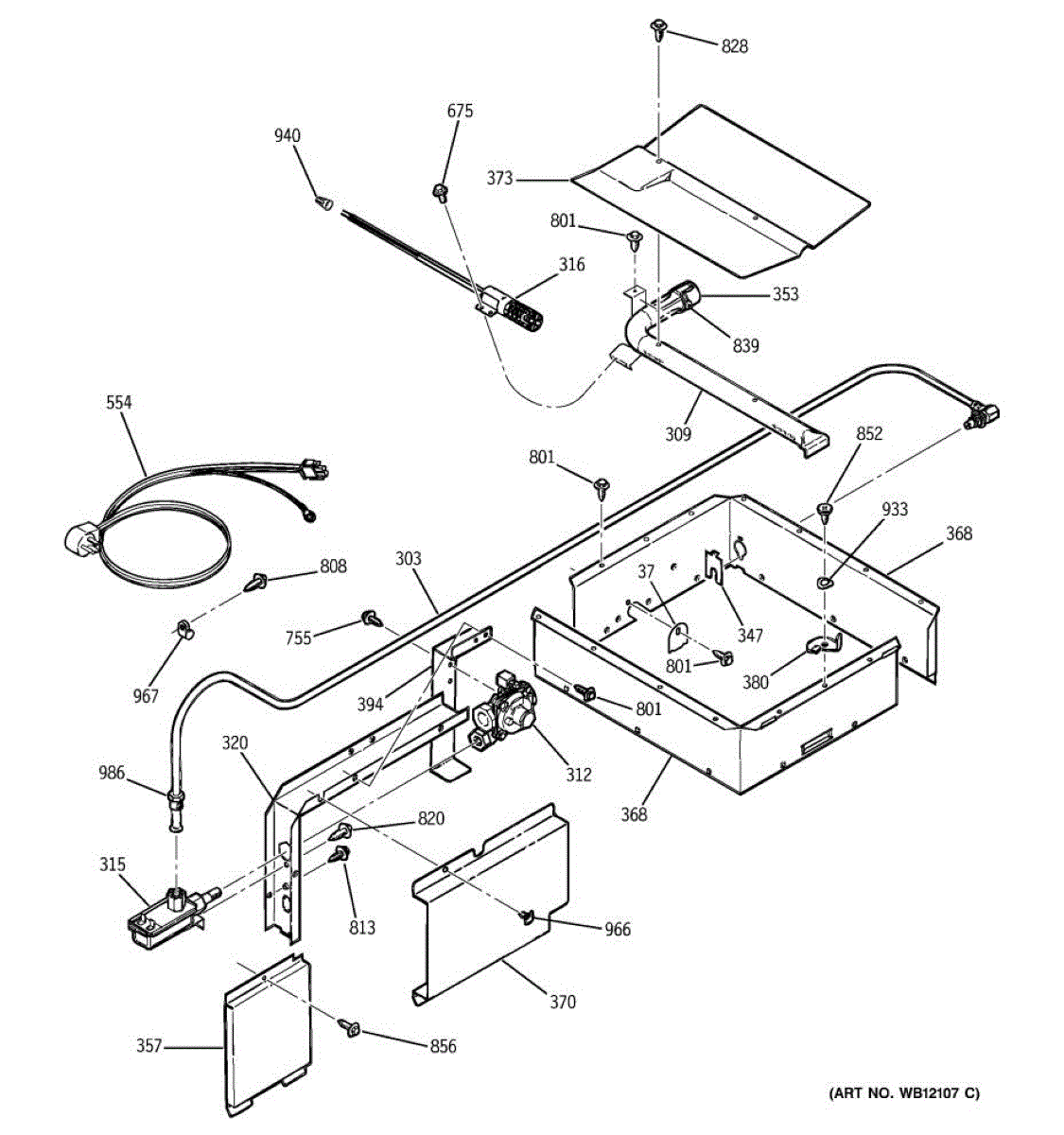

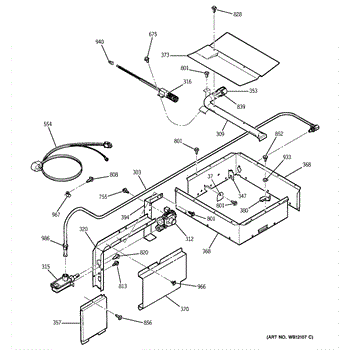

Parts for Ge HMV24CEWEBB: 04 - Burner Parts

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Controls gas pressure for safe burner operation. Mounts at gas supply line. Replace if flame height is too low, inconsistent, or after fuel conversion.

Fix an oven that won't heat with this safety valve. Controls gas flow to the burner. Common repair for ovens that fail to ignite or maintain temperature.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

This valve wire cover is a small protective shroud that snaps over the water/valve wiring to keep wires organized and shielded from moisture and contact with nearby parts. It helps reduce risk of wiring abrasion and keeps connections tidy. What it does:

• Covers and protects valve wiring from contact with moving parts or sharp edges
• Keeps wires routed and secured to prevent snagging or pinching
• Helps reduce exposure to moisture and debris around the valve area
• Visible sign to replace: cracked, broken, or missing cover leaving wires exposed

• One valve wire cover

• Disconnect power to the appliance before servicing to avoid shock
• Remove any panels as needed to access the valve assembly; use basic hand tools
• Snap the cover into place over the valve wiring; ensure it seats fully and wires are not pinched
• Replace if the cover is cracked, warped, or will not secure wiring properly

This left-side oven burner box supports and positions the oven's left burner assembly, helping maintain proper burner alignment for consistent ignition and cooking performance. Durable stamped metal designed for direct replacement. What it does

• Holds and secures the left-side oven burner assembly in the correct position
• Directs heat and helps keep the burner properly aligned for even cooking
• Provides the mounting surface for associated burner components and igniter
• Can cause burner ignition issues or uneven baking when damaged or bent

• Disconnect power and shut off gas supply before servicing. Follow all safety precautions.
• Handle metal edges carefully; wear gloves to avoid cuts.
• Reinstall using original fasteners and any gaskets as required; verify burner alignment before testing.

Fix uneven cooking with this upper oven baffle. Restores proper airflow circulation for consistent temperatures throughout your oven cavity.

Fix an oven door that won't stay closed or latch properly with this gas range door latch. Simple repair for restoring secure door operation.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

Replace missing or damaged 10-32 x 5/32 inch machine screws in your oven. Secures panels, brackets, and internal components to eliminate rattles.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

ST10-16 X 7/16"

Replacement mounting screw for securing panels, brackets, and components inside your range or oven. Restores proper fit when original is missing or stripped.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Package of 12 mounting nuts for securing panels, brackets, and components on gas ranges, ovens, and washers. Replace missing, stripped, or worn nuts.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.
