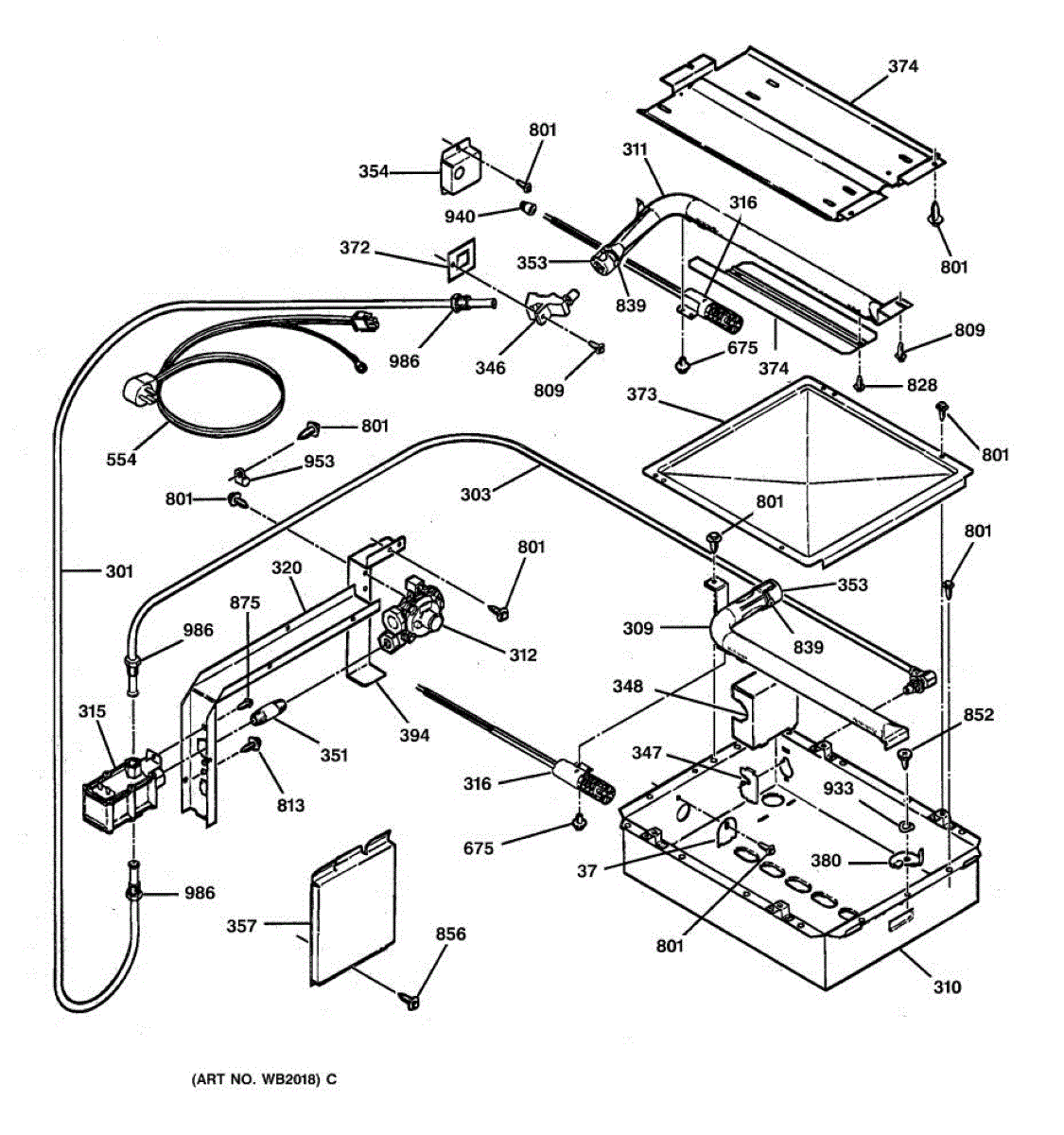

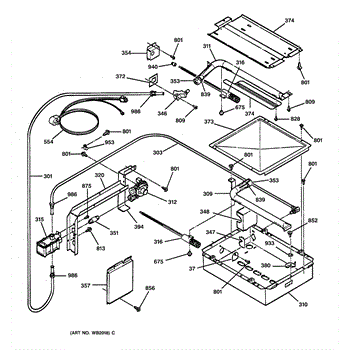

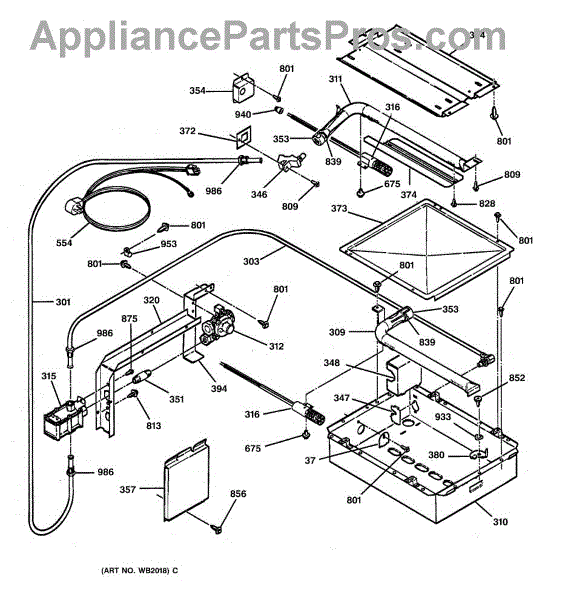

Parts for Ge JGRP17BEW2BB: 04 - Burner Parts

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

This tube and orifice assembly delivers regulated gas from the supply line to a range/oven burner so the appliance lights and maintains a steady flame. It restores correct fuel flow for safe, consistent heating. What it does:

• Directs gas from the manifold to the burner through a precisely sized orifice for proper flame shape and heat
• Helps fix weak or uneven flames, burners that won't ignite, or burners that barely stay lit
• Used when the existing tube is damaged, bent, clogged, or the orifice is worn or incorrect
• Works with the appliance's factory gas system to maintain proper combustion when correctly installed

• One tube and orifice assembly

• Turn off gas supply and power to the appliance before starting work
• Use proper tools and fittings; verify correct orientation and seating of the orifice and tube
• After installation, perform a leak test and observe burner ignition and flame pattern

This bake burner is the oven's main gas tube that produces steady heat for baking and roasting, restoring proper cooking temperatures and more consistent bake results. It fits gas ovens that use a separate bake tube assembly. What it does

• Directs and distributes the oven's gas flame to generate baking heat
• Restores proper oven temperature when the bake flame is weak or absent
• Helps eliminate uneven baking or undercooked dishes caused by a failing tube
• Works with the oven igniter and gas valve to light the burner safely

• One bake burner (bake tube) as shown

• Turn off gas supply and electrical power before starting work
• Removal may require disconnecting burner mounting screws and any brackets; keep track of fasteners
• Inspect and replace related parts (igniter, orifice) if ignition problems persist

This preset conversion regulator controls gas pressure for safe, reliable burner operation after a fuel-type conversion. It helps maintain consistent flame height and prevents over- or under-pressurization for stable cooking performance. What it does

• Regulates incoming gas pressure to the appliance after a factory or field conversion
• Keeps burner flames steady for even heating and safer operation
• Can address symptoms like weak or uneven flames, burners that won't light properly, or excessive flame height
• Works as part of the appliance's gas delivery system to protect downstream components

• Turn off the gas supply and electricity before starting any work
• After installation, check all fittings with an approved leak detection method and test appliance operation
• Do not modify the regulator or attempt conversion methods beyond manufacturer instructions

This control valve is an important safety feature found on many gas ranges. It's located inside the back of the range near the area where the buttons and controls are found. The reason the control valve is included in ovens is to prevent gas from moving to the burners if the igniter is not able to ignite the gas or there is no electricity. The control valve could be faulty if there is a smell of gas near the valve, the burner flame flickers, or the flame cannot be turned on high.In any of these situations, the control valve must be replaced. The repair is easy and takes only a few minutes. The bottom of the oven will need to be removed, which may require a screwdriver. After removing it, remove the flame spreader by taking out two screws and sliding it out of the oven. Remove the screw holding the oven burner tube and take it out to access the valve and replace it.This control valve is made to be compatible with RCA, Kenmore, Roper, General Electric, and Hotpoint ranges. It's sold as an individual OEM replacement part that is sourced directly from the manufacturer.

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This valve wire cover is a small protective shroud that snaps over the water/valve wiring to keep wires organized and shielded from moisture and contact with nearby parts. It helps reduce risk of wiring abrasion and keeps connections tidy. What it does:

• Covers and protects valve wiring from contact with moving parts or sharp edges
• Keeps wires routed and secured to prevent snagging or pinching
• Helps reduce exposure to moisture and debris around the valve area
• Visible sign to replace: cracked, broken, or missing cover leaving wires exposed

• One valve wire cover

• Disconnect power to the appliance before servicing to avoid shock
• Remove any panels as needed to access the valve assembly; use basic hand tools
• Snap the cover into place over the valve wiring; ensure it seats fully and wires are not pinched
• Replace if the cover is cracked, warped, or will not secure wiring properly

This is a 10-32 x 5/32 inch machine screw used to fasten small appliance components and trim. It replaces missing or damaged screws to restore secure mounting and reduce rattles or loose panels. What it does:

• Secures panels, brackets, or internal components where a 10-32 thread is specified
• Stops vibration-related rattling caused by missing or stripped screws
• Provides the correct thread size to match mating 10-32 tapped holes
• Small profile fits narrow clearance fastening points

• Use the correct size Phillips or hex driver to avoid stripping the head
• Thread into the matching 10-32 hole; do not force if resistance is felt
• Hand-start threads, then tighten securely but avoid over-torquing
• Disconnect power to the appliance before accessing internal areas

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

Nickel

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

This is a package of twelve replacement nuts used to secure appliance panels and components. These genuine-style nuts restore fastener retention to reduce looseness and rattling and help keep parts aligned during operation. What it does:

• Secures panels, brackets, and fasteners to maintain proper component alignment
• Prevents vibration-related loosening that can cause noise or intermittent contact
• Replaces missing or damaged nuts that can allow parts to shift or fall off
• Used wherever the matching nut size and thread are required by the appliance

• Disconnect power (and gas, if applicable) before servicing the appliance.
• Verify the nut size and thread match the stud or bolt before installation.
• Hand-start threads, then tighten with the appropriate driver or wrench; avoid overtightening.
