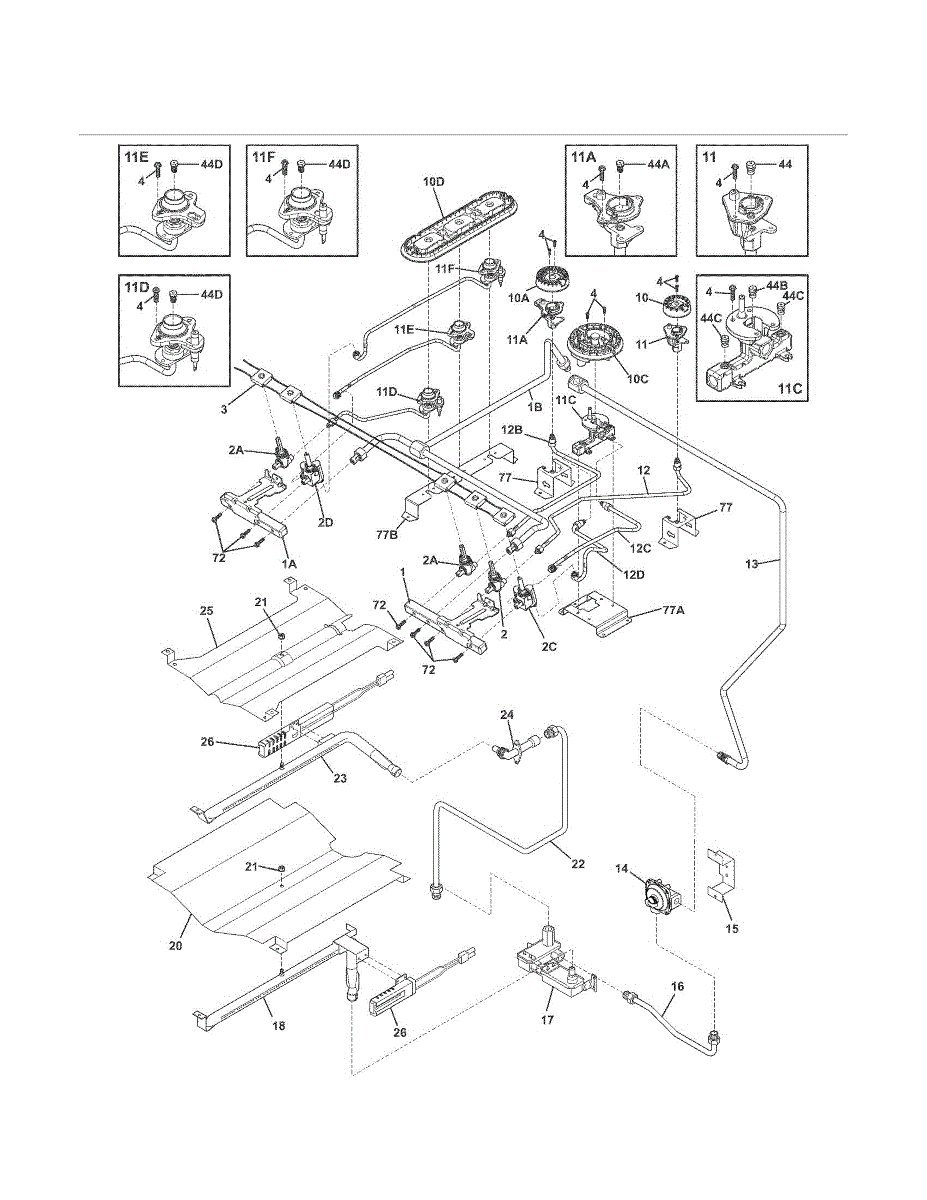

Parts for Kenmore 790.31069100 (79031069100, 790 31069100): Burner Parts

If your burner won't light or the flame is too high or too low, this gas valve controls flow to restore proper ignition and flame adjustment on your cooktop.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas range burner cap ring sits atop the burner head on your cooktop. Replace if cracked, chipped, discolored, or missing for proper flame distribution.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Ignitor and orifice assembly for gas range burners. Installs at the burner base to control gas flow and ignition. Replace if cracked, worn, or missing.

This ignitor orifice assembly routes and meters gas to the oven burner ignitor so the oven lights reliably and reaches cooking temperature. It's a direct-replacement part used when ignition is inconsistent or the burner won't light. What it does:

• Controls gas flow from the manifold to the oven burner ignitor for proper ignition
• Helps ignition occur quickly and consistently so the oven can reach set temperatures
• Common symptoms: oven won't light, delayed or intermittent ignition, or weak/uneven heating
• Works with the oven's ignition system; replaces worn or damaged orifice assemblies

• Turn off electrical power and shut off the gas supply before starting work
• Use proper tools; do not force fittings or over-tighten connections
• After installation, restore power/gas and test the oven for proper ignition and operation

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Burner won't light or flame is weak? This gas valve controls flow to your range surface burner for reliable ignition and heat control. Moderate DIY.

Replace a cracked, worn, or damaged electric range surface burner element. Installs in the cooktop receptacle to restore a functional heating zone.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Gas burner orifice jets meter fuel flow to range and oven burners. Replace when damaged, worn, or missing to restore proper flame size and heat control.

Uneven flames or incorrect burner heat? This gas range orifice controls gas flow to the burner. Simple replacement takes 15-20 minutes with basic tools.

Natural gas burner orifice meters gas flow to range burners. Replace worn or clogged orifices for stable flame. Used for LP to natural gas conversions.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replace a damaged or frayed range wire harness. This internal wiring component connects electrical systems inside your range. Order when wires are cut or worn.

This wiring harness routes power and control signals between refrigerator components to restore proper electrical connections and operation. It replaces a damaged or disconnected harness to help resolve intermittent power, control, or component failures. What it does:

• Carries voltage and control signals between the control board, compressor, fans, lights, and other components
• Restores lost connections that can cause intermittent operation, no power to circuits, or non-working fans/dispensers
• Replaces brittle, frayed, or corroded wiring and broken connector ends that cause faults or error codes
• Helps prevent shorts and erratic behavior when damaged wiring is the root cause

• One wiring harness

• Always disconnect power to the appliance before beginning service
• Verify connector orientation and fully seat each plug; do not force mismatched connectors
• Route harness to avoid heat sources, sharp edges, and pinch points; secure with original clips or ties

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Converts your gas range from natural gas to LP (propane) fuel. Includes orifices and components for burners and oven. Replace when switching fuel types.
