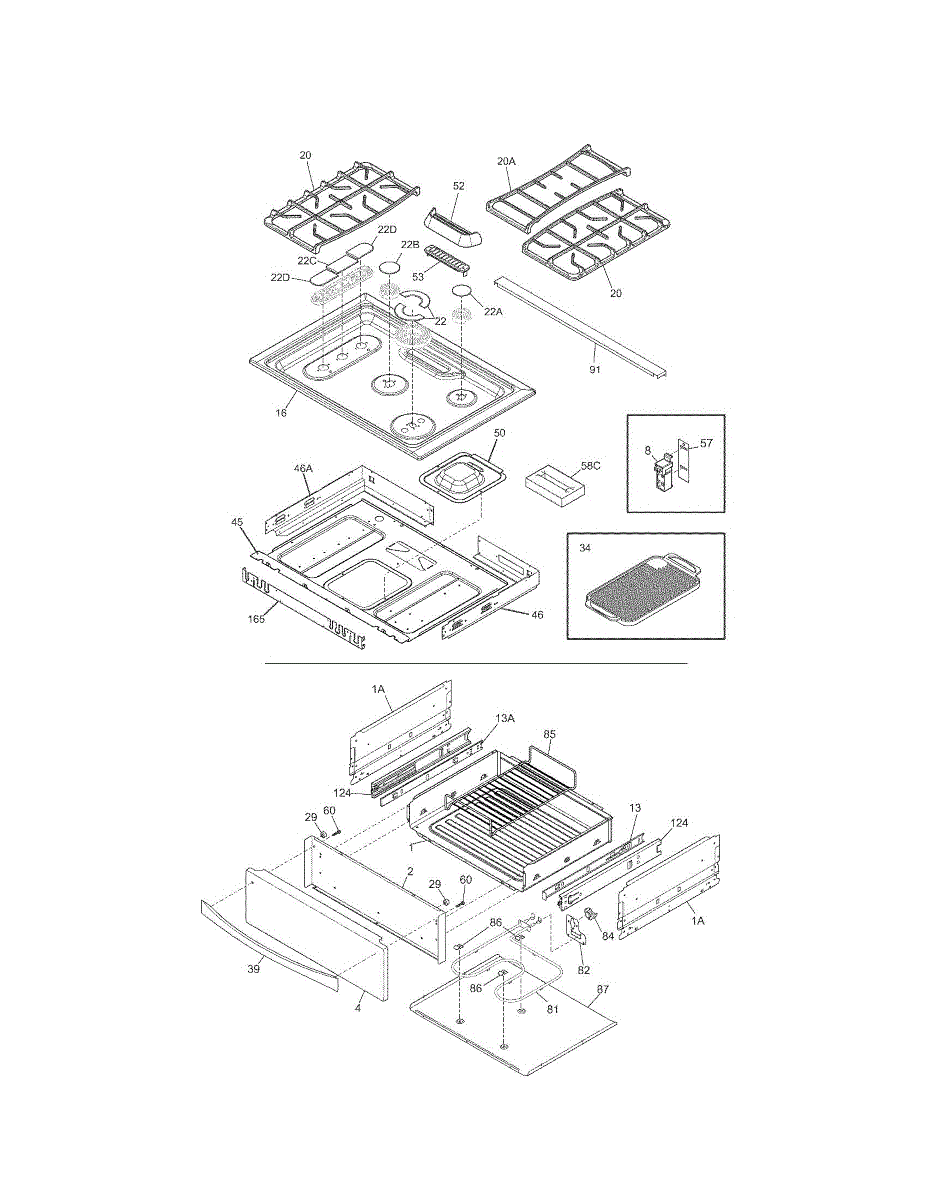

Parts for Kenmore 790.31069100 (79031069100, 790 31069100): Top / Drawer Parts

This is a metal or finished side panel that attaches to the warming drawer section of the range. It provides structural support and a clean exterior appearance on the side of the drawer compartment. Replace this panel if it is dented, scratched, rusted, or missing, which can affect both the look and proper operation of the warming drawer.

Replaces cracked, broken, or damaged control panel trim on your range. This decorative panel covers the control area and restores a clean finish.

This is the front panel for the storage drawer located beneath the oven compartment. It serves as the visible face of the drawer and provides structural support for the drawer assembly. Replace this panel if it is cracked, warped, discolored, or if the finish has peeled or chipped.

Gas burners won't ignite and there's no clicking sound? The spark module provides the electrical spark to light all burners. DIY repair in under 1 hour.

Replace your range grate if it's cracked, broken, warped, or missing. This surface grate sits on top of the burner to support cookware during cooking.

Burner cap that sits on top of the gas burner head on your range cooktop. Replace if cracked, chipped, discolored, or missing to restore even heat distribution.

Protective burner cap that sits on top of the gas burner head. Replace if cracked, chipped, discolored, or missing to protect the burner assembly.

Rubber bumper cushions oven or range doors to reduce noise and prevent metal contact. Replace if cracked, worn, or missing to restore proper seating.

Insulation panel for gas ranges. Installs inside the range cavity to provide sound dampening and thermal protection. Replace if torn, damaged, or missing.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

This is the electric heating element located inside the warming drawer of a range. It provides low, steady heat to keep cooked food warm until serving. Replace this element if the warming drawer no longer heats, heats unevenly, or if the element is visibly damaged or burned out.

Oven not heating to set temperature or heating too slowly? This thermostat controls oven temperature cycling. Test for continuity to diagnose the issue.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Replace your range's control panel if the original is cracked, damaged, or showing wear. This panel mounts to the front and houses control components.

Decorative finishing panel that covers exposed edges on your range for a clean appearance. Replaces cracked, broken, or missing trim to restore look.

Decorative trim piece that covers mounting edges on your range door or control panel. Replaces scratched, dented, or missing trim for a clean finish.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.

This wiring harness is the factory-style electrical assembly that connects appliance controls and components for reliable power and signal routing. Replacing a damaged harness restores proper electrical connections and helps resolve intermittent or failed operation. What it does:

• Routes power and control signals between the control module and components
• Restores reliable electrical connections when wires or connectors are damaged
• Helps correct symptoms such as intermittent power, failed cycles, or non-responsive controls
• Prevents shorts and arcing caused by exposed or frayed wiring when correctly installed

• Disconnect power (unplug appliance or switch off breaker) before servicing to avoid shock or injury
• Inspect connectors and mounting points; secure harness away from heat and moving parts
• Use proper strain relief and routing to prevent chafing or contact with sharp edges

Mounting screw secures heating element to cooktop surface. Replace if stripped, rusted, or missing to ensure proper element installation and stability.

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Specs: 8 - 18 x 0.500

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Washer that fits between the support roller and shaft in your dryer. Replace if worn, cracked, or missing to maintain proper drum alignment and support.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
