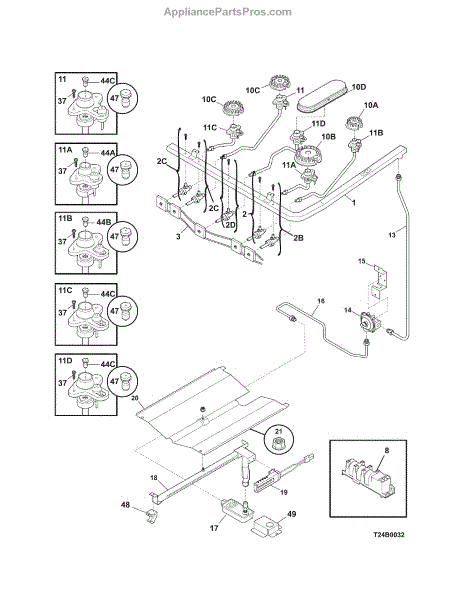

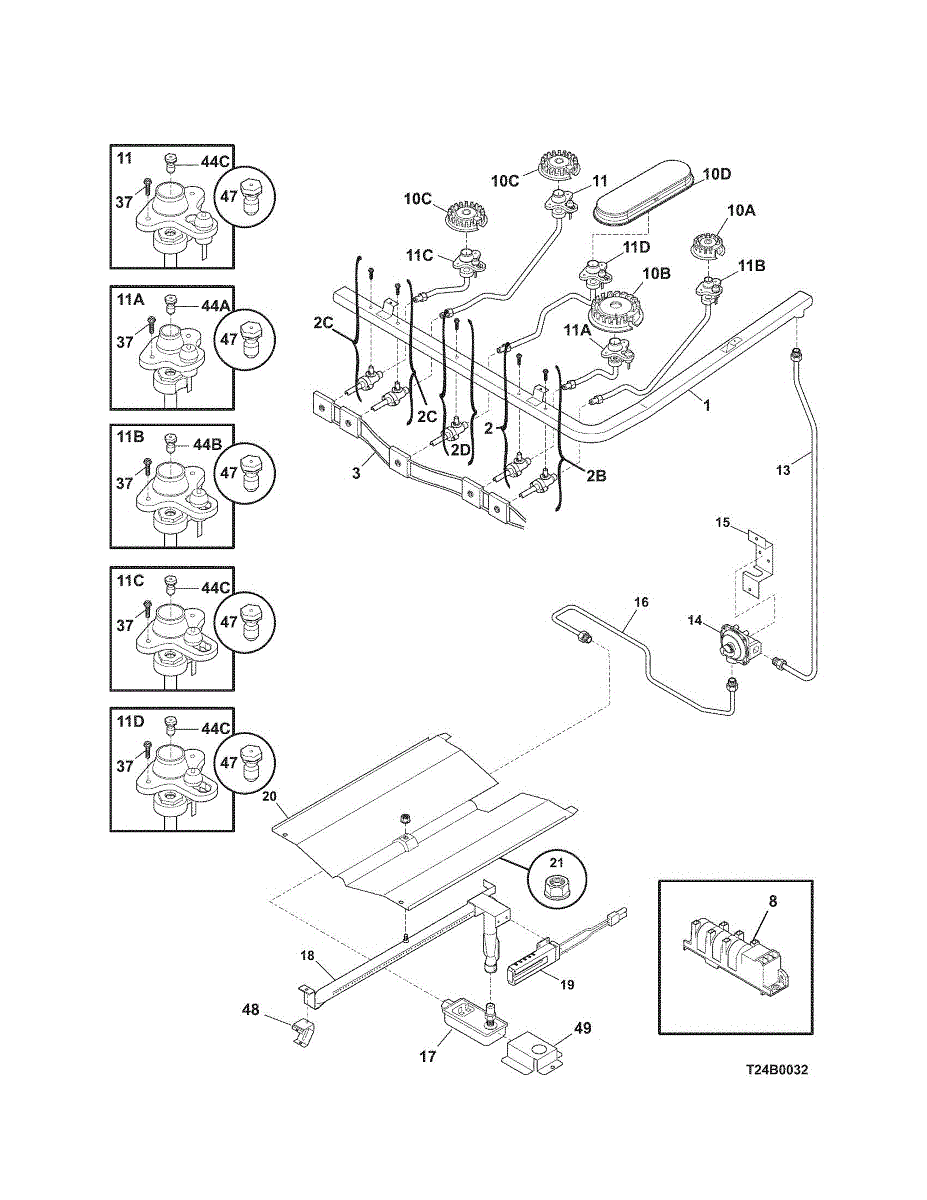

Parts for Kenmore 790.71323705 (79071323705, 790 71323705): Burner Parts

Gas manifold pipe for gas ranges. Distributes gas from supply to burners. Replace if cracked, corroded, leaking, or damaged to restore safe operation.

Fix a burner that won't ignite, stays on high, or has uneven flames with this range top burner valve. Controls gas flow to surface burners.

Burner won't light or flame won't adjust? This top burner valve controls gas flow to your cooktop burner. Restores proper flame control and ignition.

Burner won't light or flame is weak? This top burner valve controls gas flow to restore proper ignition and flame adjustment on your gas range.

Burner won't light or flame height won't adjust? This top burner valve controls gas flow to restore reliable ignition and precise flame control.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

This burner head is used on gas ranges to provide the cooking heat. The burner head is attached to the burner tube assembly that supplies the gas. When the burner is ignited, the holes in the burner head produce the flame that is used for cooking. Over time, food spills and normal corrosion may cause the holes in the burner head to become clogged or damaged. If this occurs, food will not cook evenly, or the burner may not ignite. The burner head should be removed and replaced. Turn the gas and power off to the stove. Remove the burner grate and burner cap and set them aside. Lift the burner head off the stove and dispose of it. Place the new burner head over the burner base and make sure the pin goes inside it. Seat the burner head level over the hole and make sure it is level. Place the burner cap and grate back on the stove. Reconnect the gas and power.This burner head is an authentic OEM replacement part sourced directly from the manufacturer for use on gas ranges by Kenmore, Frigidaire, Crosley, and Electrolux. It is a silver metal part that is sold individually.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This ignitor orifice assembly is the gas burner component that routes fuel to the oven ignitor so the bake/ broil burners light reliably. Replaces a worn or damaged orifice assembly to restore normal ignition and consistent burner flame. What it does

• Directs gas to the ignitor and burner for safe ignition of the oven burner
• Helps maintain a steady flame for even cooking when operating correctly
• Common symptom: oven fails to light or takes multiple tries to ignite
• Common symptom: weak or uneven flame around the burner head

• One ignitor orifice assembly as shown

• Disconnect power and shut off the gas supply before any service
• Designed to mount at the oven burner; handle components and tubing carefully to avoid damage
• Use appropriate fittings and check for gas leaks before restoring use

Complete igniter and orifice assembly for gas range burners. Includes igniter, orifice holder, and gas tube. Replace if cracked, broken, or damaged.

Igniter and orifice assembly includes igniter, orifice, and gas tube. Replace if cracked, corroded, or broken. Installs under range top at burner base.

Replaces the burner igniter electrode and orifice holder assembly on gas range cooktops. Needed when the original is cracked, corroded, or broken.

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges and cooktops, designed to provide a reliable source of ignition for the gas burners. This assembly includes the igniter, which produces a spark to light the gas, and the orifice, which controls the flow of gas to the burner.

Causes for replacement may include wear and tear on the igniter, clogging or damage to the orifice, or electrical failures that prevent the igniter from sparking.

Symptoms of a bad Igniter and Orifice Assembly include:

• Difficulty lighting the burner or the burner not lighting at all
• An uneven or weak flame that does not adjust with the control knob
• Gas odor when the burner is turned on, indicating that gas is not igniting

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This is a replacement refrigerant/line connection tube that links the service valve to the regulator line, restoring a sealed pathway for proper cooling system operation. It fits systems using a 3/8" tube connection. What it does:

• Connects the service/stop valve to the regulator/line, maintaining a sealed refrigerant path
• Restores proper flow and pressure routing when the original tube is damaged, cracked, or leaking
• Commonly replaced for visible leaks, hissing at the valve area, or loss of cooling tied to a line break
• Works as a direct, single-piece tubing connector where a 3/8" connection is specified

• One tube to valve connector (3/8" tube)

• Installation requires appliance access and basic refrigeration line handling; tighten fittings to OEM torque specs and verify leak-free with an appropriate leak detector
• Wear safety glasses and gloves; avoid breathing refrigerant vapors and follow manufacturer service documentation

Oven won't light even with glowing igniter? Safety valve controls gas flow to burner. Moderately easy repair with gas line disconnect required.

Oven burner distributes gas and air mixture for even baking flames. Replace if rusted, corroded, or producing uneven flame patterns in your range.

Oven won't light or takes forever to heat? A weak igniter is usually the culprit. Moderately easy DIY repair—most complete it in 15-30 minutes.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

For 5k burner.

Meters gas flow to your range's top burner for proper flame size and heat output. Replace if worn, incorrect size, or during fuel type conversion.

Burner orifice installs in the gas valve to control fuel flow to the cooktop burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.

Mounting bracket for gas ranges. Secures components inside your range. Replace if bent, broken, or missing to restore proper structural support.

Size: 8-18ab x 0.5 inch.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
