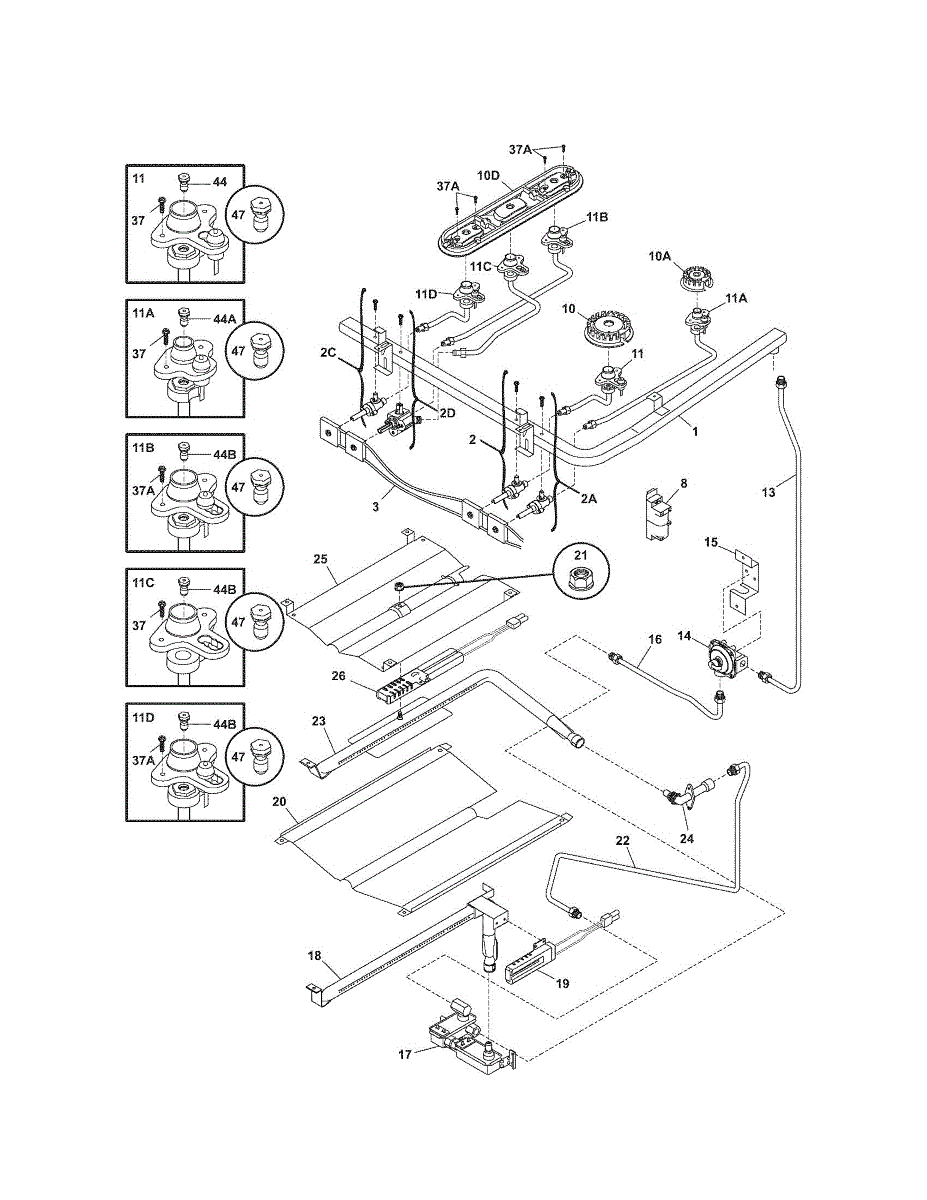

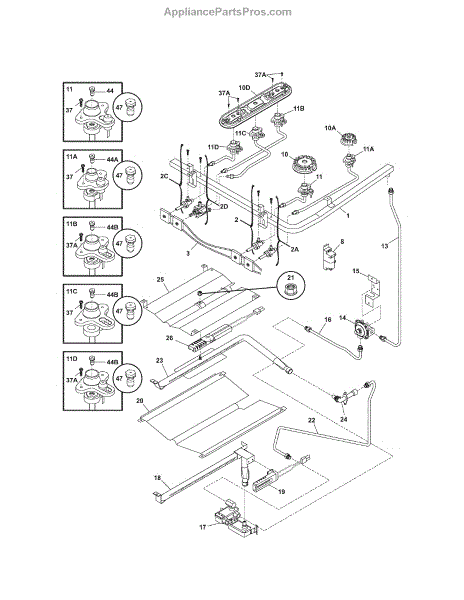

Parts for Kenmore 790.79372405 (79079372405, 790 79372405): Burner Parts

This is a gas valve for a range cooktop that regulates the flow of gas to a surface burner. It connects to the control knob and allows you to adjust the flame size from simmer to high heat. Replace this valve if the burner won't ignite, the flame is inconsistent, the knob feels loose or unresponsive, or you smell gas when the burner is turned off.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

This is a gas safety valve designed for dual oven configurations in gas ranges. It controls the flow of gas to the oven burners and shuts off the gas supply if the flame goes out, preventing dangerous gas leaks. Replace this valve if your oven fails to heat, heats inconsistently, or if you smell gas when the oven is turned off.

This is the bake burner tube located inside the bottom of the oven cavity in a gas range. It distributes gas evenly to produce a consistent flame for baking and roasting. Replace this burner tube if you notice uneven heating, weak or irregular flames, or visible damage such as corrosion or holes in the tube.

Fix an oven that won't heat or takes too long to preheat. This igniter glows but may be too weak to open the gas valve. DIY repair in under an hour.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

This dual gas valve includes the tube running from this valve to the gas supply tube elbow above.

This is an orifice elbow fitting that connects to the broil burner assembly in a gas range. It directs and regulates the gas flow to the broil burner for proper ignition and flame output. Replace this part if the broil burner produces an uneven flame, fails to ignite consistently, or if the fitting is cracked or corroded and causing a gas leak.

Fix delayed oven ignition or gas odor with this spark electrode. Creates the spark that lights your oven burner. DIY repair in under 1 hour.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

A small brass fitting located inside the gas burner assembly that controls the flow of gas to create the proper flame size. Replace if flames are too high, too low, yellow instead of blue, or if the burner won't light properly.

For 5k burner.

This replacement shield is a molded protective cover that helps keep appliance wiring and internal components safe from heat, moisture and accidental contact. It restores the appliance's original protection and helps maintain reliable operation. What it does:

• Covers and protects wiring, terminals or control components from debris and direct heat
• Prevents accidental contact with live parts during normal use
• Helps reduce the risk of shorting or damage from loose debris
• Restores the appliance's factory shielding to reduce noise from vibrating parts

• One replacement shield

• Disconnect power before servicing to avoid shock risk
• Handle carefully; edges may be sharp and clips or tabs can be brittle on older units
• Retain and reuse factory fasteners when possible; replace broken clips with OEM parts
• Verify proper alignment and secure fit so the shield does not contact moving parts

Size: 8-18ab x 0.5 inch.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.
