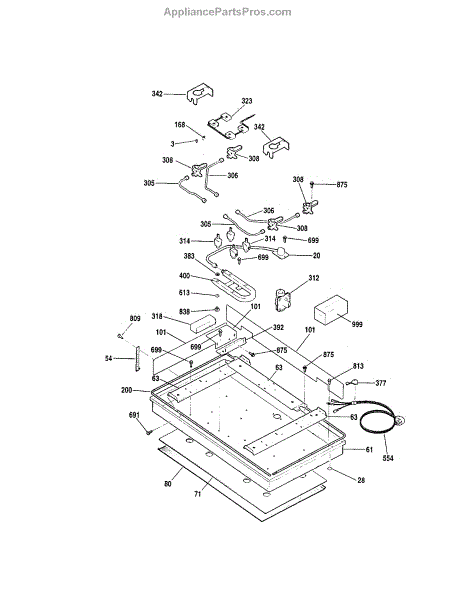

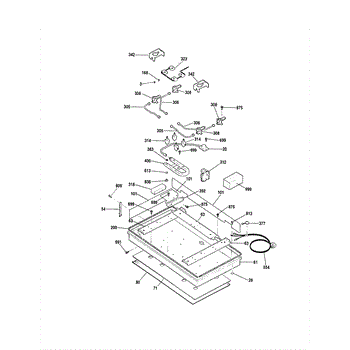

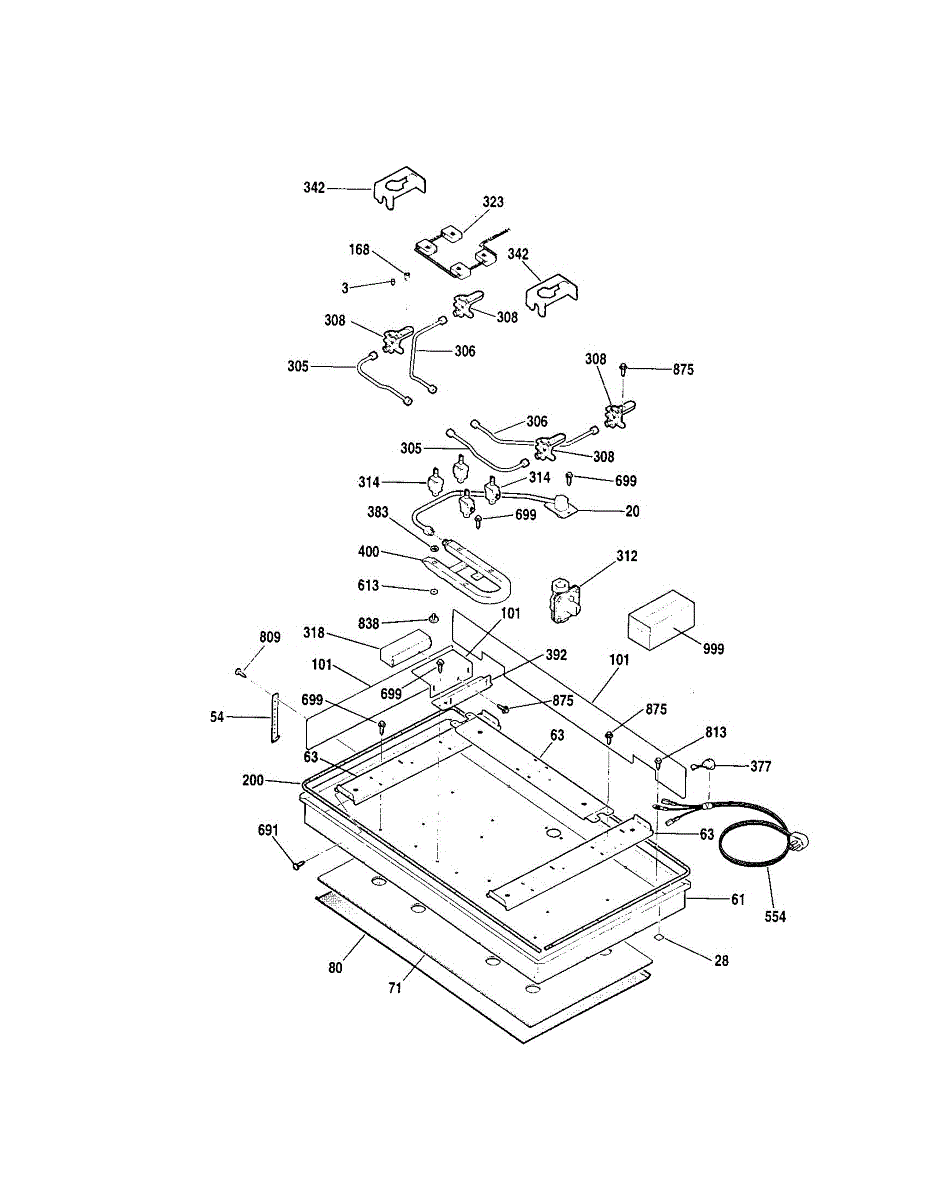

Parts for Kenmore 911.32224100 (91132224100, 911 32224100): Burner Parts

Natural gas orifice spud for cooktop burners. Installs at burner base to regulate gas flow. Replace if damaged, worn, or converting fuel type.

Natural gas orifice spud for cooktop burner assembly. Needed when converting from LP to natural gas or replacing damaged orifice threading.

Converting your cooktop from natural gas to liquid propane? This LP gas orifice spud enables proper fuel conversion for specific burner positions.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

Replace worn felt pads that cushion your range door and prevent rattling or gaps. Essential when door closes unevenly or makes noise. Confirm fit with model.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

What's included:

• 1 hold-down bracket

Install notes:

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

Insulation pad that installs around cooktop modules to reduce noise and protect internal components. Replace if torn, compressed, or missing.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Replace worn cooktop foam seal tape to prevent heat loss and ensure proper insulation. Essential for maintaining energy efficiency. Verify fit with your model.

Used for the large burners

Used for the small burners

Gas pressure regulator for cooktops and ranges. Installs on the gas supply line to control flow to burners. Replace if cracked, leaking, or missing.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Right angle

Seals the valve screw connection on your range to prevent gas leaks. Replace if you notice gas odor or during valve maintenance. Verify fit with your model.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8
