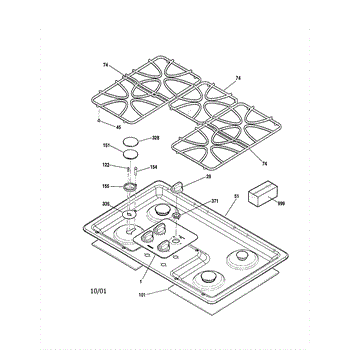

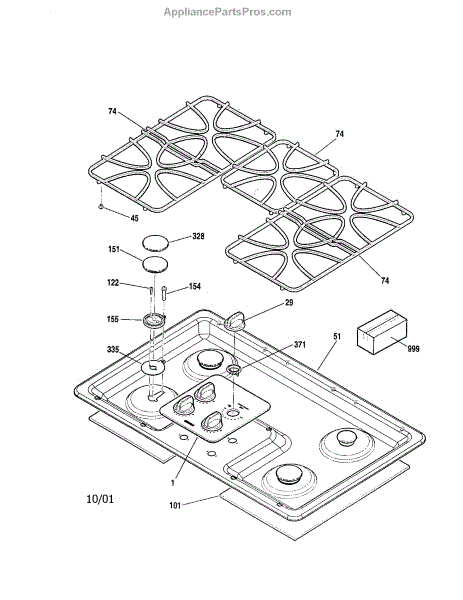

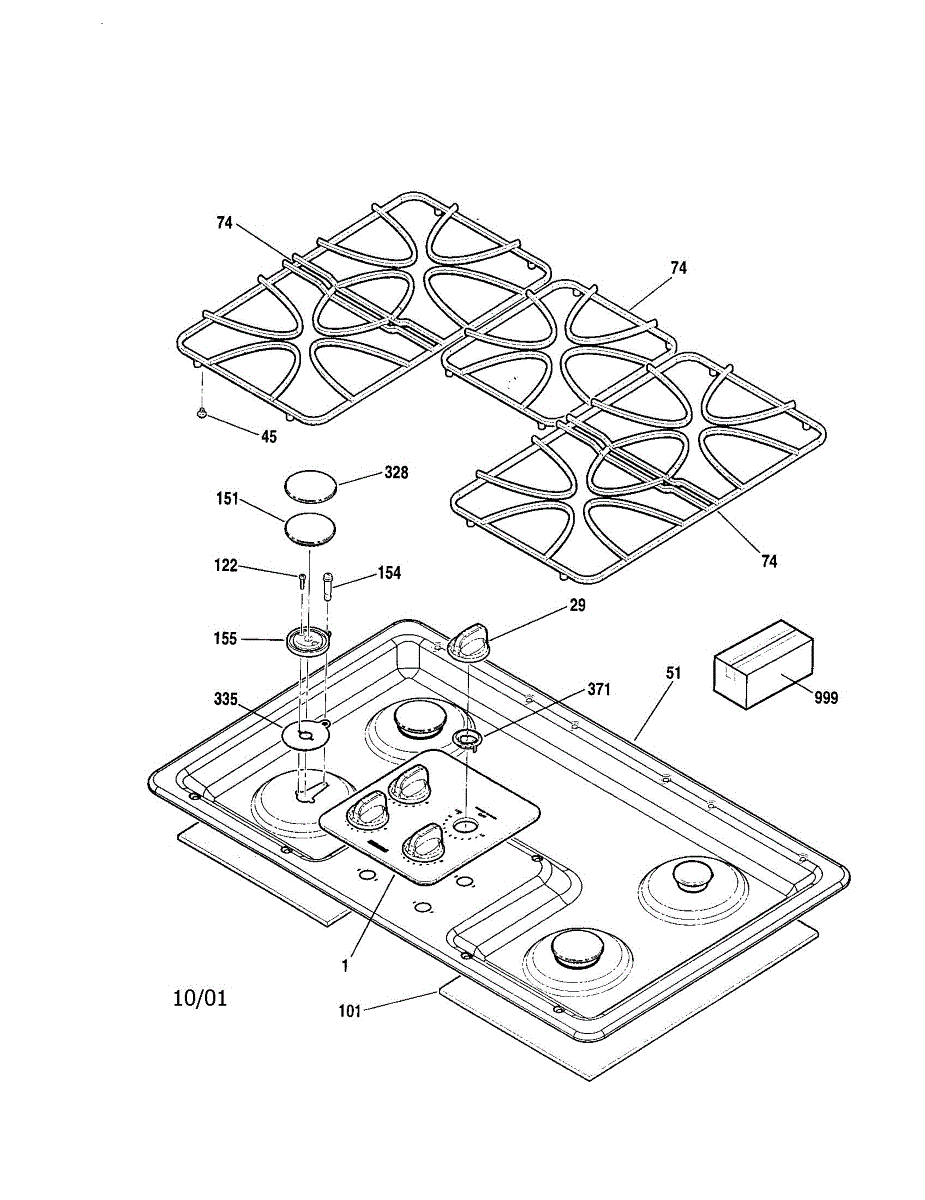

Parts for Kenmore 911.32224100 (91132224100, 911 32224100): Main Top Parts

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

Gray cooktop grate assembly that sits over the burner. Replacement needed when grate is cracked, chipped, warped, or missing. Ensures stable cookware support.

Burner grate set provides a stable surface for cookware over gas flames. Replace worn, warped, dented, or discolored grates to restore your cooktop.

Burner grate set provides a stable surface for cookware over gas flames. Replace worn, warped, dented, or discolored grates to restore your cooktop.

Burner grate set provides a stable surface for cookware over gas flames. Replace worn, warped, dented, or discolored grates to restore your cooktop.

Burner grate set provides a stable surface for cookware over gas flames. Replace worn, warped, dented, or discolored grates to restore your cooktop.

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

Approx 2 inches in diameter

Burner won't light or clicking with no spark? This igniter creates the spark to light gas burners. Easy press-fit installation takes 15 minutes.

Burner base for gas cooktops, secures to cooktop surface and holds igniter assembly. Replace if cracked, broken, or damaged during repairs.

Burner base installs beneath the burner cap on gas cooktops. Replace if cracked, warped, or dome-shaped to restore proper flame coverage and alignment.

Gray. Large. Used on the white model

Color: Black. Approx 2-3/4 inches in diameter

Color: Black. Approx 2 inches in diameter

Bisque. Large

Gray. Small. Used on the white model

Small

Note: The part is approximately 2-3/8" in diameter.

Black

Converting your cooktop from natural gas to liquid propane? This LP gas orifice spud enables proper fuel conversion for specific burner positions.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.
