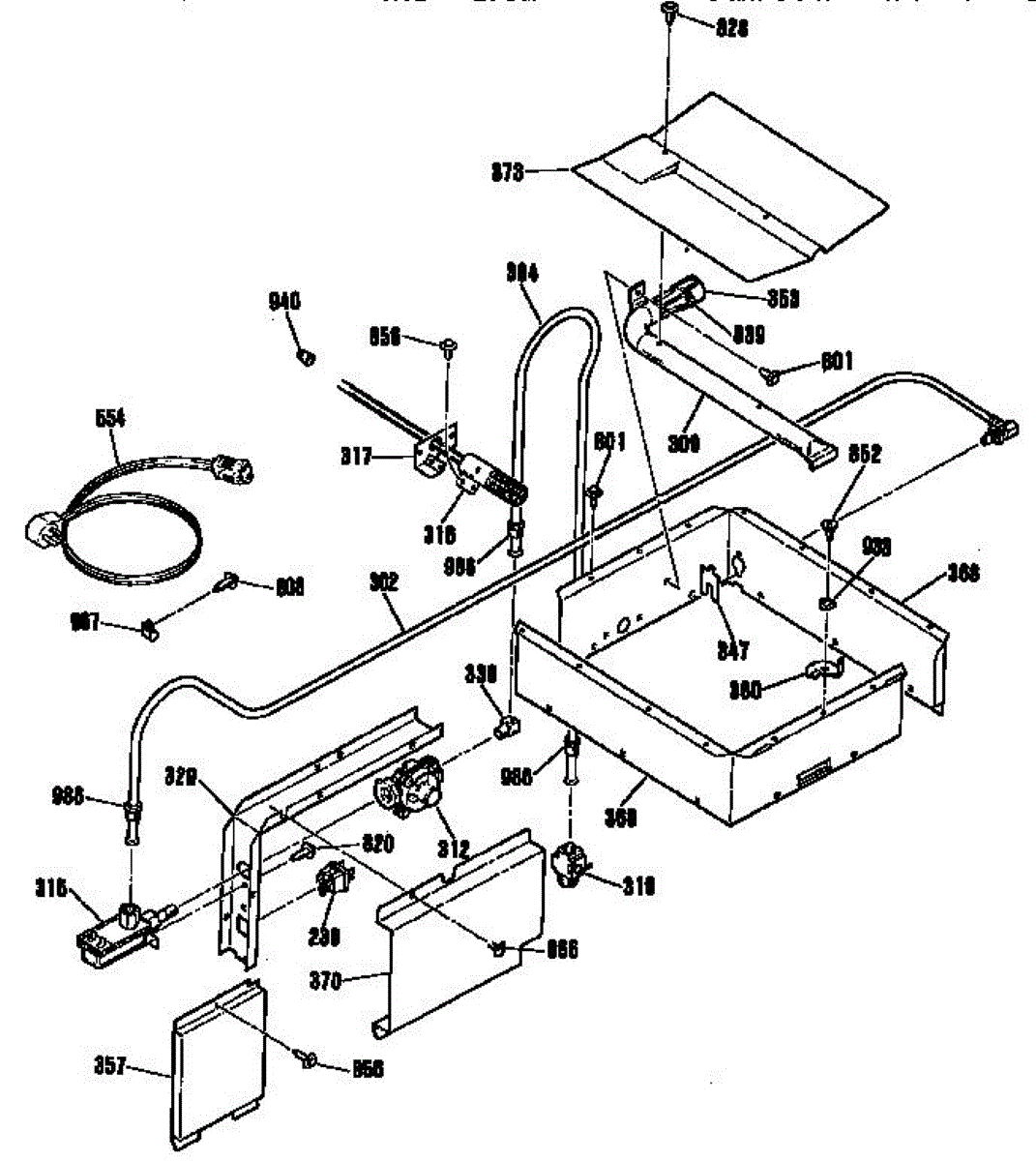

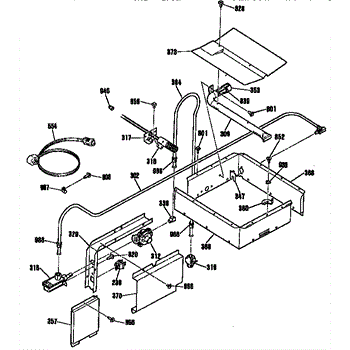

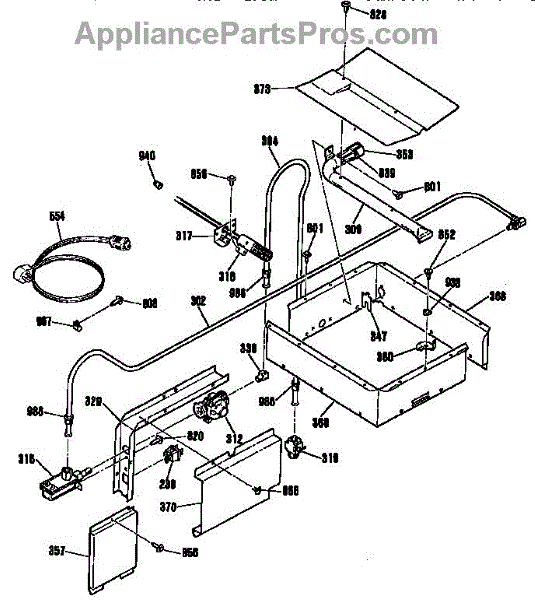

Parts for Kenmore 911.3012991 (9113012991, 911 3012991): Burner Section Parts

This tube and orifice assembly delivers regulated gas from the supply line to a range/oven burner so the appliance lights and maintains a steady flame. It restores correct fuel flow for safe, consistent heating. What it does:

• Directs gas from the manifold to the burner through a precisely sized orifice for proper flame shape and heat
• Helps fix weak or uneven flames, burners that won't ignite, or burners that barely stay lit
• Used when the existing tube is damaged, bent, clogged, or the orifice is worn or incorrect
• Works with the appliance's factory gas system to maintain proper combustion when correctly installed

• One tube and orifice assembly

• Turn off gas supply and power to the appliance before starting work
• Use proper tools and fittings; verify correct orientation and seating of the orifice and tube
• After installation, perform a leak test and observe burner ignition and flame pattern

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This left-side oven burner box supports and positions the oven's left burner assembly, helping maintain proper burner alignment for consistent ignition and cooking performance. Durable stamped metal designed for direct replacement. What it does

• Holds and secures the left-side oven burner assembly in the correct position
• Directs heat and helps keep the burner properly aligned for even cooking
• Provides the mounting surface for associated burner components and igniter
• Can cause burner ignition issues or uneven baking when damaged or bent

• Disconnect power and shut off gas supply before servicing. Follow all safety precautions.
• Handle metal edges carefully; wear gloves to avoid cuts.
• Reinstall using original fasteners and any gaskets as required; verify burner alignment before testing.

This upper oven baffle directs airflow inside the oven cavity for even cooking and protects internal components from heat and debris. It restores proper air circulation and helps maintain consistent oven temperatures. What it does

• Channels heated air around the oven cavity to support even baking and roasting
• Shields the oven's rear wall and internal parts from direct heat and residue
• Helps reduce hot spots that can cause uneven cooking
• Commonly replaced if warped, cracked, or damaged from high-heat exposure

• Disconnect power to the range before beginning any service
• Allow the oven to cool completely to avoid burns
• Generally fastened with screws or clips; keep removed hardware for reuse unless damaged

ST10-16 X 7/16"

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

Nickel

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a package of twelve replacement nuts used to secure appliance panels and components. These genuine-style nuts restore fastener retention to reduce looseness and rattling and help keep parts aligned during operation. What it does:

• Secures panels, brackets, and fasteners to maintain proper component alignment
• Prevents vibration-related loosening that can cause noise or intermittent contact
• Replaces missing or damaged nuts that can allow parts to shift or fall off
• Used wherever the matching nut size and thread are required by the appliance

• Disconnect power (and gas, if applicable) before servicing the appliance.
• Verify the nut size and thread match the stud or bolt before installation.
• Hand-start threads, then tighten with the appropriate driver or wrench; avoid overtightening.
