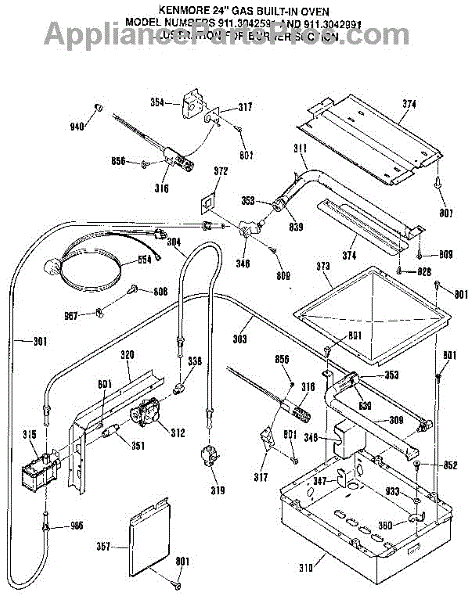

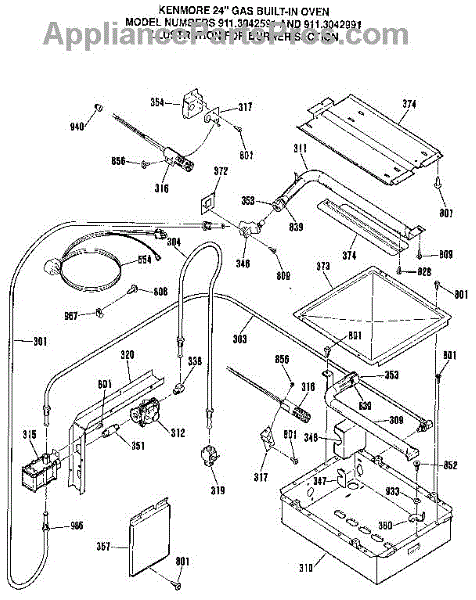

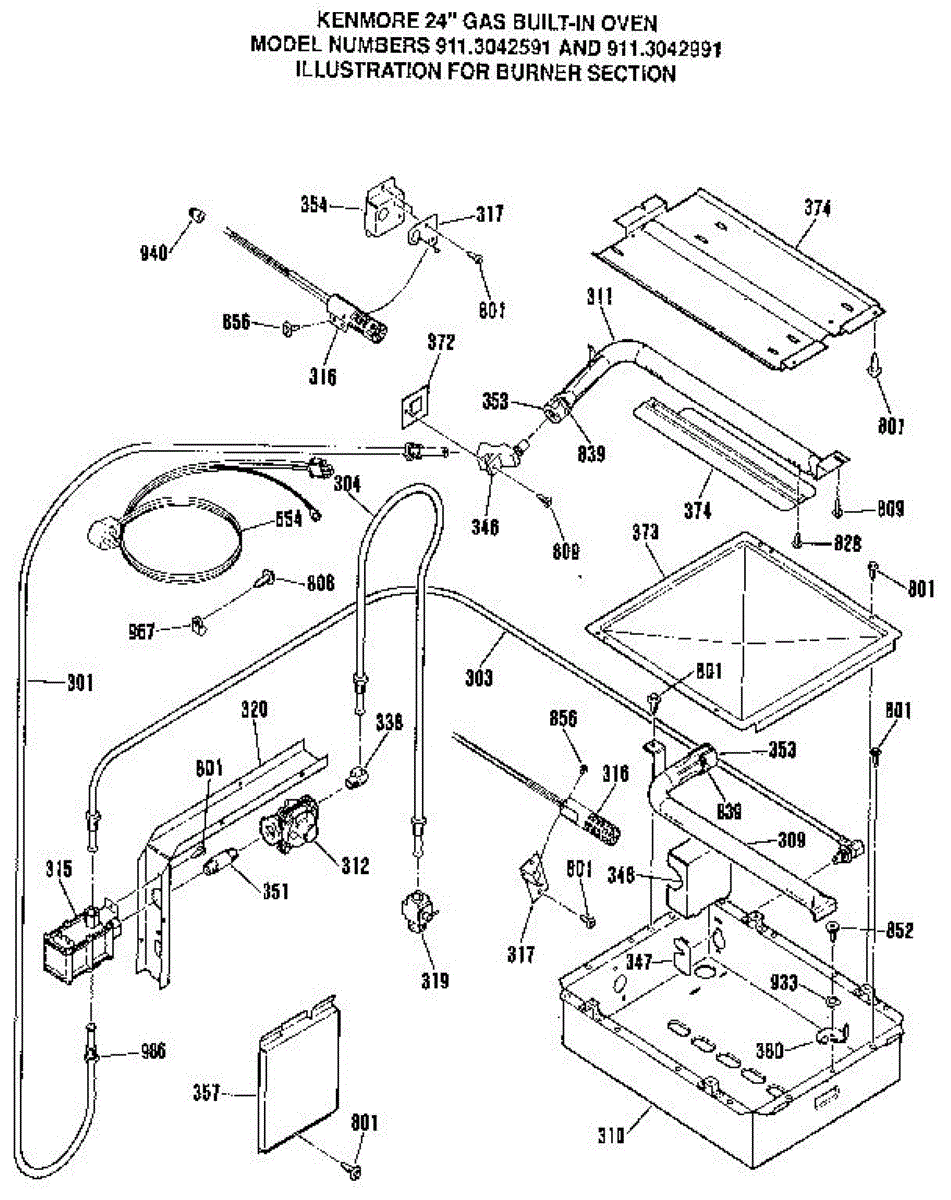

Parts for Kenmore 911.3042591 (9113042591, 911 3042591): Burner Section Parts

Tube assembly for ovens and ranges. Connects gas or water lines internally. Replace if cracked, corroded, leaking, or damaged during appliance repair.

Delivers regulated gas from the supply line to the oven burner. Replace if the tube is cracked, orifice is clogged, or assembly is damaged or missing.

Oven won't heat but igniter glows? This safety valve controls gas flow to the burner. Common fix for ranges with no heat. Moderate DIY repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Secures the igniter assembly to your range burner system. Replace this bracket if it's bent, broken, or missing to properly mount the igniter component.

Replaces a cracked, rusted, or missing bottom baffle in your oven. Installs at the base of the oven cavity to direct airflow and protect components.

Fix an oven door that won't stay closed or latch properly with this gas range door latch. Simple repair for restoring secure door operation.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

ST10-16 X 7/16"

Replacement mounting screw for securing panels, brackets, and components inside your range or oven. Restores proper fit when original is missing or stripped.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

These ceramic wire nuts provide secure electrical connections for range installation and wiring. The heat-resistant ceramic material protects connections from high temperatures generated during cooking. Use these nuts when installing a new range or repairing damaged electrical connections that have become loose or corroded.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.

This owner's user manual provides the original operating, safety, care and troubleshooting information for your appliance, helping you use it correctly and identify common issues before requesting service. What it does:

• Explains controls, settings and normal operation so you can use the appliance safely and effectively
• Lists routine care and maintenance steps to help keep the appliance working as intended
• Provides common troubleshooting tips and symptom guidance to help narrow down issues
• Includes safety warnings and appliance-specific cautions to reduce risk during use and servicing

• This is an informational reference—no tools are required to use the manual
• Follow all safety and electrical disconnect instructions before attempting repairs
• Keep the manual with the appliance for future reference and service visits
