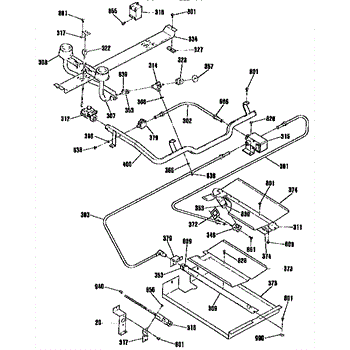

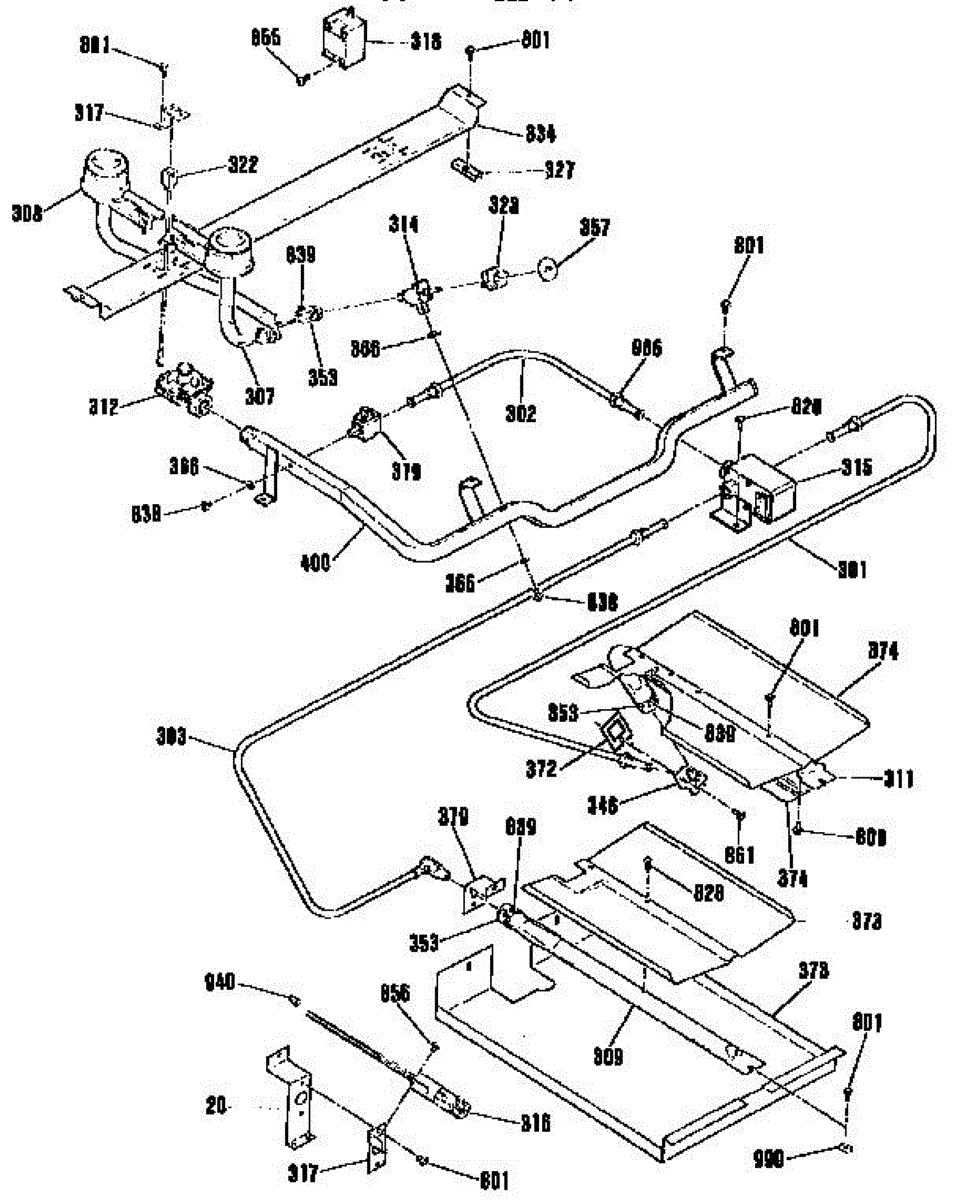

Parts for Kenmore 911.3542090 (9113542090, 911 3542090): Burner Section Parts

Protective shield that installs over gas valve shafts on cooktops. Prevents dust, crumbs, and spills from entering valve mechanisms. Replace if broken or missing.

Seals the valve screw connection on your range to prevent gas leaks. Replace if you notice gas odor or during valve maintenance. Verify fit with your model.

This orifice fitting bracket secures the orifice/fitting assembly to the appliance, keeping the fuel delivery components aligned for reliable burner operation. It replaces a worn or damaged bracket to restore stable positioning of the orifice. What it does:

• Holds the orifice/fitting in the correct position on the manifold or burner assembly.
• Prevents movement or misalignment that can cause uneven flames or ignition problems.
• Helps maintain a secure connection between the orifice and fuel line/fitting.
• Common symptom: loose or wobbly orifice, inconsistent burner operation, or difficulty igniting.

• One orifice fitting bracket.

• Turn off the gas supply and unplug the appliance before beginning any work.
• Installation typically requires removing access panels and securing the bracket with the existing fasteners; keep original hardware unless replacement is specified.
• After installation, check for proper alignment and ensure there are no gas leaks before returning the appliance to service.

ST10-16 X 7/16"

Replacement mounting screw for securing panels, brackets, and components inside your range or oven. Restores proper fit when original is missing or stripped.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

These ceramic wire nuts provide secure electrical connections for range installation and wiring. The heat-resistant ceramic material protects connections from high temperatures generated during cooking. Use these nuts when installing a new range or repairing damaged electrical connections that have become loose or corroded.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.

Speed nut for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.
