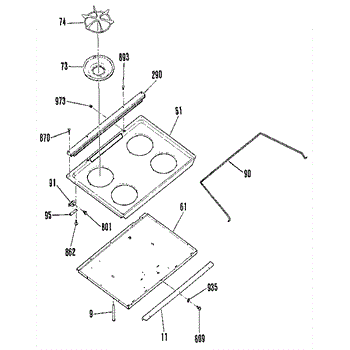

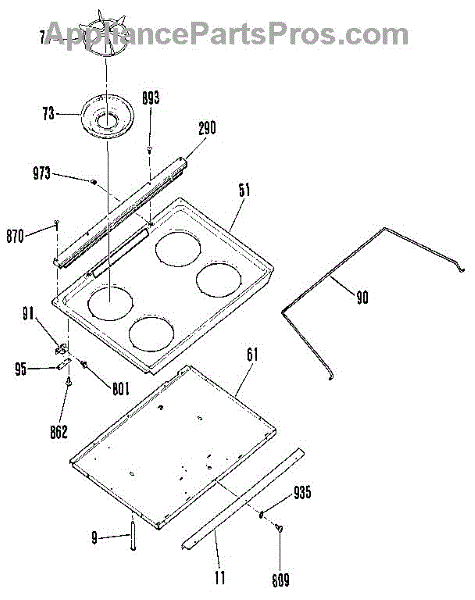

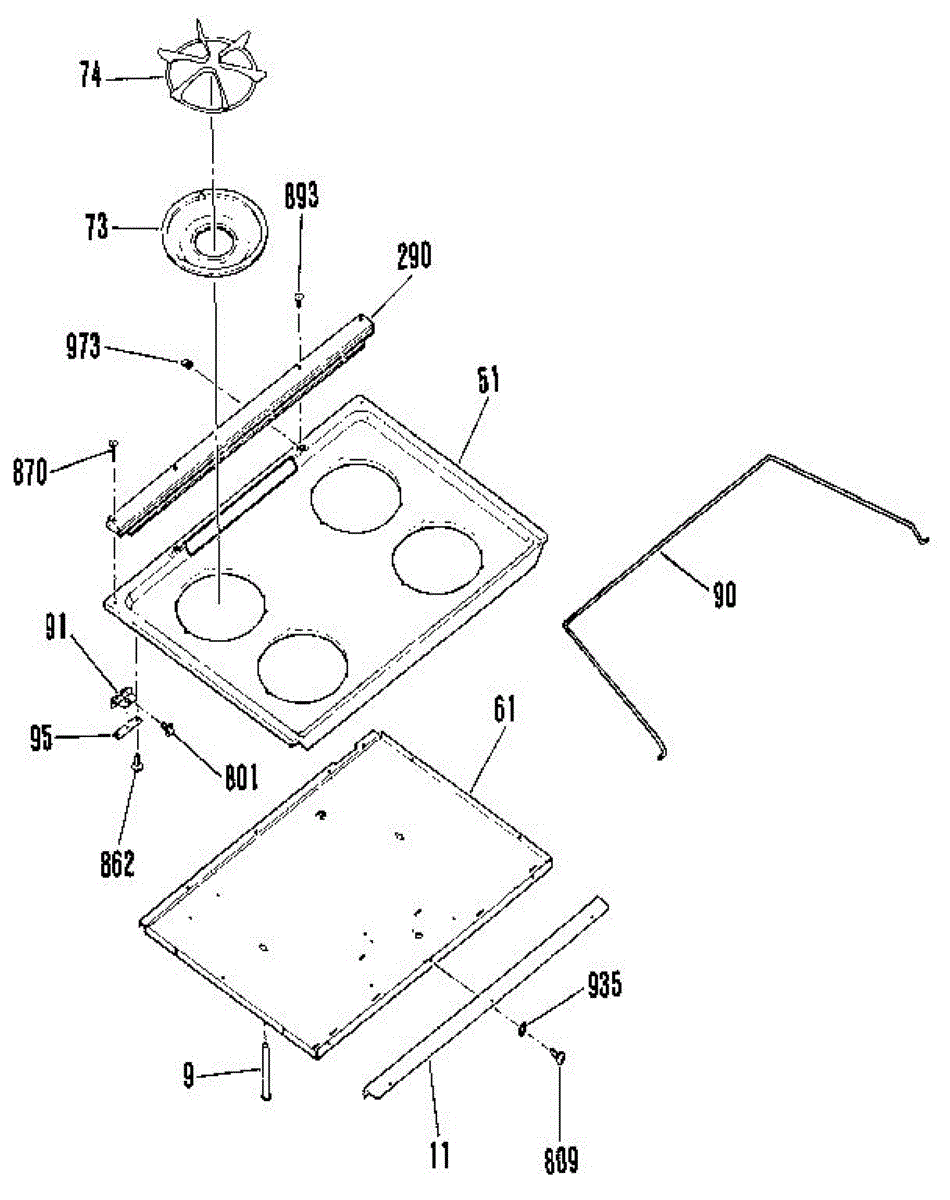

Parts for Kenmore 911.3542090 (9113542090, 911 3542090): Main Top Section Parts

This drip pan sits beneath a surface burner to catch spills and boil-overs, protecting the cooktop and making cleanup easier. Replacing a stained or damaged pan helps the burner seat correctly and restores a clean appearance.

• Collects drips and splatters under the burner area
• Shields the cooktop surface from heat and residue buildup
• Provides proper seating/alignment for burner components
• Common signs it's time to replace: rust, heavy discoloration, pitting, warping, or a missing/ill-fitting pan

• Allow the appliance to cool; disconnect power or shut off gas per your model's instructions
• Remove the components above the pan (grate/ burner parts or element, as designed for your model)
• Lift out the old pan, clean the area, and position the new pan with alignment features oriented correctly
• Reinstall components and verify proper seating and operation

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit
