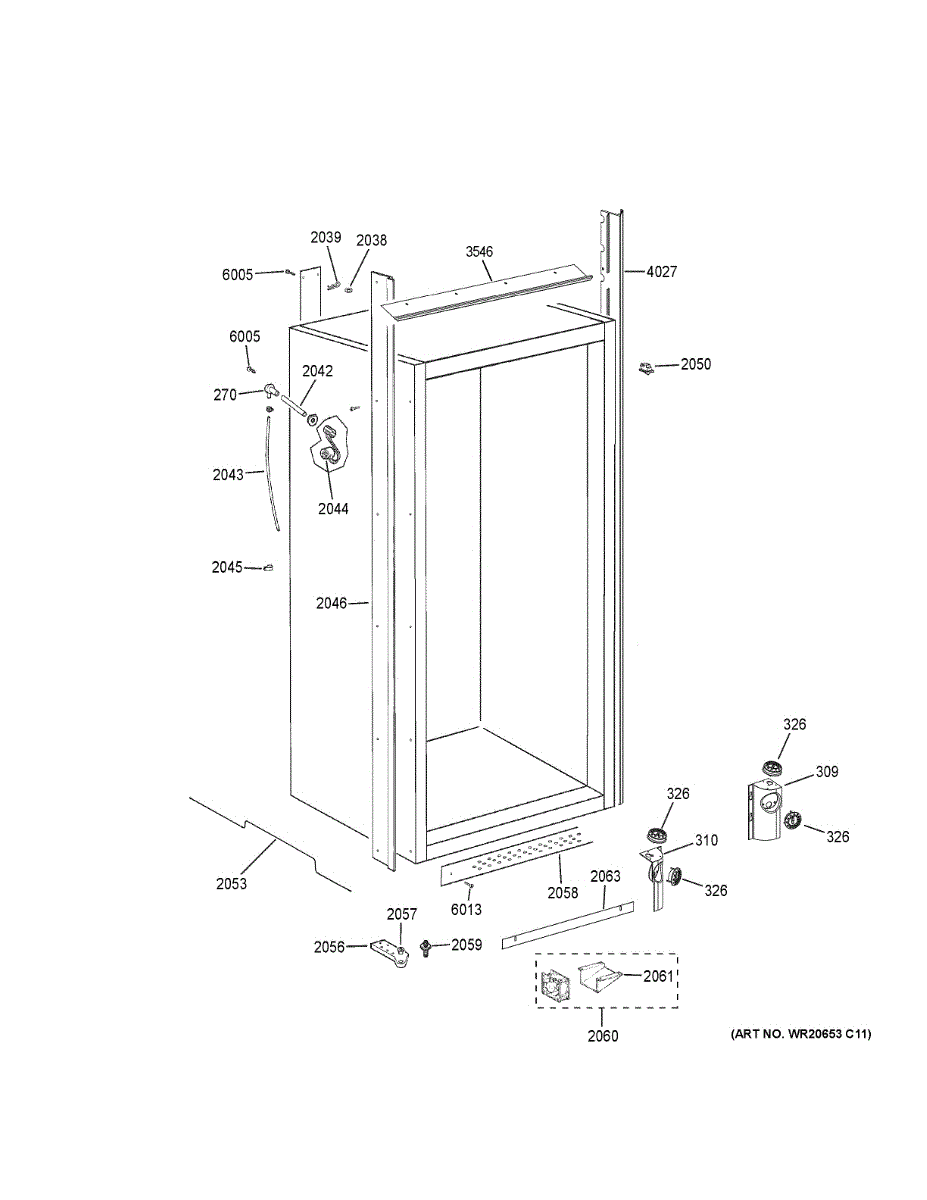

Parts for Ge ZIF360NPBLH: Cabinet (2) Parts

This rubber grommet seals and cushions the refrigerator's water fill tube where it passes through the liner, helping prevent leaks and vibration. It's a simple, low-cost part that restores a watertight, stable tube connection. What it does:

• Provides a sealed passage for the water fill tube to prevent drips and pooling
• Cushions the tube to reduce vibration and wear
• Helps keep the fill tube properly positioned for reliable water flow
• Commonly replaced when the tube leaks, moves, or the grommet is cracked or missing

• One rubber water fill grommet

• Turn off the water supply and unplug the appliance before servicing
• Access may require removing interior shelves or liners—handle panels carefully
• Press the grommet into the liner opening and feed the fill tube through until seated

This right-side bottom light assembly replaces the damaged or burned-out light housing in the refrigerator fresh-food section, restoring interior illumination and a finished appearance. Fits in the lower right area where the original light assembly mounts. What it does:

• Houses and protects the refrigerator interior light bulb so the fresh-food area stays illuminated
• Restores secure mounting and proper light direction when the original housing is cracked, loose, or missing
• Helps prevent moisture and debris from contacting the bulb or socket
• Resolves symptoms such as dim or no light in the lower/right compartment, rattling or a loose lens

• One right-side bottom light assembly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove only the fasteners or clips specified by the appliance design; handle the lens and bulb carefully to avoid damage
• If replacing the bulb, use the correct replacement bulb type and do not overtighten

This left-hand bottom light assembly restores illumination to the lower compartment, making it easier to see food and controls. It replaces a damaged or non-working lower light housing for improved visibility and safe use. What it does:

• Provides interior lighting for the refrigerator's lower/bottom left area
• Replaces a cracked lens, damaged housing, or faulty light assembly that causes no light or flickering
• Secures into the factory left-hand mounting location and connects to the existing wiring harness
• Helps you locate items and read controls in the lower compartment

• Disconnect power to the appliance before starting any repair
• Remove shelves/drawers as needed to access the lower left light housing
• Handle lens and bulb/socket carefully to avoid damage; replace bulb if necessary
• Secure assembly with factory screws and restore power; test operation before reassembling

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This fill tube assembly delivers water to the refrigerator ice maker and dispenser area, restoring proper fill function and reducing leaks from cracked or worn tubing. A direct-fit replacement for the original fill pathway. What it does

• Routes water from the inlet to the ice maker/dispenser so ice trays and dispenser fill correctly
• Replaces cracked, split, or clogged tubing that can cause leaks or reduced water flow
• Helps stop intermittent filling or underfilled ice trays when the original tube is damaged
• Works with the refrigerator's existing valve and mounting points for a like-for-like repair

• One fill tube assembly

• Turn off power and shut off the water supply before starting any repair
• Inspect mounting clips and seals; reuse or replace as needed for a watertight fit
• Some models require removing interior panels or the ice maker for access; follow OEM instructions
• Test for leaks after reconnecting water and restoring power

Size: 1/4 inch diameter.

This master light switch kit replaces the main oven light switch assembly so the oven light turns on and off reliably. Designed for direct-fit replacement to restore normal oven lighting control. What it does:

• Replaces the oven's master light switch assembly that controls interior lighting
• Restores the ability to turn the oven/cabinet light on and off
• Helps eliminate flickering, intermittent operation, or complete light failure
• Works with existing wiring and mounting points for a straightforward swap

• One master light switch kit (assembly) as shown

• Disconnect power to the appliance before starting any work
• Basic hand tools required; follow OEM wiring and grounding instructions
• Verify proper operation after installation before returning appliance to service

This assembly includes the refrigerator's water inlet valve mounted on its bracket. It regulates water flow from the household supply into the refrigerator's water system to restore reliable filling for the ice maker and/or dispenser.

• Controls water flow by opening/closing the valve when the refrigerator calls for water
• Helps deliver proper water during fill cycles and shuts off cleanly after
• Common symptoms: no ice production, no water from dispenser, slow/weak flow, leaks at the valve, or loud buzzing/chattering during fill
• Mounts in the original location using the included bracket for secure fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure (dispense water if equipped) and keep a towel handy for residual water
• Move tubes and wire connectors to the new valve one at a time to maintain placement
• Restore water and power, then check all connections for leaks and proper operation

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

A drain fan bracket assembly that secures the drain/fan motor and mounting hardware to the appliance, helping keep the fan stable and aligned for reliable operation. What it does:

• Holds the drain fan or motor in the correct position to maintain airflow and drainage
• Reduces vibration and noise caused by a loose or damaged bracket
• Prevents the fan from rubbing or binding, which can cause motor wear or failure
• Can be replaced when cracked, bent, or otherwise broken to restore proper fan operation

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Remove surrounding panels and fasteners to access the bracket; retain mounting screws for re-use if not replaced.
• Inspect adjacent components (fan blade, motor mounts, wiring) and replace any damaged parts.

This toe kick skirt replaces the lower front trim that covers the gap beneath the appliance, restoring a finished look and protecting under-cabinet components from dust and debris. It's a direct-fit exterior trim piece designed to match factory appearance. What it does:

• Covers the open space under the appliance to improve appearance and conceal components
• Helps keep dust, dirt and small debris out of the area beneath the unit
• Restores a secure lower trim that may have been cracked, bent or missing
• Re-establishes a flush edge to prevent small items from sliding under the appliance

• One toe kick skirt (single lower front kickplate)

• Disconnect power to the appliance before starting work to ensure safety
• Typically installs from the front using existing clips or screws; retain original fasteners if possible
• Handle trim carefully to avoid scratching painted or plastic surfaces during installation
• Purchase replacement clips/screws specified for your model

Size: 10-32 GXTT FLP.595 S
