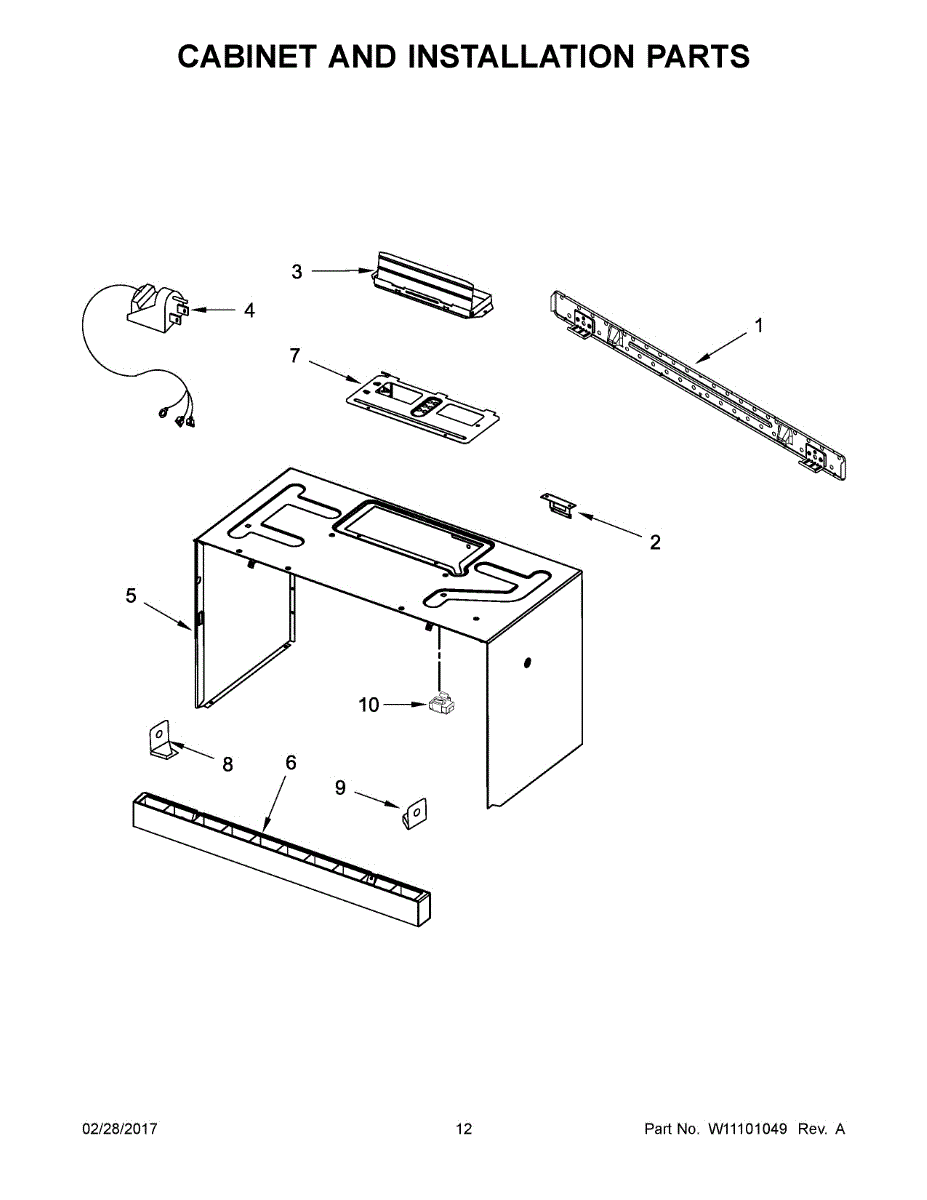

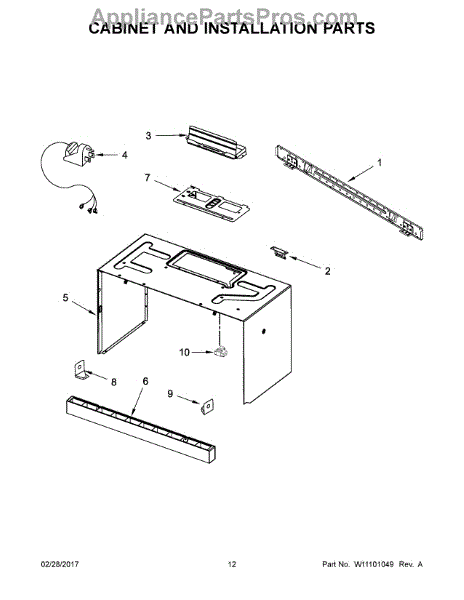

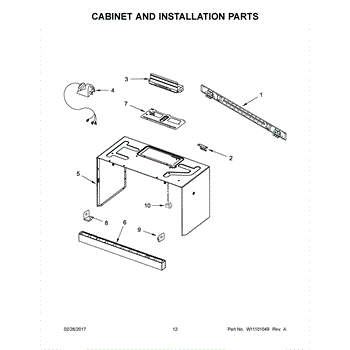

Parts for Whirlpool UMV1160CB3: 07 - Cabinet And Installation Parts

Parts for Whirlpool UMV1160CB3: 07 - Cabinet And Installation Parts

Location on Diagram
Part Description
Price & Availability
1
Best Seller
Product photo
4.8 (54)
By: Whirlpool
Part Number: W11025649

Wall mounting plate that secures and stabilizes your over-the-range microwave. Replace if cracked, bent, or missing for safe, proper installation.

More
$23.61

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
2
Product photo
By: Whirlpool
Part Number: 8206385

Molded wire clip that secures wiring and harnesses to the microwave cabinet. Replace if broken, cracked, or missing to prevent wire rubbing and chafing.

More
$25.52

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3
Best Seller
Product photo
4.8 (9)
By: Whirlpool
Part Number: W10843943

Air damper assembly for over-the-range microwaves. Installs at top exhaust opening to control airflow direction. Replace if cracked, missing, or broken.

More
$60.52

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
4
Product photo
4.8 (4)
By: Whirlpool
Part Number: W10708076

Power cord connects your microwave to the wall outlet. Replace if damaged, frayed, chewed, or cut. Attaches to internal wiring with wire connectors.

More
$14.71

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
By: Whirlpool
Part Number: WPW10244765

Outer cabinet wrapper for your microwave. Replaces cracked, dented, or discolored exterior housing. Restores appearance and structural integrity.

More
$93.07

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5A
Product photo
By: Whirlpool
Part Number: WPW10245176

Outer cabinet wrapper panel for microwave ovens. Encloses internal components and provides structural support. Replace if cracked, dented, or damaged.

More
$116.66

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
Best Seller
Product photo
5.0 (13)
By: Whirlpool
Part Number: W10245217

White plastic vent grille that installs on the front of your microwave. Replace if cracked, broken at mounting tabs, or missing. Secured with screws.

More
$62.61

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6A
Best Seller
Product photo
5.0 (15)
By: Whirlpool
Part Number: W10245218

Plastic vent grille that covers the microwave's internal components while allowing airflow. Replace if cracked, broken, or missing from impact or wear.

More
$61.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6B
Best Seller
Product photo
5.0 (24)
By: Whirlpool
Part Number: W10245216

Replaces cracked, broken, or missing microwave vent grille cover. Installs over exhaust outlet for proper ventilation and debris protection.

More
$78.32

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Product photo
By: Whirlpool
Part Number: W10210832
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10830163

Black mounting bracket for microwave and microwave/hood combo installations. Replaces broken, cracked, or missing brackets that secure your unit.

More
$8.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8A
Product photo
4.5 (2)
By: Whirlpool
Part Number: W11026306

Chrome mounting bracket that attaches the vent grill to your microwave. Replace broken, cracked, or missing brackets to securely hold the grill in place.

More
$5.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9A
Product photo
4.0 (1)
By: Whirlpool
Part Number: W10703282

Secures internal components to the microwave cabinet. Replaces broken or worn brackets that cause vibration, rattling, or misaligned panels.

More
$14.14

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10810989

Replace your cracked or broken microwave mounting bracket. This black metal security clip installs at the top to secure your over-the-range unit to the wall.

More
$9.86

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10
Product photo

Nut

4.9 (7)
By: Whirlpool
Part Number: W10596040

The Nut is an OEM part for Whirlpool microwaves. It helps secure various parts within the microwave, ensuring proper assembly and function. It is used to fasten items, keeping them securely in place during use.

A bad microwave nut can occur due to wear and tear over time or accidental damage. If the nut becomes loose, stripped, or misplaced, it can lead to instability and compromise affected parts.

Symptoms of a bad microwave nut include:

  • Loose or wobbly parts.
  • Difficulty in operating the microwave.
  • Unusual noises or vibrations during use.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

More
$2.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W10917685
$54.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W10539842
$13.69

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W10539840

Wire harness for microwaves and microwave/hood combos. Replaces damaged, frayed, or disconnected wiring assemblies. Essential for restoring connections.

More
$16.62

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI
Best Seller
Product photo
4.6 (7)
By: Whirlpool
Part Number: W10821385

Includes brackets, screws, and fasteners for secure microwave installation. Replace missing, lost, or incomplete hardware from floor models or clearance units.

More
$75.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI
Best Seller
Product photo
4.7 (18)
By: Whirlpool
Part Number: W10190018

Template guides installation of over-the-range microwaves, ensuring correct cabinet alignment and hole placement. Replace if missing or damaged during install.

More
$8.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI
Best Seller
Product photo
4.8 (16)
By: Whirlpool
Part Number: WP8169704

Metal screw for mounting microwaves to upper cabinets. Replace if lost, stripped, or damaged during installation. Installs with screwdriver.

More
$9.05

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
