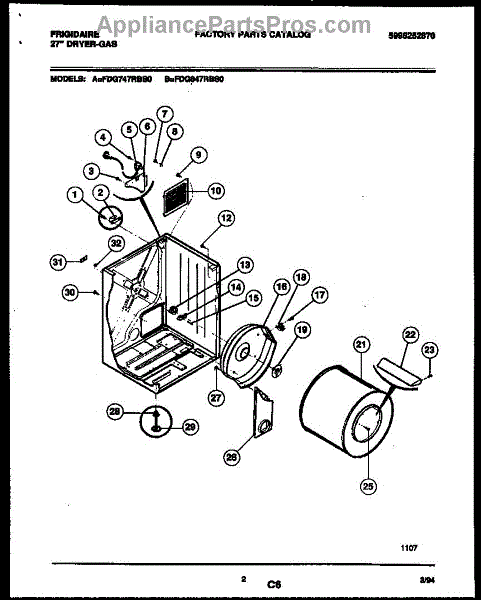

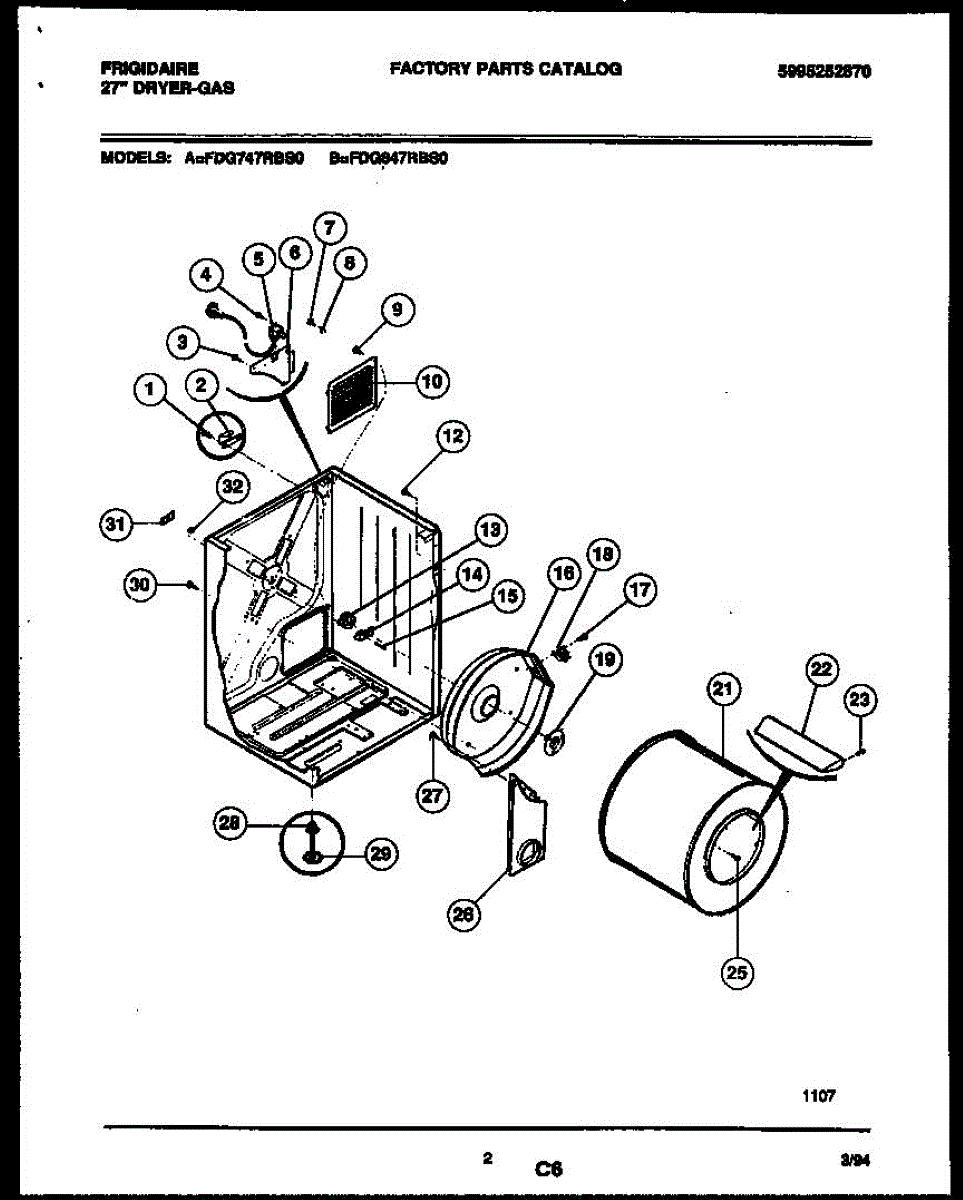

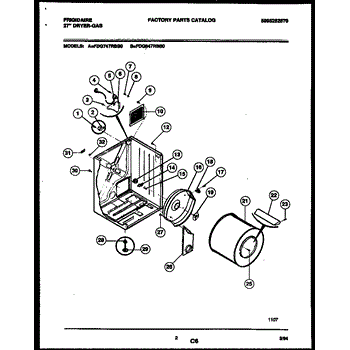

Parts for Frigidaire FDG747RBS0: 02 - Cabinet And Component Parts

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

The Dryer Drum Bearing is an OEM part for Frigidaire dryers. It supports the dryer drum, ensuring smooth rotation during the drying cycle. This part attaches to the inside of the rear panel of the cabinet, offering support to the dryer drum.

You should replace the drum bearing if it becomes worn out or damaged. Causes of a bad drum bearing can include normal wear and tear, overloading the dryer, or lack of lubrication.

Symptoms of a bad drum bearing include:

• Loud squeaking or grinding noises during operation
• The drum not turning smoothly or becoming misaligned
• Increased friction causing overheating or burning smells
• The dryer not tumbling clothes properly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drum Bearing Bracket is an OEM replacement part for Frigidaire dryers. It holds and supports the drum bearing, which allows the dryer drum to spin smoothly during the tumbling and drying cycle.

Causes of failure can be cracking or breaking of the bracket over time due to constant use and stress. Improper installation that puts strain on the bracket may also lead to issues.

Symptoms of a bad drum bearing bracket include:

• Excessive vibration or shaking during operation
• Loud grinding or scraping noises
• The dryer drum not spinning properly or at all
• Premature wear of the drum bearing

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

A replacement bracket screw used to fasten internal brackets and panels to the appliance frame, restoring secure mounting and reducing rattling or misalignment caused by stripped, corroded, or missing fasteners. What it does

• Secures mounting brackets, panels or trim to the appliance chassis.
• Restores proper alignment and prevents movement or vibration-related noise.
• Use when the original screw is stripped, rusted, broken, or missing.
• Square-drive head provides a reliable engagement for positive tightening.

• Disconnect power to the appliance before servicing to avoid electrical hazard.
• Use the correct square (Robertson) driver to avoid cam-out and head damage.
• Tighten until snug; avoid over-tightening which can strip threads or crack panels.
• If threads are damaged, replace with the matching screw size and type or repair threads before reuse.

This safety thermostat is a temperature-limiting switch that helps protect your refrigerator/freezer by opening the circuit if temperatures reach an unsafe level, preventing damage to components and reducing fire risk. What it does:

• Monitors internal temperature and interrupts power when the preset limit is exceeded
• Prevents overheating of heating elements or compressors in defrost and refrigeration circuits
• Helps stop continuous run or cycling caused by thermal faults
• May be used as part of the fridge/freezer safety/limit control system

• Disconnect power to the appliance before inspecting or replacing the thermostat
• Handle carefully and avoid kinking or crushing any sensing element or capillary tube
• Verify function and wiring location against your model's service manual or wiring diagram

For a complete drum bearing and shaft kit order 5303281153.

This replacement screw secures appliance panels and components to restore proper fit and reduce movement. It's a simple, direct fix when small fasteners are missing, worn, or stripped and panels sit loose or rattle. What it does:

• Secures trim, panels, or internal components to keep parts aligned
• Prevents rattling or vibration caused by loose fasteners
• Replaces missing or damaged screws that prevent proper panel attachment
• Restores a safe, snug fit for covers and access panels

• Disconnect power or fuel supply before accessing the appliance for safety.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent damage to threads or housing.
• Keep small parts away from children and pets during installation.

Sold individually.

For a complete drum bearing and shaft kit order 5303281153.

The Ball is an OEM part for Frigidaire dryers. This part helps the drum to rotate smoothly and evenly. It provides a stable and low-friction contact point, allowing the drum to turn efficiently during drying cycles. This is a drum-bearing ball only. For a complete drum bearing and shaft kit order 5303281153.

Causes of a bad ball can include regular wear and tear, friction from continuous drum rotation, or physical damage.

Symptoms of a bad dryer ball include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming unbalanced
• Increased friction leading to higher energy consumption
• Visible wear or damage to the ball

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This small retainer clip secures trim, panels, or components in place to prevent rattling and keep parts aligned. It's a simple replacement that restores proper fit and reduces vibration or loose panels. What it does:

• Holds appliance trim or panel pieces in position to prevent movement and noise
• Helps keep wiring or small components routed and secured away from moving parts
• Stops gaps or misalignment that can cause rubbing or vibration sounds
• Restores the intended fit where a worn or broken clip allows play

• Disconnect power to the appliance before starting any repair
• Access the clip location by removing the applicable trim or panel per your model's service instructions
• Use common hand tools; replace broken clips with the identical style to ensure proper fit
• Replace all matching clips for consistent fit

The Rear Drum Bearing Kit is an OEM replacement part for Frigidaire dryers. It contains a set of parts responsible for supporting the rear end of the dryer drum, allowing it to rotate smoothly and efficiently during the drying cycle.

Symptoms of a faulty Rear Drum Bearing Kit include:

• Excessive noise or grinding sounds coming from the rear of the dryer
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear or damage on the existing bearings
• Increased vibrations or shaking during the drying cycle

Causes of needing to replace the rear drum bearing kit can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryer models.

NOTE: The metal plate holes are not threaded. Use the self-tapping screws provided in the kit to thread the plate.
