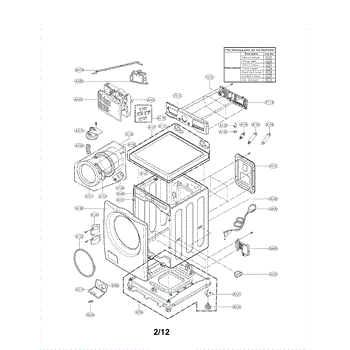

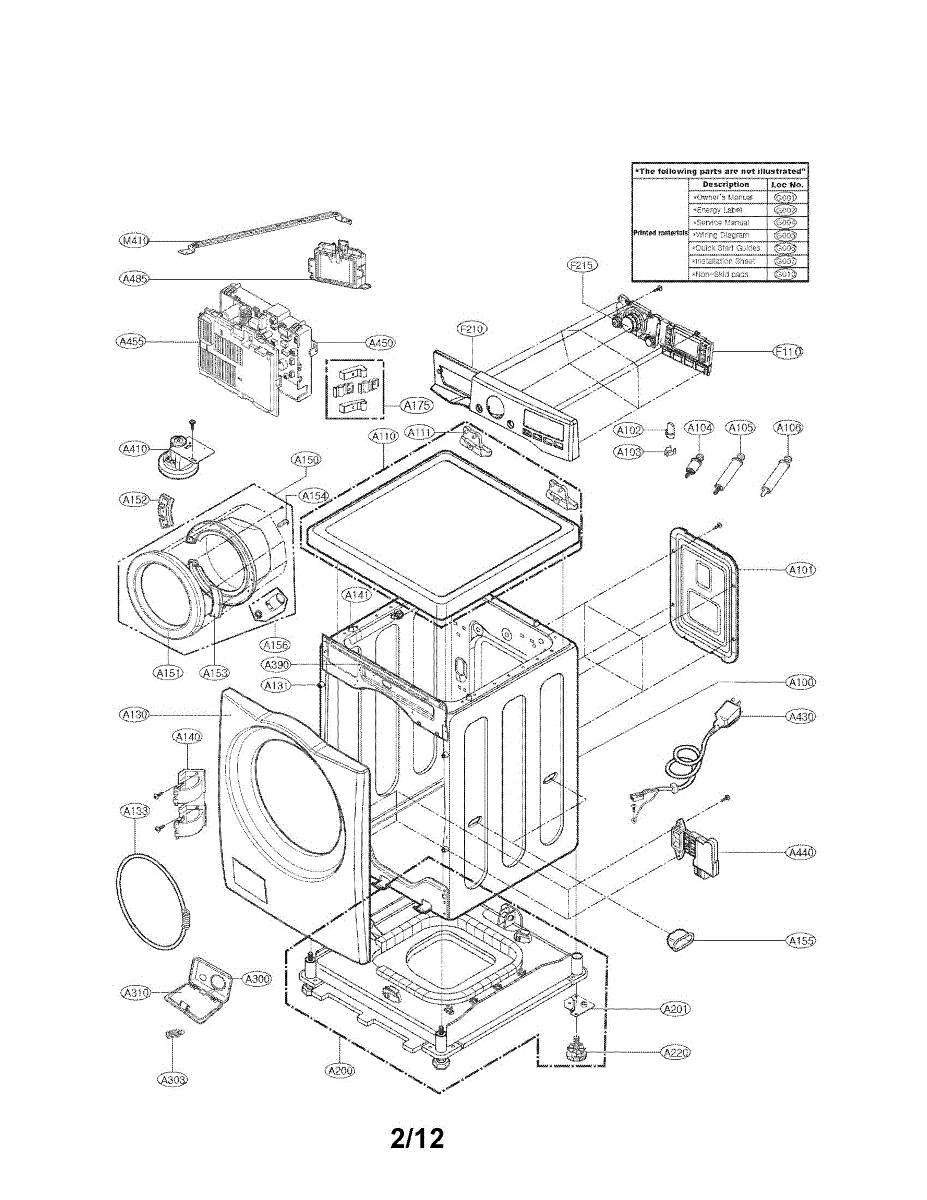

Parts for Lg WM3070HRA/00: Cabinet And Control Panel Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This rear cover is the outer housing panel that protects the appliance's internal components and helps maintain proper airflow and support. It replaces a cracked, broken, or missing rear housing panel to restore protection and fit. What it does:

• Shields motors, wiring, vents, and other internal parts from dust, debris, and accidental contact
• Helps direct airflow and maintain correct ventilation for safe operation
• Restores proper mounting points and prevents rattles from a loose or damaged back panel
• Commonly replaced when there is visible damage, missing mounting tabs, or unusual noise from the rear

• One rear cover

• Disconnect power (unplug or switch off circuit breaker) before starting any repair
• Removal usually requires taking off the exterior panels and a few screws or clips; retain all fasteners for reinstallation
• Watch for sharp edges and wear protective gloves; handle internal wiring and components gently

The Shipping Bolt is an OEM part for LG washing machines, designed to secure the washing machine's drum during transportation. These bolts are important for preventing damage to the drum and suspension system by immobilizing the drum, thereby avoiding any excessive movement or vibrations that could occur while moving the appliance.

Causes of a bad shipping bolt can include improper removal during installation, damage from handling, or degradation over time if it was left in place during operation. A damaged or missing shipping bolt can lead to issues with the washing machine's drum alignment and overall stability.

Symptoms that indicate the shipping bolts need removal or installation include:

• Excessive noise or vibrations during operation, suggesting the bolts were not removed after installation.
• Damage to the washing machine's drum or suspension system after moving the appliance without the bolts properly installed.

This OEM LG part can also be used on Kenmore/Sears appliances.

Secures the washer’s tub and basket during moving to prevent internal damage. If the originals are missing after a move, install replacements for transport and remove them before using the washer.

What it does

• Locks the tub and basket to limit movement in transit
• Helps prevent suspension damage and internal rattles while relocating
• Replaces missing, bent, or stripped transport bolts
• Useful for moves, storage, or service shipments

What’s included
One shipping bolt assembly (sold individually).

Install notes

• Unplug power and turn off water before service
• Insert through the rear panel into the designated mounting point; tighten snugly—don’t overtighten
• Do not operate the washer with shipping bolts installed; remove all bolts after placement
• Some models use multiple bolts and lengths—match count/positions to your owner’s manual

Usage tip
After removal, bag and tape the bolts to the cabinet so they’re on hand for the next move.

The Outer Door Boot Seal Clamp is an OEM part for LG washing machines. This clamp secures the outer door boot seal, ensuring a tight seal to prevent water leaks during the wash cycle.

You should replace the outer door boot seal clamp if it becomes damaged or loses its tension, which can happen due to regular use, exposure to harsh cleaning agents, or physical wear and tear.

Symptoms of a bad outer door boot seal clamp include:

• Water leaks from the door area during the wash cycle
• Loose or shifting door boot seal
• Difficulty in closing the washing machine door securely

This OEM LG part is also compatible with Sears/Kenmore.

This hinge assembly supports and pivots the appliance door or lid. Replacing a worn or damaged hinge restores smooth operation, keeps the door aligned with the cabinet, and helps ensure proper closing and consistent seal engagement.

• Provides the pivot point for the door/lid to open and close
• Supports door weight to maintain alignment with the frame
• Helps the door close flush to engage latches/seal properly
• Common symptoms: door sags or rubs, won't close fully or pops open, excessive play, squeaking or binding

• Disconnect power and support the door before removing hinge fasteners
• Mark or photograph hinge orientation and any spacers/washers for accurate reassembly
• Transfer any reusable components from the old hinge, if present
• Tighten fasteners securely and adjust alignment as needed

A replacement holder assembly that secures and supports internal components for proper alignment and operation. Restores stable mounting where the original bracket is cracked, bent, or broken so the appliance runs quietly and reliably. What it does

• Provides a secure mounting point for internal parts that rely on a fixed support
• Prevents rubbing, misalignment, and excess vibration caused by a damaged holder
• Helps restore correct component positioning to improve part interaction and operation
• Commonly used when the original bracket is cracked, worn, or no longer holds parts firmly

• One holder assembly

• Disconnect power before starting any repair; shut off water supply if the repair requires opening plumbing
• Basic hand tools typically required; handle clips and tabs gently to avoid damage
• Inspect adjacent components for wear and replace if needed for a long-lasting repair

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Door Latch Hook is an OEM replacement part for LG front load washers. It is a component of the overall latch and locking assembly and works to securely close and lock the washer door. With a properly functioning latch hook, the washer door remains tightly sealed during cycles to ensure optimal water retention and the most thorough cleaning.

Symptoms of a bad door latch hook include:

• Water leaks around the door during washing cycles
• The door fails to latch fully and unlock after cycles
• Difficulty opening or closing the washer door completely
• Alignment issues like misaligned or skewed door positions

Causes of a bad door latch hook can include wear over extended use. Damage may also result from washing hard or abrasive items that put excess strain on the latch mechanism over time.

This OEM LG part is compatible with Sears/Kenmore front-load washer models as well.

The Magnetic Door Plunger is an OEM part for LG washing machines. It is designed to securely hold the door in a closed position during the operation cycle, employing a magnet mechanism for enhanced reliability. The plunger ensures that the door latch is properly engaged, preventing the machine from running if the door is not closed correctly.

Causes of a bad Magnetic Door Plunger can include wear and tear from constant use, failure of the magnetic mechanism due to exposure to moisture or mechanical damage, or a misalignment that prevents the door from closing properly.

Symptoms of a bad Magnetic Door Plunger include:

• The washing machine door not staying closed during cycles.
• The machine failing to start due to a door sensor not detecting closure.
• Random pausing of the machine during operation if the door unlatches.

This OEM LG part is also compatible with Sears/Kenmore.

This door latch assembly secures the appliance door closed so cycles can start and run safely. A worn or damaged latch can prevent the door from locking, stopping the unit from operating or causing it to pause mid-cycle.

• Engages with the door strike to keep the door closed and locked during operation
• Faulty latches can lead to the door not locking, cycle not starting, or errors indicating an open door
• Also cause intermittent stopping if the latch doesn't stay engaged

• Disconnect power before servicing
• Handle wiring connectors carefully; note their positions for reassembly
• Align the latch with mounting points and tighten fasteners securely
• Test door closure and operation before returning to service

This base bracket mounts to the washer's lower frame to hold associated components securely in place. By keeping parts properly anchored, it helps maintain alignment and stability during operation to minimize vibration and noise.

• Attaches to the washer base and provides a mounting point for designated hardware
• Helps keep assemblies from shifting during agitation and spin
• Supports smooth, quieter operation by reducing vibration and rattling
• Common signs of failure include a bent or cracked bracket, loose/misaligned parts, or unusual noises from the base area

• Disconnect power and water supply before servicing; move the appliance for safe access
• Carefully tip or lay the washer back on protective padding; use a helper for stability
• Note the bracket's orientation and reuse existing mounting hardware as applicable
• Tighten fasteners securely and verify nearby parts have proper clearance before test run

This replacement knob assembly restores tactile control for a range or cooktop control. It provides a secure grip and clear detent positions so you can set burner or surface settings reliably. What it does:

• Replaces a worn, cracked, or missing control knob to regain safe, predictable control
• Engages the shaft and detents so settings stay put during use
• Helps eliminate slipping or difficulty turning the control
• Matches original fit and function for direct replacement

• One knob assembly as shown

• Turn power/gas to the appliance off before servicing; follow appliance manufacturer safety instructions
• Remove the old knob by pulling straight off the control shaft; press the new knob onto the shaft until it seats
• Wear work gloves to protect hands from sharp edges during access

Restore stable, level support with this replacement leg assembly. The adjustable foot steadies the unit on uneven floors, reducing vibration and rattling while allowing precise leveling for proper alignment and smooth, reliable operation.

• Provides adjustable support at the base of the unit
• Helps keep the appliance level on uneven or sloped floors
• Reduces wobble, vibration, and rattling noises
• Promotes proper door alignment and closure
• Replaces stripped, cracked, or missing leg assemblies

• Disconnect power; shut off water supply if applicable
• Carefully tilt and support the appliance to access the leg area
• Unthread the old leg; hand-thread the new assembly to avoid cross-threading, then fine-adjust with a wrench
• Level front-to-back and side-to-side; confirm stability before use

This part may be black or gray in color.

This water level pressure switch senses the washer tub's water level and signals the control to start or stop filling. It restores accurate fill detection for proper wash cycles and helps prevent overfilling or improper operation. What it does:

• Detects water level via a vacuum hose and tells the control board when to stop filling
• Helps prevent overfill, underfill, and related cycle interruptions
• Can resolve symptoms like washer not filling, overfilling, or stopping mid-cycle
• Works as the sensing interface between the tub and the control system

• One water level pressure switch assembly

• Disconnect power and shut off water supply before replacing the part
• Note the vacuum hose routing and electrical connector locations before removal
• Handle the small vacuum hose and plastic fittings gently to avoid damage or air leaks

This power cord assembly restores a secure electrical connection to your appliance so it can safely receive power. It replaces a worn, damaged, or faulty cord to help prevent interruptions and poor contact during normal use. What it does:

• Re-establishes the appliance's main power connection for reliable operation
• Replaces frayed, burnt, or damaged cord insulation and terminals
• Can stop intermittent power loss, sparking, or poor contact at the cord connection
• Provides the correct OEM-fit electrical cord and connector interface

• Always disconnect power at the breaker or unplug the appliance before starting work.
• Tighten terminal screws securely and avoid pinching or kinking the cord.

The Washer Door Lock Switch is an OEM part for LG washing machines. This critical safety feature locks the washer door during operation to prevent it from being opened, which ensures safety and proper functioning. The door lock switch also communicates with the washer's control system to indicate that the door is securely closed and the machine can begin its cycle.

Symptoms of a bad Washer Door Lock Switch include:

• The washing machine refusing to start, despite the door appearing to be closed.
• The door failing to lock properly, or the lock releasing prematurely during a cycle.
• Error messages on the washer's display related to door closure issues.

Causes of a bad door lock switch can include mechanical failures such as worn or damaged locking mechanisms, electrical issues like faulty wiring or failed solenoids, or alignment problems that prevent the door from engaging the switch properly.

This OEM LG part is also compatible with Sears/Kenmore models.

This is a control board has been manufactured by LG for use with various compatible washing machines.The control board needs to be in proper working condition in order for the washer functions to be managed and controlled, such as the filling and draining cycles. Control boards are subject to wear and tear and will require immediate replacement should they start to malfunction. Make sure that the washing machine is completely powered off, unplugged, and disconnected from its power and water sources. Wear work gloves to avoid injury to the hands.This is an authentic OEM part and as such is sold individually and made from durable, high-quality, non-corrosive materials to ensure high quality. This part is compatible with various different models of washing machines manufactured by LG and other compatible brands.

This protective cover shields internal components and wiring from dirt, moisture and accidental contact, helping keep the appliance safe and functioning properly. It's a small replacement panel that restores the appliance's factory protection. What it does:

• Covers and protects internal parts and wiring from debris and accidental impact
• Prevents loose components from rattling or shifting during operation
• Helps maintain proper spacing and alignment of nearby panels and clips
• Addresses symptoms like visible damage, missing cover, exposed wiring, or unusual noise from loose trim

• Disconnect power before starting any repair to avoid shock or injury
• Typically secures with clips or a few screws; use basic hand tools and take care not to strip fasteners
• Inspect mounting tabs and surrounding trim for damage; replace any broken clips before reassembly

This noise filter assembly conditions incoming AC power to reduce electromagnetic interference before it reaches the control system. A failed line filter can cause no power, intermittent shutdowns, or breaker trips; replacing restores stable, reliable operation. What it does:

• Filters EMI/RFI on the power line to help protect sensitive control electronics
• Helps prevent interference that can cause no power, flickering display, or random resets
• A failing filter may trip a breaker/GFCI when the unit is plugged in or starts a cycle
• Visual clues can include scorch marks, burnt odor, or a cracked/bulged filter body

• 1 noise filter assembly

• Disconnect power before servicing; verify the outlet is de-energized
• Access is typically near the power cord entry behind a rear/top panel (varies by model)
• Label or photograph wire positions and transfer connections one by one; secure the ground
• Mount firmly and route wires to avoid pinching; reassemble and test for proper operation

• Line filter, EMI filter, RFI filter
