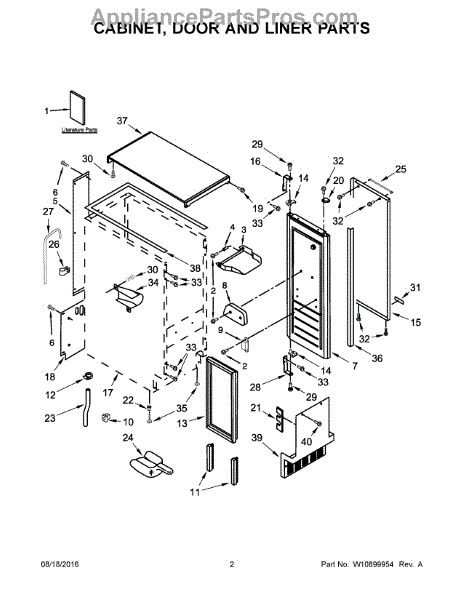

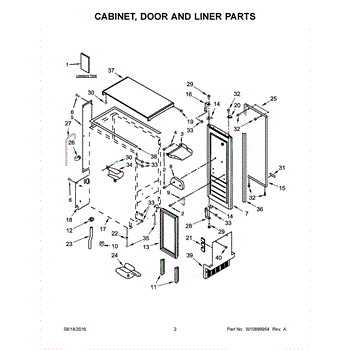

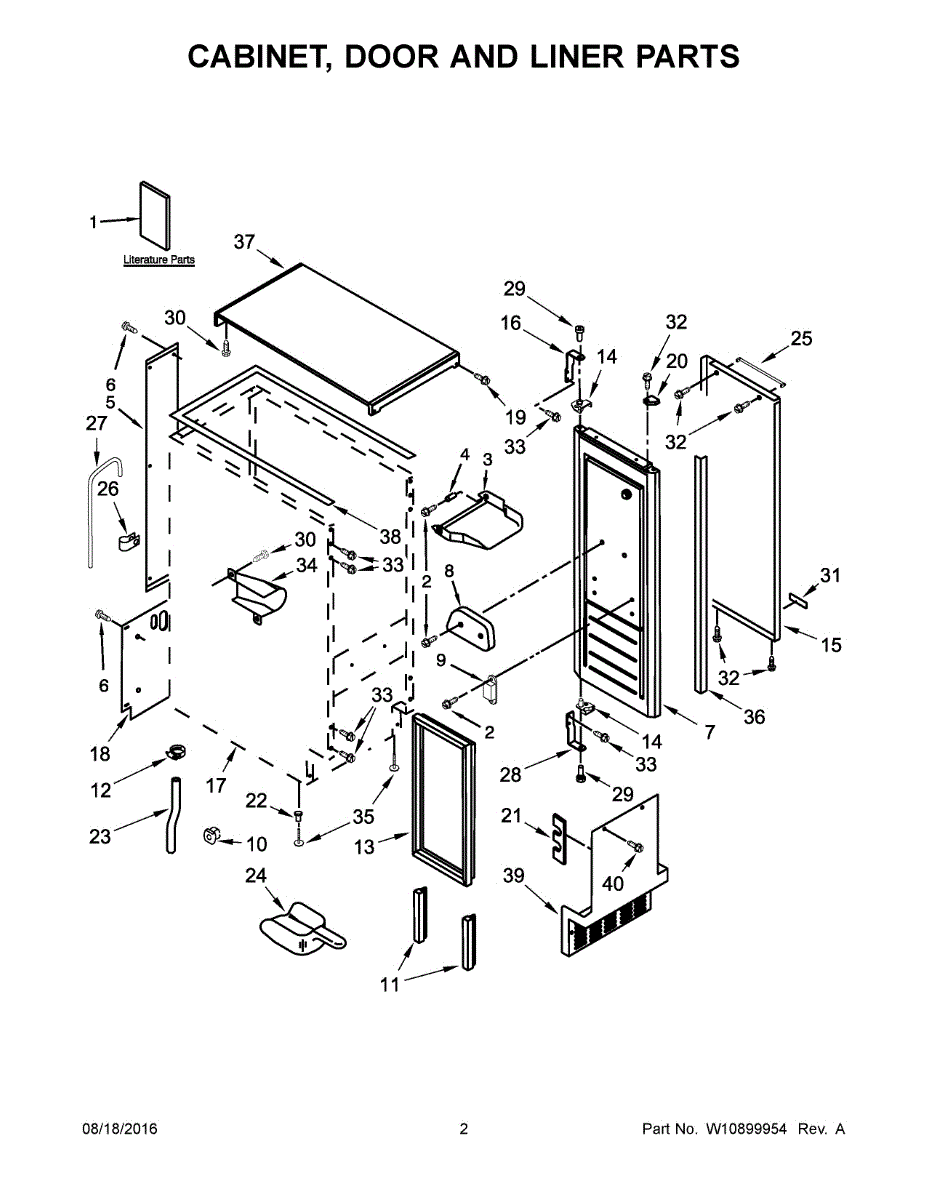

Parts for Whirlpool KUIX505EBS0: 02 - Cabinet, Door And Liner Parts

Size: 8-18 x 1 1/4 inch.

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

Size: 8-18 x 1/2 inch.

This catch assembly secures the appliance door in the closed position, restoring proper latching and preventing unwanted openings. It's a direct-fit replacement designed to match the original OEM function. What it does

• Holds the door closed so seals stay engaged and the appliance maintains internal temperature
• Prevents the door from popping open or rattling during operation or transit
• Helps stop issues like airflow loss, frequent door alarms, or intermittent cycling caused by a loose latch
• Matches OEM fit and mounting points for straightforward replacement

• One catch assembly

• Disconnect power (and water if applicable) before starting any repair
• Remove the door panel or trim required to access the existing catch; keep screws and fasteners organized
• Compare the new part to the old part before installation to ensure fit and orientation
• After installation, cycle the door several times to ensure secure engagement and proper alignment

This is the bottom door gasket that seals the lower edge of the appliance door to keep cold in and moisture out. It helps maintain proper temperature and prevents drafts that can cause frost or energy loss. What it does

• Forms a tight seal along the bottom of the door to prevent air and moisture leaks
• Helps stop frost buildup, condensation, and uneven cooling in the compartment
• Reduces compressor run time and energy loss caused by a compromised seal
• Restores proper door closure and consistent internal temperature

• One bottom-of-door gasket

• Inspect the door surface and channel for debris or old adhesive; clean before installing
• Warm and flex the gasket as needed for easier fit; follow OEM alignment and fastener sequence
• Use basic hand tools; avoid sharp tools that could nick or tear the gasket

This 15-inch door gasket is a direct-replacement sealing gasket that restores a tight door seal to the appliance, helping reduce heat and air leaks for more consistent temperature control and improved efficiency. What it does:

• Seals the door edge to prevent loss of heat, steam, or cooled air during operation.
• Helps maintain consistent internal temperature for proper cooking/drying/operation.
• Common symptoms it can fix: visible cracks, tears, flattening, gaps, or a door that does not close flush.
• Reduces stray heat or moisture around the appliance that can indicate a worn seal.

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the old gasket carefully and inspect the sealing channel for debris or damage before installing the new gasket.
• Start installation at the top and press the gasket evenly into the channel, working around the door so the flange seats fully; replace any fasteners or clips as needed.
• Do not stretch, trim, or modify the gasket unless OEM instructions explicitly direct it; the appliance diagram for orientation.

This top hinge is the replacement hinge for the ice maker/top-door assembly. It restores proper door alignment and secure mounting so the ice maker door opens and closes smoothly and stays in position. What it does:

• Provides a secure pivot point for the ice maker/top door to open and close
• Restores correct door alignment to prevent binding or rubbing
• Helps stop door sagging or uneven closing that can affect ice access
• Reduces noise or wobble from a worn or broken hinge

• Disconnect power to the appliance before beginning repairs
• Support the door/ice maker assembly while removing the old hinge to avoid dropping or damage
• Use appropriate hand tools and keep fasteners organized for reassembly

Replacement cover assembly that protects internal components and restores the appliance's appearance. Installs in place of a cracked or missing cover to prevent exposure and reduce vibration noise. What it does:

• Shields internal parts from dust, dirt and accidental contact
• Restores the appliance's finished look after damage or wear
• Reduces rattling or vibration caused by a loose or missing cover
• Helps keep components secured and prevents foreign objects from entering

• Disconnect power (unplug or switch off breaker) before starting any service
• Basic hand tools required; follow the appliance's service manual or diagram for removal/installation steps
• Wear gloves to protect against sharp edges and handle the cover gently to avoid cracking

The Ice Maker Scoop is an OEM component specifically designed for Whirlpool ice machines. As an included accessory, it provides a sanitary and convenient way for users to fetch ice from the storage bin.

The scoop is strategically designed with an ergonomic handle and wide opening bowl shape. This facilitates easy scooping and transport of ice cubes without spillage or crumbling. Its food-safe materials maintain hygienic conditions in the storage area.

Symptoms of a faulty scoop include:

• Cracks or breaks that compromise the scooping surface
• Leaks or spills of ice when trying to scoop
• Sharp edges that risk cuts or scratches
• Warping or loosening of the handle attachment over time

This OEM Whirlpool scoop is also compatible with some Scotsman and Manitowoc ice machines. Replace yours today to restore safe and hygienic ice retrieval from the storage bin.


This refrigerator door handle provides a reliable grip for opening and closing the fridge door and restores a finished look after the original handle is cracked, loose, or damaged. It's a direct-fit replacement designed for easy swap-out. What it does:

• Restores secure, comfortable grip for normal door operation
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Helps prevent door damage from continued use of a compromised handle
• Matches original mounting points for proper alignment and function

• Turn off power to the appliance or unplug before starting any service that may expose wiring or lights
• Use basic hand tools; save original screws and hardware when possible
• Support the door while removing/installing the handle to avoid stress on hinges

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This bottom hinge secures and supports the lower door section, allowing smooth opening and reliable alignment. It restores proper door movement and helps maintain a consistent seal for efficient cooling. What it does:

• Provides a pivot point for the lower door to open and close smoothly
• Keeps the door properly aligned to prevent rubbing or gaps that can let cold air escape
• Helps reduce door sag and uneven wear on seals and edges
• Works with existing hinge pins and mounting hardware to maintain door stability

• Verify power is off and doors are supported before removing hinge hardware
• Use manufacturer-recommended fasteners and torque; replace any damaged hardware

This hinge pin secures the appliance door to its hinge assembly, letting the door pivot smoothly and stay properly aligned. Replacing a worn pin restores correct door movement and helps prevent rubbing or sagging. What it does:

• Acts as the pivot point that holds the door to the hinge assembly.
• Restores smooth opening and closing when the original pin is worn or damaged.
• Helps correct door sag, uneven gaps, and contact between door and cabinet.
• Prevents excessive wear of hinge components when replaced promptly.

• One hinge pin

• Disconnect power (or unplug) and empty/remove the door or support it per your manual before starting.
• Support the door while removing the old pin to avoid injury or damage.
• Basic hand tools are typically required; avoid forcing parts and inspect hinge parts for additional wear.

Size: 8-32 x 1/2 inch.

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

Size: 8-18 x 3/4 inch.

This 10-32 x 1/2 inch machine screw (pan head) secures panels, brackets, and components on compatible appliances for a reliable mechanical connection. It replaces missing or damaged mounting screws to restore proper fit and reduce vibration. What it does:

• Fastens chassis panels, mounting brackets, and small components where a 10-32 thread is required
• Restores secure attachment to stop rattling, misalignment, or loose trim
• Provides the correct length and thread engagement for a stable mechanical joint
• Works with metal-to-metal or threaded-inserts commonly used in appliance assemblies

• One 10-32 x 1/2 in. pan-head machine screw (quantity: 1)

• Disconnect power to the appliance before accessing internal panels or components
• Use the correct Phillips or hex driver sized for the pan head to avoid stripping
• Thread carefully into existing threads or a compatible insert; do not force if resistance is unusual
• Tighten snugly but avoid over-torquing to prevent thread damage or strip-out

This scoop holder is a replacement freezer-door accessory that keeps the ice scoop secure, hygienic, and within easy reach. It restores the built-in storage location so your scoop stays put and ready when you need it. What it does:

• Provides a dedicated clip/mount to hold the ice scoop on the freezer door or bin
• Keeps the scoop off surfaces to reduce contamination and dripping
• Prevents the scoop from falling out when opening or closing the door/bin
• Restores proper storage when the original holder is cracked, broken, or missing

• Typically snaps into the designated slot on the freezer door or bin; no special tools required for most installs
• Align the holder and press firmly until it clicks into place; replace cracked or broken surrounding tabs if necessary
• Handle gently to avoid damaging door bins or trim during installation

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

This group top panel is the cooktop surface that covers and supports burners and controls, restoring a clean, protected cooking area and preventing heat or spills from reaching internal components. It's a direct replacement for the 15" group-top assembly. What it does:

• Replaces a bent, rusted, cracked or damaged cooktop surface so burners and controls mount securely
• Shields internal wiring and components from spills, grease and heat
• Provides a flat, stable surface for burner grates and cookware
• Helps restore proper alignment of burner components and control openings

• Disconnect power to the appliance before beginning any repair; follow all safety precautions
• Moderate hand tools typically required; retain fasteners and any trim for reuse
• Inspect adjacent parts (burner bowls, burner heads, mounting brackets) for wear during replacement

Color: Black.

This replacement screw secures appliance panels and small components, restoring proper fit and stability. Use it to replace a missing or damaged fastener so doors, panels, or brackets stay aligned and rattle less. What it does

• Fastens panels, brackets, or trim pieces to the appliance frame
• Stops loose or rattling panels caused by a missing or stripped screw
• Helps restore secure mounting for switches, controls, or trim
• Suitable as a direct replacement when the original screw is lost or damaged

• Disconnect power before working on any electrical appliance
• Use the correct driver bit to avoid stripping the head
• Align parts before tightening and snug—do not overtighten to prevent damage
• Keep any removed hardware organized for reassembly
