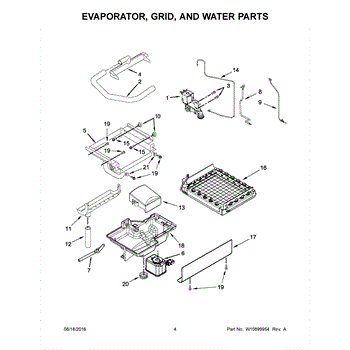

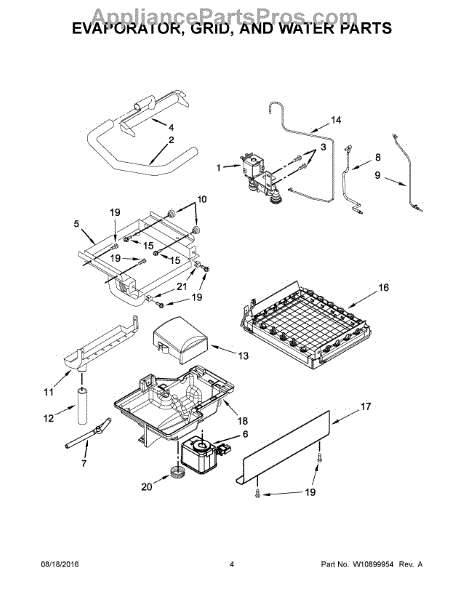

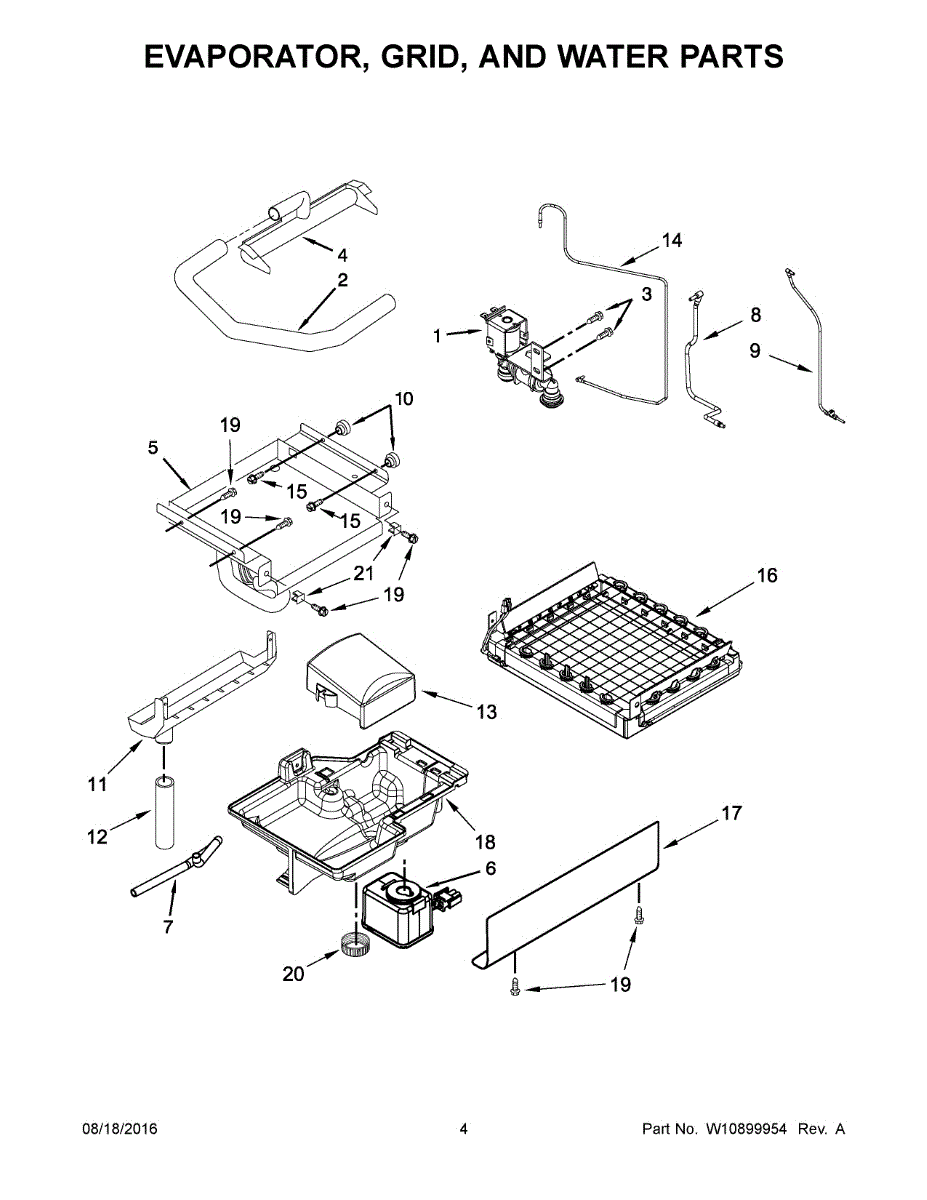

Parts for Whirlpool KUIX505EBS0: 03 - Evaporator, Grid, And Water Parts

The  Valve is an OEM part for Whirlpool ice machines. It regulates the water flow to the ice maker, ensuring that the correct amount of water is supplied to produce ice. This valve is crucial for the consistent operation of the ice maker, providing the necessary water flow to create ice cubes effectively.

Over time, the ice machine valve can become faulty due to wear and tear, mineral buildup from hard water, or electrical malfunctions. A damaged valve can lead to issues with ice production and water flow within the machine.

Symptoms of a bad valve include:

• No ice production
• Insufficient ice production
• Water leaks around the valve area
• Ice cubes being too small or irregularly shaped

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement tube routes water safely between internal components. Use it to replace cracked, kinked, or brittle tubing so your appliance can restore proper water flow and reduce leaks during normal operation.

• Directs water between components to support normal operation
• Helps maintain consistent flow and leak-resistant connections
• Common failure signs: cracks, kinks, discoloration, or hardening
• Symptoms include water leaks, reduced flow, or intermittent filling

• Disconnect power and shut off the water supply before servicing
• Note original routing and fitting type; transfer any clips or ferrules if present
• Cut ends square and fully seat into push-to-connect or compression fittings
• Restore power and water; check all connections for leaks and proper flow

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This replacement tube routes water safely between internal components. Use it to replace cracked, kinked, or brittle tubing so your appliance can restore proper water flow and reduce leaks during normal operation.

• Directs water between components to support normal operation
• Helps maintain consistent flow and leak-resistant connections
• Common failure signs: cracks, kinks, discoloration, or hardening
• Symptoms include water leaks, reduced flow, or intermittent filling

• Disconnect power and shut off the water supply before servicing
• Note original routing and fitting type; transfer any clips or ferrules if present
• Cut ends square and fully seat into push-to-connect or compression fittings
• Restore power and water; check all connections for leaks and proper flow

The Drain Pump is an OEM part for Whirlpool free-standing ice machines. This part removes excess water from the ice machine.

Common causes of a bad pump include debris accumulation, wear and tear from regular use, or electrical issues that affect the pump's operation.

Symptoms of a bad drain pump include:

• Water not draining from the ice machine
• Unusual noises during the draining process
• Standing water inside the machine
• Reduced or halted ice production

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Reservoir Drain Tube is an OEM part for Whirlpool freestanding icemakers. It is responsible for draining melted water from the reservoir during the harvest cycle. This tube removes water to allow for new ice formation.

Causes of a bad reservoir drain tube can include mineral buildup or blockages within the tube inhibiting proper drainage over time. Additional causes may be cracks, cracks, kinks, or other damage limiting water flow.

Symptoms of a bad reservoir drain tube include:

• Water not draining from the reservoir after harvest
• Excess water collecting in the reservoir
• Slow or reduced ice production due to poor drainage
• Leaks or water spills around the drain tube area

This OEM Whirlpool replacement tube is also compatible with freestanding ice components manufactured by select Kenmore models.

Replace a damaged or leaking tube with this quality replacement to restore a secure, routed connection inside your appliance. It helps direct flow between components so fluid reaches the right place and stays contained. What it does:

• Directs flow between fittings, valves, reservoirs, dispensers, or ice makers
• Maintains proper routing to prevent leaks and ensure normal operation
• Common failure modes include cracks, pinholes, kinks, and clogs
• Symptoms include leaks inside/under the unit, reduced or no flow to a connected component, or visible damage to the tube

• 1 tube

• Disconnect power and shut off the supply to the unit (water, if applicable) before servicing
• Note the original routing and connection points; take photos for reference
• Fully seat the tube in connectors/compression fittings; avoid sharp bends and contact with hot or moving parts
• Restore supply and check all connections for leaks

The Tube-Water is an OEM component specifically designed for Whirlpool ice makers. Found within the freezer compartment, the tube water works to transport fresh water from the internal water supply line to the ice maker.

Causes of bad tube water include kinking, punctures, or cracks from repeated bending and flexing over time, or failure of the compression fittings to properly seal.

Symptoms of a bad water tube include:

• Leaks or water spots in the freezer
• Ice maker not filling or operating correctly
• Disconnected or missing tube

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

This water slide reservoir replaces the cracked or damaged reservoir that channels water to the dispenser/ice system, restoring a secure pathway for water and preventing leaks or loss of dispenser function. What it does:

• Collects and directs water from the inlet to the dispenser/ice mechanism
• Seals the water pathway to prevent leaks or puddling inside the cabinet
• Helps maintain proper water flow to the dispenser and icemaking components
• Commonly replaced for visible cracks, leaks, or reduced dispenser performance

• One water slide reservoir

• High-level fit: installs in the dispenser/ice assembly per OEM diagram; verify placement before fastening
• Recommended safety: unplug or disconnect power and shut off water supply before service
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the plastic

This recirculation cover bracket secures the recirculation cover and helps maintain proper positioning of the recirculation components. Replacing a damaged bracket restores secure fit and reduces rattling or loose parts. What it does:

• Holds the recirculation cover in place to prevent shifting during operation
• Keeps internal components aligned for reliable recirculation assembly fit
• Prevents rattling or vibration caused by a cracked or broken bracket
• Helps avoid damage to the cover or nearby components from a loose mount

• Disconnect power to the appliance before beginning any repair
• Remove the access panels necessary to reach the recirculation cover per the service manual
• Replace the bracket using basic hand tools; retain original fasteners unless damaged

This replacement tube routes water between internal components, helping maintain proper flow and reduce leaks. Replacing a cracked, kinked, or brittle tube restores a secure water path and reliable performance. What it does:

• Provides a sealed pathway for water between components
• Helps prevent leaks when tubing is intact and properly seated
• Restores flow lost to kinks, cracks, or mineral buildup
• Common symptoms include visible cracks, leaks, or restricted water flow

• 1 tube

• Unplug the appliance and shut off the water supply before service
• Relieve line pressure and place towels to catch residual water
• Note the original routing; cut ends square and fully seat into fittings
• After installation, restore water and check carefully for leaks before reassembling panels

Size: 8-18 x 1 1/4 inch.

The Ice Maker Cutter Grid is an OEM part for Whirlpool ice machines. It is responsible for slicing the ice into uniform cubes after the ice has formed in the ice maker's mold. This cutter grid ensures that the ice is separated and dispensed properly, providing consistent ice cube sizes for your convenience.

Causes of a bad ice maker cutter grid can include electrical issues affecting the grid's heating element, wear and tear from extended use, or damage due to ice buildup and blockages.

Symptoms of a bad ice maker cutter grid include:

• Irregularly shaped or uneven ice cubes
• Ice cubes sticking together and not dispensing properly
• The ice maker not producing any ice
• Visible damage or corrosion on the grid wires

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water pan mounts in the base of the dishwasher to collect incidental water, helping protect floors and internal components. Replace a cracked or warped pan if you notice puddles beneath the unit or recurring leak/float alerts. What it does:

• Collects and contains water in the dishwasher base during leaks or splashes
• Channels water to the leak float/sensor area on many models to trigger a safety shutdown
• Helps prevent moisture from reaching flooring and electrical components
• Failure signs: puddles under the dishwasher, repeated leak/float errors, or visible cracks/warping in the tray

• 1 water pan

• Disconnect power and water supply; wear gloves to avoid sharp edges
• Remove the toe panel and pull the dishwasher out to access the base
• Reuse any model-specific clips/seals and ensure the leak float/sensor is correctly seated in the new pan
• Reinstall, level the unit, and run a short cycle to check for leaks

Size: 8-18 x 5/8 inch.

This drain cap seals the appliance's drain port so water stays contained and the system drains as designed during operation and cleaning. Replace a cracked, stripped, or missing cap to stop leaks and help prevent debris from entering the drain path. What it does:

• Seals the drain opening to prevent leaks and air intrusion
• Helps maintain proper water flow during draining and cleaning
• Keeps debris from entering and clogging the drain
• Common symptoms: puddles under the unit, dripping at the drain area, cap won't tighten, or visible cracks/wear

• 1 drain cap

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water
• Remove the old cap and clean the drain port's sealing surface
• Hand-tighten the new cap until snug; do not overtighten. Restore water and power, then check for leaks.
