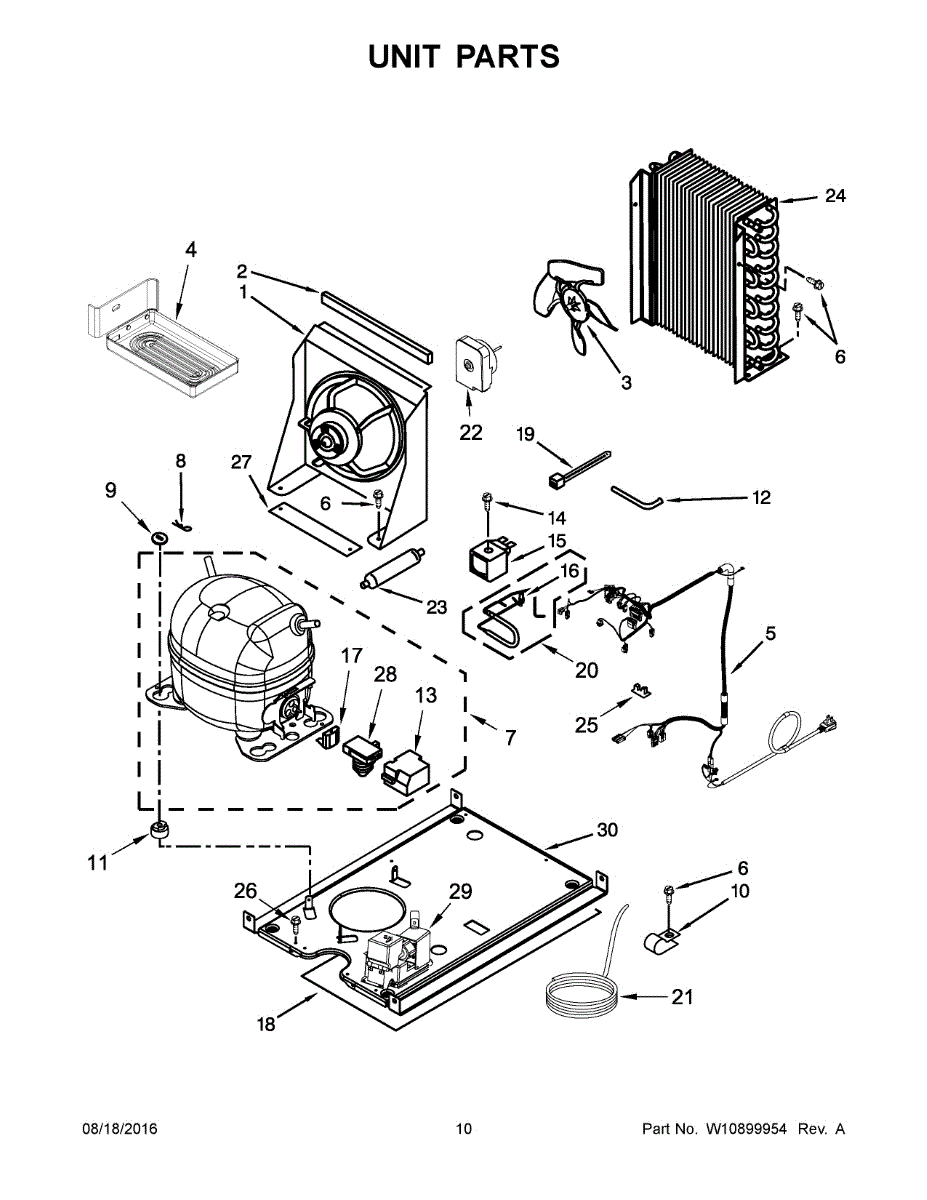

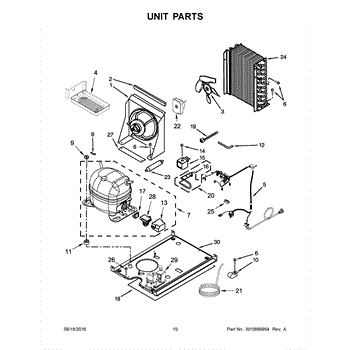

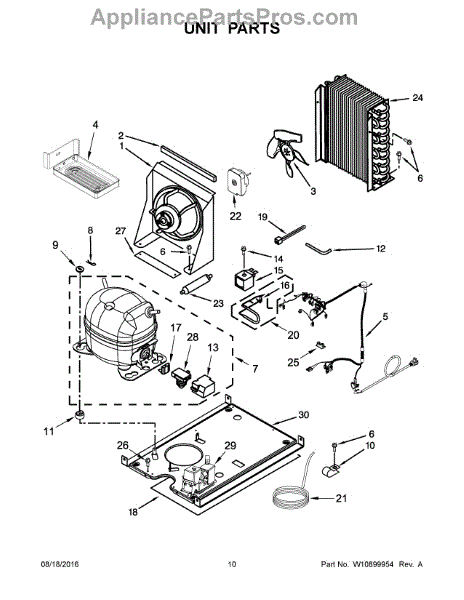

Parts for Whirlpool KUIX505EBS0: 06 - Unit Parts

This fan mounting bracket secures the evaporator/condenser fan assembly so the fan stays aligned and runs quietly. It's a direct-fit replacement that restores proper airflow and reduces vibration from a loose or damaged bracket. What it does:

• Holds the refrigerator/freezer fan motor or blade in the correct position to maintain consistent airflow
• Prevents fan wobble and contact with surrounding components that cause noise or damage
• Helps restore cooling performance impacted by a detached or broken fan mount
• Works with the existing fan motor and blade when the bracket is the only damaged part

• One fan mounting bracket

• Basic hand tools required; access may require removing interior panels or the evaporator/condenser cover
• Power off and unplug the appliance before starting any repair to avoid shock or injury
• Keep screws and mounting hardware from the old bracket; replace only if damaged or missing
• If the fan motor or blade shows damage, inspect and replace those components as needed

This condenser fan blade moves air across the refrigerator's condenser coil and compressor to remove heat, helping the unit cool efficiently. Replace a cracked, warped, or loose blade to restore proper airflow and reduce noise.

• Circulates air through the condenser section to dissipate heat from the refrigerant
• Supports stable fridge and freezer temperatures and efficient compressor operation
• Common symptoms: rattling/scraping noises, weak or no airflow at the rear/bottom, longer run times, or warming compartments
• Replace if the blade is cracked, warped, wobbling, or loose on the motor shaft

• Disconnect power and pull the refrigerator away from the wall; remove the rear access panel to reach the condenser fan
• Note the original blade orientation/rotation; remove the old blade from the motor shaft (release any retainer if present)
• Press the new blade onto the shaft until fully seated; ensure it spins freely with proper clearance and airflow direction
• Reinstall the panel, restore power, and verify normal airflow and sound

The HARNESS is an OEM part for Whirlpool standalone icemakers. As the primary electrical component, the harness powers and connects all wiring to allow the ice maker to function independently outside of a full refrigerator unit.

Causes of a bad harness can include exposed wires from cuts or abrasions in the insulation over time, damaged or loose connectors, and general wear and tear from constant use.

Symptoms of issues include:

• Ice maker not producing ice
• LED display or control panel not lighting up
• Buttons or switches not responding
• Unusual noises coming from the unit

Replacing the harness ensures proper power delivery and replaces worn components. This OEM Whirlpool part helps restore full operation to keep standalone ice makers producing for years to come.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This solenoid valve coil is the electromagnetic coil that actuates a valve in your appliance. Replacing a weak or open coil helps restore reliable opening and closing for consistent filling or dispensing performance.

• Energizes the valve armature to start or stop flow as directed by the control
• Common symptoms: no fill/dispense, intermittent or slow flow, or a coil that tests open/no continuity
• A targeted fix when the valve body is intact and not stuck or leaking
• Use to replace a burned, cracked, or shorted solenoid coil on the original valve assembly

• Disconnect power and shut off supply lines before service
• Access the valve, note wire positions, and remove any retaining clip or fastener
• Slide the old coil off the stem; install the new coil in the same orientation and reconnect wires securely
• Restore power/supply and test operation; check for leaks

The Ice Machine Overload is an OEM component specifically designed for Whirlpool under-counter ice makers. This overload protects the ice maker's compressor by interrupting power if it overheats due to excessive run time or a blockage of airflow.

Causes of a bad overload include failure over time due to heat exposure, physical damage that impairs its ability to sense temperature or breakdown of internal electrical components.

Symptoms of a bad overload include:

• No ice production despite the icemaker being powered on
• A buzzing or humming sound coming from the ice maker
• Tripping of the circuit after initial power-on
• Ice maker run time but no ice dispensed or harvested

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement water line hose restores a secure water connection to your appliance, helping stop leaks and restore proper dispenser or ice maker water flow. Designed to match factory fit and routing for an exact replacement. What it does

• Carries water between the household water supply and the appliance water inlet or dispenser.
• Restores normal water flow to the ice maker or dispenser when a damaged hose is causing low or no water delivery.
• Prevents leaks and pooling when the original hose is cracked, split, or worn.
• Provides a flexible, durable connection that resists kinking when installed correctly.

• One replacement water line hose.

• Turn off the water supply and unplug the appliance before starting; relieve any residual water pressure by operating the dispenser briefly.
• Inspect fittings and valves for wear; replace clamps or gaskets if they show damage to ensure a watertight seal.
• After installation, turn the water back on slowly, check all connections for leaks, and run the dispenser/ice maker to verify proper flow.

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw: 8-16 x 3/8 inch.

This start relay (EMB) energizes the compressor's start winding so the refrigerator can begin cooling reliably. Replacing a weak relay can resolve hard-start clicking and restore consistent operation when the compressor struggles to start.

• Delivers initial power to the compressor's start winding, then disengages once the motor is up to speed
• Supports reliable compressor starts and reduces repeated start attempts
• Common symptoms: clicking from the compressor area, rising refrigerator/freezer temperatures, compressor starts then stops after a few seconds, or heat damage on the old relay
• Works with EMB-style compressor connections used on select units

• Disconnect power to the appliance before servicing
• Remove the rear access cover; note wire positions; pull the old relay straight off the compressor terminals
• Seat the new relay fully on the compressor pins; reconnect the harness and any run capacitor lead exactly as removed
• Reinstall the cover and restore power; use caution—capacitors may retain a charge

The  Drain Pump Assembly is an OEM part for Whirlpool ice machines. It removes melted water from the harvest and storage bin to allow continuous ice production. This pump assembly contains the electric drain pump motor and impeller which work together to discharge drain water through the outlet hose.

Causes of a bad drain pump assembly can include wear due to heavy use over time, a buildup of mineral deposits or other debris clogging the impeller, or failure of the motor itself.

Symptoms of a bad drain pump assembly include:

• Standing water in the storage bin
• Inability to harvest or store ice
• Strange noises or vibrations coming from the pump area
• Leaks from around the pump housing

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
