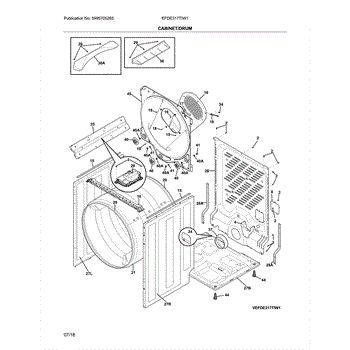

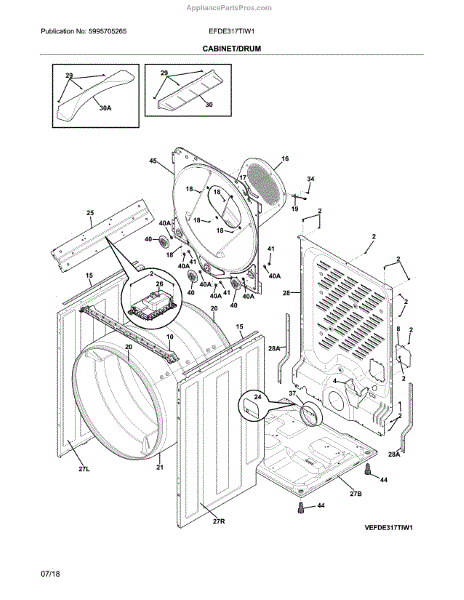

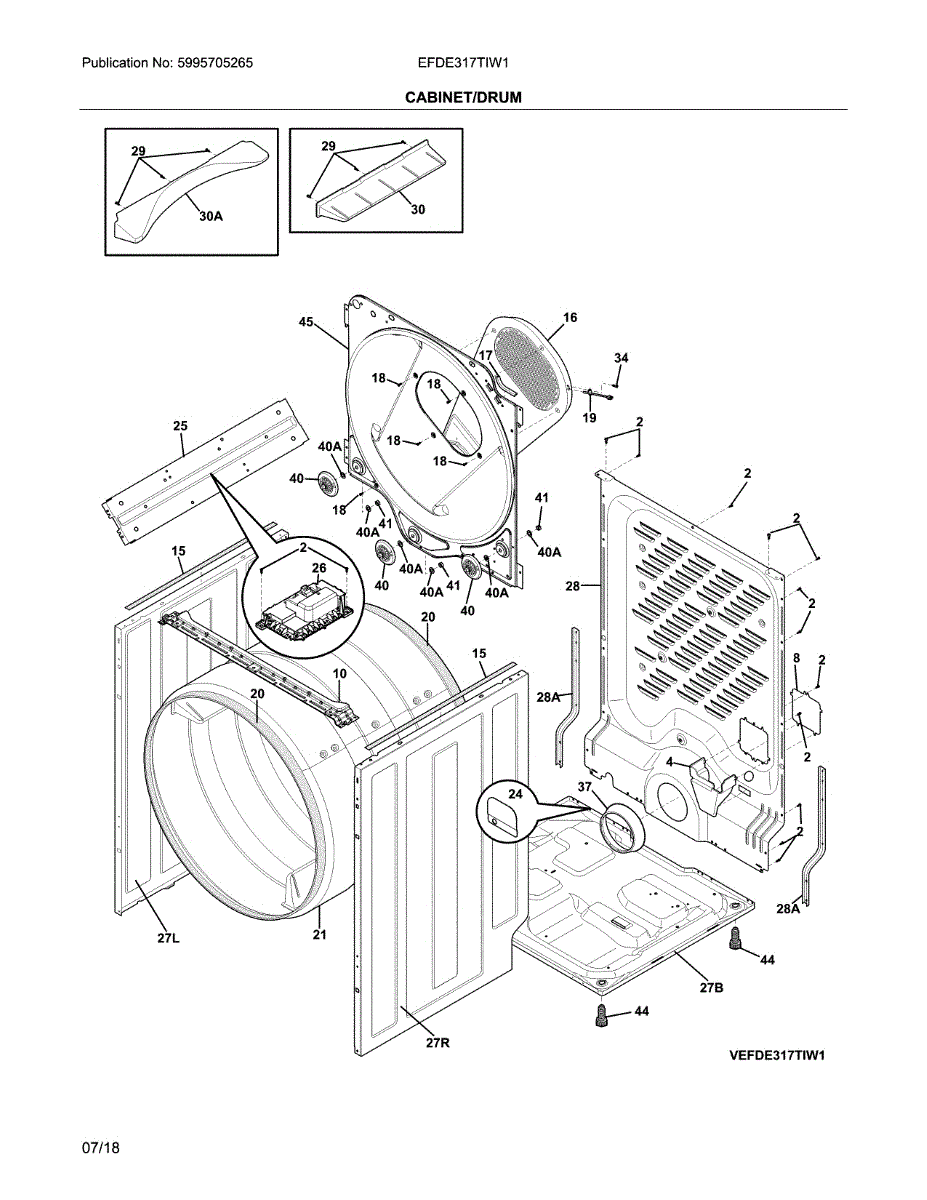

Parts for Electrolux EFDE317TIW1: Cabinet / Drum Parts

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This replacement cushion is a small rubber bumper that protects components and reduces vibration and noise where panels, doors, or assemblies meet. It helps keep parts aligned and prevents metal-on-metal contact. What it does:

• Absorbs shock and reduces vibration to minimize rattling or movement
• Protects surfaces from wear and prevents scraping or chafing
• Helps maintain proper spacing or alignment of panels or assemblies
• Works wherever a soft bumper or spacer is required

• Disconnect power to the appliance before servicing.
• Remove any covers or panels to access the mounting area.
• Press or seat the cushion into the locator/receptacle; replace retainers if present.

The Duct is an OEM part for Frigidaire dryers. It is responsible for proper airflow and ventilation within the dryer, ensuring efficient drying.

A bad dryer air duct with grille cover can be caused by clogs, damage, or improper maintenance. Signs of a faulty air duct include restricted airflow, longer drying times, or excessive heat buildup within the dryer.

Symptoms of a bad duct can include:

• Clothes taking longer to dry than usual
• Reduced airflow from the dryer vent
• Excessive heat or overheating

Replace your clogged or damaged dryer air duct with this genuine OEM part to restore your dryer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This insulator is a small foam/trim piece that cushions and thermally isolates appliance panels to help maintain proper airflow and reduce vibration. It preserves fit between cabinet components for quiet, efficient operation. What it does:

• Cushions panels and components to reduce rattling or vibration noise
• Creates a thermal barrier that helps limit heat transfer between parts
• Keeps panels aligned and spaced to prevent rubbing or abrasion
• Worn or missing insulators can cause noise, vibration, or poor panel fit

• One insulator as shown

• Disconnect power before accessing panels or internal components
• Replace only the worn or damaged insulator; trim or adhesive may be needed to position some styles
• Remove surrounding trim or panels as required to reach the mounting location

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This thermistor is the temperature-sensing component that feeds accurate readings to the appliance's control. Replacing a faulty sensor restores proper temperature feedback, helping the control run cycles correctly and reduce temperature-related performance issues. What it does:

• Monitors temperature and changes resistance with temperature (NTC), sending a signal to the control board
• Helps the control regulate heating or water-temperature management during operation
• When open/shorted or out of range, can trigger temperature/sensor error codes
• Symptoms include inconsistent temperatures, long run times, or cycles that won't complete

• 1 thermistor

• Disconnect power before servicing; shut off gas/water supply if applicable
• Access the sensor per your model; it's typically secured by a clip or screw and connects via a wire harness
• Note wire orientation; avoid pulling on wires and ensure the connector is fully seated
• After installation, clear any stored error codes and run a diagnostic or test cycle

This replacement seal restores a tight barrier between mating surfaces in your appliance, helping contain air, moisture, and heat where intended for reliable performance and efficiency.

• Forms a tight barrier to help prevent leaks, drafts, or heat loss
• Replaces a cracked, torn, flattened, or missing seal
• Can help address issues like moisture around an opening, temperature fluctuations, or rattling/vibration from a poor fit
• Restores proper closure and performance when the original seal is worn

• Disconnect power and shut off water/gas before service
• Note the routing/orientation of the original seal; take photos for reference
• Clean the channel/mating surfaces thoroughly; remove old adhesive and debris
• Seat the new seal fully without stretching; close and test for proper fit and contact

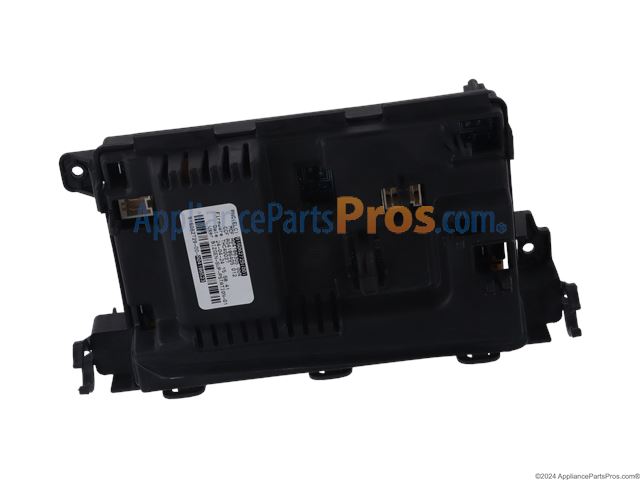

The Main Board is an OEM part for Frigidaire dryers. It controls and regulates the various functions of your dryer, such as cycle selection, temperature control, and timer settings. It communicates with components in the dryer to maintain drying cycles.

A bad main board can be caused by electrical issues, component failure, or damage due to power surges or other external factors. Signs of a faulty control board include the dryer not starting, failure to complete cycles, or error messages displayed on the control panel.

Symptoms of a bad main board include:

• The dryer not starting or responding
• Incomplete drying cycles
• Error messages related to the control board

Replace your faulty or damaged main board with this genuine OEM Frigidaire part to restore your dryer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This support bracket secures and stabilizes internal components to keep your appliance operating reliably. It provides a simple, durable mounting point to restore proper alignment and reduce movement or rattling. What it does:

• Provides a secure mounting point for internal panels or assemblies
• Helps prevent component shift that can cause noise or misalignment
• Restores part-to-part spacing for proper operation
• Replaces damaged, bent, or broken brackets that no longer hold components

• Disconnect power before accessing internal panels or mounting points
• Installation may require removal of the appliance access panel and basic hand tools
• Retain and reuse original fasteners if undamaged; use OEM-specified hardware when required

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This vane directs airflow inside the appliance to help control cooling or venting. Replacing a damaged vane restores proper airflow and helps maintain even temperature and efficient operation. What it does

• Guides and directs internal air flow for proper ventilation or cooling.
• Helps seals and channels air to prevent uneven temperature or poor performance.
• Worn or broken vanes can cause reduced airflow, noisy operation, or improper venting.
• Small, molded part designed to fit in the OEM mounting location and work with the appliance's blower/damper assembly.

• One vane

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access may require removing panels or other components; keep fasteners organized for reassembly.
• Inspect surrounding seals and mounting points and replace any damaged clips or screws.

This drum mixing vane is a molded white lifter that helps tumble and redistribute laundry inside the drum for more even agitation and drying. It replaces a worn or broken vane to restore normal clothing movement and prevent fabric bunching. What it does:

• Lifts and tumbles load as the drum rotates to promote even cleaning and drying
• Helps separate garments to reduce tangling and clumping during cycles
• Restores proper drum contact when existing vanes are cracked, loose, or missing
• Compatible with models using a molded white mixing/drum vane design

• One white drum mixing vane

• Remove power and disconnect the appliance before starting any repair
• Inspect mounting boss and fasteners; replace any damaged clips or screws
• Push or snap the vane into the drum mounting location per OEM alignment; verify a secure fit before testing

The Support Roller Washer is an OEM part for Frigidaire dryers, designed to ensure the smooth and stable operation of the dryer drum. Positioned between the support roller and the shaft, this washer plays a critical role in reducing friction and wear, allowing the drum to rotate smoothly and quietly.

Causes of these symptoms often stem from normal wear and tear, which can lead to the degradation of the washer over time.

Symptoms of a bad Dryer Support Roller Washer include:

• Unusual noises, such as squeaking or grinding, indicating increased friction during drum rotation
• The dryer drum appears to wobble or is misaligned during operation
• Increased vibration of the dryer, which can lead to wear on other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Roller Assembly is an OEM replacement part specific to Frigidaire-brand clothes dryers. It contains multiple smooth-rolling cylinders that guide the dryer drum assembly as it turns.

Symptoms of a faulty dryer roller assembly include:

• Noisy or rumbling sounds from the dryer cabinet during cycles
• Vibrating of the dryer body instead of steady drum rotation
• Physical signs like cracked rollers or worn tracks that hold them

Causes can be seized or corroded rollers failing to spin freely. Dented tracks prevent proper alignment. Over decades, components have worn down from continuous operation.

The part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM fastener replaces a worn, stripped, or missing nut to securely hold components in place inside compatible laundry appliances. Restores proper clamping force to reduce vibration, rattling, and loosening during operation. What it does:

• Secures a mating bolt or stud to keep brackets, panels, or rotating parts firmly mounted
• Restores proper tension after the original nut is lost, corroded, or damaged
• Helps address symptoms like excessive vibration, rattling, or loose assemblies
• Maintains a tight connection in high-vibration environments when properly tightened

• 1 nut

• Disconnect power (and water to a washer) before servicing
• Support the component being fastened; hold the bolt head while loosening/tightening the nut
• Start threads by hand to avoid cross-threading; tighten to manufacturer guidance
• Replace any damaged bolts or hardware it mates with for a secure repair

The Leveling Leg is an OEM part for Frigidaire dryers. It adjusts to stabilize the dryer on uneven floors during operation.

Subjected to vibrations, repeated adjustments expose leveling legs to wear over extended use. Causes of damage include common plastic stress fractures.

Causes of a problematic leveling leg can include:

• Loosened mounting allowing dryer movement
• Deformed, cracked or damaged plastic dampening
• Inability to adjust height or reliably stabilize weight

Symptoms include:

• Excessive shaking or noise related to an uneven base
• Difficulty configuring proper ventilation clearances
• Premature component fatigue accelerating repairs

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A compressor protector that helps prevent electrical damage to the refrigerator compressor and supports reliable start-up. Replaces a failed protector to help restore normal compressor operation and reduce risk of repeated motor startups. What it does

• Prevents compressor damage by interrupting power during electrical faults or overloads.
• Supports proper compressor start-up so the fridge can maintain cooling.
• Common symptom fixes: compressor not starting, refrigerator not cooling, or repeated clicking/cycling at start.
• Works with the compressor relay/start components to ensure safe operation.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access usually requires removing the refrigerator back panel or service access panel to reach the compressor area.
• Handle electrical terminals carefully; confirm correct orientation and secure connections.

Hex washer head ,10-32 x 0.375. Ground

This damper is the refrigerator air-control flap that regulates airflow between compartments to help maintain consistent temperatures and proper cooling. It replaces a worn or stuck damper to restore normal airflow and temperature balance. What it does:

• Opens and closes to direct cold air where needed between freezer and fresh-food sections
• Helps maintain even temperatures and prevents one compartment from getting too warm
• Common symptom: uneven cooling or warm fresh-food section despite running compressor
• Common symptom: damper stuck or not moving, causing poor temperature control

• Disconnect power to the appliance before starting any repair
• Remove interior panels to access the damper; use basic hand tools
• Handle the damper and any wiring harness carefully to avoid damage
• After installation, verify damper operation and allow time for temperatures to stabilize

This door gasket is the refrigerator/freezer door seal that helps keep cold air inside for consistent temperatures and efficient operation. It replaces a worn or torn seal to reduce drafts and moisture buildup. What it does:

• Creates an airtight seal around the door edge to help maintain interior temperature
• Reduces frost, condensation, and energy loss from a leaking door
• Helps keep stored food fresher by preventing warm-air intrusion
• Addresses common symptoms like visible gaps, tears, or a door that won't stay cold

• One door gasket

• Inspect the door and frame for damage or debris before installing the new gasket
• Clean mounting surface and follow OEM alignment steps for a proper seal
• Warm the gasket slightly (per OEM guidance) if needed to ease installation and improve fit

This is a Phillips pan head machine screw commonly used to secure panels and components in appliances. It provides a reliable, low-profile head for flush fastening and easy Phillips-driver installation. What it does:

• Fastens trim, panels, or internal components where a pan head screw is required
• Designed for secure grip in metal or threaded inserts compatible with #10-16 threads
• Helps prevent loosening from vibration when installed to correct torque
• Often used in refrigeration and major appliance assemblies in limited quantities

• One Phillips pan head screw (#10-16 x 5/8")

• Use the correct #2 Phillips driver and steady pressure to avoid cam-out or stripping
• Do not overtighten; stop when snug to avoid damaging threads or mating parts
• Replace only with an identical thread size and head style to ensure fit
• Wear safety glasses when working around sharp sheet metal and springs

This retainer is a small fastener that secures a component inside your appliance, keeping it correctly positioned during operation. Replacing a damaged or missing retainer helps eliminate looseness and noise while preventing wear from parts shifting.

• Holds a mating part or assembly firmly in place
• Restores proper fit when the original retainer is cracked, warped, or missing
• Common symptoms: loose or misaligned parts, rattling/vibration, rubbing noises
• Helps prevent premature wear from movement or chafing

• Disconnect power; shut off gas and water supplies if applicable
• Use your model's diagram to locate the retainer and match its orientation
• Transfer any reusable hardware and ensure the retainer is fully seated
• Reassemble and run a short test to check for proper operation

This terminal block provides the mounting point and secure electrical connection for the appliance power leads. Replacing a damaged or corroded terminal block restores a solid power connection and reduces arcing or intermittent power. What it does:

• Provides a secure connection between the incoming power cord and the appliance wiring
• Holds and isolates power terminals to prevent shorting and arcing
• Commonly fails when terminals are burned, corroded, loose, or when wires heat at the connection
• Symptoms of a failing terminal include loss of power, intermittent power, visible burn marks or arcing at the connection, and melted or discolored insulation

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Tighten mounting screws and terminal screws securely; inspect and replace any damaged wire insulation

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

The High Temperature Adhesive is an OEM part for Frigidaire appliances. This adhesive is specifically formulated to withstand high temperatures and is used in various repair applications within appliances such as ovens, ranges, and dryers.The 1-ounce tube contains adhesive formulated to withstand the extreme heat inside dryer drums and cabinets

Causes of a bad adhesive can include exposure to extremely high temperatures over extended periods, contamination by dirt or grease, or the natural aging and drying out of the adhesive.

Symptoms of a bad high temperature adhesive include:

• Components or parts becoming loose or detached
• The adhesive becoming brittle or cracked
• Inability to properly bond surfaces exposed to high heat
• Visible deterioration or peeling of the adhesive

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
