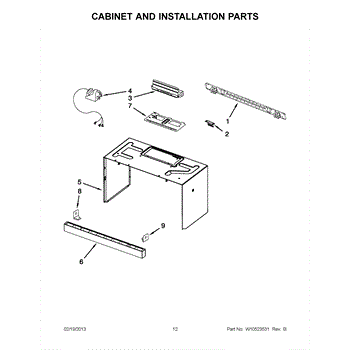

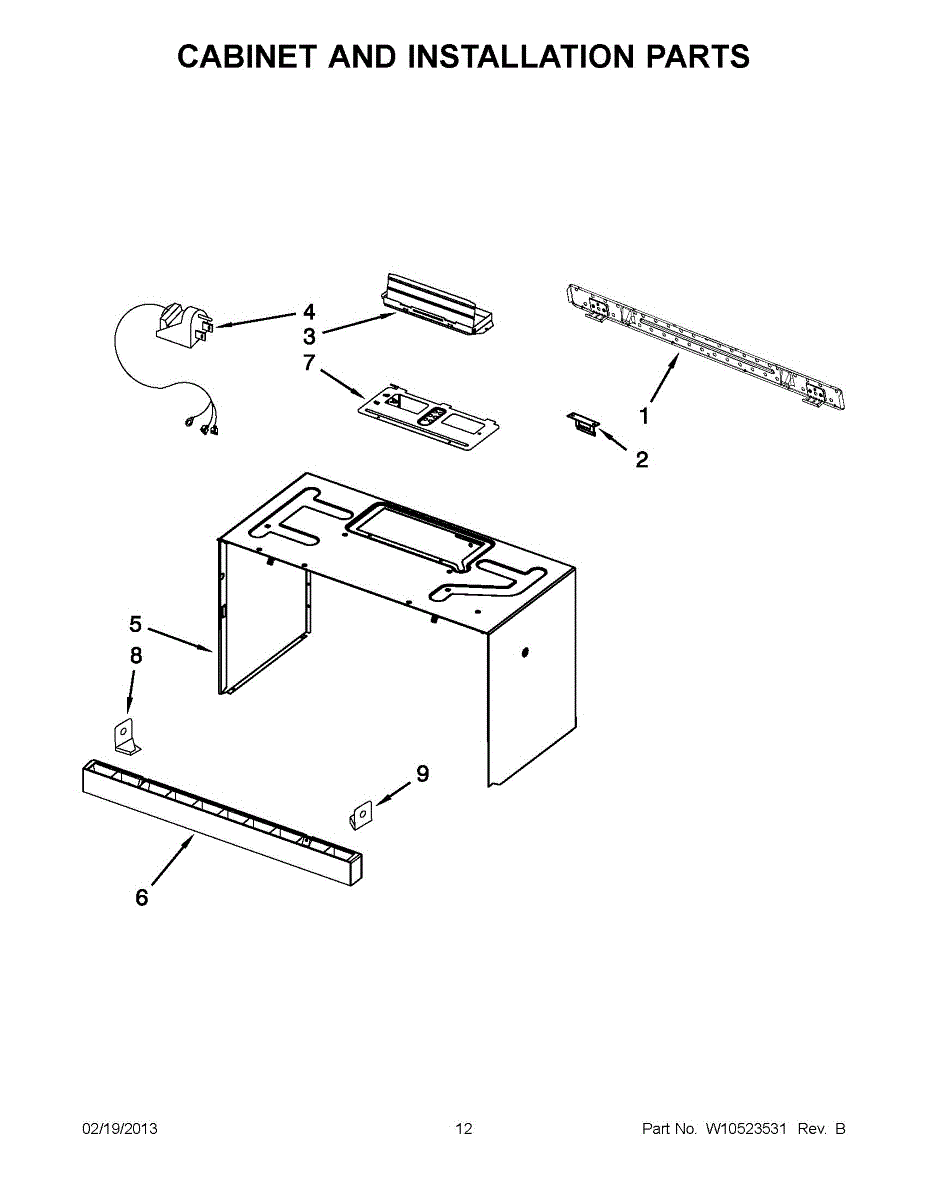

Parts for Kitchenaid KHMS2040WBL2: 06 - Cabinet And Installation Parts

The Mounting Plate is an OEM part for Whirlpool microwaves. This part is designed to mount and stabilize the microwave over the range, ensuring it is safely anchored in its designated space. The mounting plate serves as an interface between the microwave and the wall or cabinet, distributing the weight evenly and providing a firm foundation for the appliance.

Causes of a bad Mounting Plate can stem from improper installation, which may lead to undue stress and eventual warping or weakening of the material.

Symptoms of a bad Mounting Plate include:

• Loose microwave unit
• Difficulty in aligning or installing the microwave
• Visible signs of wear, rust, or damage on the plate

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This molded wire support clip secures wiring and small harnesses to the appliance cabinet or components to prevent rubbing, pinching, or contact with moving/heat-producing parts. It helps reduce chafing and electrical wear for safer, more reliable operation. What it does:

• Holds wiring harnesses and individual wires in place to prevent contact with sharp edges, motors, or heating elements
• Minimizes wire movement and vibration that can lead to chafing or broken conductors
• Helps maintain proper routing for consistent connections and component performance
• Commonly used where a small push-fit retainer is needed to secure low-voltage or signal wires

• One wire support clip as shown

• Disconnect power to the appliance before servicing to avoid shock or injury
• Push-fit installation: align clip over wire/harness and press into the mating hole or slot until it snaps in place; clip may require slight flexing
• Inspect surrounding wiring and routing for damage; replace any frayed or exposed wires before reassembly
• If the mounting hole or panel is damaged, use the correct replacement panel or a suitable repair to ensure a secure fit

The Air Damper is an OEM part for Whirlpool microwave/range hood combos. It is a crucial component that regulates the flow of air into the microwave cavity, helping to maintain proper temperature and airflow during operation.

Symptoms of a faulty Air Damper include:

• Overheating or uneven heating of food items
• Excessive noise or rattling sounds during operation
• Error codes related to temperature or airflow issues

Causes of a bad Air Damper can include wear and tear over time, physical damage or obstruction, or issues with the damper's motor or control system.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This is the appliance's main power cord. It delivers household electricity to the unit so it can operate safely and reliably.

• Supplies AC power from the wall outlet to the appliance's internal wiring
• A damaged or failed cord can cause no power, intermittent power, or tripped breakers
• Replacing a worn cord can restore consistent power and improve safety

• Unplug the appliance and turn off power at the breaker before service
• Route and secure the cord to prevent pinching or abrasion

Color: White

Color: Black

The Grill-Vent (Black) is an OEM part for Whirlpool microwaves. This vent grille covers the microwave's internal components, allowing airflow while maintaining a clean and finished exterior appearance.

Causes of a bad grill-vent can include physical impacts, heat exposure over time, or wear and tear from regular use.

Symptoms of a bad grill-vent include:

• Cracks or visible damage on the vent
• The vent becoming loose or not staying in place
• Reduced airflow leading to overheating
• The microwave exterior appearing unfinished or damaged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black (Qty of 1)

Color: Chrome (Qty of 1)

Color: Black

This mounting bracket secures internal components to the appliance cabinet, restoring proper alignment and stability. It replaces worn or damaged brackets to reduce vibration and rattling and help fitted panels sit flush. What it does:

• Secures panels or components to the cabinet framework to maintain alignment
• Reduces vibration and noise caused by loose or broken supports
• Helps prevent further wear on adjacent parts by restoring proper fit
• Addresses symptoms such as loose panels, rattling during operation, or misaligned parts

• Disconnect power and, if applicable, water before starting any repair
• Use basic hand tools; hold components in place while installing new bracket
• Tighten fasteners firmly but avoid over-torquing to prevent striping

For mounting also consider WPW10269225 mounting plate

The Upper Cabinet Template is an OEM part for Whirlpool microwaves. This template is used during the installation of the microwave to ensure correct placement and alignment within the upper cabinet, providing guidance for drilling holes and securing the microwave in place.

Causes of a bad or missing template can include misplacement, wear and tear from repeated use, or damage during the installation process.

Symptoms of a bad or missing upper cabinet template include:

• Difficulty aligning the microwave properly within the cabinet
• Incorrect placement of mounting holes
• The microwave not sitting securely or level
• Challenges during the installation process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This OEM microwave top mounting screw is for mounting microwave ovens to upper cabinets. Replace if you've lost one of the original mounting screws or they've become damaged. This gold screw made of heavy-duty metal can be installed with a screwdriver and socket set. Measuring approximately 3 inches in length, this top mounting screw is sold individually.

The mounting bracket assembly requires two mounting screws. Make sure to order the number needed for your microwave oven. Remember to unplug your microwave before installing the mounting bracket assembly. Tighten the mounting screw with the screwdriver, being careful not to overtighten it. This can strip the threads on the screw.

Choose this OEM replacement part to ensure a secure and safe installation. It's designed to fit microwaves from top brands such as Whirlpool, Roper, Estate, Inglis, Maytag, Amana, and KitchenAid.
