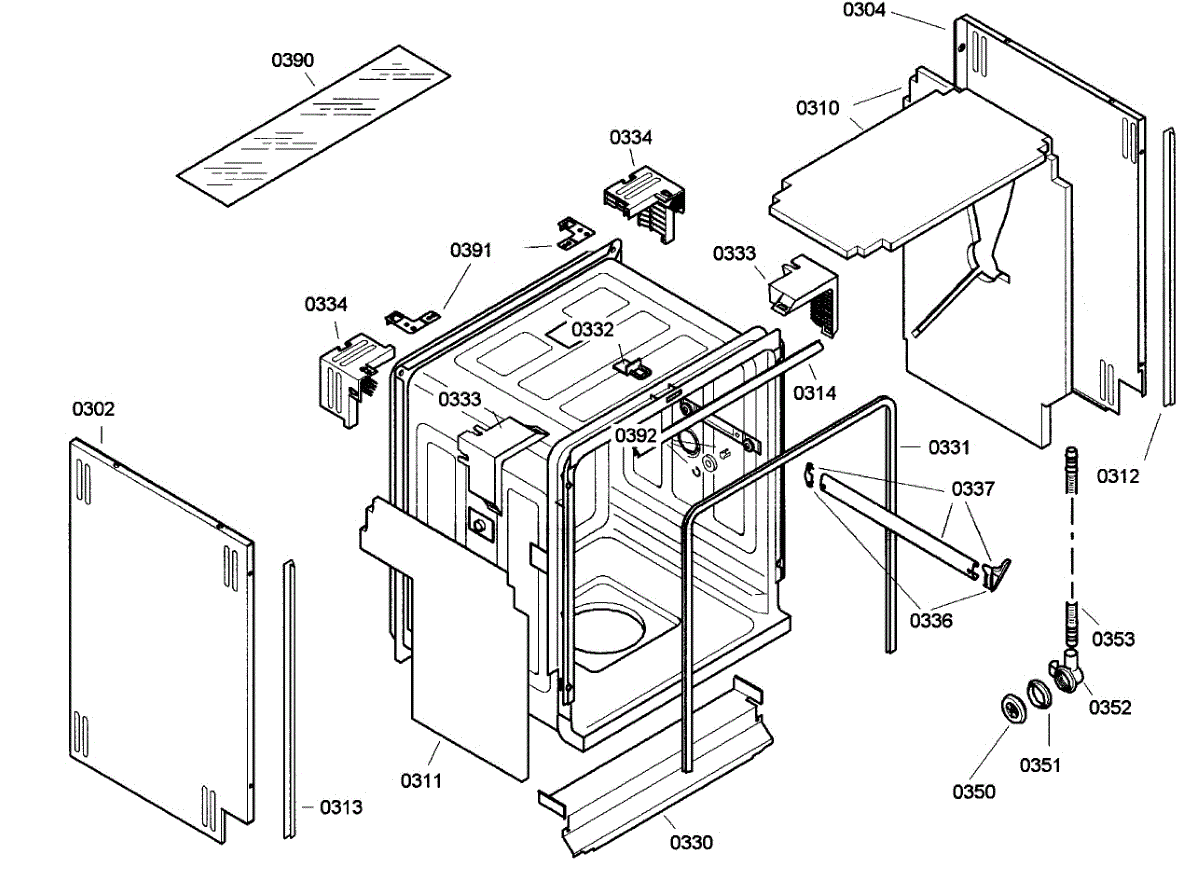

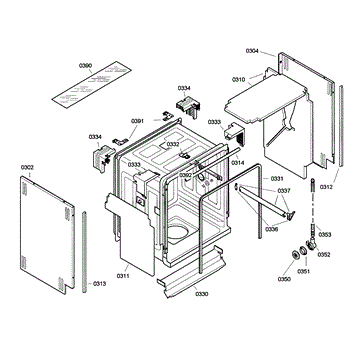

Parts for Bosch SGV45E03UC/01: Cabinet Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement side panel restores the dishwasher's exterior side surface, covering internal components and returning a finished look. It helps protect insulation and wiring while keeping the cabinet appearance uniform. What it does:

• Covers and protects the dishwasher tub side, hiding insulation and internal components
• Restores cosmetic appearance when original panel is dented, corroded, or missing
• Helps reduce noise by enclosing the washer cavity
• Keeps insulation and wiring secured behind a finished surface

• Disconnect power and water to the appliance before beginning any work
• Remove the toe panel and adjacent trim to access side panel fasteners; mounting hardware may be required
• Handle edges carefully — sheet metal can be sharp

This replacement side panel restores the dishwasher's exterior side surface, covering internal components and returning a finished look. It helps protect insulation and wiring while keeping the cabinet appearance uniform. What it does:

• Covers and protects the dishwasher tub side, hiding insulation and internal components
• Restores cosmetic appearance when original panel is dented, corroded, or missing
• Helps reduce noise by enclosing the washer cavity
• Keeps insulation and wiring secured behind a finished surface

• Disconnect power and water to the appliance before beginning any work
• Remove the toe panel and adjacent trim to access side panel fasteners; mounting hardware may be required
• Handle edges carefully — sheet metal can be sharp

This side panel replaces a damaged or corroded cabinet side on compatible Bosch dishwashers, restoring the appliance's exterior appearance and protecting internal components. Fits one side of the dishwasher cabinet. What it does:

• Covers and protects the dishwasher cabinet side from moisture, dents, and daily wear
• Restores a flush, factory appearance to the appliance exterior
• Keeps internal components shielded from spills and debris
• Helps maintain proper alignment of the outer cabinet panels

• Typical replacement requires removing the dishwasher from the opening; ensure power and water are disconnected first
• Use proper tools and follow dishwasher disconnection steps to avoid damage to trim or hoses
• Retain all original fasteners when possible; replacement hardware may be required if damaged

This side panel replaces a damaged or corroded cabinet side on compatible Bosch dishwashers, restoring the appliance's exterior appearance and protecting internal components. Fits one side of the dishwasher cabinet. What it does:

• Covers and protects the dishwasher cabinet side from moisture, dents, and daily wear
• Restores a flush, factory appearance to the appliance exterior
• Keeps internal components shielded from spills and debris
• Helps maintain proper alignment of the outer cabinet panels

• Typical replacement requires removing the dishwasher from the opening; ensure power and water are disconnected first
• Use proper tools and follow dishwasher disconnection steps to avoid damage to trim or hoses
• Retain all original fasteners when possible; replacement hardware may be required if damaged

This replacement strip is a small trim/retainer used to secure or finish a dishwasher door or control panel edge for a cleaner look and to reduce gaps or rubbing. It restores proper alignment and helps stop rattles or chafing. What it does:

• Secures trim or panel edges to keep parts aligned and flush
• Helps eliminate gaps that can trap dirt or cause rubbing sounds
• Prevents minor vibration-related noise at the door or panel seam
• Restores finished appearance where the original strip is worn or missing

• The replacement strip as pictured

• High-level task: typically a simple snap-in or adhesive-backed replacement; no special tools required for many installs
• Inspect mounting channel and clean surfaces before installing for best fit
• If adhesive is used, allow recommended cure time before use
• For safety, disconnect power to the appliance before servicing nearby components

This upper trim strip finishes the top edge of the appliance's front opening, restoring a clean look and helping protect nearby components. Replace a cracked, missing, or loose strip to keep panels aligned and secure.

• Provides a finished edge along the upper portion of the door/face area
• Helps protect adjacent components from dust and minor splashes
• Maintains proper panel gaps and alignment
• Typical symptoms: visible cracks, warping, looseness, rattling, or exposed/sharp edges

• Disconnect power before servicing; also shut off water
• Remove the existing strip by releasing screws/clips; retain hardware for reuse
• Align the new strip and secure evenly—do not overtighten fasteners
• Check door/panel operation afterward to confirm proper fit and clearance

This dishwasher door gasket seals the sides and top of the tub opening to keep water and steam contained during a cycle. Replacing a worn seal helps stop leaks at the door edges and restores quiet, efficient operation.

• Forms a watertight seal between the door and the tub perimeter
• Helps prevent dripping or puddles at the front corners and along the sides
• Maintains proper wash pressure, temperature, and noise isolation
• Replace if torn, flattened, brittle, or if moisture escapes around the door

• Disconnect power; if uninstalling the dishwasher, also shut off the water supply
• Open the door and pull the old gasket straight out of the channel
• Clean the groove; warming the new gasket in hot water can help relax bends
• Start at the top center and press the gasket fully into the channel without stretching; close the door to seat the seal and run a test cycle to check for leaks

The Door Latch is an OEM part for Bosch dishwashers. This latch mechanism securely fastens the dishwasher door in the closed position during operation.

Causes of a bad door latch can include wear and loosening of moving parts over time and cycles, or damage to latch components from forced or excessive door openings.

Symptoms of a bad door latch include:

• The door not closing or latching properly
• Unexpected door openings during the wash cycle
• Reduced safety with an unstable door

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is the front corner block. For rear corner block use 00263093.

This is the rear corner block. For front corner block use 00263094.

The Dishrack Stop Kit is an OEM replacement part for Bosch dishwashers. This kit comes with both the front and the rear stop, these parts are installed at either end of the rails that the upper rack slides on. These stops help keep the rack on the rail, without this part the upper rack of your dishwasher will not slide in and out of your dishwasher properly.

Causes of faulty dishrack stops include wear of sliding surfaces through repetitive racking and unracking over extended use. Exposure to moisture in the wash chamber environment can accelerate degradation.

Symptoms of a bad dishrack stop kit include:

• Dishracks slipping during rotation potentially damage fine china
• Clearance issues where racks impact other interior components
• Potential tipping if stops fail to release rack load onto door interior

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

This condensation tube routes moisture from the dryer's vented condensate tank to the drain, helping prevent leaks and pooling under the appliance. It's a direct-replacement tank drain tube for compatible vented-tank models. What it does:

• Channels condensate away from the tank to the dryer drain connection to reduce water buildup.
• Helps stop leaking or pooling beneath the dryer when the tank is vented.
• Restores proper condensate flow if the original tube is cracked, clogged, or damaged.
• Compatible with vented-tank dryer assemblies that use a routed drain tube for condensate.

• Turn off and unplug the dryer before starting any repair; if applicable, shut off gas supply.
• Remove access panels as needed to reach the condensate tank and tube; avoid damaging nearby wiring or hoses.
• Ensure tube fittings seat fully and secure clamps or fasteners to prevent leaks.

This moisture shield protects internal components from water and condensation, helping prevent moisture damage that can cause corrosion or electrical problems. Simple replacement maintains proper moisture control and appliance reliability. What it does:

• Redirects or blocks water and condensation away from sensitive parts
• Helps prevent shorting, corrosion, and moisture-related failures
• Supports normal drainage and airflow in the affected area
• Restores the appliance's original moisture-protection layout after damage or wear

• One moisture shield

• Replace with the appliance powered off and unplugged for safety
• Inspect mounting tabs and surrounding seals; replace any damaged fasteners
• Position the shield exactly as the original part to maintain drainage paths
• Address affected components before reassembly

The Mounting Bracket Set is an OEM replacement part for Bosch dishwashers. Comprised of heavy-duty brackets and mounting fasteners, this set securely anchors the dishwasher to surrounding cabinetry.

Causes involve normal stress and fatigue of mounting points from years of use, and cycles of expansion and contraction.

Symptoms of faulty or damaged mounting brackets include:

• Loose installation allows appliance movement during operation
• Creaking or vibration noise emanating from cabinetry joints

This OEM Bosch replacement set is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Bosch dishwasher mounting bracket set includes both left and right-hand brackets used for side or top mounting.
