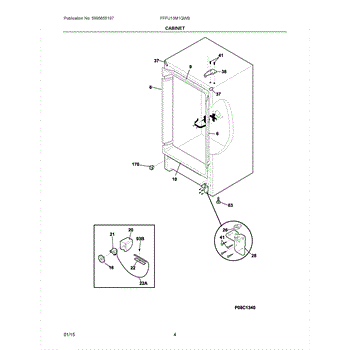

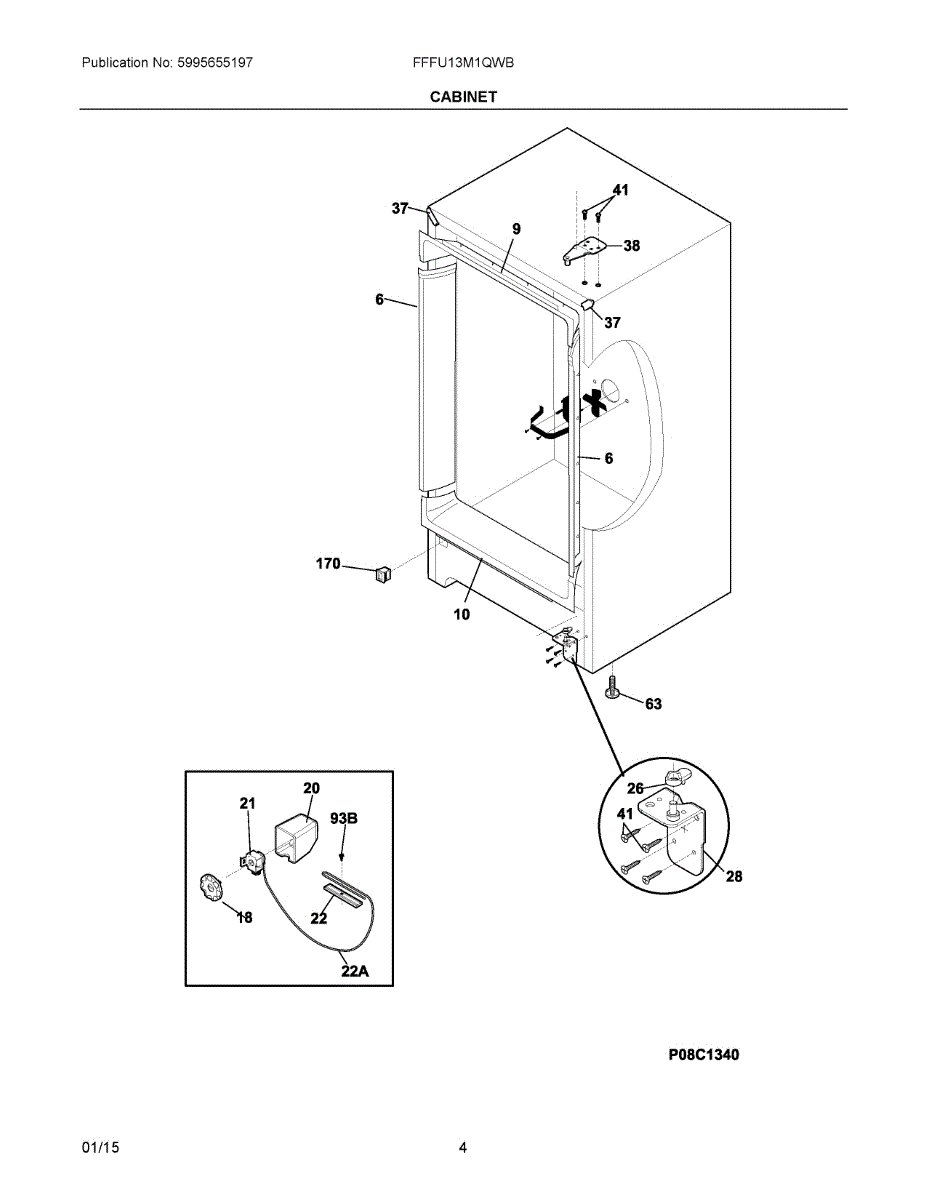

Parts for Electrolux FFFU13M1QWB: 03 - Cabinet Parts

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

The Temperature Control is an OEM part for Frigidaire freezers. It is responsible for regulating and maintaining the desired temperature inside your freezer to keep your frozen goods fresh and preserved. This temperature control features a user-friendly interface that allows you to select the ideal temperature to suit your freezing needs.

A bad temperature control can be caused by electrical issues, component failure, or physical damage. Signs of a faulty temperature control include inaccurate temperature readings, failure to reach or maintain the desired temperature, or unresponsive controls.

Symptoms of a bad temperature control include:

• Inaccurate temperature readings
• Freezer not reaching the desired temperatures
• Unresponsive temperature control

Replace your defective or damaged temperature control with this genuine OEM Frigidaire part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This door closing ramp provides the angled surface a hinge cam or glide rides on so the door opens smoothly and pulls itself shut. Replacing a worn ramp restores proper alignment and consistent, reliable closure. What it does

• Creates the sloped track for the mating hinge cam/glide
• Helps the door self-close and seal correctly
• Reduces friction, grinding, or clicking at the hinge area
• Common symptoms: door won't stay closed, pops open, sags, or makes noise when opening/closing

• Includes 1 ramp

• Disconnect power and remove items from the door before service
• Support the door; remove hinge hardware as needed to access the ramp
• Note the ramp's orientation and reuse original fasteners
• After installation, verify door alignment and gasket seal

This door hinge supports and pivots the appliance door so it opens and closes smoothly. Replacing a worn or bent hinge restores alignment and sealing, helping prevent air leaks, frost buildup, and temperature fluctuations.

• Provides the pivot point and supports the door's weight during opening and closing
• Maintains door alignment to ensure a proper gasket seal
• Replaces hinges that are bent, cracked, or excessively worn
• Common symptoms: door sags or binds, won't close fully, uneven gasket contact, squeaking or clicking noises

• Disconnect power and support the door before loosening hinge screws
• Note the position of any shims/spacers and transfer them in the same order
• Tighten mounting screws securely; check that the door swings freely
• Adjust door position if mounting slots allow

This upper door hinge supports the refrigerator/freezer door at the top pivot, keeping it aligned so the gasket seals and the door opens smoothly. Replacing a worn hinge helps restore proper door swing and reliable closing.

• Supports and pivots the door at the top hinge point
• Maintains door alignment for an even, consistent gasket seal
• Helps prevent door sagging, rubbing, or binding
• Worn hinge symptoms include misalignment, squeaks, poor sealing, or the door popping open

• Disconnect power; remove items from the door.
• Support the door to prevent dropping; remove hinge cover and mounting screws.
• Lift the door off the lower hinge, transfer any spacers/shims, and install the new upper hinge.
• Reinstall and align the door; tighten hardware and verify gasket contact all around.

Specs: Hex head ,1/4-20 x 5/8

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw fastens appliance panels and components to restore a secure fit and reduce vibration or rattling. Use when original hardware is missing, loose, or stripped to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets, and trim to prevent movement and rattling.
• Replaces missing or damaged hardware that can cause loose or misaligned parts.
• Helps maintain proper component alignment for reliable operation.
• Small but essential fastener for safe, stable assembly.

• Disconnect power before servicing any electrical appliance.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten, which can strip threads or crack panels.
• Keep removed hardware organized to ensure correct reinstallation.

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production when the valve is faulty or worn. What it does:

• Opens and shuts to allow water into the ice maker and dispenser when activated
• Common symptom: no water to dispenser or ice maker
• Common symptom: reduced or intermittent water flow from dispenser
• Common symptom: ice maker not filling or producing smaller/soft ice
• Can cause visible leaks at the valve or connections when failing

• One water inlet valve assembly

• Turn off water supply and unplug appliance before beginning work
• Relieve any pressure in the water line and have towels handy for minor spills
• Verify inlet/outlet hose orientation and tighten all fittings to OEM torque; use replacement gaskets if supplied

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed
