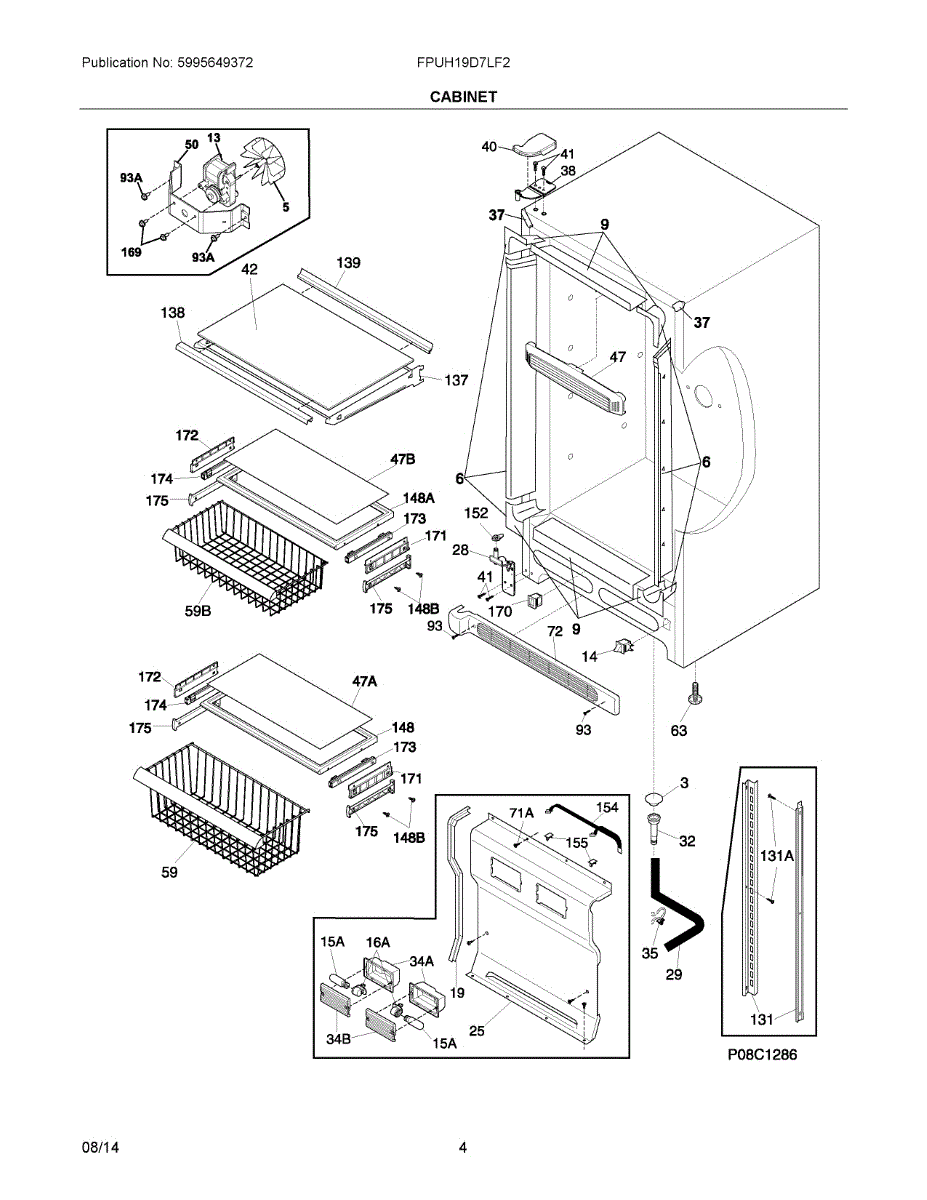

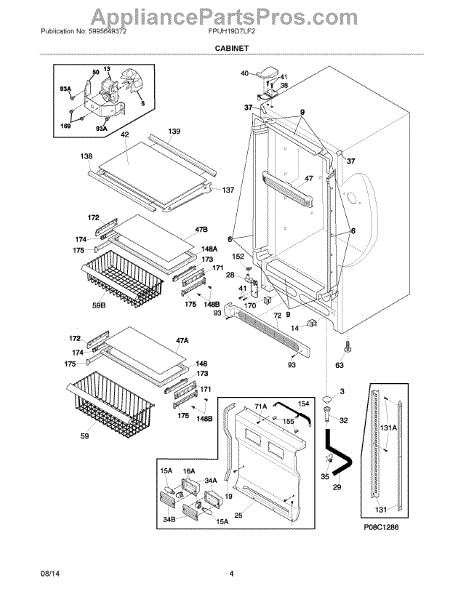

Parts for Electrolux FPUH19D7LF2: 03 - Cabinet Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Screen - drain keeps the drain path clear by trapping lint and small debris before it reaches the pump or drain hose, helping reduce clogs and improve drainage. Simple replacement restores proper water flow and drain performance. What it does:

• Traps lint, hair and small debris to help prevent clogs in the drain path
• Helps maintain consistent water drainage and pump operation
• Replace if you notice slow draining, standing water, or visible debris at the drain opening
• Sits in the appliance's drain assembly to protect downstream components

• Disconnect power to the appliance before servicing; turn off the water supply if the model requires it
• Access the drain area per your model's service instructions (remove access panel or wash tub components as needed)
• Inspect surrounding seals and hoses for damage and clean mating surfaces before installing the new screen

This cabinet breaker kit forms the insulating trim around the appliance opening. It provides a proper surface for the door or lid gasket to seal against and helps minimize condensation along the edge for clean, reliable performance.

• Creates the thermal break and finished edge around the cabinet opening
• Supports correct seating of the door/lid gasket for a consistent seal
• Helps reduce sweating or moisture at the perimeter
• Replaces cracked, warped, or missing breaker trim components

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the door/lid if required for access and retain all fasteners
• Carefully remove old breaker components and clean the mounting surfaces
• Install the new breaker and corners, align evenly, avoid overtightening, and verify the gasket seals all around

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Light Bulb is an OEM part for Frigidaire refrigerators. It is designed to provide illumination within the refrigerator, enhancing visibility and improving the ease of finding items.

Symptoms of a failing Light Bulb include:

• Dimming or flickering of the light
• The bulb not turning on when the refrigerator door is opened
• Inconsistent performance, with the light intermittently working
• A completely non-functioning bulb indicating a burnout

Causes of a bad light bulb can include a loosened connection due to the frequent opening and closing of the refrigerator door, age-related wear that leads to filament degradation, or a surge in electrical power.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This light socket securely holds the appliance bulb and provides the electrical connection to illuminate the compartment when the door is opened. Replacing a faulty socket restores interior lighting so you can easily see contents.

• Provides the electrical connection and physical mounting for the light bulb
• Common failure symptoms: light won't turn on, flickers, or only works when the bulb is jiggled
• Show signs of heat discoloration, loose terminals, or intermittent contact

• Unplug the appliance before service; power is off
• Allow the bulb and surrounding area to cool before handling
• Handle wiring carefully; transfer conductors to the new socket one at a time to maintain correct connections
• Do not exceed the bulb type/wattage specified on the appliance rating label

The Evaporator Cover Gasket seals the perimeter of the freezer's evaporator cover to prevent air leaks that can lead to frost, moisture, and temperature swings. Replacing a worn gasket helps restore proper airflow and consistent cooling.

• Seals the evaporator cover to the liner to maintain directed airflow and contain cold air
• Helps prevent frost or ice buildup around the cover and on nearby air passages
• Can help address symptoms like temperature inconsistencies, poor cooling, or excess moisture caused by air leaks
• Replaces a torn, flattened, or missing gasket to ensure a tight cover fit

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the evaporator cover to access the gasket
• Clean mating surfaces; press the new gasket fully into place with no gaps or twists
• Ensure air vents are unobstructed, reinstall the cover securely, then restore power

This freezer hinge kit replaces worn or damaged door hinge components to restore smooth opening and secure door alignment. Helps prevent gaps and uneven sealing so the freezer maintains proper temperature and performance. What it does:

• Replaces the hinge assembly that supports and pivots the freezer door
• Restores proper door alignment to reduce air gaps and improve sealing
• Stops door sagging, rubbing, or uneven closing that can cause cold loss
• Enables smooth opening and closing motion for the freezer door

• Disconnect power to the appliance before starting repairs to reduce shock risk
• Support the door while removing or installing hinges to prevent dropping or damage
• Use basic hand tools; follow the manufacturer's instructions for correct alignment

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

This is a replacement cabinet corner trim piece designed to restore the finished edge and appearance of your refrigerator cabinet. It covers and protects the cabinet corner where trim has cracked, broken, or gone missing. What it does

• Replaces a damaged or missing corner trim to restore a clean, finished look
• Covers exposed cabinet edges to help prevent snagging or minor moisture intrusion
• Helps keep adjacent trim and panels aligned and seated correctly
• Commonly used when trim is cracked, chipped, loose, or cosmetic finish is worn

• One cabinet corner trim piece (single)

• High-level replacement: usually snaps or presses into place; remove adjacent trim or panels if needed for access
• Use basic hand tools as required; avoid excessive force to prevent damage to surrounding panels
• If working near electrical components or lights, unplug the appliance before beginning work
• Wear gloves to protect hands from sharp edges and to improve grip during removal/installation

Specs: Hex head ,1/4-20 x 5/8

This replacement glass shelf restores a flat, sturdy storage surface and helps contain spills inside your refrigeration appliance. Replace cracked or missing shelf glass to recover usable space and keep items organized and secure.

• Creates a level surface for food storage; sits in the shelf frame or rails
• Helps contain drips and spills to the shelf area
• Replace if the glass is cracked, chipped, shattered, bowed, or missing
• Common symptoms: shelf won't seat level, items tip over, or liquids leak between levels

• Disconnect power and wear cut-resistant gloves and eye protection
• Allow any chilled glass to warm to room temperature before handling
• Support the glass with both hands; slide or set it evenly into the frame/side rails until fully seated
• Load items only after the shelf is properly supported

The Glass Shelf is an OEM part for Frigidaire refrigerators. It provides a sturdy and clear surface for storing food items, helping to organize and maximize the refrigerator's storage space. The glass is designed to be durable and easy to clean, ensuring it can handle the daily demands of a busy kitchen.

Causes of a bad glass shelf can include impact damage from heavy or awkward items, thermal stress from temperature changes, or general wear and tear over time. Maintaining intact shelves is essential for safe and efficient food storage.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• Shattered or broken pieces
• Difficulty in supporting the usual weight of stored items
• Unstable or uneven surface

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Glass is an OEM part for Frigidaire refrigerators. This part is a replacement shelf or panel within the appliance. This high-quality, durable glass provides a stable and clean surface for storing food and beverages, optimizing the organization and capacity of your refrigerator. The transparent nature of the glass allows for easy visibility of the contents, making it simpler to keep track of your groceries and to clean up spills or messes.

Causes of a bad glass can vary from accidental damage, such as dropping heavy items on the shelf, to normal wear and tear over time.

Symptoms of a bad refrigerator glass include:

• Cracks or chips in the glass
• Stains or discoloration that cannot be cleaned
• Sagging or bending under weight, indicating weakness

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement basket restores storage and organization inside your refrigerator or freezer, keeping foods contained and easy to access. Durable design holds frozen or chilled items and fits into the factory track system. What it does

• Replaces a cracked, broken or missing basket that no longer supports food items
• Restores proper organization and prevents items from shifting or falling
• Slides into the original tracks to provide stable storage where the previous basket sat
• Helps maximize usable space and keeps smaller items grouped and visible

• Remove food and unplug the appliance (or turn off power at the breaker) before servicing.
• Slide old basket out of the tracks and lift out; align new basket with tracks and slide into place.
• Do not force the basket; check mounting tabs and track alignment before applying pressure.
• Handle carefully to avoid sharp edges.

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw fastens appliance panels and components to restore a secure fit and reduce vibration or rattling. Use when original hardware is missing, loose, or stripped to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets, and trim to prevent movement and rattling.
• Replaces missing or damaged hardware that can cause loose or misaligned parts.
• Helps maintain proper component alignment for reliable operation.
• Small but essential fastener for safe, stable assembly.

• Disconnect power before servicing any electrical appliance.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten, which can strip threads or crack panels.
• Keep removed hardware organized to ensure correct reinstallation.

This kickplate grille mounts along the bottom front of the appliance to cover the lower compartment while allowing ventilation. Replace a cracked or missing grille to restore a finished look and maintain proper airflow to the condenser area.

• Covers and protects the lower front opening and internal components from bumps and debris
• Vents the toe-kick area to help maintain proper airflow through the condenser section
• Restores a clean, finished appearance at the base of the unit
• Common signs it's time to replace: cracked or broken grille, warped or missing piece, won't stay attached, rattling at the bottom front

• Disconnect power before servicing
• Remove the existing grille by releasing clips or removing screws as applicable
• Align the new grille with the mounting points; press or fasten in place and keep vent slots clear
• Restore power and check that the grille is secure and unobstructed

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

Replacement frame shelf that secures and supports a refrigerator shelf, restoring stable storage and helping prevent sliding or tipping of items. Fits the OEM shelf opening and provides a finished trim around the shelf edge. What it does:

• Holds and supports a glass or plastic shelf so food and containers sit level and secure
• Keeps shelf edges aligned with the refrigerator liner to prevent tipping or shifting
• Restores proper shelf seating when the original frame is cracked, warped, or broken
• Helps maintain an even load distribution across the shelf surface

• 1 frame shelf

• Remove all items from the shelf and use caution handling glass components
• Many installs slide or snap the frame into place after removing the shelf; keep track of any clips or fasteners
• If the shelf or frame is damaged, replace both pieces when recommended by the OEM

This is a replacement screw used to secure appliance components and panels. It provides a reliable fastener for repairs and maintenance, restoring secure attachment where the original screw is missing or damaged. What it does:

• Secures trim, panels, brackets, or small components to prevent rattling and movement
• Restores proper fit where a worn or stripped screw caused loose parts
• Helps eliminate noise caused by loose hardware
• Use as a direct replacement when the original screw is lost or damaged

• Use the matching driver bit and moderate torque to avoid stripping the head or threads
• Replace like-for-like: confirm length and thread type before installation
• Disconnect power and remove stored items from the appliance area before accessing internal panels
• If screws pull out of plastic or metal repeatedly, check for damaged threads or underlying mounting issues

This replacement electrical wire restores a single conductor connection used in your appliance's wiring system, helping re-establish power or signal continuity where the original lead is damaged. What it does

• Replaces a single appliance electrical lead to restore lost connection or repair damaged insulation.
• Used to carry power or control signals between components.
• Common symptom: intermittent or no power to a component, visible frayed or broken wire.
• Matches original part function and routing; intended for direct replacement.

• One replacement electrical wire (single lead).

• Disconnect power to the appliance before starting any repairs to avoid shock.
• Verify wire routing and secure connections match the original; use proper wire connectors and insulation.
• If soldering or crimping is required, follow manufacturer guidelines and use proper tools.

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring proper filling and dispensing when the valve is faulty. It replaces a worn or leaking inlet valve to stop water issues and restore normal operation. What it does:

• Opens and closes to allow water into the icemaker and dispenser as needed
• Prevents water flow when closed to avoid constant filling or overflow
• Commonly linked to symptoms like no water dispensed, no or slow ice production, or intermittent water flow
• Can cause visible leaks if seals or ports fail

• Disconnect power and turn off the water supply before starting any work
• Tighten water line fittings snugly but avoid over-tightening; check for leaks after restoring water

This bracket is the factory support used to mount a component securely inside your appliance. Replacing a damaged bracket restores proper alignment and reduces vibration, keeping the part stable so it operates as designed. What it does:

• Provides a rigid mounting point for the designated component
• Maintains correct alignment to help prevent rubbing, rattling, or noise
• Replaces a cracked, bent, or missing bracket to restore secure fit
• Typical signs include vibration, a loose or misaligned part, or visible damage

• 1 bracket

• Disconnect power before servicing
• Wear cut-resistant gloves; cabinet edges can be sharp
• Reuse original screws/fasteners and any spacers or grommets from the old bracket
• Mount in the original position and tighten fasteners evenly without overtightening

This mounting bracket secures internal components or panels to restore proper alignment and reduce vibration. A simple, direct replacement that helps stop rattling, sagging or loose panels caused by a cracked or bent bracket. What it does:

• Holds and supports a component or panel to the appliance cabinet, maintaining proper fit and alignment.
• Prevents movement and vibration that can cause noise or wear.
• Replaces cracked, bent or broken brackets that cause loose panels, misalignment or rattling.
• Restores secure attachment points so doors, drawers or control housings sit correctly.

• One mounting bracket

• Disconnect power before starting any repair to avoid shock or injury.
• Basic hand tools (screwdriver, nut driver) are typically required; retain original fasteners unless replacements are provided.
• Inspect surrounding parts and mounting holes for damage; replace any worn screws or clips.

This replacement slide basket restores a fridge drawer's sliding storage so food stays organized and accessible. Fits into the existing rail system to help you slide drawers smoothly and keep items contained. What it does:

• Replaces a cracked, worn or missing slide basket so the drawer can open and close properly
• Supports stored items and prevents them from falling when the drawer is pulled out
• Restores smooth sliding action when the basket or its mounting points are damaged or broken
• Helps eliminate noisy, sticking, or uneven drawer movement

• Remove contents and any obstructing shelves or drawers before installing; handle glass and edges carefully
• Align basket with the drawer rails and slide into place until it seats; do not force if it resists
• If the drawer assembly uses clips or screws, keep fasteners and orientation notes for reassembly
• Disconnect power only if accessing electrical components nearby; otherwise follow basic appliance-safety practices and use gloves to protect hands

This slide basket is a direct-fit replacement that restores smooth slide-out access and secure storage for a refrigerator drawer. It helps keep foods organized and prevents items from shifting or falling when you open the drawer. What it does:

• Provides a slide-out basket for easy access to refrigerated or frozen items.
• Keeps stored items contained and organized on a removable platform.
• Replaces cracked, warped or damaged baskets that cause sticking, catching or uneven sliding.
• Helps prevent items from falling when pulling the drawer open.
• Works with the drawer's slide/track system to maintain alignment and function.

• Disconnect power to the appliance before starting any service.
• Remove food and lower shelves or drawers to access the basket; follow your owner's manual for removal steps.
• Inspect drawer slides and rails for damage before installing the new basket; align slides and test for smooth operation.

The Crisper Support is an OEM part for Frigidaire refrigerators. This part supports the crisper drawer, ensuring it slides in and out smoothly and remains securely in place.

Causes of a bad crisper support can include repeated stress from frequent use, physical damage from heavy items, or wear and tear over time.

Symptoms of a bad crisper support include:

• The crisper drawer not sliding in and out smoothly
• The drawer becoming misaligned or falling off track
• Visible cracks or breaks in the support structure
• Difficulty in opening or closing the crisper drawer

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
