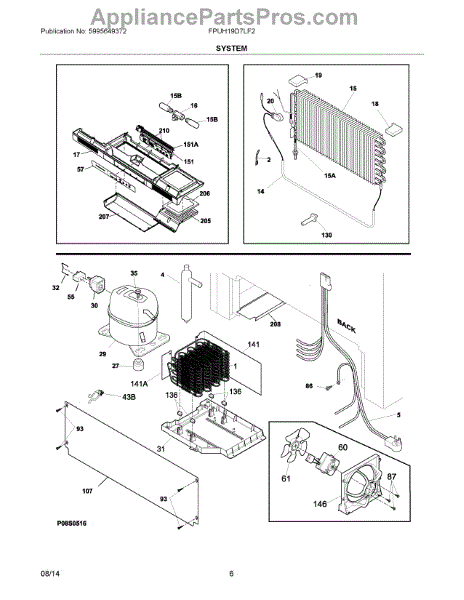

Parts for Electrolux FPUH19D7LF2: 04 - System Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Includes service line.

Fixes frost buildup on evaporator coils causing warming or ice accumulation. Test with multimeter for continuity. DIY-friendly repair component.

Freezer won't stay cold or runs too cold? A faulty heat exchanger disrupts refrigerant flow. Requires professional brazing and refrigerant recharge.

Freezer not cooling or running constantly? The evaporator may have failed. Professional installation recommended due to refrigerant system work.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Fix intermittent refrigerator operation caused by worn or heat-damaged component sockets. This receptacle restores secure plug-in connections for reliable performance.

The EVAPORATOR INSULATOR is an OEM part for Frigidaire refrigerators. It is a heat-resistant insulating pad or wrap that surrounds the evaporator coils. The insulator works to retain cool air and prevent warmer air from entering the refrigerated compartment.

Causes of a bad insulator can include deterioration or breakdown of insulating properties over time due to aging materials. Cracks, holes, or compressed sections of the insulator result in reduced insulation performance.

Symptoms of a bad evaporator insulator include:

• Inconsistently cool or warmer fridge temperatures
• Frost or ice buildup on evaporator coils or surrounding areas
• Higher than normal electric bills from inefficient cooling
• Warm or cold spots inside refrigerator shelves and compartments

This OEM Frigidaire replacement insulator is compatible with some Kitchenaid, Electrolux, Gibson, Kelvinator, and Kenmore side-by-side refrigerator models.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber grommet for freezers. Cushions and seals components where wires or tubes pass through panels. Replace if cracked, worn, or missing.

Fridge not cooling or making loud buzzing noise? This compressor kit restores cooling in refrigerators and freezers. Professional repair recommended.

This controller is the appliance's electronic control board. It manages key cooling functions and restores normal operation when the original board fails, helping the unit maintain stable performance and temperature. What it does

• Directs power to compressor and fan motors to regulate cooling cycles
• Interprets inputs from sensors/controls to maintain target temperature
• Coordinates system operations for consistent performance
• Common failure symptoms include no cooling, intermittent cooling, constant running, or unresponsive controls

• 1 controller

• Disconnect power before servicing; observe ESD precautions when handling the board
• Photograph wiring and note connector orientation before removal
• Mount the new board securely and reconnect all harnesses fully seated
• Restore power and monitor operation; allow time for temperatures to stabilize

Collects defrost water from the evaporator and channels it to the drain system. Replace if cracked, broken, or missing to prevent leaks inside the cabinet.

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

Secures the compressor to the mounting bracket in your refrigerator or freezer. Replace if missing, stripped, or corroded during compressor service.

Compressor clicks and won't start? Run capacitor helps start and run the compressor motor. Most DIYers replace in under 15 minutes with basic tools.

Refrigerator not cooling or running constantly? A failed condenser fan motor prevents heat dissipation. DIY repair typically takes 30-45 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

Small mounting bracket that holds shelves or baskets inside your freezer. Replace if cracked, broken, or missing to restore secure, level positioning.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Interior divider for freestanding freezers. Separates compartments and organizes frozen items. Replace if cracked, broken, or missing to restore storage.

Interior divider for upright freezers. Separates compartments and organizes frozen items. Replace if cracked, broken, or missing to restore organization.

Freezer won't power on or functions intermittently? This jumper wire harness restores electrical continuity between connectors. Simple install.

This electronic control is the oven's main user interface and control board, restoring reliable cycle selection and display feedback so your range or wall oven responds correctly and settings hold as expected. What it does:

• Interprets button/touchpad inputs and sends commands to heating elements, timers and relays.
• Restores or corrects digital display, clock and oven mode functions.
• Can resolve symptoms such as blank or erratic display, unresponsive controls, incorrect bake/clean cycles, or oven failing to start.
• Works as the central board that coordinates temperature and timing signals for normal oven operation.

• Always disconnect power at the breaker or unplug the appliance before inspecting or replacing controls.
• Handle the board carefully to avoid static discharge; avoid touching circuit traces or components.
• Follow the appliance's service manual or diagram for correct wire connections and panel reassembly.

Mounting bracket that secures internal freezer components in place. Replace if cracked, broken, or missing to restore proper alignment and stability.

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement mounting screw for freezers and refrigerators. Secures internal components and panels. Order now if your original screw is stripped or missing.

Mounting screw for freezers and refrigerators. Secures internal components, panels, or shelving. Replace if stripped, missing, or damaged during repairs.

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Freezer running too warm or freezing food? A faulty defrost thermostat disrupts temperature regulation. Moderate DIY repair restores proper cooling.
