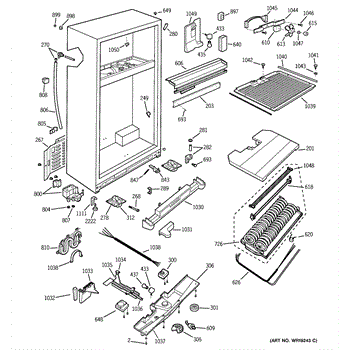

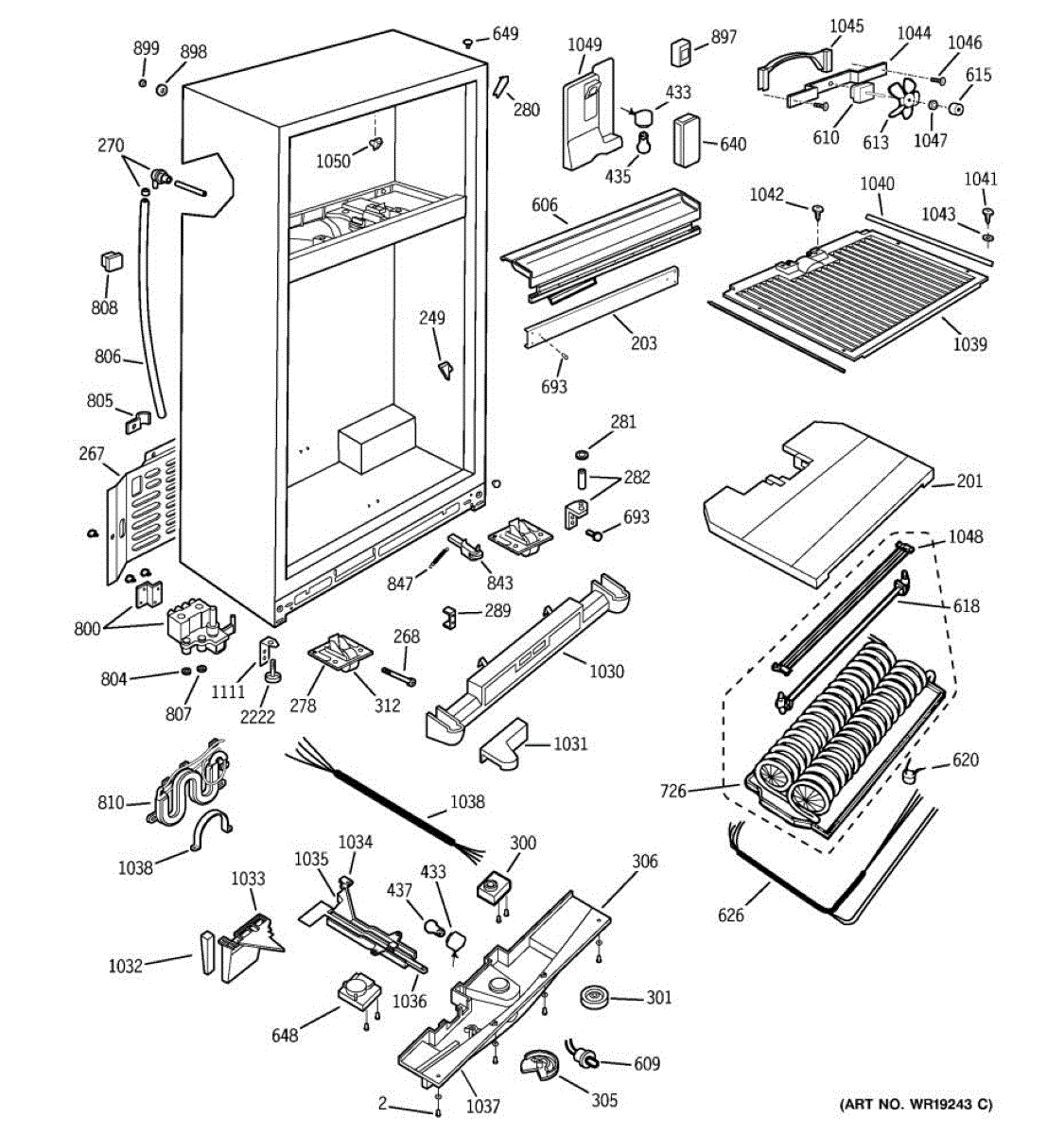

Parts for Ge TNX22PRCBLBB: 04 - Cabinet Parts

Package of 12

This replacement clamp secures lines or components inside the refrigerator, keeping them properly routed and stable. Replacing a broken or missing clamp helps reduce vibration and prevents rubbing damage or leaks from loose tubing. What it does:

• Holds tubing or wiring harnesses securely in place inside the refrigerator
• Maintains correct routing and clearance to prevent chafing and wear
• Helps reduce vibration and rattling noises from unsecured lines
• Can help prevent drips or leaks when used to retain water tubing

• 1 clamp

• Unplug the refrigerator and, if working with water lines, shut off the water supply
• Note the original clamp orientation and routing; take a photo before removal
• Install the new clamp in the same location, securing lines without pinching or over-stressing them
• Restore power (and water if applicable) and check that lines are secure; inspect for leaks if used on water tubing

The Grommet and Gasket Assembly is an OEM part for GE refrigerators. It is designed to create a secure seal around various refrigerator components, preventing air leaks and ensuring efficient operation. This assembly typically includes both the grommet and gasket, which work together to maintain the refrigerator's internal temperature and prevent moisture and contaminants from entering.

You should replace the grommet and gasket assembly if it becomes worn out or damaged. Causes of a bad grommet and gasket assembly can include regular wear and tear, exposure to temperature fluctuations, or physical damage that leads to cracks or deformities. A compromised seal can result in inefficient cooling and increased energy consumption.

Symptoms of a bad grommet and gasket assembly include:

• Air leaks around the refrigerator door or components
• Increased energy bills due to inefficient cooling
• Frost or condensation buildup inside the refrigerator
• Difficulty in maintaining the desired temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement chevron top trim that restores the appliance's front appearance and protects the upper control area from dust and debris. Matches the original black finish for a clean, factory look. What it does

• Replaces cracked, chipped, or faded chevron-style top trim for a finished front appearance
• Covers and protects the upper control area from spills, dust, and light debris
• Restores original fit and alignment with surrounding trim pieces
• Helps maintain consistent styling across the appliance front

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Typically installs with a few screws and may require removing the backguard or control panel for access
• Handle carefully to avoid scratching the finish; use appropriate hand protection
• Follow OEM instructions for reassembly and torque on fasteners

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Motor is an OEM part for GE refrigerators. This air circulation is essential for maintaining the set temperature within the refrigerator and freezer compartments, ensuring your food stays fresh and frozen items remain solid.

Causes of a bad Evaporator Motor can range from wear and tear over time, which can degrade the motor's components, to electrical issues like short circuits or failed bearings, which can impede the motor's ability to function properly.

Symptoms of a malfunctioning Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator, indicating the motor may be struggling or has failed
• Frost build-up on the evaporator coils due to insufficient air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

This defrost thermostat is a clip-on, bi-metal safety control for the freezer evaporator. Replacing a failed thermostat restores proper automatic defrost, helping prevent heavy frost buildup and temperature swings in the fresh food section.

• Monitors evaporator coil temperature and opens the defrost circuit when the coil warms to the cutoff point
• Helps prevent excessive frost that restricts airflow and reduces cooling performance
• Common failure symptoms: persistent frost on the evaporator, poor cooling/warm fridge, unit running longer than normal, or defrost heater staying on too long
• Mounts on the evaporator tubing; closes when cold and opens as the coil warms during defrost

• Disconnect power before servicing; use proper PPE
• Access the evaporator by removing the rear freezer panel
• Note wiring positions; make secure, insulated connections per appliance service guidelines
• Clip the thermostat firmly to the same coil location/orientation for accurate sensing and reassemble panels before restoring power

The Defrost Timer is an OEM replacement part for GE refrigerators. It regulates the automatic defrost cycle, which helps maintain optimal cooling and preserving food freshness inside the fridge. The defrost timer controls when the refrigerator exits cooling mode to enter a brief defrost period, preventing the buildup of ice on cooling coils. 10hr/35min timer.

Causes of a bad defrost timer can be normal wear and tear over time, exposure to wet environments, or accidental damage.

Symptoms of a bad defrost timer include:

• Inefficient or inconsistent cooling inside the fridge
• Ice accumulation on refrigerator walls or coils
• Condensation or water pooling in compartments or drawers
• Loud buzzing or clicking noises emitting from the back of the fridge

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Water inlet valve controls water flow to the refrigerator's dispenser and ice maker. Replacing a failed valve restores normal water delivery and can resolve symptoms like no water, weak flow, or continuous running/filling. What it does:

• Opens to allow water into the ice maker and dispenser when requested.
• Closes to stop water flow and prevent overfilling.
• Common symptoms: no water from dispenser, slow/weak water flow, or the ice maker not filling.
• Also used when leaks or intermittent water flow are traced to the inlet area.

• Disconnect power and shut off the home water supply before servicing.
• Relieve line pressure by dispensing water or gently loosening a downstream connection.
• Inspect fittings and seals; tighten connections snugly but avoid overtightening.
• After installation, turn on water and power, check for leaks, and verify dispenser/ice maker operation.

Nut for 1/4 inch tubing.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.
