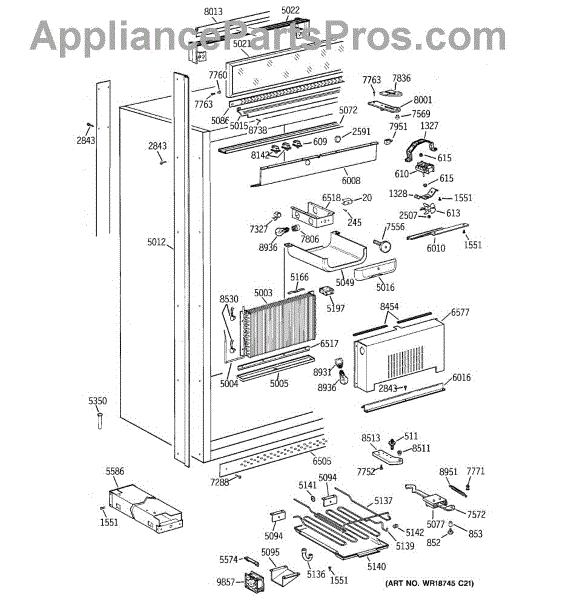

Parts for Ge ZIR36NDARH: 02 - Cabinet Parts

Parts for Ge ZIR36NDARH: 02 - Cabinet Parts

Location on Diagram
Part Description
Price & Availability
20
Product photo
5.0 (1)
By: Ge
Part Number: WR09X10039
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

245
By: Ge
Part Number: WR1X5644

This screw fastens appliance panels and components to keep assemblies secure and reduce movement or vibration. A simple replacement part that restores proper fit and helps stop rattling or loose parts. What it does

  • Secures panels, brackets, or components to the appliance frame
  • Restores proper alignment and reduces vibration or rattling caused by missing or stripped screws
  • Provides a direct, OEM-compatible replacement for worn or lost fasteners
  • Used anywhere a matching screw is specified on the original equipment
What's included
  • One screw
Install notes
  • Disconnect power or unplug the appliance before starting any repair
  • Use the correct driver bit to avoid stripping the head
  • Thread carefully and tighten until snug; avoid over-tightening which can strip threads or crack panels
  • Keep removed screws so you can match length and thread if replacing multiple hardware pieces

More
$10.51

IN STOCK
Ships Today Guaranteed
Add to Cart
511
By: Ge
Part Number: WR01X10175

Bottom adjustable hinge pin for refrigerator doors. Replaces worn, bent, or missing pins that cause door misalignment or sagging. Mounts at lower hinge.

More
$52.75

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
609
Best Seller
Product photo
4.9 (96)
By: Ge
Part Number: WR23X37285

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

More
$29.95

IN STOCK
Ships Today Guaranteed
Add to Cart
610
Best Seller
Product photo
4.7 (9)
By: Ge
Part Number: WR60X30349

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

  • Inconsistent or inadequate cooling in the refrigerator or freezer compartments
  • Warm spots or temperature fluctuations within the refrigerator
  • Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

613
Best Seller
Product photo
3.0 (1)
By: Ge
Part Number: WR60X41627

Fix loud fan noise and poor cooling with a new evaporator fan blade. Restores airflow across coils. Moderately difficult install in tight freezer space.

More
$6.65

IN STOCK
Ships Today Guaranteed
Add to Cart
615
Product photo
4.3 (3)
By: Ge
Part Number: WR2X7391

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

  • Airflow obstructions within the duct
  • Noisy vibrations from the fan assembly
  • Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

852
Product photo
By: Ge
Part Number: WR01X10184
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

853
Product photo
By: Ge
Part Number: WR01X10183
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1327
By: Ge
Part Number: WR2X8806

Rear fan mounting bracket for freezers and refrigerators. Secures the fan assembly to the back panel. Replace if cracked, broken, or missing hardware.

More
$57.94

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1328
By: Ge
Part Number: WR2X7137
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1551
Product photo
By: Ge
Part Number: WR1X5645

Secures panels, brackets, and components inside your refrigerator or freezer. Replace when original fasteners are missing, stripped, or corroded.

More
$9.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2507
Best Seller
Product photo
4.8 (13)
By: Ge
Part Number: WR60X114

Freezer not cooling or making buzzing noise? The evaporator fan blade circulates cold air. Easy DIY fix in under 5 minutes—simply pull off and press on.

More
$26.95

IN STOCK
Ships Today Guaranteed
Add to Cart
2591
By: Ge
Part Number: WR02X10154

Plastic plug insert that covers shelf support holes in freezer interior walls. Replaces missing, cracked, or damaged plugs for a clean finish.

More
$4.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2843
Product photo
By: Ge
Part Number: WR1X2130

Replacement mounting screw that secures panels and internal components in your freezer. Replace stripped, rusted, or missing fasteners to restore stability.

More
$11.09

IN STOCK
Ships Today Guaranteed
Add to Cart
5003
Product photo
By: Ge
Part Number: WR85X10017

Fix a freezer that won't cool or runs constantly. This evaporator coil absorbs heat to maintain proper temperature. Sealed system repair required.

More
$556.21

IN STOCK
Ships Today Guaranteed
Add to Cart
5004
Product photo
By: Ge
Part Number: WR51X10036

Excessive frost buildup in your freezer? This defrost heater melts ice from evaporator coils to restore proper airflow and cooling during defrost cycles.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5005
Product photo
By: Ge
Part Number: WR17X10648
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5012
By: Ge
Part Number: WR17X10459
$244.24

IN STOCK
Ships Today Guaranteed
Add to Cart
5015
By: Ge
Part Number: WR02X10155
$50.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5016
By: Ge
Part Number: WR17X10650
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5021
By: Ge
Part Number: WR74X10016
$267.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5022
Product photo
By: Ge
Part Number: WR74X10017
$98.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5049
By: Ge
Part Number: WR17X10651
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5072
By: Ge
Part Number: WR17X10652
$71.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5077
Product photo
By: Ge
Part Number: WR2X8607
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5086
By: Ge
Part Number: WR02X10142
$8.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5094
By: Ge
Part Number: WR02X10524

Shelf pan stop secures refrigerator shelf pans in place. Replace if broken, cracked, or missing to prevent pans from sliding out of position.

More
$17.04

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5095
By: Ge
Part Number: WR17X10680
$29.77

IN STOCK
Ships Today Guaranteed
Add to Cart
5136
Product photo
By: Ge
Part Number: WR17X10675

Replaces a cracked or broken drain trap in your refrigerator. Installs on the drain hose at the back of the unit. Use pliers to remove the old trap.

More
$15.65

IN STOCK
Ships Today Guaranteed
Add to Cart
5137
By: Ge
Part Number: WR17X10676

Support plate that mounts and secures the drain assembly in your freezer. Replace if cracked, broken, or missing to properly support drain components.

More
$116.50

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5139
Product photo
By: Ge
Part Number: WR84X10024
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5140
By: Ge
Part Number: WR17X10674

The Drain Pan is an OEM part for GE refrigerators. Located below the evaporator coil and fans in the back of the refrigerator, it is designed to collect and channel condensation to the evaporator drain tube.

As it is continuously exposed to moisture and changes in temperature, small cracks can develop over time in a drain pan. Issues such as condensation leaks, water stains, or clogs may indicate an underlying problem.

Symptoms of a bad Drain Pan include:

  • Water or frost buildup beneath the refrigerator
  • Moisture accumulation inside cabinet surfaces
  • Slow draining of condensation or clogged drain tube

This OEM GE replacement part helps ensure proper airflow by containing moisture. Replace yours to prevent potential problems and maintain efficient cooling operations. The pan is manufactured with durable plastic to withstand environmental fluctuations inside the refrigerator.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5141
By: Ge
Part Number: WR01X10180
$8.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5142
By: Ge
Part Number: WR02X10525
$8.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5166
By: Ge
Part Number: WR01X10045

Secures heater and sensor wiring to the evaporator area in your refrigerator. Replace if cracked, broken, or missing to maintain proper wire routing.

More
$10.28

IN STOCK
Ships Today Guaranteed
Add to Cart
5197
By: Ge
Part Number: WR02X10145

Left-side evaporator baffle directs cold air flow in the freezer compartment. Replaces cracked, broken, or missing baffles to restore proper airflow.

More
$6.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5350
Product photo
By: Ge
Part Number: WR17X26689

Routes defrost and condensation water from your refrigerator to the drain system. Replace if cracked, split, or clogged to prevent water pooling.

More
$10.46

IN STOCK
Ships Today Guaranteed
Add to Cart
5574
By: Ge
Part Number: WR49X10016
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5586
By: Ge
Part Number: WR13X670

Left side base roller assembly for refrigerators. Mounts to the bottom left corner to support and allow movement. Replace if cracked, worn, or broken.

More
$90.50

IN STOCK
Ships Today Guaranteed
Add to Cart
6008
By: Ge
Part Number: WR17X12639
$39.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6010
By: Ge
Part Number: WR17X10689
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6016
Product photo
By: Ge
Part Number: WR17X10653
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6505
By: Ge
Part Number: WR74X10049

Replacement toe kick grille for your refrigerator. Covers the bottom front opening beneath the door. Replace if cracked, broken, or discolored.

More
$365.22

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6517
Product photo
By: Ge
Part Number: WR17X10646
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6518
By: Ge
Part Number: WR74X10046
$35.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6577
Product photo
By: Ge
Part Number: WR74X10048

Plastic housing trim that protects the evaporator coil in your freezer compartment. Replace if your cover is cracked, broken, worn, or missing.

More
$182.31

IN STOCK
Ships Today Guaranteed
Add to Cart
7288
Product photo
By: Ge
Part Number: WR1X5686

Mounting screw for refrigerator and freezer assembly. Replaces lost, stripped, or damaged screws used to secure internal components and panels.

More
$8.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7327
Product photo
5.0 (1)
By: Ge
Part Number: WR50X10003

Fixes ice buildup in freezer and warm fresh food compartment. This bimetal defrost thermostat controls heater cycles to prevent frost accumulation.

More
$135.39

IN STOCK
Ships Today Guaranteed
Add to Cart
7556
By: Ge
Part Number: WR02X10476

Control knob assembly for freezer temperature adjustment. Installs on the control panel. Replace if knob is cracked, broken, loose, or missing.

More
$24.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7569
By: Ge
Part Number: WR2X8587

Plastic bushing that fits into the top hinge assembly on your refrigerator door. Replace if the original is cracked, worn, or missing to restore support.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7572
Product photo
By: Ge
Part Number: WR2X8925

Actuator arm that connects to the fresh food air damper to move the damper door. Replace if broken, cracked, or worn to restore proper damper movement.

More
$37.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7752
Product photo
5.0 (1)
By: Ge
Part Number: WR1X1754D

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

  • Secures exterior and interior panels, brackets, and trim pieces
  • Restores proper fit where missing or stripped screws cause movement or noise
  • Helps maintain appliance alignment and prevents parts from vibrating loose
  • Used for general-purpose repairs on compatible GE appliances
What's included: One pack of 12 screws Install notes:
  • Disconnect power or unplug the appliance before performing any internal repairs
  • Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
  • Keep remaining screws in a labeled container for future service
  • If a screw does not seat easily, stop and verify correct fit to avoid damage

More
$23.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7760
Product photo
By: Ge
Part Number: WR1X1900

Barrel nut secures screws in refrigerator and freezer assemblies. Replaces broken, stripped, or missing threaded inserts for panels, brackets, and trim.

More
$9.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7763
Product photo
By: Ge
Part Number: WR1X5690

A specialized fastener that secures the door handle to the refrigerator door panel. Located behind or within the handle assembly, replacement is necessary when the handle becomes loose, wobbly, or detaches from the door.

More
$8.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7771
By: Ge
Part Number: WR1X1839

Replace your worn or damaged freezer door hinge spring bushing. This small plastic component cushions the hinge spring mechanism and prevents metal-on-metal contact. Installs inside the hinge assembly.

More
$46.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7806
By: Ge
Part Number: WR23X5146

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7836
By: Ge
Part Number: WR13X639

Replace the hinge cover on the fresh food side of your refrigerator. Needed when the original cover is cracked, broken, or missing from wear.

More
$22.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7951
By: Ge
Part Number: WR02X37905
$33.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8001
By: Ge
Part Number: WR49X10063
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8013
By: Ge
Part Number: WR2X8972

Seals the top vent area of your refrigerator to maintain proper temperature and prevent air leaks. Replace if torn, compressed, or causing frost buildup.

More
$7.79

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8142
Best Seller
Product photo
4.9 (96)
By: Ge
Part Number: WR23X37285

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

More
$29.95

IN STOCK
Ships Today Guaranteed
Add to Cart
8454
By: Ge
Part Number: WR38X10190

Replacement edge trim that covers and protects exposed edges on refrigerator doors or cabinets. Needed when original trim is cracked, broken, or missing.

More
$34.07

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8511
Product photo
By: Ge
Part Number: WR02X10483
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8513
By: Ge
Part Number: WR13X10099

Bottom door hinge for refrigerators. Mounts at the base of the door to provide pivot support. Replace if cracked, bent, or causing door misalignment issues.

More
$141.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8530
Product photo
By: Ge
Part Number: WR50X10032

This thermodisc temperature switch senses refrigerator evaporator temperature and helps control defrost and cooling cycles to prevent overcooling or prolonged defrost runs. It's a compact replacement part for temperature regulation systems. What it does:

  • Opens or closes an electrical circuit based on temperature to signal defrost or compressor control
  • Helps stop defrost heater when the evaporator reaches target temperature
  • Can prevent extended cooling cycles when the sensed temperature indicates the system has reached desired cold
  • Restores normal cycling when a failed thermostat causes continuous run or no cooling
What's included: One thermodisc temperature switch Install notes:
  • Disconnect power before servicing to avoid shock or injury
  • Confirm location and orientation with the appliance wiring diagram before removal
  • Handle the sensor element carefully; avoid bending or damaging the capillary/sensing tip
  • After installation, observe normal defrost and cooling cycles

More
$103.33

IN STOCK
Ships Today Guaranteed
Add to Cart
8738
By: Ge
Part Number: WR01X10053
$8.53

IN STOCK
Ships Today Guaranteed
Add to Cart
8931
By: Ge
Part Number: WR02X11626

Freezer light not working? This light socket connects the bulb to power. Common fix for interior lighting issues. Simple installation in most models.

More
$14.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8936
Best Seller
Product photo
4.8 (16)
By: Ge
Part Number: 40A15

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

  • Dim or no light illuminating inside refrigerator shelves
  • Shadows and dark spots making it difficult to find items
  • Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

More
$7.95

IN STOCK
Ships Today Guaranteed
Add to Cart
9857
Product photo
By: Ge
Part Number: WR60X26032

Fix water pooling under your refrigerator with this drain pan fan motor kit. Keeps condensation evaporating properly to prevent leaks and odors.

More
$118.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
