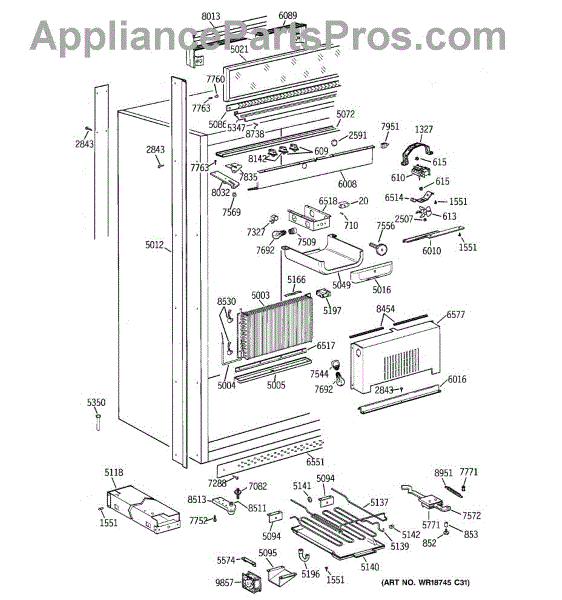

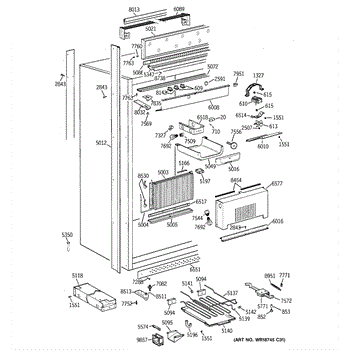

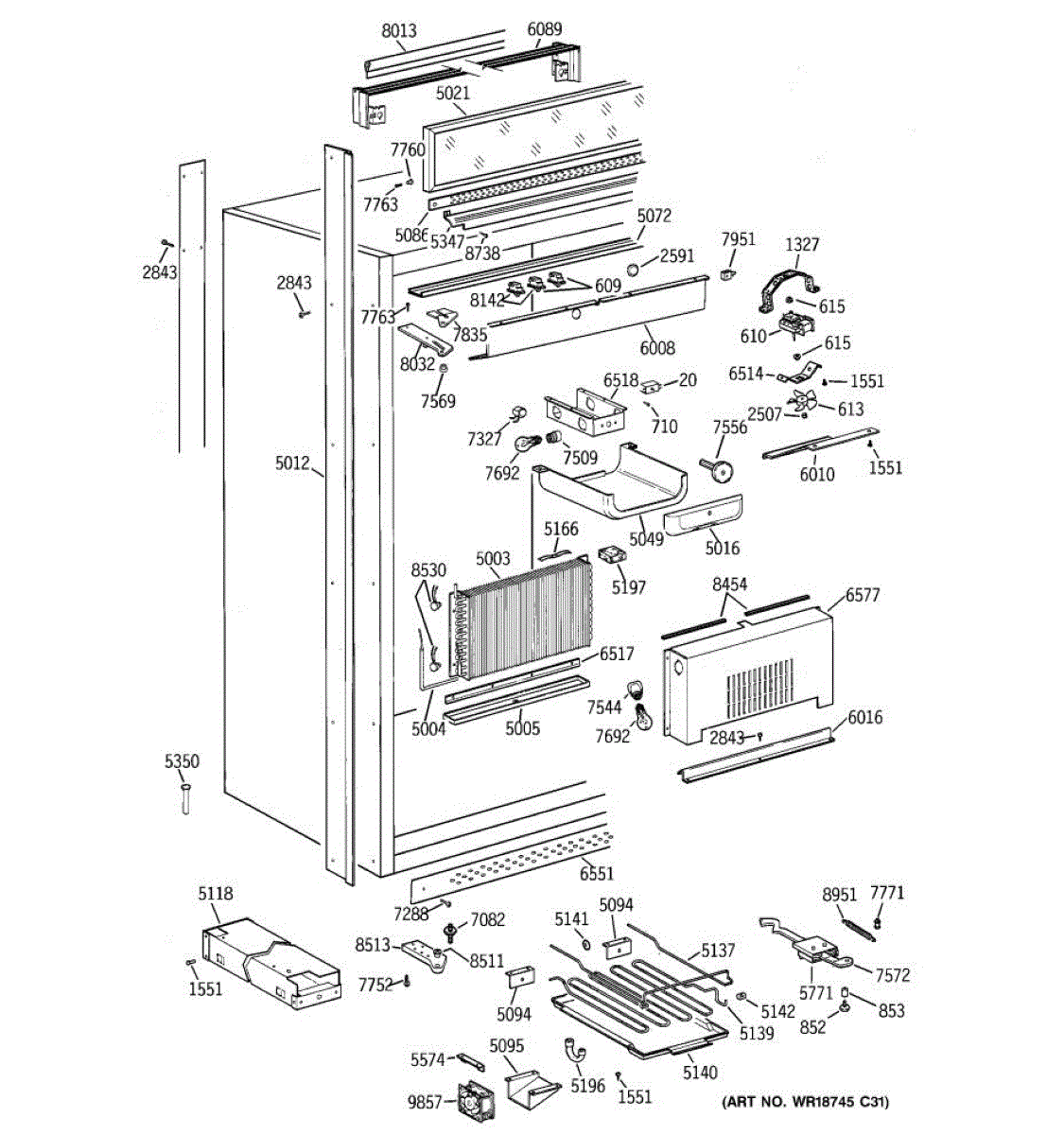

Parts for Ge ZIR36NMALH: 02 - Cabinet Parts

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Freezer fan loud or not spinning? This evaporator fan blade circulates cold air over the coils. DIY-friendly repair with our video guide.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

Size: 10-32 GXTT FLP.595 S

Rear fan mounting bracket for freezers and refrigerators. Secures the fan assembly to the back panel. Replace if cracked, broken, or missing hardware.

Secures panels, brackets, and components inside your refrigerator or freezer. Replace when original fasteners are missing, stripped, or corroded.

Freezer not cooling or making buzzing noise? The evaporator fan blade circulates cold air. Easy DIY fix in under 5 minutes—simply pull off and press on.

Plastic plug insert that covers shelf support holes in freezer interior walls. Replaces missing, cracked, or damaged plugs for a clean finish.

Replacement mounting screw that secures panels and internal components in your freezer. Replace stripped, rusted, or missing fasteners to restore stability.

Fix a freezer that won't cool or runs constantly. This evaporator coil absorbs heat to maintain proper temperature. Sealed system repair required.

Excessive frost buildup in your freezer? This defrost heater melts ice from evaporator coils to restore proper airflow and cooling during defrost cycles.

Shelf pan stop secures refrigerator shelf pans in place. Replace if broken, cracked, or missing to prevent pans from sliding out of position.

Left side base roller assembly for refrigerators. Mounts to the bottom left corner to support and allow movement. Replace if cracked, worn, or broken.

Support plate that mounts and secures the drain assembly in your freezer. Replace if cracked, broken, or missing to properly support drain components.

The Drain Pan is an OEM part for GE refrigerators. Located below the evaporator coil and fans in the back of the refrigerator, it is designed to collect and channel condensation to the evaporator drain tube.

As it is continuously exposed to moisture and changes in temperature, small cracks can develop over time in a drain pan. Issues such as condensation leaks, water stains, or clogs may indicate an underlying problem.

Symptoms of a bad Drain Pan include:

• Water or frost buildup beneath the refrigerator
• Moisture accumulation inside cabinet surfaces
• Slow draining of condensation or clogged drain tube

This OEM GE replacement part helps ensure proper airflow by containing moisture. Replace yours to prevent potential problems and maintain efficient cooling operations. The pan is manufactured with durable plastic to withstand environmental fluctuations inside the refrigerator.

Secures heater and sensor wiring to the evaporator area in your refrigerator. Replace if cracked, broken, or missing to maintain proper wire routing.

Replaces a cracked or broken drain trap in your refrigerator. Installs on the drain hose at the back of the unit. Use pliers to remove the old trap.

Left-side evaporator baffle directs cold air flow in the freezer compartment. Replaces cracked, broken, or missing baffles to restore proper airflow.

Routes defrost and condensation water from your refrigerator to the drain system. Replace if cracked, split, or clogged to prevent water pooling.

Top vent assembly for refrigerators. Installs at the top compartment to direct airflow. Replace if cracked, broken, or missing for proper air circulation.

Replaces the lower front panel beneath your refrigerator grille. Covers the cabinet base for a finished look. Order a new toe kick if yours is cracked or missing.

Plastic housing trim that protects the evaporator coil in your freezer compartment. Replace if your cover is cracked, broken, worn, or missing.

Replacement adjustable hinge pin for refrigerator doors. Needed when original pin is worn, bent, or broken. Installs in door hinge assembly.

Mounting screw for refrigerator and freezer assembly. Replaces lost, stripped, or damaged screws used to secure internal components and panels.

Fixes ice buildup in freezer and warm fresh food compartment. This bimetal defrost thermostat controls heater cycles to prevent frost accumulation.

Freezer light not working? This light socket connects the bulb to power. Common fix for interior lighting issues. Simple installation in most models.

Control knob assembly for freezer temperature adjustment. Installs on the control panel. Replace if knob is cracked, broken, loose, or missing.

Plastic bushing that fits into the top hinge assembly on your refrigerator door. Replace if the original is cracked, worn, or missing to restore support.

Actuator arm that connects to the fresh food air damper to move the damper door. Replace if broken, cracked, or worn to restore proper damper movement.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

Barrel nut secures screws in refrigerator and freezer assemblies. Replaces broken, stripped, or missing threaded inserts for panels, brackets, and trim.

A specialized fastener that secures the door handle to the refrigerator door panel. Located behind or within the handle assembly, replacement is necessary when the handle becomes loose, wobbly, or detaches from the door.

Replace your worn or damaged freezer door hinge spring bushing. This small plastic component cushions the hinge spring mechanism and prevents metal-on-metal contact. Installs inside the hinge assembly.

Hinge cover cap that installs over the hinge mechanism on your refrigerator door. Replace if cracked, broken, missing, or discolored for a complete look.

Seals the top vent area of your refrigerator to maintain proper temperature and prevent air leaks. Replace if torn, compressed, or causing frost buildup.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Replacement edge trim that covers and protects exposed edges on refrigerator doors or cabinets. Needed when original trim is cracked, broken, or missing.

Bottom door hinge for refrigerators. Mounts at the base of the door to provide pivot support. Replace if cracked, bent, or causing door misalignment issues.

This thermodisc temperature switch senses refrigerator evaporator temperature and helps control defrost and cooling cycles to prevent overcooling or prolonged defrost runs. It's a compact replacement part for temperature regulation systems. What it does:

• Opens or closes an electrical circuit based on temperature to signal defrost or compressor control
• Helps stop defrost heater when the evaporator reaches target temperature
• Can prevent extended cooling cycles when the sensed temperature indicates the system has reached desired cold
• Restores normal cycling when a failed thermostat causes continuous run or no cooling

• Disconnect power before servicing to avoid shock or injury
• Confirm location and orientation with the appliance wiring diagram before removal
• Handle the sensor element carefully; avoid bending or damaging the capillary/sensing tip
• After installation, observe normal defrost and cooling cycles

Fix water pooling under your refrigerator with this drain pan fan motor kit. Keeps condensation evaporating properly to prevent leaks and odors.
