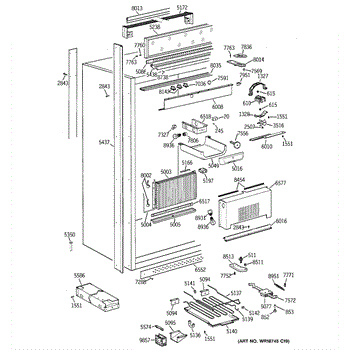

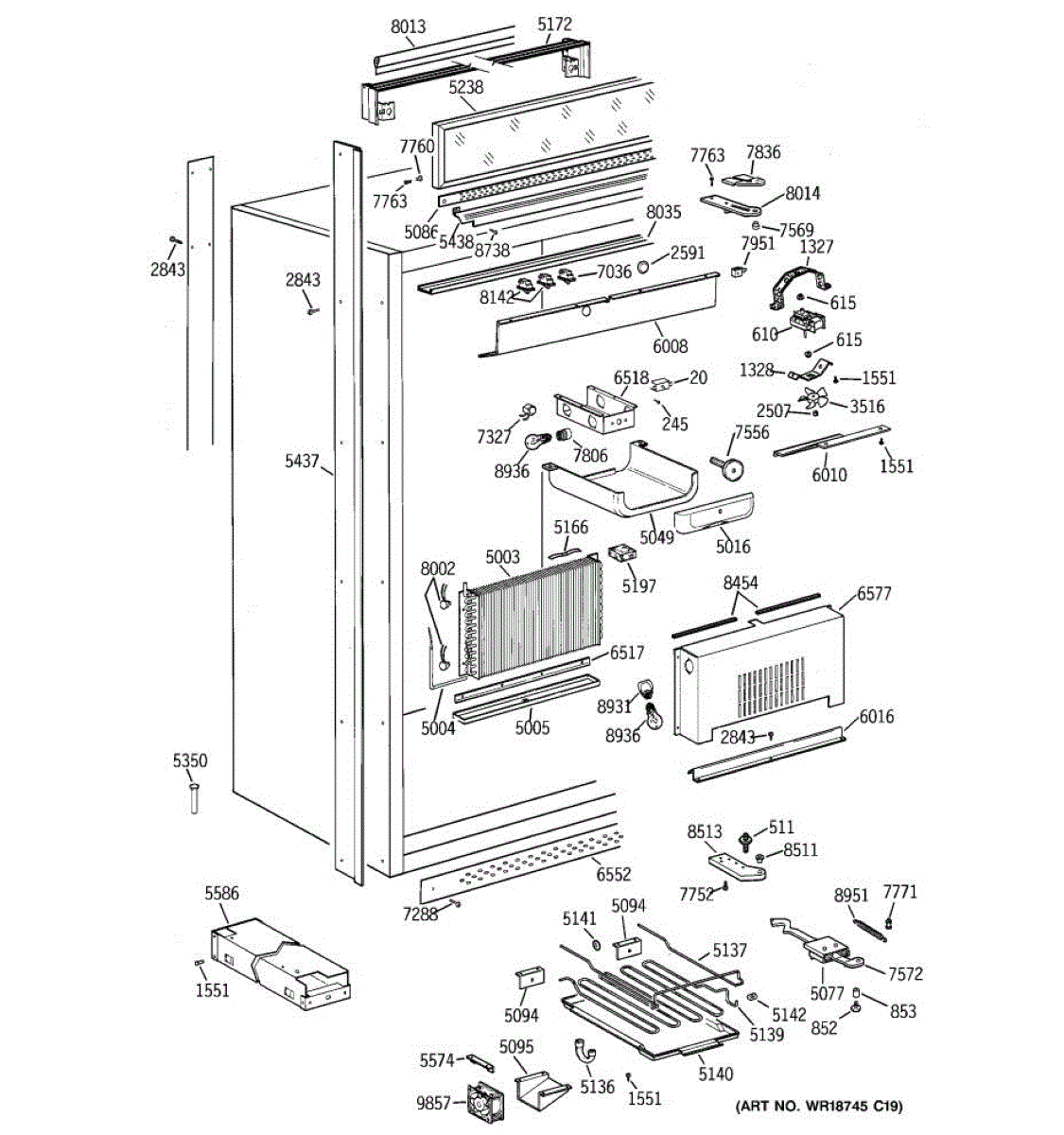

Parts for Ge ZIRS36NDARH: 02 - Cabinet Parts

This screw fastens appliance panels and components to keep assemblies secure and reduce movement or vibration. A simple replacement part that restores proper fit and helps stop rattling or loose parts. What it does

• Secures panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces vibration or rattling caused by missing or stripped screws
• Provides a direct, OEM-compatible replacement for worn or lost fasteners
• Used anywhere a matching screw is specified on the original equipment

• One screw

• Disconnect power or unplug the appliance before starting any repair
• Use the correct driver bit to avoid stripping the head
• Thread carefully and tighten until snug; avoid over-tightening which can strip threads or crack panels
• Keep removed screws so you can match length and thread if replacing multiple hardware pieces

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

This is the rear fan bracket. For front bracket use WR2X7137.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

An evaporator fan blade mounts on the evaporator fan motor to move cold air across the coils and throughout the refrigerator compartments. Replacing a cracked, warped, or loose blade restores proper airflow, temperature balance, and quiet operation.

• Circulates air across the evaporator and into the fresh food and freezer sections to maintain even temperatures
• Helps reduce frost/ice buildup on the evaporator cover by improving airflow after defrost
• Common symptoms of a damaged blade: rattling or scraping noises behind an interior panel, weak or no airflow at vents, warming in the fresh food section, or uneven cooling
• A cracked or loose blade may spin but move little air even when the motor runs

• Disconnect power to the refrigerator before service
• Access the evaporator fan behind the interior rear panel; remove the cover/shroud as required (varies by model)
• Note blade orientation; seat the new blade fully on the motor shaft and verify clearance inside the shroud
• Reassemble panels, restore power, and confirm the fan spins freely without rubbing

This evaporator coil assembly circulates refrigerant and absorbs heat inside the freezer section to enable efficient cooling and proper temperature control. Replacing a worn or damaged coil restores normal refrigeration performance. What it does:

• Circulates refrigerant through the freezer evaporator to remove heat from the air
• Helps maintain cold temperatures and proper defrost cycling when functioning correctly
• Commonly linked to symptoms such as reduced cooling, excessive frost or ice buildup, or long run times
• Works with the freezer compartment's fan and defrost system to keep airflow and temperature stable

• Disconnect power before beginning any service to avoid electrical shock
• Refrigerant system work (evacuating or recharging) must be performed by a certified HVAC/refrigeration technician per local regulations
• Handle the coil carefully to avoid bending fins or damaging the tubing and connections
• Confirm fit and necessary mounting hardware or gaskets before installation; additional components may be required

This defrost heater melts frost and ice from the freezer evaporator so the refrigerator can maintain proper airflow and cooling. Replaces a failed heater to restore normal automatic defrost cycles and prevent excessive frost buildup. What it does:

• Gently heats the evaporator coils during the defrost cycle to remove accumulated ice.
• Helps restore normal airflow and temperature by preventing heavy frost or ice buildup.
• Commonly used when you see repeated frost on coils, ice on the evaporator, or poor cooling performance.
• Works with the existing defrost control/thermostat to run only during defrost cycles.

• One defrost heater assembly

• Disconnect power before accessing the evaporator compartment or any wiring.
• Install requires removing interior liners or evaporator cover—follow your model's service manual.
• Inspect and test the defrost thermostat and bi-metal or control board if the heater failed; replace as needed.
• Avoid touching the heater element or bending evaporator fins; handle components carefully.

The Drain Pan is an OEM part for GE refrigerators. Located below the evaporator coil and fans in the back of the refrigerator, it is designed to collect and channel condensation to the evaporator drain tube.

As it is continuously exposed to moisture and changes in temperature, small cracks can develop over time in a drain pan. Issues such as condensation leaks, water stains, or clogs may indicate an underlying problem.

Symptoms of a bad Drain Pan include:

• Water or frost buildup beneath the refrigerator
• Moisture accumulation inside cabinet surfaces
• Slow draining of condensation or clogged drain tube

This OEM GE replacement part helps ensure proper airflow by containing moisture. Replace yours to prevent potential problems and maintain efficient cooling operations. The pan is manufactured with durable plastic to withstand environmental fluctuations inside the refrigerator.

This small replacement wire retainer secures heater and sensor wiring to the evaporator area, preventing wire contact with sharp edges and maintaining proper routing for reliable defrost operation and safe airflow. What it does:

• Holds heater and thermostat/sensor wires in place near the evaporator assembly
• Prevents chafing, pinching, or accidental contact with moving or hot components
• Helps maintain correct wire routing for consistent defrost performance and temperature sensing
• Reduces risk of intermittent connections or short circuits caused by loose wiring

• Designed for a simple clip-in or screw-mount installation; inspect mounting point for clips or fasteners before replacing
• Disconnect power to the appliance before accessing the evaporator compartment
• Handle wiring gently and ensure secure seating of wires in the retainer before reassembling panels
• If any wiring or insulation is damaged, replace or repair the wiring harness per manufacturer guidance

This left-side evaporator baffle directs cold-air flow inside the freezer compartment to help even cooling and reduce frost buildup. It replaces a cracked or missing baffle to restore proper airflow and compartment temperature balance. What it does:

• Channels airflow from the evaporator to distribute cold evenly through the freezer
• Helps prevent localized frost buildup by guiding return air across the coil
• Restores proper compartment temperatures if cooling is uneven or items thaw in spots
• Stops rattling or loose-panel noise caused by a broken or loose baffle

• Disconnect power to the appliance before starting any repair
• Remove shelving and access panels as needed; handle plastic parts gently to avoid cracking
• Avoid touching the evaporator coil or refrigerant lines; wear gloves to protect hands
• Inspect and address defrost components or heaters if exposed or damaged

This tube drain routes defrost and condensation water away from the refrigerator cabinet to the drain system, helping prevent pooling and ice build-up. It's a direct-replacement service part designed to restore proper water flow. What it does

• Channels defrost and condensation runoff from the evaporator area into the main drain or drain pan.
• Helps prevent water pooling inside the fresh food compartment or under crispers.
• Replaces cracked, kinked, clogged or deteriorated drain tubing that can cause leaks or frost buildup.
• Works with the existing drain funnel and heater components to maintain normal drainage.

• One tube drain

• Disconnect power to the appliance before beginning work; shut off water supply if the repair requires it.
• Remove interior panels as needed to access the evaporator/drain area; handle evaporator fins and plastic parts carefully to avoid damage.
• Ensure the tube is seated fully at both connection points and routed without tight bends or kinks to allow free drainage.
• After installation, run a small amount of warm water into the drain area to check for leaks.

This evaporator cover is the plastic housing trim that protects the evaporator coil and helps direct airflow in the freezer compartment for consistent cooling and defrost performance. It replaces a cracked, broken, or missing cover. What it does:

• Protects the evaporator coil from contact and debris
• Helps direct cold air from the coil through the freezer compartment
• Supports proper airflow to reduce uneven cooling or excessive frost
• Can stop rattling or vibration if damaged or loose

• Disconnect power to the appliance before starting any repair
• Remove food and shelves from the freezer and allow access to the evaporator area
• Defrost and dry the evaporator area if ice buildup is present before installing
• Use basic hand tools; replace any damaged fasteners and ensure cover seats securely

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost thermostat senses evaporator temperature and shuts off the defrost heater once the coil warms, preventing overheating. Replacing a failed thermostat restores proper defrosting to stop ice buildup and stabilize refrigerator temperatures.

• Controls the defrost heater based on evaporator coil temperature
• Closes when cold to allow defrost; opens as the coil warms to end the cycle
• Protects against overheating during defrost
• Failure may cause frost/ice on the back wall or evaporator, poor cooling, or a heater that never energizes

• Disconnect power before service; evaporator fins and sheet metal are sharp
• Access the evaporator by removing the freezer rear panel; note wire routing and mounting
• Position the new thermostat in the same location for tight contact with the tubing; reconnect wires exactly as found
• Reassemble and monitor a defrost cycle to confirm heater operation

This actuator arm connects to the fresh-food air damper to move the damper door and help direct cold air into the refrigerator compartment. Replaces a worn or broken arm to restore damper movement and airflow control. What it does:

• Moves the fresh-food air damper door when the damper motor or actuator rotates
• Helps regulate airflow into the refrigerator compartment for proper cooling distribution
• Commonly replaces cracked, broken, or detached arms that cause stuck or misaligned dampers
• Works with the existing damper assembly and actuator motor to transfer motion

• One actuator arm for the fresh-food damper

• High-level replacement: access the damper assembly inside the refrigerator, remove fasteners/clips, swap the arm, and reassemble
• Verify power is disconnected before starting work to avoid electrical shock or motor activation
• Handle plastic parts gently to avoid cracking; confirm alignment of the arm on the actuator shaft before securing
• If damper motor or gears are damaged, replace those components as needed—this arm only restores the mechanical link

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

This barrel nut secures screws in tight appliance assemblies to hold panels, brackets, or trim in place. It provides a reliable threaded anchor where a standard nut or tapped hole is not available. What it does:

• Serves as a captive threaded insert to fasten screws in thin or hollow components
• Prevents screw pull-through and keeps panels, handles or brackets firmly attached
• Common symptom: loose or wobbly trim, panel, or handle that won't stay tight
• Works where a blind or offset fastening point requires a compact threaded anchor

• One barrel nut

• Disconnect power and follow all safety steps before servicing the appliance
• Insert barrel nut into the hole or bracket opening, align mating screw, and tighten by hand before final trimming with a driver
• Use the correct screw size and thread engagement; avoid overtightening to prevent stripping
• If access is limited, use appropriate drivers or extension tools and support the mating part while fastening

This part has been discontinued by the manufacturer and is no longer available.

Fresh food side hinge cover.

This thermodisc temperature switch senses refrigerator evaporator temperature and helps control defrost and cooling cycles to prevent overcooling or prolonged defrost runs. It's a compact replacement part for temperature regulation systems. What it does:

• Opens or closes an electrical circuit based on temperature to signal defrost or compressor control
• Helps stop defrost heater when the evaporator reaches target temperature
• Can prevent extended cooling cycles when the sensed temperature indicates the system has reached desired cold
• Restores normal cycling when a failed thermostat causes continuous run or no cooling

• Disconnect power before servicing to avoid shock or injury
• Confirm location and orientation with the appliance wiring diagram before removal
• Handle the sensor element carefully; avoid bending or damaging the capillary/sensing tip
• After installation, observe normal defrost and cooling cycles

This grill base restores the mounting support for your appliance's grill assembly, providing a stable platform for the grill element and related hardware. It helps maintain proper alignment for safe, reliable grilling performance. What it does:

• Supports and secures the grill assembly so the grill element and components stay properly positioned
• Helps stop loose or rattling grill parts that can occur with a worn or damaged base
• Promotes consistent contact and alignment to help avoid uneven cooking caused by a shifted grill
• Resists heat exposure and normal wear where the grill mounts to the range or oven

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Remove applicable panels or the grill assembly per your model's service instructions to access the base
• Use caution—edges may be sharp; wear gloves and eye protection as needed
• After installation, restore power and verify the grill and any related components operate normally

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement edge trim piece that restores a clean, finished edge and helps protect cabinet or door surfaces from chips and wear. It improves the appearance and prevents edges from catching on seals or gaskets. What it does:

• Covers and protects exposed metal or plastic edges on appliance doors or panels
• Replaces cracked, split, or missing trim that can catch on clothing or seals
• Helps maintain a smooth sealing surface to reduce gaps or snags
• Restores finished appearance after damage or wear

• One edge trim piece as shown

• Remove any old adhesive or debris before installing for a secure fit
• Trim to length if required and press firmly into place; some installations use adhesive or snaps
• Wear gloves to avoid sharp edges during removal and installation

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.
