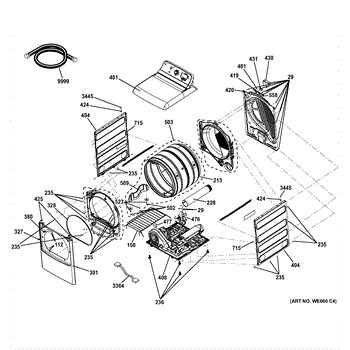

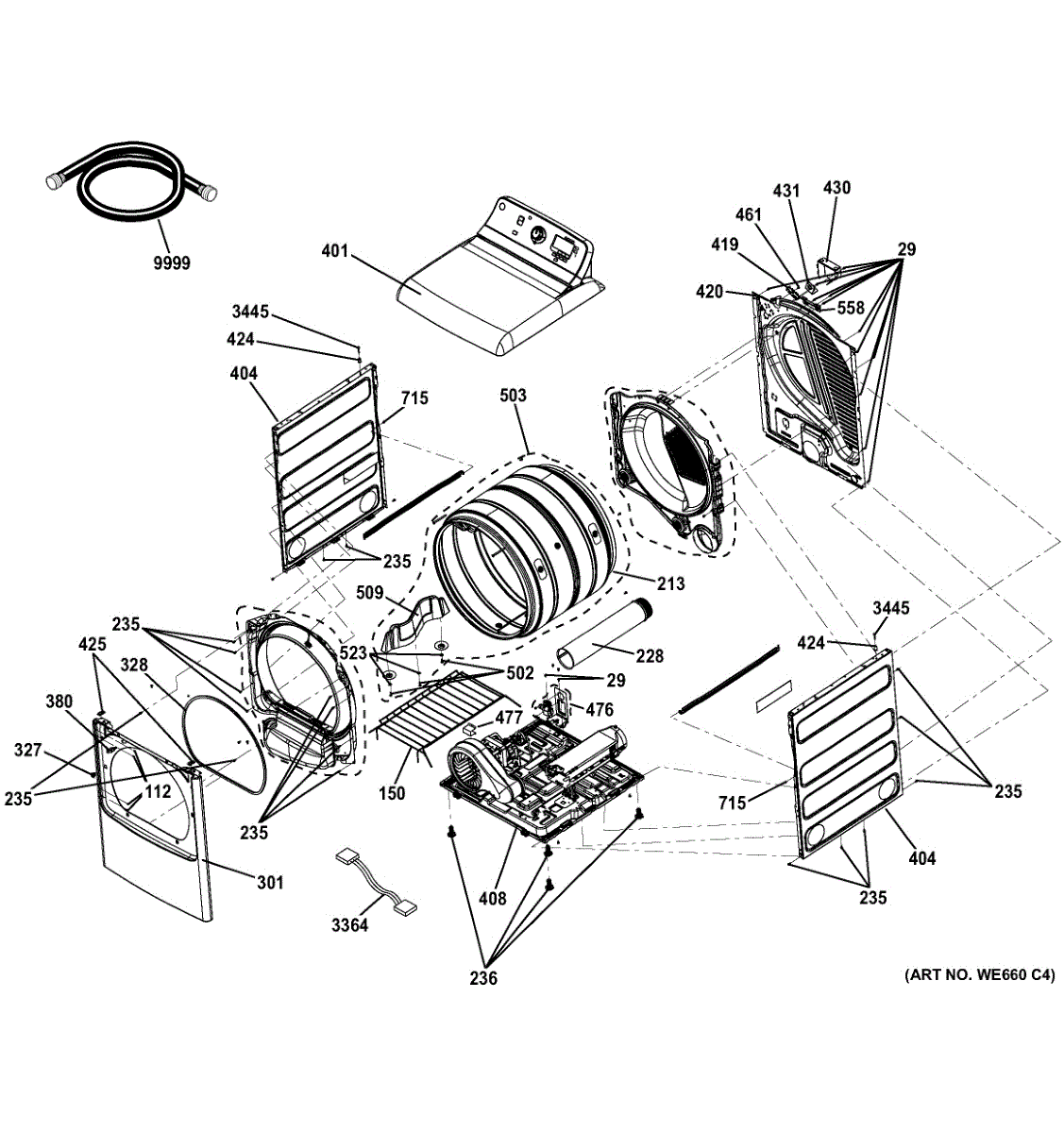

Parts for Ge GTD86ESPJ0MC: Cabinet Parts

This dryer drum drive belt wraps around the drum and engages the motor via the idler pulley to create tumble action for even drying. Replacing a stretched or broken belt restores proper drum rotation and consistent performance. What it does:

• Transfers motor rotation to the drum to tumble clothes
• Works with the idler pulley to maintain belt tension and grip
• Typical failure symptoms include: drum not turning, intermittent tumbling, squealing or thumping noises, or visible cracks/fraying on the belt

• 1 drive belt

• Disconnect power; turn off gas supply for gas dryers
• Access the belt by removing the top and front panels; support the drum when removing the front bulkhead
• Note the original belt routing; install the new belt around the drum, idler, and motor pulley as designed
• Rotate the drum by hand to verify tracking and tension before reassembly; inspect idler pulley and drum rollers for wear

This exhaust duct channels cooking exhaust from the appliance to the home vent system, restoring proper airflow and helping reduce smoke, steam and cooking odors in the kitchen. What it does:

• Directs exhaust air from the appliance to the venting system to maintain proper airflow.
• Helps reduce cooking smoke, steam and odors by providing a clear path to the outside.
• Prevents moisture buildup and improves ventilation performance when intact and properly installed.
• Worn, crushed or disconnected ducts can cause weak exhaust, lingering odors, excess steam or increased noise.

• Disconnect power to the appliance and follow all safety and grounding instructions before servicing.
• Use basic hand tools and gloves; avoid sharp edges on metal ducting.
• Do not modify the part; if replacement requires changes to venting, refer to the appliance manual.

Package of 12

The Door Latch is an OEM part for GE dryers. This part ensures the dryer door stays securely closed during operation, activating the safety switch to allow the dryer to operate. The latch mechanism engages with the door strike to lock the door, preventing it from opening while the dryer is running, which is essential for both safety and proper functioning of the appliance.

Causes for replacement can include normal wear and tear, accidental damage, or a misalignment that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dryer door doesn't stay closed during cycles.
• Difficulty in starting the dryer due to the door not activating the safety switch.
• Visible wear or damage to the latch mechanism.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Switch is an OEM part for GE dryers, designed to ensure the dryer does not operate when the door is open. This safety feature is crucial for preventing accidents and ensuring the appliance operates efficiently and safely. The switch signals the dryer's control system about the status of the door—if it's open or closed—thereby allowing or preventing the start of a drying cycle.

Causes of damage to the door switch often include mechanical wear from repeated use, accidental damage from loading or unloading, or electrical issues such as short circuits.

Symptoms of a bad Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened
• Unusual noises or the dryer stopping mid-cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cover top is the replacement trim panel that protects and conceals the appliance's upper components while keeping the unit looking finished. It restores a clean appearance and shields wiring and internal parts from dust and damage. What it does

• Covers the appliance's top area to protect internal wiring and components from debris.
• Restores the unit's finished appearance after damage or removal.
• Helps reduce noise from loose trim by providing a secure, stable cover.
• Prevents accidental contact with components beneath the top panel.

• Designed for drop-in or screw-on installation depending on model; use the original fasteners when possible.
• Disconnect power to the appliance before attempting removal or installation to avoid electrical shock.
• Handle edges carefully — use gloves to avoid cuts on metal or sharp edges.
• Replace damaged hardware before installing the new cover.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This oven door guide helps keep the oven door aligned and sliding smoothly for reliable opening and closing. It replaces a worn or broken guide to restore proper door movement and reduce rubbing or binding. What it does:

• Guides and supports the oven door along its track for smooth operation
• Prevents door misalignment that can cause scraping, uneven closing, or gaps
• Restores proper door travel when the original guide is cracked, worn, or missing
• Helps maintain an even seal by keeping the door correctly positioned

• One oven door guide

• Disconnect power to the range before starting any service to avoid shock or injury
• Support the oven door or follow the manufacturer's door-removal steps when replacing the guide
• Use only the specified replacement guide and fasteners; tighten hardware to the manufacturer's recommendations

A replacement strain relief bracket that secures the appliance power cord at the entry point, protecting wiring and the terminal connection from pull and wear. Restores proper cord routing for safer, more reliable electrical connection. What it does:

• Secures the power cord where it enters the appliance to prevent tension on terminals and wiring.
• Helps reduce intermittent power, loose connections, or arcing caused by a tugged or poorly routed cord.
• Maintains correct cord routing and support to match the original mounting location and fit.
• Useful when the original bracket is cracked, broken, or no longer holds the cord firmly in place.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access is typically from the rear; remove the back access panel to reach the cord entry and terminal block.
• Remove mounting screws holding the old bracket, position the cord, and secure the new bracket without over-tightening; reuse original hardware if appropriate.
• Inspect the power cord and terminals for damage—replace damaged wiring.

Includes 12 screws.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

A small rubber-lined washer that cushions and electrically isolates connections to reduce metal-on-metal contact and damp vibration. Helps protect parts and maintain proper spacing for reliable operation. What it does:

• Cushions fasteners and mounting points to reduce vibration and noise
• Provides electrical insulation between metal components
• Prevents wear from direct metal-to-metal contact
• Keeps assemblies aligned by maintaining correct spacing

• Disconnect power to the appliance before servicing
• Access the mounting area per your model's service instructions
• Replace with the same style and orientation to ensure proper fit and insulation
• Inspect surrounding hardware and replace any damaged fasteners or worn mounting surfaces

This small mounting screw secures panels and trim on compatible GE appliances, restoring a solid, vibration-free fit. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned and secure. What it does:

• Fastens panels, trim, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose or rattling parts
• Restores secure attachment when threads are stripped or worn
• Helps maintain proper alignment to prevent noise and component wear

• Use the correct screwdriver size to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power or move the appliance to a safe position when accessing internal panels
• Consider a replacement clip or insert as recommended by the manufacturer

This steam kit is the OEM steam generator assembly that supplies steam for steam-refresh and wrinkle-care cycles. It restores the appliance's ability to produce steam for improved fabric care and odor removal. What it does

• Heats and releases water as steam into the drum during steam cycles to help relax wrinkles and freshen clothes.
• Addresses weak or no-steam symptoms when the dryer runs steam cycles but garments remain untreated.
• Works with the appliance's control system to deliver steam only during designated cycle phases.
• Helps reduce the need for ironing by loosening fabric fibers during the cycle.

• One steam generator assembly (steam kit) as shown.

• Disconnect power before starting any repair to avoid shock or flooding.
• Suitable for technicians or experienced DIYers; follow the appliance service manual for disassembly and routing of water/steam lines.
• Inspect and replace any brittle or cracked tubing and seals to prevent leaks; test for proper steam delivery after installation.
• Do not operate the dryer with missing or damaged panels; ensure all connectors are secure.
