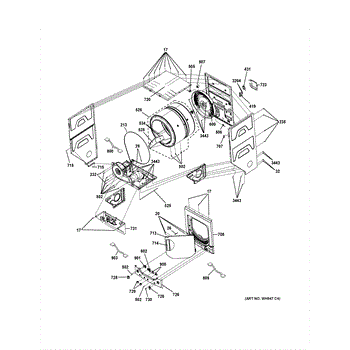

Parts for Ge GUD24ESSJ0WW: Cabinet (1) Parts

Size: 8 - 18 ab.

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

A replacement silicon controlled rectifier (SCR) that restores proper high-current switching for heating or ignition circuits. Replacing a failed SCR helps stop intermittent heating, loss of element power, or erratic control behavior. What it does:

• Switches and regulates high-current power flow to heating, ignition or motor circuits when gated by the appliance control.
• Prevents or causes intermittent/no-heat conditions when failing or shorted.
• Stops erratic cycling or loss of controlled power to the affected circuit.
• Operates as a direct electrical replacement for the factory SCR specified by the appliance manufacturer.

• Disconnect power before servicing; this part is used in high-voltage sections.
• Match part number and orientation exactly; some installations require soldering or secure connector seating.
• Discharge capacitors and observe ESD precautions when handling electronic components.

This dryer drive belt wraps around the drum and motor pulley to rotate the drum during the cycle. Replacing a worn or broken belt restores proper tumbling so clothes move freely for even drying.

• Transfers motor power to the drum to enable tumbling
• A worn, stretched, or broken belt can cause the drum not to turn
• May also result in the dryer running but not tumbling
• Visual signs include fraying, cracks, or glazing on the belt

• Unplug the dryer before servicing; allow components to cool
• Access typically requires removing the front panel and/or top panel
• Note the belt routing around the motor pulley and idler before removal
• Inspect drum rollers and idler pulley while the belt is off; replace if worn

This is a genuine GE replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. A simple fastener that helps keep assemblies aligned and functioning safely. What it does:

• Secures panels, brackets, and small components in place
• Prevents noise from loose parts and maintains structural alignment
• Restores proper fastening after repairs or wear
• Matches OEM fit for reliable replacement

• Disconnect power to the appliance before accessing internal parts
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to prevent damage
• Replace any damaged or missing fasteners with the same OEM part for best results

Package of 12

The Power Terminal Block is an OEM part for GE dryers. This component serves as the connection point for the dryer's power cord, distributing electrical power to the various internal components of the dryer. It ensures that the dryer receives the proper electrical supply needed for its operation.

Causes of a bad power terminal block can include electrical overloads, corrosion from moisture exposure, and loose or frayed wiring connections. These issues can lead to improper power distribution or complete loss of power to the dryer.

Symptoms of a bad power terminal block include:

• The dryer not starting or losing power during a cycle
• Intermittent electrical issues or power surges
• Visible signs of damage such as burn marks or melted plastic
• Electrical arcing or sparking from the terminal block area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement strain relief bracket that secures the appliance power cord at the entry point, protecting wiring and the terminal connection from pull and wear. Restores proper cord routing for safer, more reliable electrical connection. What it does:

• Secures the power cord where it enters the appliance to prevent tension on terminals and wiring.
• Helps reduce intermittent power, loose connections, or arcing caused by a tugged or poorly routed cord.
• Maintains correct cord routing and support to match the original mounting location and fit.
• Useful when the original bracket is cracked, broken, or no longer holds the cord firmly in place.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access is typically from the rear; remove the back access panel to reach the cord entry and terminal block.
• Remove mounting screws holding the old bracket, position the cord, and secure the new bracket without over-tightening; reuse original hardware if appropriate.
• Inspect the power cord and terminals for damage—replace damaged wiring.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

The Cycling Thermostat is an OEM part for GE dryers. It regulates the temperature inside the dryer drum by cycling the heating element on and off, ensuring that the dryer maintains an optimal drying temperature throughout the cycle. This thermostat is essential for efficient drying performance and preventing overheating.

Causes of a bad cycling thermostat can include regular wear and tear, exposure to high temperatures, or electrical malfunctions. A faulty thermostat can disrupt the drying process and may lead to safety concerns.

Symptoms of a bad cycling thermostat include:

• The dryer not heating properly
• Clothes taking longer than usual to dry
• The dryer overheating or shutting off prematurely
• The dryer not starting or completing cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Limit Thermostat is an OEM part for GE dryers. It serves as a crucial safety component, designed to prevent overheating by cutting off power to the dryer's heating elements when excessive temperatures are detected.

Symptoms of a faulty High Limit Thermostat include:

• Dryer not heating or running at all
• Dryer cycling on and off repeatedly during operation
• Error codes related to the thermal protection system

Causes of a bad High Limit Thermostat can include exposure to excessive heat over time, electrical issues, or physical damage to the thermostat itself.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This safety thermostat mounts on the left side of the dryer's heater/air duct. It helps protect the dryer by opening the heat circuit if temperatures climb too high, preventing overheating and enabling safe operation.

• Monitors dryer temperature and opens the circuit when excessive heat is detected
• Helps prevent overheating that could damage components or fabrics
• Typical failure symptoms: no heat, long dry times, very hot cabinet, or a burning smell
• Location-specific part: installs on the left side of the heater housing/exhaust duct

• Disconnect power; for gas dryers, also shut off gas supply
• Access the heater housing/exhaust duct; note left-side location and take a photo of wire positions
• Transfer wires one at a time and secure the thermostat with existing hardware
• Clean lint paths and verify venting/airflow to prevent repeat overheating

This exhaust gasket seals the dryer's exhaust duct connection to contain airflow and keep lint out of the cabinet. A tight seal helps maintain drying performance and efficiency while reducing warm, moist air leakage behind the unit.

• Seals the joint between the exhaust duct and outlet/blower housing to prevent air and lint leaks
• Helps maintain proper airflow for consistent drying results
• Wear or damage can cause longer dry times and warm, humid air or lint behind the dryer
• Visible tears, flattening, or missing sections indicate the gasket should be replaced

• Disconnect power; turn off gas supply for gas models before servicing
• Pull the dryer forward, disconnect the vent, and remove panel(s) as needed to access the exhaust connection
• Remove the old gasket and residue; clean mating surfaces; seat the new gasket evenly
• Reassemble, reconnect the vent, ensure the external vent is clear, and check for air leaks

This replacement drum assembly restores the rotating drum that holds and tumbles clothes in your dryer, helping return smooth operation and reduce rubbing or scraping noises. Designed as a direct-fit service part when matched to your model. What it does:

• Houses and supports clothes while rotating during dry cycles to enable tumbling and even drying.
• Provides a smooth, durable surface to prevent clothes from catching or rubbing against the cabinet.
• Maintains correct drum alignment so the belt and rollers run smoothly.
• Common symptoms indicating a worn drum: loud scraping or grinding, visible drum wobble, or clothes that don't tumble properly.

• Disconnect power (and gas for gas dryers) before beginning any service.
• Retain original mounting hardware; additional fasteners or seals may be required if not supplied.

The Baffle is an OEM part for GE electric dryers. Located inside the dryer drum, it helps separate clothes and improves air circulation during tumbling cycles.

To achieve consistent drying times, a dryer relies on balanced airflow penetrating all areas where clothes reside. The baffle creates divisions to ensure air fully surrounds each layer instead of bypassing some areas. Its raised ridges also help tumbling action by preventing clumps of clothes.

Symptoms of a bad baffle include:

• Slow, uneven drying requiring extra cycles
• Certain areas of clothes remain damp while others over-dry
• Reduced airflow output from the vent due to blockage

Replacing it with the genuine GE baffle plate restores optimized air distribution within the drum. The part is also compatible with some Kenmore dryers that use GE elements.

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

The Heater and Housing Assembly is an OEM part for GE electric dryers. As the main heat source, the heater coil works together with the housing to effectively heat air flowing through the dryer. Precisely maintaining optimal drying temperatures is crucial to the drying process.

Symptoms of a bad heater and housing assembly include:

• Inefficient or prolonged drying times
• Excessive lint accumulation inside the housing
• Rust or damage visible on the heater coil
• Odors produced from a burnt-out or shorted heater element

Causes can be normal wear over time, moisture damage if the housing is not cleaned regularly, or an internal short if the heater coil is cracked or broken.

This heater and housing replacement is also compatible with Hotpoint, RCA, and some Kenmore electric dryer models.

This control panel front is the exterior cover for the appliance's electronic control area, restoring the unit's finished appearance and protecting buttons and displays from dirt and damage. It's a direct-fit cosmetic and protective replacement. What it does:

• Covers and protects the appliance control keypad and display from spills, dust, and wear
• Provides the correct surface for buttons and touch controls to operate properly
• Restores the appliance's original look when the factory panel is cracked, scratched, or discolored
• Helps prevent moisture and debris from reaching internal electronics

• High-level replacement: remove power and access the control housing before swapping panels
• Typical procedure: detach outer trim or bezel, remove fasteners holding the old panel, transfer any mounted buttons or overlays, then secure the new panel
• Use caution around glass, sharp edges, and wiring; avoid forcing connectors

This complete microwave oven door assembly replaces a damaged or non-sealing outer door to restore safe operation and visible access to the cooking cavity. Fits as a factory-style replacement for compatible GE countertop and over-the-range microwaves. What it does:

• Replaces cracked, dented, or warped outer door panels that prevent proper closing or latching
• Restores a secure door seal so the oven can start and operate normally
• Provides a clear viewing window for monitoring food without opening the door
• Helps stop rattling or loose door movement caused by bent hinges or mounts

• Disconnect power at the breaker and unplug the appliance before starting any repair
• Handle the glass and trim carefully to avoid breakage or injury
• Verify door latch and hinge alignment during installation; small adjustments may be required

The Door Handle is an OEM part for GE dryers. This handle is for the easy opening and closing of the dryer door, providing a durable and reliable grip.

Symptoms of a failing Door Handle include:

• The handle feeling loose or wobbly, which may indicate that it is close to breaking
• Cracks or breakage in the handle, which can prevent it from functioning properly
• Difficulty in opening or closing the dryer door due to a compromised handle
• Aesthetic wear such as discoloration or visible wear that impacts the overall look of the appliance

Causes of a bad door handle often include mechanical stress from pulling or yanking, material fatigue, especially in plastic handles, or damage from impacts, typically from moving or adjusting the position of the dryer.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models

This small mounting screw secures panels and trim on compatible GE appliances, restoring a solid, vibration-free fit. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned and secure. What it does:

• Fastens panels, trim, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose or rattling parts
• Restores secure attachment when threads are stripped or worn
• Helps maintain proper alignment to prevent noise and component wear

• Use the correct screwdriver size to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power or move the appliance to a safe position when accessing internal panels
• Consider a replacement clip or insert as recommended by the manufacturer

This fuse terminal cover shields and insulates the fuse connection inside your appliance, helping prevent accidental contact and shorting. Replace a cracked or missing cover to maintain safe electrical protection and dependable circuit performance.

• Covers and insulates the fuse terminals to protect the connection
• Helps prevent accidental contact, arcing, and debris intrusion at the fuse
• Common signs you need this part: missing cover, cracks, heat discoloration, or a cover that won't stay secured
• Promotes a secure, consistent fuse connection once installed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the fuse area per your service information; note wiring and cover orientation
• Remove the damaged cover; inspect terminals and wiring for heat damage or looseness
• Seat the new cover fully and verify it is secure and clear of wiring

This control panel and heat trim assembly replaces the front user interface and surrounding heat-resistant trim on compatible ranges and wall ovens, restoring secure controls and a finished appearance for safe operation. What it does:

• Houses the front control buttons, display area, and heat trim to protect electronics from oven heat
• Restores tactile button response and readable display when the original panel is cracked or damaged
• Helps prevent heat-related damage to underlying control components when trim is compromised
• Addresses symptoms such as unresponsive buttons, visible panel damage, or a loose/warped trim

• One complete control panel with attached heat trim assembly as shown

• Disconnect power at the breaker before starting service to avoid shock or damage
• Installation typically requires removing the oven/range top or front panel and transferring existing controls/fasteners
• Handle the display and button area carefully to avoid scratching or damaging the new panel

This control knob assembly restores a solid, easy-to-grip selector on your appliance's console so you can accurately choose cycles and settings. It replaces broken or stripped knobs that slip, wobble, or fall off the control shaft.

• Attaches to the control/timer shaft so you can turn and set functions
• Replaces cracked, missing, or hub-stripped knobs
• Helps resolve free-spinning knobs or knobs that won't stay on
• Maintains correct shaft engagement and a clean, finished console appearance

• Disconnect power before servicing
• Pull the old knob straight off; avoid prying against the console
• Align the new knob with the flat/splined shaft and press until fully seated
• Inspect the shaft for wear or damage before forcing

The Rotatory Knob is an OEM part for GE washers. It allows users to easily select and change washer settings like cycles, temperatures, and options with a simple turn. As a control interface component, the rotatory knob provides direct input to the washer's control board.

Causes of a bad rotatory knob can be normal wear from frequent use over time. Exposure to moisture, physical impacts or mishandling, and mineral buildup are other potential causes of malfunction.

Symptoms of a bad rotatory knob include:

• Difficulty selecting or changing washer settings
• Loose, wobbly, or unresponsive knob behavior
• Inaccurate input to the control board causes operating issues
• Cracks, splits, or broken knob components

Compatible with some Hotpoint, RCA, and Kenmore models as well.

This enclosure board is the molded housing that secures and protects the refrigerator's control electronics and user interface components. It helps keep wiring and circuit boards organized and shielded from moisture and debris for reliable operation. What it does:

• Holds and protects control boards, connectors, and wiring inside the control cavity
• Keeps moisture and dust away from sensitive electronics to reduce failure risk
• Provides mounting points and alignment for switches, displays, and harnesses
• Restores proper fit and clearance for the appliance's control assembly

• Recommended for technicians or experienced DIYers comfortable working with appliance electronics
• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle PCB-mounted connectors and wiring carefully; avoid sharp bends or pinching the harness
• Secure all fasteners to prevent vibration issues

This UI harness assembly connects the range/oven control board to the front control panel, restoring reliable button and display communication for the user interface. Replaces a damaged or loose harness to regain normal panel operation. What it does:

• Routes signals and power between the control board and touchpads/display so controls respond correctly
• Commonly used when buttons are unresponsive, display is intermittent, or control functions fail
• Helps eliminate loose or corroded connector issues that cause erratic or no UI behavior
• Matches factory connector ends and routing for proper fit and function

• One UI harness assembly as shown

• Disconnect power to the appliance before attempting any repair to avoid electric shock
• Requires removal of the control panel; handle connectors gently to avoid damaging pins
• Verify connectors fully seat and routing follows original path to prevent pinches or interference

This selector switch is the console control that lets you choose washer options. It routes power to the appropriate circuit so the setting you pick—such as temperature or speed—engages reliably during the cycle.

• Interfaces with the control knob to communicate user-selected options to the washer's control
• Common fix when options won't change or only one setting works
• Helps resolve intermittent response or dead spots when turning the selector
• Restores consistent operation of user-selected wash features

• Disconnect power to the appliance before servicing
• Access the control console; remove the rear cover or screws as required
• Note wire positions and transfer connectors to the new switch one at a time
• Secure the switch, reinstall the knob/panel, and test each selection

This selector switch mounts behind the console knob and lets you choose wash settings on your washer. Replacing a worn switch restores reliable selection so the control responds to the setting you intend.

• Allows the user to select a wash option and sends that choice to the timer/control
• Helps when the knob won't click or hold a setting
• Addresses issues where settings don't change or only one option works
• Can resolve dead or intermittent positions on the selector

• Disconnect power before servicing
• Access the control console; remove the knob and the switch's retaining hardware
• Move wire connectors from the old switch to the new one one at a time to maintain correct positions
• Secure the new switch, reinstall the knob, and reassemble the console

This selector button mounts on the control panel and presses the underlying switch to choose a cycle or option. Replacing a cracked or sticky button restores smooth, reliable selections and a clean, finished look to your appliance.

• Provides the user interface to actuate the selector switch
• Allows selection of cycles or options from the control panel
• Helps resolve issues like a button that's cracked, loose, stuck, or not engaging the switch
• Restores proper feel and consistent operation when making selections

• Disconnect power before servicing.
• Access the control panel and release the old button's retaining tabs or fasteners.
• Align the new button with the switch stem and snap/seat it fully; transfer any original clip or trim if used.
• Reassemble the console and test button travel and engagement.

This harness selector is the wire connector assembly that routes power and signals between the selector switch and oven/range control components, restoring reliable connections and control function. What it does:

• Connects the selector/control switch to burners, igniters, or control modules so selections register properly
• Replaces worn or damaged wires and terminals that can cause intermittent control response
• Helps address symptoms like selector positions not responding, intermittent heating, or controls that fail to change settings
• Maintains factory routing and connector fit for a correct electrical connection

• Disconnect power to the appliance before servicing to avoid shock or damage
• Inspect connectors and wire insulation for damage; match connector shapes and pin counts before installing
• Seat all terminal connectors fully and secure any routing clips or retainers

Includes 12 screws. Size: 8-18 ab.

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.
