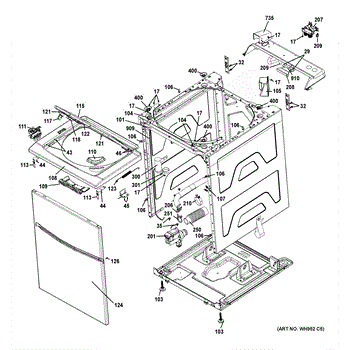

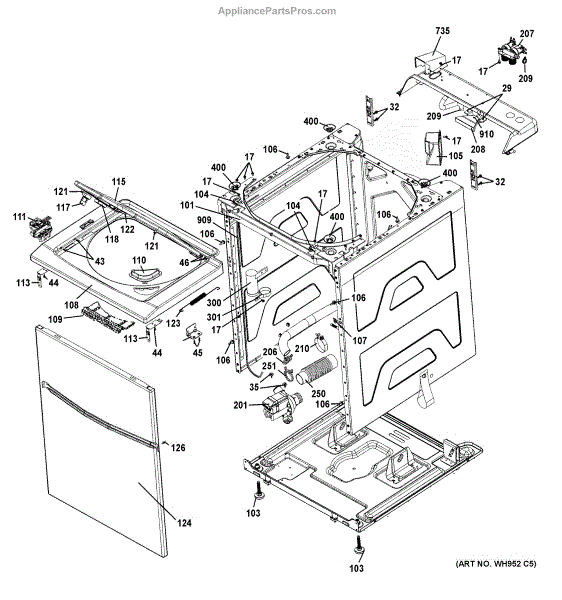

Parts for Ge GUD24ESSJ0WW: Cabinet (5) Parts

Size: 8 - 18 ab.

This is a replacement 8-18 threaded hex-washer-head screw (3/8" length, zinc finish) used to secure panels and components on compatible appliances. It restores proper fit and stops rattling or loose parts. What it does

• Fastens panels, brackets, or assemblies where an 8-18 threaded screw is specified
• Replaces missing or damaged screws that cause loose panels or vibration
• Restores secure mounting for trim, brackets, or internal components
• Matches OEM head style and finish for correct fit and appearance

• One replacement screw (8-18 x 3/8", hex washer head, zinc)

• Disconnect power and water before starting any repair
• Use the correct driver or bit to avoid stripping the head
• Do not overtighten; snug to secure components without deforming parts
• If other fasteners are damaged, replace them with identical OEM parts

This SCR (silicon controlled rectifier) is a replacement power-control semiconductor used in appliance circuits to switch and regulate current. It restores proper control of heater/motor circuits when the original SCR fails. What it does:

• Controls current flow in high-power appliance circuits for timed heating or motor control.
• Replaces a failed SCR that causes intermittent or no power to the controlled component.
• Common symptom: appliance elements or motors do not turn on or cycle correctly.
• Common symptom: visible burn, cracking, or open circuit at the SCR.

• Disconnect power to the appliance before accessing electrical components to avoid shock.
• Handle the SCR carefully to avoid static or mechanical damage; use original mounting and hardware.

This SCR (silicon controlled rectifier) is a replacement power-control semiconductor used in appliance circuits to switch and regulate current. It restores proper control of heater/motor circuits when the original SCR fails. What it does:

• Controls current flow in high-power appliance circuits for timed heating or motor control.
• Replaces a failed SCR that causes intermittent or no power to the controlled component.
• Common symptom: appliance elements or motors do not turn on or cycle correctly.
• Common symptom: visible burn, cracking, or open circuit at the SCR.

• Disconnect power to the appliance before accessing electrical components to avoid shock.
• Handle the SCR carefully to avoid static or mechanical damage; use original mounting and hardware.

A single replacement screw used to secure appliance panels, trim, and internal brackets so components stay aligned and reduce rattling. Simple, direct-fit fastener for restoring proper mounting and stable operation. What it does:

• Secures panels, mounting brackets, trim pieces and other appliance components
• Helps stop rattling, vibration, or loose panels caused by missing or stripped fasteners
• Restores proper alignment of doors and access panels when original screw is lost or damaged
• Matches the OEM fastening point for a straightforward hardware replacement

• Disconnect power to the appliance before working on electrical components or access panels
• Use the correct screwdriver to avoid stripping the head; match drive type to the screw
• Tighten firmly but do not overtighten—stop when snug to avoid damaging threads or parts
• Keep removed fasteners organized and compare with the replacement to ensure correct fit

This adjustable leveling leg supports and stabilizes your washer. Replacing a worn or missing foot helps the appliance sit flat on the floor, reducing rocking, vibration, and noise for smoother, safer operation. What it does:

• Threads into the base to set height and level the cabinet
• Provides a stable contact point with the floor to minimize movement
• Helps address excessive vibration, rattling, "walking," and out-of-balance issues when the washer isn't level
• Direct replacement for a damaged or missing leveling leg

• 1 leveling leg

• Disconnect power and water before servicing; move the appliance carefully to access the foot
• With assistance, tip or raise the unit as needed to reach the leg safely
• Unscrew the old leg; thread in the new leg by hand and adjust until the washer is level front-to-back and side-to-side
• Tighten the lock nut and recheck stability; run a test cycle to verify

This locking clip secures a mating component inside the washer, keeping it firmly attached to its mounting point. Replacing a worn or missing clip restores a snug fit and helps prevent movement, intermittent connections, and noise during operation.

• Retains the designated component securely to its bracket or panel
• Helps prevent vibration-related movement, rattling, or disconnection
• Maintains proper alignment for consistent operation
• Typical signs of failure: cracked or missing clip, part won't stay seated, new looseness around the mount

• Disconnect power and turn off water before servicing
• Access the clip location per your model's service information
• Release and remove the old clip; inspect the mating part for damage or wear
• Seat the new clip fully until it locks; verify the component is secure before reassembly

A replacement pin alignment used to correctly position and secure moving parts in appliance hinge or latch assemblies. Restores proper alignment to reduce sagging, rubbing, or uneven operation for smoother, quieter performance. What it does:

• Aligns and secures hinge or latch components to maintain correct movement and fit
• Helps stop door sag, binding, or uneven closing when the alignment pin is worn or damaged
• Reduces rubbing and noise caused by misaligned parts
• Restores proper clearance for seals and moving assemblies

• One pin alignment

• Refer to the appliance OEM service manual for model-specific removal and installation steps
• Disconnect power (or unplug) and, if applicable, remove stored contents before working on doors or hinges
• Use basic hand tools; avoid forcing parts or over-tightening fasteners to prevent damage
• If alignment issues persist after replacement, inspect associated hinges, brackets, and fasteners for wear

Bleach funnel directs liquid bleach from the washer dispenser into the wash tub for even distribution and helps reduce spills, pooling, and bleach odor. Designed to replace cracked, clogged, or worn dispenser funnels. What it does:

• Directs bleach into the wash tub for consistent dispensing and mixing during the wash cycle.
• Helps prevent bleach pooling, dispenser leaks, and blockages that can cause odors or uneven bleaching.
• Replaces damaged or deteriorated funnels; common symptoms include visible cracks, leaking, or persistent bleach residue in the dispenser area.

• Disconnect power to the appliance before servicing to reduce risk of shock or injury.
• The funnel typically seats or snaps into the dispenser housing.
• Inspect and clean surrounding dispenser components before installing the new funnel; rinse the part to remove any manufacturing residue.
• Handle concentrated bleach with care—wear gloves and follow bleach safety instructions.

The Door Latch Lid Lock is an OEM part for GE washing machines. It is designed to securely lock the washing machine's lid or door during operation, ensuring safety and preventing water from spilling during the wash cycle.

Causes of a bad door latch lid lock include mechanical failure, electrical faults within the lock mechanism, or physical damage from slamming the lid or door.

Symptoms of a bad Door Latch Lid Lock include:

• The washing machine does not start or complete a cycle
• Error codes related to the door or lid lock appear on the display
• The lid or door does not lock properly or at all
• Unusual noises coming from the lock mechanism during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

A small replacement clip cover that restores the finished look and secures trim or small components on your appliance. It protects edges and helps keep panels and trim pieces held firmly in place. What it does:

• Snaps over a mounting clip or trim edge to conceal hardware and restore appearance
• Helps prevent trim pieces from rattling or coming loose
• Covers exposed clip ends to reduce sharp edges and snags
• Maintains a clean, finished fit where trim meets the appliance cabinet

• Disconnect power to the appliance before beginning any repair
• Typically installs by snapping onto the existing clip or trim edge; no special tools usually required
• Inspect the underlying clip or bracket for damage and replace if worn before installing the cover
• Handle gently to avoid cracking the plastic; replace if brittle or broken

This lid actuator engages the washer's lid switch or lock when the lid closes, signaling the control that it's safe to run. Replacing a worn or broken actuator restores reliable lid detection for wash and spin cycles.

• Engages the lid switch/lock when the lid is closed
• Signals the control to allow the washer to start and spin
• A damaged or missing actuator can lead to "lid open" errors
• Common symptoms include won't start, won't spin, or lid lock light flashing

• Disconnect power before servicing
• Access the lid switch/lock area; remove the failed actuator
• Install the new actuator, aligning it to the original mounting points; reuse existing hardware
• Close up and test lid detection before running a full cycle

This small replacement magnet works with the washer's lid/door lock sensor to ensure the lid or door is closed. Restores proper safety interlock operation so cycles can start and spinning is allowed. What it does:

• Triggers the lock/switch sensor so the control knows the lid/door is closed
• Helps prevent operation with an open lid/door
• Common symptoms of a failed/missing magnet: won't start or spin; "lid/door open" indications; intermittent pausing
• Replacing a weak, cracked, or missing magnet restores reliable closure sensing

• One magnet

• Disconnect power before servicing
• Access the magnet location in the lid/door area; note the original orientation
• Seat the new magnet fully in its holder; reuse any existing clip or fastener
• Reassemble and test that the lock engages and the lid/door-closed indicator is recognized

This lid bumper cushions the lid of your top-load washer as it closes, absorbing impact to reduce slamming noise and protect the top panel's finish. Replace a worn or missing bumper to restore smooth, quiet lid operation. What it does

• Absorbs impact between the lid and cabinet to reduce slamming and vibration noise
• Helps protect the top panel finish from chips and scratches near the lid area
• Restores proper cushioning when the original bumper is missing, cracked, or flattened
• Common symptoms: lid slams or clunks when closing, increased noise, visible missing bumper

• 1 lid bumper

• Disconnect power before servicing
• Open the lid and pull the old bumper straight out of its mounting hole; needle-nose pliers can help if it's stuck
• Clean the hole and surrounding surface for a secure fit
• Press the new bumper fully into the hole until seated flush; for even cushioning, consider replacing both if your model uses two

A left-side hinge washer cover that restores the washer lid hinge's appearance and helps protect the hinge assembly from dirt and wear. Fits where the hinge meets the cabinet to keep the hinge area covered and tidy. What it does:

• Covers and protects the left lid hinge area from debris and abrasion
• Helps prevent direct metal-to-metal contact that can accelerate wear
• Restores finished appearance after a cracked or missing cover
• Can reduce rubbing noises caused by an exposed hinge

• Disconnect power to the appliance before servicing to avoid injury
• Usually installs by snapping or securing over the left hinge; remove hinge fasteners only if necessary
• Inspect hinge and surrounding parts for damage before reassembly
• Do not force plastic parts into place; replace if cracked or deformed

This spring cover protects and retains a mechanism spring inside your washer. Replacing a cracked or missing cover helps keep the spring seated, limits debris intrusion, and supports smooth, reliable movement of the associated control, latch, or linkage.

• Shields the spring and helps keep it properly seated in its pocket
• Reduces friction and wear that can lead to premature spring failure
• Supports consistent return action for the related control, latch, or lever
• Typical symptoms include a missing/broken cover, exposed spring, rattling, or erratic operation

• Unplug the appliance and turn off water before servicing
• Access point varies by model; photograph spring/cover orientation before removal
• Control the spring during disassembly to prevent sudden release
• Ensure the cover is fully seated; test operation before final reassembly

This replacement blower wheel for a dryer mounts to the drive motor and pulls air through the drum, lint filter, and exhaust, restoring proper airflow so loads dry efficiently and the appliance runs as intended. What it does:

• Spins with the motor to move air through the drum, lint screen, and exhaust duct
• Maintains airflow needed for even drying and temperature control
• Wear, cracks, or a stripped hub can cause long dry times and weak vent airflow
• Damage or imbalance may produce rattling, scraping, or vibration noises from the blower area

• 1 blower wheel

• Disconnect power; turn off gas supply for gas models before servicing
• Access the blower housing and remove the old wheel from the motor shaft per your model's design
• Clean lint and debris from the blower housing and exhaust duct while open
• Seat the new wheel fully and verify free rotation without rubbing before reassembly

The Dual Coil Water Valve is an OEM replacement part for GE washing machines. It is a solenoid valve that controls the flow of hot and cold water to the washer.

Symptoms of a faulty valve include:

• Failure to adequately fill or drain the wash tub
• Imprecise washing from too much or too little water
• Oversudsing or excess vibration due to unbalanced levels

Causes can be worn seals or mineral buildup impeding proper valve movement after extended use.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water inlet valve assembly regulates the flow of household water into the washer during fill cycles. Replacing it restores consistent fills and helps resolve issues like no water, slow fills, or water leaking into the tub.

• Opens and closes to control water flow into the machine as commanded by the control system
• Helps the washer reach proper fill levels for wash and rinse cycles
• Typical symptoms: no fill, slow fill, fill errors, or water seeping into the tub when the washer is off
• Leaks around the valve or hose connections can also indicate the part has failed

• Unplug the washer and turn off both water supply valves before servicing
• Label hot and cold hoses and take a reference photo before removal
• Expect residual water; use a towel or container. Reconnect electrical connectors and hoses; tighten fittings without overtightening
• After installation, open supply valves and run a test fill while checking for leaks

A replacement tub outlet clamp that secures the drain boot or hose to the washer tub outlet to help prevent leaks and hose separation. Simple, durable hardware designed to restore a secure water-tight connection. What it does:

• Fastens the drain boot or outlet hose to the tub outlet to stop leaks at the connection.
• Keeps the drain hose or boot from slipping off during the wash cycle.
• Restores a tight, stable seal after worn or damaged clamps cause leaking.
• Works with the tub outlet/boot assembly to maintain normal drain flow.

• One tub outlet clamp.

• Disconnect power to the appliance before beginning any repair.
• Turn off water supply and drain any remaining water from the tub to avoid spills.
• Use appropriate pliers or a screwdriver (depending on clamp type) to remove the old clamp and secure the replacement.
• Inspect the boot/hose and tub outlet for damage; replace damaged components as needed for a reliable seal.

This drain inlet hose carries wastewater through the washer's internal drain path during drain and spin cycles. Replacing a cracked, kinked, or leaking hose helps restore proper draining and protect floors and nearby components from water damage. What it does:

• Routes drain water between internal components to the drain outlet
• Maintains a sealed flow path to help prevent leaks
• Common symptoms: water on the floor during/after draining, standing water left in the tub, visible cracks/bulges/kinks on the hose
• May clog with debris, restricting flow and causing slow or no drain

• 1 drain inlet hose

• Unplug the washer and shut off water supply before servicing
• Have towels or a shallow pan ready; residual water may spill when hoses are removed
• Note hose routing and clamp positions; ensure the new hose is fully seated and not twisted or kinked
• After installation, run a quick drain/spin and check all connections for leaks

This retaining clamp secures wiring, hoses, or small assemblies to keep them routed and stable, helping prevent rubbing and vibration that can lead to wear or intermittent issues. Use it to replace a broken or missing clamp. What it does:

• Holds wires, hoses, or tubing in place to prevent contact with moving parts
• Reduces vibration and rattling by keeping components secure
• Prevents chafing that can cause insulation wear or exposed wiring
• Restores proper routing after repairs or part replacement

• Disconnect power (and water if applicable) before accessing internal components
• Use appropriate hand tools; avoid over-tightening which can damage the clamp or secured part
• Inspect surrounding wiring/hoses for damage and replace if needed

This washer motor run capacitor stores and releases electrical energy to help the drive motor start and run smoothly. Replacing a weak capacitor can help restore consistent agitation and spin and reduce motor humming or stalling under load.

• Provides the phase shift and torque assist the drive motor needs to start and stay running
• Can address: washer won't start, no agitate or spin, motor only hums/buzzes, or stops under load
• Visible clues of failure can include a swollen, cracked, or leaking capacitor case

• Unplug the appliance before servicing; capacitors can retain a charge even when power is off
• Discharge the capacitor safely before handling
• Note wire positions; move leads to the same terminals and secure the capacitor in the original bracket/orientation
• Inspect connectors and replace any burnt or loose terminals to ensure a tight fit

The ball joint seat is the plastic socket for the washer's suspension rod ball. It supports the tub and allows smooth pivoting, helping control vibration and noise when the original seat becomes worn, cracked, or deformed.

• Provides a low-friction seat for the suspension rod ball
• Helps stabilize the tub and isolate vibration during wash and spin
• Wear can cause squeaks/creaks, knocking/banging, or a leaning/off-center tub
• Restores proper suspension movement for smoother, quieter operation

• Disconnect power and water supply; wear gloves and eye protection
• Support the tub before releasing spring/rod tension
• Access the suspension support per model; release the rod from the old seat and install the new seat fully into place
• Ensure the ball end is fully seated before reassembly and testing

This principal wiring harness connects the appliance's control board to key components, restoring electrical continuity for reliable operation. It routes and secures multiple connector plugs so circuits communicate correctly. What it does:

• Links the control/module to motors, switches, and sensors so those components receive power and signals
• Re-establishes lost or intermittent electrical connections that can cause no-power or control response issues
• Replaces damaged, frayed, or corroded factory wiring that leads to erratic operation or failure to start
• Provides factory-style connector ends and routing for a secure, reliable connection

• One principal wiring harness assembly as pictured

• Disconnect power to the appliance before starting; follow all safety precautions
• Note connector locations and routing before removal to ensure correct reinstallation
• Avoid pinching or sharply bending wires; secure harness with existing clips and fasteners
• After installation, restore power and verify all affected functions operate normally
