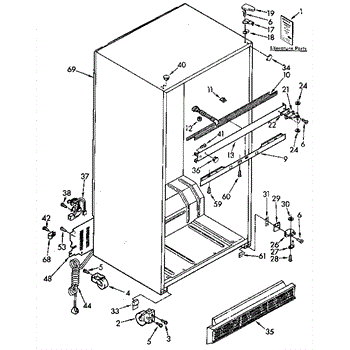

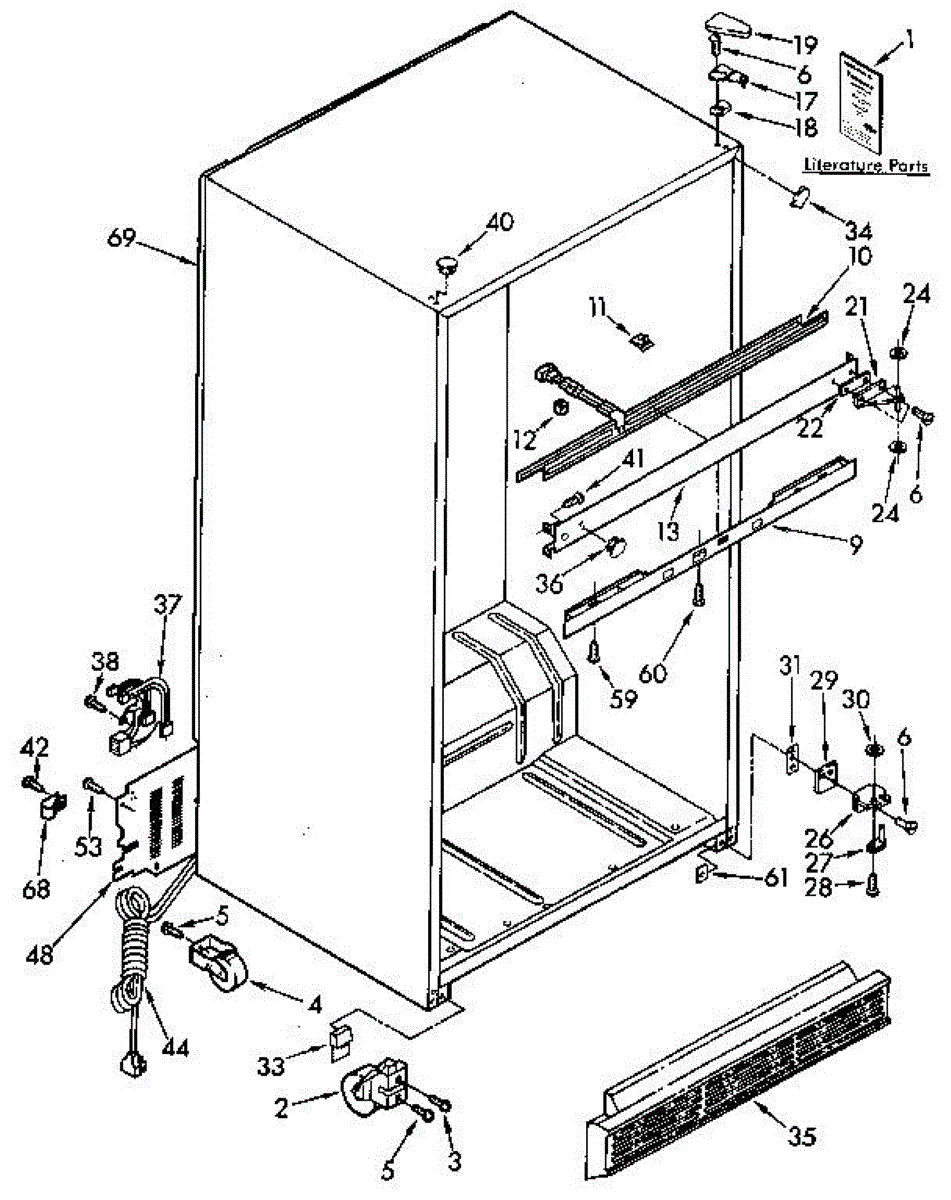

Parts for Kenmore 106.9710683 (1069710683, 106 9710683): Cabinet Parts

White.

This plain flat washer helps secure fasteners and evenly distribute load under nuts or bolts to prevent damage and loosening. A simple replacement when a washer is missing, rusted, or worn. What it does:

• Provides a smooth bearing surface between fastener and component to reduce wear
• Helps distribute clamping force to prevent stress on parts
• Reduces loosening from vibration when used with the correct fastener
• Common service part for assemblies where a thin metal spacer is needed

• Disconnect power and water to the appliance before beginning any repair
• Inspect the mating fastener and seating surface; replace any damaged hardware
• Slide the washer onto the bolt or stud with the flat faces against the mating surfaces; tighten fastener to secure but avoid overtightening

Size: 8-32 x 1/2 inch.

Size: 8 x 1/2 ab.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening
