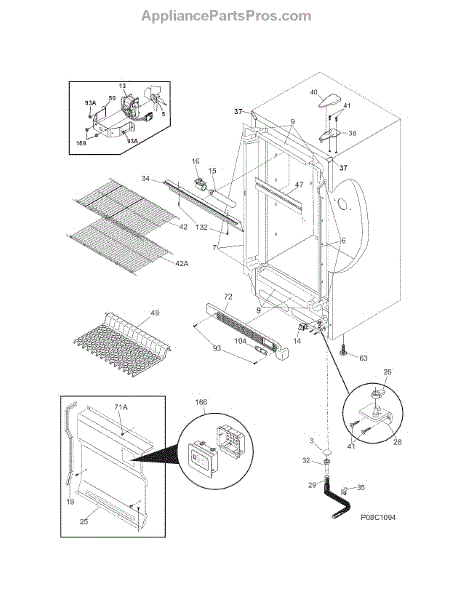

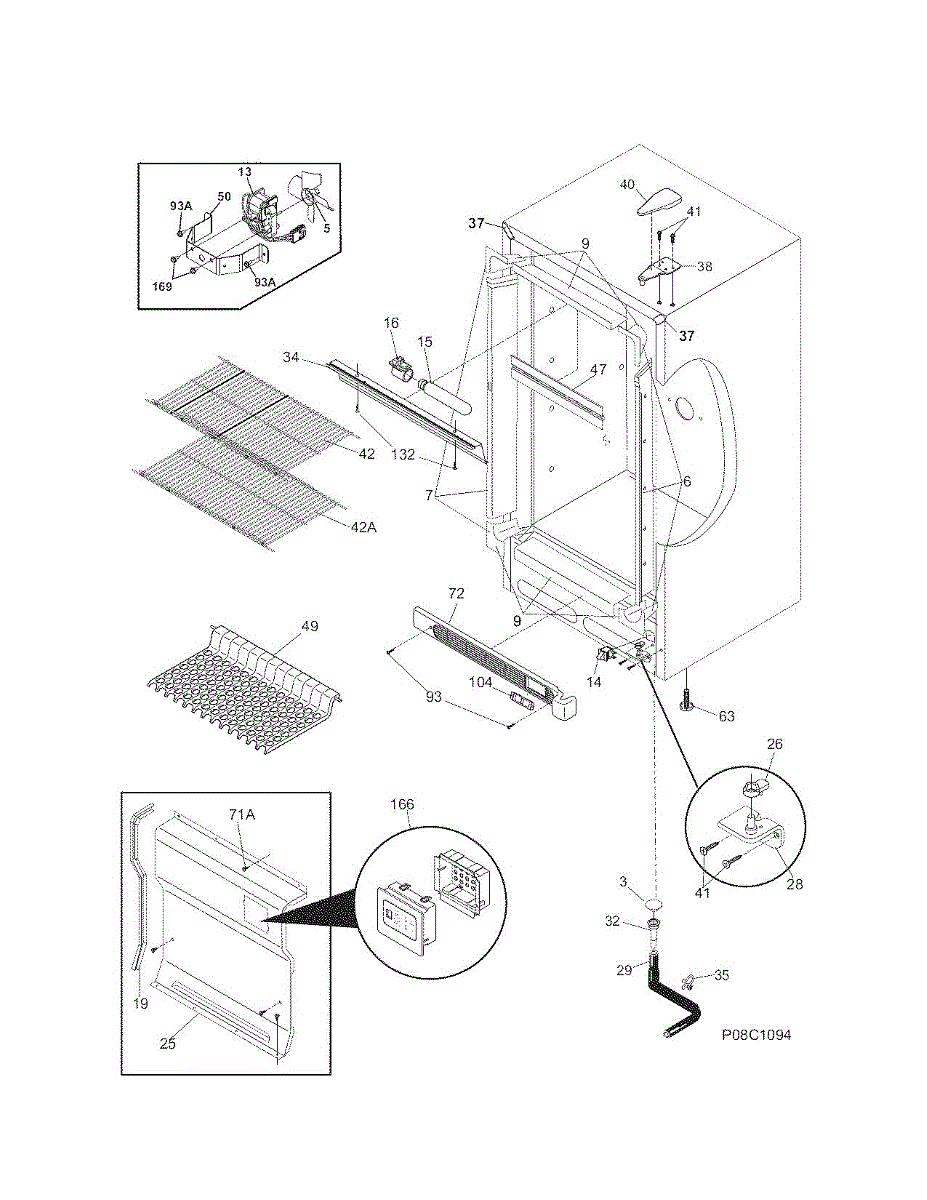

Parts for Kenmore 253.26432102 (25326432102, 253 26432102): Cabinet Parts

Water pooling in freezer? This drain screen traps debris before it clogs the drain tube. Quick snap-in replacement restores proper drainage flow.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

Replacement door trim kit with corner breaker for freezers. Installs around door edges to provide finished appearance. Needed when original trim is cracked, broken, or missing.

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Interior light not working? This light socket provides the electrical connection for your freezer bulb. Simple DIY fix restores compartment lighting.

This drain hose routes wastewater from the appliance to the household drain so your unit can empty reliably. It replaces a damaged or clogged hose to help stop backups and leaks when installed correctly. What it does

• Carries wash and condensation water from the appliance to the drain line.
• Restores normal draining when the original hose is cracked, split, or clogged.
• Helps prevent water pooling inside or beneath the appliance when properly connected.
• Works with household drain fittings—ensure proper routing and secure clamps.

• Disconnect power and turn off water supply before servicing.
• Route hose without sharp bends or kinks; secure with clamps at both connections.
• Inspect hose ends and replace clamps if corroded; test for leaks after installation.

Alignment sleeve bushing maintains smooth part movement in freezers and refrigerators. Replace when worn to eliminate play and restore operation.

Light lens cover for your freezer interior. Protects the bulb and diffuses light. Replace if cracked, yellowed, or missing to restore visibility.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Restores the finished edge on your refrigerator cabinet and hides gaps. Replaces cracked, broken, or missing corner trim for a cleaner appearance.

Supports and pivots the freezer door at the top hinge point. Replace this hinge if cracked, broken, or worn to restore proper door alignment and swing.

Protective cover that snaps over your freezer's door hinge. Replace if cracked, broken, or missing to restore a finished look and shield the hinge.

Specs: Hex head ,1/4-20 x 5/8

This trivet is a small cooktop support that stabilizes cookware and keeps pots and pans properly positioned over the burner for even heating and safer cooking. It restores proper support for a wobbly or damaged cooking surface. What it does:

• Provides a stable surface to center cookware over the burner and prevent tipping
• Maintains correct spacing between cookware and the burner for even heat distribution
• Replaces a cracked, chipped, warped, or missing trivet that causes wobble or poor contact
• Helps protect the cooktop surface and heating elements from direct contact with cookware

• One replacement trivet

• Turn off the appliance and allow all surfaces to cool completely before handling
• Remove the old trivet (no special tools usually required) and seat the new trivet in the same location/slot
• Inspect surrounding mounts and supports for damage and replace as needed

Secures internal components and panels in your freezer. Replace this support bracket if it's cracked, broken, or missing to restore proper alignment.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

Shield component for upright freezers. Protects internal mechanisms from damage. Replace if cracked, broken, or missing to restore proper coverage.

Freezer won't turn on or control panel is unresponsive? This electronic control board manages all freezer systems. DIY install in 10-20 minutes.

This service data sheet provides the appliance's technician-focused information—wiring diagrams, basic specifications, and service notes—to help diagnose and repair. It's a compact reference for troubleshooting and parts checks. What it does:

• Shows wiring diagrams and electrical connections to aid accurate diagnostics
• Lists key ratings and component locations used during repairs
• Summarizes common service notes and procedure reminders
• Helps identify symptoms tied to electrical or control issues

• One service data sheet (single copy)

• This is a reference document, not a replacement for hands-on repair or service manuals
• Keep the sheet dry and store with the appliance service records
• Use with appropriate safety procedures when working on live circuits; disconnect power before testing or servicing
