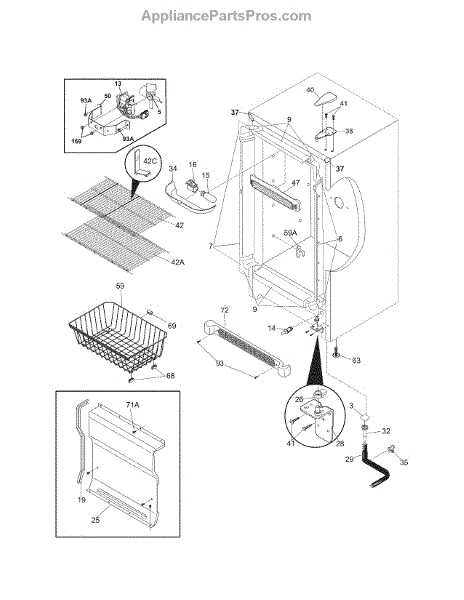

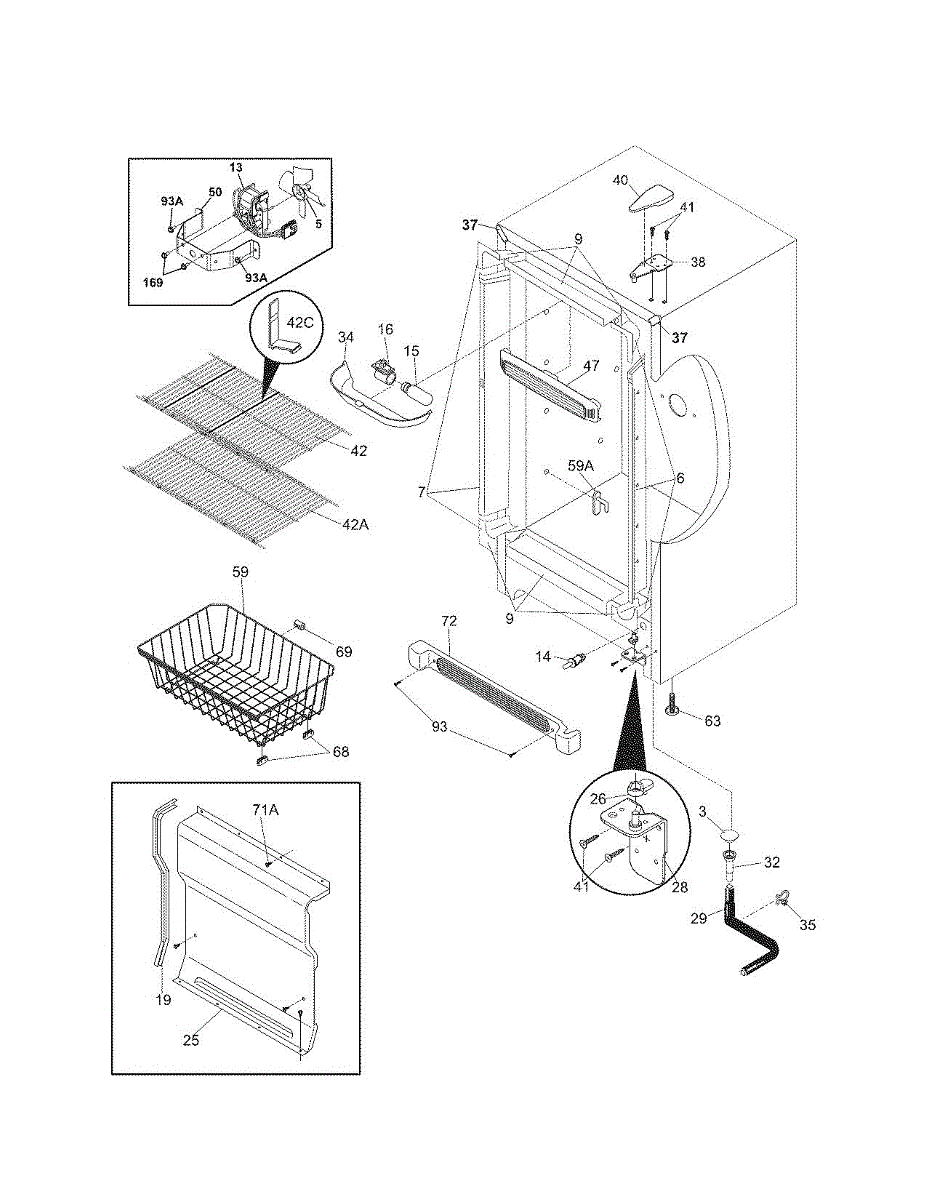

Parts for Kenmore 253.28442801 (25328442801, 253 28442801): Cabinet Parts

Water pooling in freezer? This drain screen traps debris before it clogs the drain tube. Quick snap-in replacement restores proper drainage flow.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

Replacement door trim kit with corner breaker for freezers. Installs around door edges to provide finished appearance. Needed when original trim is cracked, broken, or missing.

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

This door-activated light switch controls the interior lamp in your refrigerator or freezer. Replace it to restore dependable on/off lighting when the door opens and closes and prevent a light that stays on and warms the compartment.

• Activates the interior light when the door opens and switches it off when closed
• Helps resolve no interior light, light staying on, or a broken/stuck switch plunger
• Restores reliable visibility inside the compartment
• Direct replacement for the original switch connection

• Disconnect power before servicing
• Release the switch from the liner and gently pull it out
• Transfer wires to the new switch one at a time to maintain correct connections
• Seat the switch flush; restore power and verify the light turns off when the door closes

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Interior light not working? This light socket provides the electrical connection for your freezer bulb. Simple DIY fix restores compartment lighting.

This bottom hinge replaces the lower door pivot on compatible Frigidaire refrigerators to restore proper door alignment and smooth opening. It provides a secure pivot point to help maintain an even close and consistent seal. What it does:

• Supports and pivots the lower edge of the refrigerator door for smooth opening and closing.
• Helps maintain correct door alignment so the gasket seals evenly.
• Common replacement for doors that sag, bind, or do not close evenly.
• Works with the factory mounting hardware and hinge locations on compatible models.

• Disconnect power and remove food and loose items from the door before starting.
• Always support the door while removing or installing the hinge to prevent injury or damage.
• Use appropriate hand tools and avoid overtightening fasteners; check door alignment after installation.
• Refer to your model's service manual or official parts diagram for model-specific steps and torque specs.

This drain hose routes wastewater from the appliance to the household drain so your unit can empty reliably. It replaces a damaged or clogged hose to help stop backups and leaks when installed correctly. What it does

• Carries wash and condensation water from the appliance to the drain line.
• Restores normal draining when the original hose is cracked, split, or clogged.
• Helps prevent water pooling inside or beneath the appliance when properly connected.
• Works with household drain fittings—ensure proper routing and secure clamps.

• Disconnect power and turn off water supply before servicing.
• Route hose without sharp bends or kinks; secure with clamps at both connections.
• Inspect hose ends and replace clamps if corroded; test for leaks after installation.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

Replacement light shield that covers and protects the interior bulb in your refrigerator. Install when the original lens is cracked, broken, or missing.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Restores the finished edge on your refrigerator cabinet and hides gaps. Replaces cracked, broken, or missing corner trim for a cleaner appearance.

Supports and pivots the freezer door at the top hinge point. Replace this hinge if cracked, broken, or worn to restore proper door alignment and swing.

Protective cover that snaps over your freezer's door hinge. Replace if cracked, broken, or missing to restore a finished look and shield the hinge.

Specs: Hex head ,1/4-20 x 5/8

This is a divider, sometimes called a wire shelf bookend, intended for use in the freezer section of compatible refrigerators. The purpose is to hold boxed items securely in an upright position on the shelf that they are placed. There can be one or more of these pieces included in the device. If the freezer is damaged, the divider may get broken. It is also a smaller piece that could easily get misplaced while cleaning or moving the machine. To continue using the freezer with all the available features, a replacement divider should be ordered.A quick visual inspection will determine if a divider is missing or broken. The replacement of a damaged divider is fast and can be done without any special tools. Snap out the broken divider if there is one present. Install the new divider by snapping it into the correct positioning on the shelf. It can be moved from space to space to suit the user's preference.This divider is a genuine OEM replacement part. It is sourced from the manufacturer. The piece is sold as an individual unit. It is compatible with several appliances made by Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse.

Secures internal components and panels in your freezer. Replace this support bracket if it's cracked, broken, or missing to restore proper alignment.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Replacement slide for freezer wire baskets. Attaches to basket bottom for smooth gliding along tracks. Replace when broken, cracked, or missing to restore alignment.

Authentic freezer basket bumper that attaches to baskets to prevent sliding inside the freezer. Replace if broken, cracked, or missing to keep baskets stable.

Replace your freezer's broken or missing kickplate grille. This decorative front panel covers the base, hiding mechanical components for a finished look.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

This is an Energy Guide label that identifies the appliance's estimated energy use and efficiency in plain terms, helping owners and buyers compare operating cost at a glance. It replaces a missing or damaged factory energy label. What it does:

• Displays estimated annual energy use and efficiency information as shown on the original label
• Helps provide required energy-consumption info for resale, service, or homeowner reference
• Restores the appliance's visible energy information if the original label is unreadable or missing
• Keeps identification consistent with the manufacturer's energy-rating presentation

• Follow the appliance owner's manual or OEM instructions for correct label placement and compliance
• Handle the label by the edges to avoid smudges or fingerprints on printed areas
• Clean and dry the mounting area before applying if adhesive backing is present

This service data sheet provides the appliance's technician-focused information—wiring diagrams, basic specifications, and service notes—to help diagnose and repair. It's a compact reference for troubleshooting and parts checks. What it does:

• Shows wiring diagrams and electrical connections to aid accurate diagnostics
• Lists key ratings and component locations used during repairs
• Summarizes common service notes and procedure reminders
• Helps identify symptoms tied to electrical or control issues

• One service data sheet (single copy)

• This is a reference document, not a replacement for hands-on repair or service manuals
• Keep the sheet dry and store with the appliance service records
• Use with appropriate safety procedures when working on live circuits; disconnect power before testing or servicing
