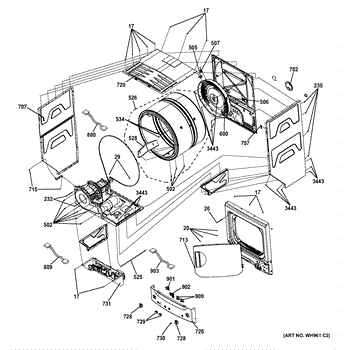

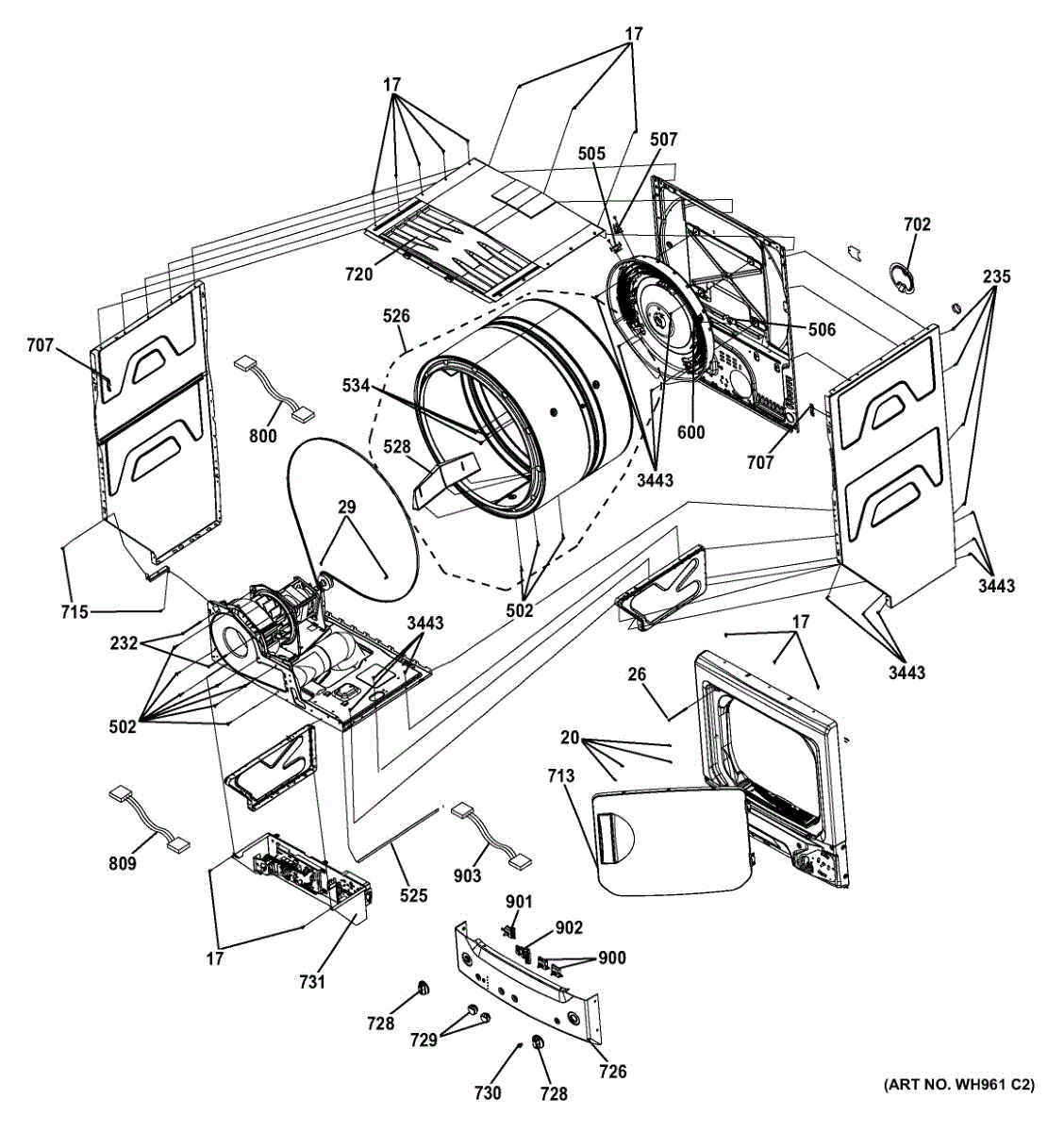

Parts for Kenmore 266.1532413 (2661532413, 266 1532413): Cabinet (1) Parts

Size: 8 - 18 ab.

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

A replacement silicon controlled rectifier (SCR) that restores proper high-current switching for heating or ignition circuits. Replacing a failed SCR helps stop intermittent heating, loss of element power, or erratic control behavior. What it does:

• Switches and regulates high-current power flow to heating, ignition or motor circuits when gated by the appliance control.
• Prevents or causes intermittent/no-heat conditions when failing or shorted.
• Stops erratic cycling or loss of controlled power to the affected circuit.
• Operates as a direct electrical replacement for the factory SCR specified by the appliance manufacturer.

• Disconnect power before servicing; this part is used in high-voltage sections.
• Match part number and orientation exactly; some installations require soldering or secure connector seating.
• Discharge capacitors and observe ESD precautions when handling electronic components.

This is a genuine GE replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. A simple fastener that helps keep assemblies aligned and functioning safely. What it does:

• Secures panels, brackets, and small components in place
• Prevents noise from loose parts and maintains structural alignment
• Restores proper fastening after repairs or wear
• Matches OEM fit for reliable replacement

• Disconnect power to the appliance before accessing internal parts
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to prevent damage
• Replace any damaged or missing fasteners with the same OEM part for best results

Package of 12

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

The Cycling Thermostat is an OEM part for GE dryers. It regulates the temperature inside the dryer drum by cycling the heating element on and off, ensuring that the dryer maintains an optimal drying temperature throughout the cycle. This thermostat is essential for efficient drying performance and preventing overheating.

Causes of a bad cycling thermostat can include regular wear and tear, exposure to high temperatures, or electrical malfunctions. A faulty thermostat can disrupt the drying process and may lead to safety concerns.

Symptoms of a bad cycling thermostat include:

• The dryer not heating properly
• Clothes taking longer than usual to dry
• The dryer overheating or shutting off prematurely
• The dryer not starting or completing cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Limit Thermostat is an OEM part for GE dryers. It serves as a crucial safety component, designed to prevent overheating by cutting off power to the dryer's heating elements when excessive temperatures are detected.

Symptoms of a faulty High Limit Thermostat include:

• Dryer not heating or running at all
• Dryer cycling on and off repeatedly during operation
• Error codes related to the thermal protection system

Causes of a bad High Limit Thermostat can include exposure to excessive heat over time, electrical issues, or physical damage to the thermostat itself.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This safety thermostat mounts on the left side of the dryer's heater/air duct. It helps protect the dryer by opening the heat circuit if temperatures climb too high, preventing overheating and enabling safe operation.

• Monitors dryer temperature and opens the circuit when excessive heat is detected
• Helps prevent overheating that could damage components or fabrics
• Typical failure symptoms: no heat, long dry times, very hot cabinet, or a burning smell
• Location-specific part: installs on the left side of the heater housing/exhaust duct

• Disconnect power; for gas dryers, also shut off gas supply
• Access the heater housing/exhaust duct; note left-side location and take a photo of wire positions
• Transfer wires one at a time and secure the thermostat with existing hardware
• Clean lint paths and verify venting/airflow to prevent repeat overheating

This exhaust gasket seals the dryer's exhaust duct connection to contain airflow and keep lint out of the cabinet. A tight seal helps maintain drying performance and efficiency while reducing warm, moist air leakage behind the unit.

• Seals the joint between the exhaust duct and outlet/blower housing to prevent air and lint leaks
• Helps maintain proper airflow for consistent drying results
• Wear or damage can cause longer dry times and warm, humid air or lint behind the dryer
• Visible tears, flattening, or missing sections indicate the gasket should be replaced

• Disconnect power; turn off gas supply for gas models before servicing
• Pull the dryer forward, disconnect the vent, and remove panel(s) as needed to access the exhaust connection
• Remove the old gasket and residue; clean mating surfaces; seat the new gasket evenly
• Reassemble, reconnect the vent, ensure the external vent is clear, and check for air leaks

This replacement drum assembly is the rotating cylinder that tumbles laundry in your dryer. Replacing a damaged or out-of-round drum restores smooth, quiet tumbling and helps protect fabrics from snags, scraping, and uneven drying.

• Forms the rotating chamber that holds clothes; driven by the belt and motor to tumble items for drying
• Works with drum seals and lifters/baffles to maintain airflow and separate fabrics for even drying
• Replacing a dented, cracked, or out-of-round drum can resolve thumping, scraping, or rumbling noises
• Addresses sharp seams, loose spots, or rust that can snag/tear clothing or leave marks

• Disconnect power; shut off gas supply for gas models before service
• Remove top/front panels and release belt tension to lift out the old drum; note belt routing
• Compare parts and move over any reusable, model-specific components if required
• Inspect belt, idler pulley, bearings, and felt seals while open; replace if worn

The Baffle is an OEM part for GE electric dryers. Located inside the dryer drum, it helps separate clothes and improves air circulation during tumbling cycles.

To achieve consistent drying times, a dryer relies on balanced airflow penetrating all areas where clothes reside. The baffle creates divisions to ensure air fully surrounds each layer instead of bypassing some areas. Its raised ridges also help tumbling action by preventing clumps of clothes.

Symptoms of a bad baffle include:

• Slow, uneven drying requiring extra cycles
• Certain areas of clothes remain damp while others over-dry
• Reduced airflow output from the vent due to blockage

Replacing it with the genuine GE baffle plate restores optimized air distribution within the drum. The part is also compatible with some Kenmore dryers that use GE elements.

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

Replace a failed heating element with this Heater and Housing Assembly. It restores proper electric heat and airflow through the drum so loads dry evenly and within a normal cycle time. What it does:

• Generates heat as air moves through the element canister
• Replaces a broken, shorted, or open heater to restore drying performance
• Typical symptoms: no heat, very long dry times, drum tumbles but stays cool
• Often confirmed by an open (no continuity) reading on the element with a multimeter

• One heater and housing assembly

• Disconnect power by unplugging the dryer or switching off the circuit breaker; allow the unit to cool
• Access the heater housing, label wire positions, and remove mounting fasteners to swap the assembly
• Transfer any reusable brackets or hardware from the old unit as required by your model
• After installation, confirm good airflow and clean the vent/duct to prevent overheating and repeat failures

This is a complete microwave oven door assembly that restores a damaged or non-sealing door so the oven operates safely and retains heat. Use it to replace a cracked, bent, or otherwise compromised door assembly. What it does

• Replaces the full door structure including the frame and glass panel so the microwave can close and seal properly.
• Restores proper door alignment and latch engagement when the door is bent or won't stay closed.
• Prevents heat and steam from escaping through damaged seals or cracked glass.
• Helps restore normal operation when the oven won't run due to a door that fails to close securely.

• Disconnect power to the appliance before starting any repair.
• Handle glass and the assembled door carefully; use gloves and eye protection to avoid cuts.
• Align hinges and engage the latch fully when mounting; test door operation before use.
• If the door is heavy or awkward, have a second person assist to avoid dropping or damaging the part.

This control knob assembly lets you select cycles and settings on your dryer. Replacing a cracked or stripped knob restores firm engagement with the timer or selector so you can set, start, and adjust drying reliably.

• Attaches to the control shaft to turn the timer or selector
• Provides a secure grip and pointer to choose cycles and options
• Restores proper control when the original knob is cracked or the hub is stripped
• Typical symptoms: knob spins without turning the shaft, feels loose, falls off, or is missing

• Disconnect power to the dryer before servicing
• Pull the old knob straight off; note the shaft shape and orientation
• Align the new knob with the flat/D-shaft and press until fully seated
• If your model uses a separate dial ring or clip, transfer it from the original

This UI harness assembly connects the range/oven control board to the front control panel, restoring reliable button and display communication for the user interface. Replaces a damaged or loose harness to regain normal panel operation. What it does:

• Routes signals and power between the control board and touchpads/display so controls respond correctly
• Commonly used when buttons are unresponsive, display is intermittent, or control functions fail
• Helps eliminate loose or corroded connector issues that cause erratic or no UI behavior
• Matches factory connector ends and routing for proper fit and function

• One UI harness assembly as shown

• Disconnect power to the appliance before attempting any repair to avoid electric shock
• Requires removal of the control panel; handle connectors gently to avoid damaging pins
• Verify connectors fully seat and routing follows original path to prevent pinches or interference

This selector switch is the console control that lets you choose washer options. It routes power to the appropriate circuit so the setting you pick—such as temperature or speed—engages reliably during the cycle.

• Interfaces with the control knob to communicate user-selected options to the washer's control
• Common fix when options won't change or only one setting works
• Helps resolve intermittent response or dead spots when turning the selector
• Restores consistent operation of user-selected wash features

• Disconnect power to the appliance before servicing
• Access the control console; remove the rear cover or screws as required
• Note wire positions and transfer connectors to the new switch one at a time
• Secure the switch, reinstall the knob/panel, and test each selection

This selector switch mounts behind the console knob and lets you choose wash settings on your washer. Replacing a worn switch restores reliable selection so the control responds to the setting you intend.

• Allows the user to select a wash option and sends that choice to the timer/control
• Helps when the knob won't click or hold a setting
• Addresses issues where settings don't change or only one option works
• Can resolve dead or intermittent positions on the selector

• Disconnect power before servicing
• Access the control console; remove the knob and the switch's retaining hardware
• Move wire connectors from the old switch to the new one one at a time to maintain correct positions
• Secure the new switch, reinstall the knob, and reassemble the console

This harness selector is the wire connector assembly that routes power and signals between the selector switch and oven/range control components, restoring reliable connections and control function. What it does:

• Connects the selector/control switch to burners, igniters, or control modules so selections register properly
• Replaces worn or damaged wires and terminals that can cause intermittent control response
• Helps address symptoms like selector positions not responding, intermittent heating, or controls that fail to change settings
• Maintains factory routing and connector fit for a correct electrical connection

• Disconnect power to the appliance before servicing to avoid shock or damage
• Inspect connectors and wire insulation for damage; match connector shapes and pin counts before installing
• Seat all terminal connectors fully and secure any routing clips or retainers

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.

The Rear Drum Bearing Kit is an OEM replacement part for GE dryers. It is a comprehensive kit that includes both rear drum bearings and necessary mounting hardware. These bearings play a vital role in smoothly rotating the dryer drum during cycles, reducing vibrations and noise.

Symptoms of bad bearings include:

• Excessive shaking or vibrating during cycles
• Loud grinding or scraping noises emanating from the rear drum area
• Difficulty turning or rotating the dryer drum by hand
• Increased wear and early failure of other components

Causes of bad bearings can include normal wear and tear over time, exposure to excessive loads or unbalanced loads that strained the bearings, or damage from extended use without proper lubrication.

This OEM replacement is also compatible with Hotpoint, RCA, and some Kenmore models.
