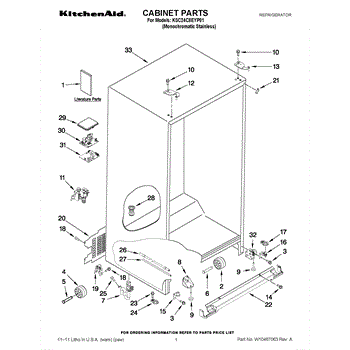

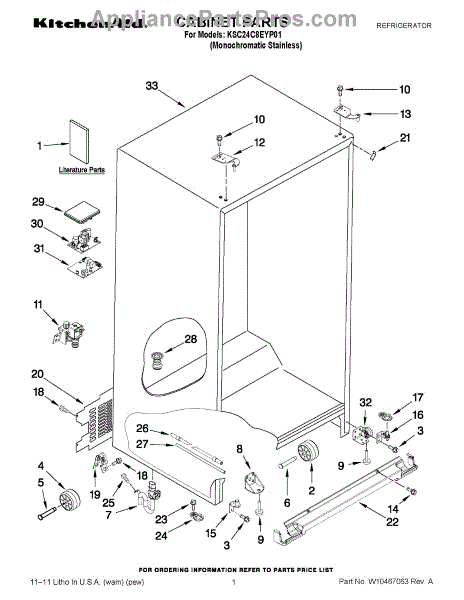

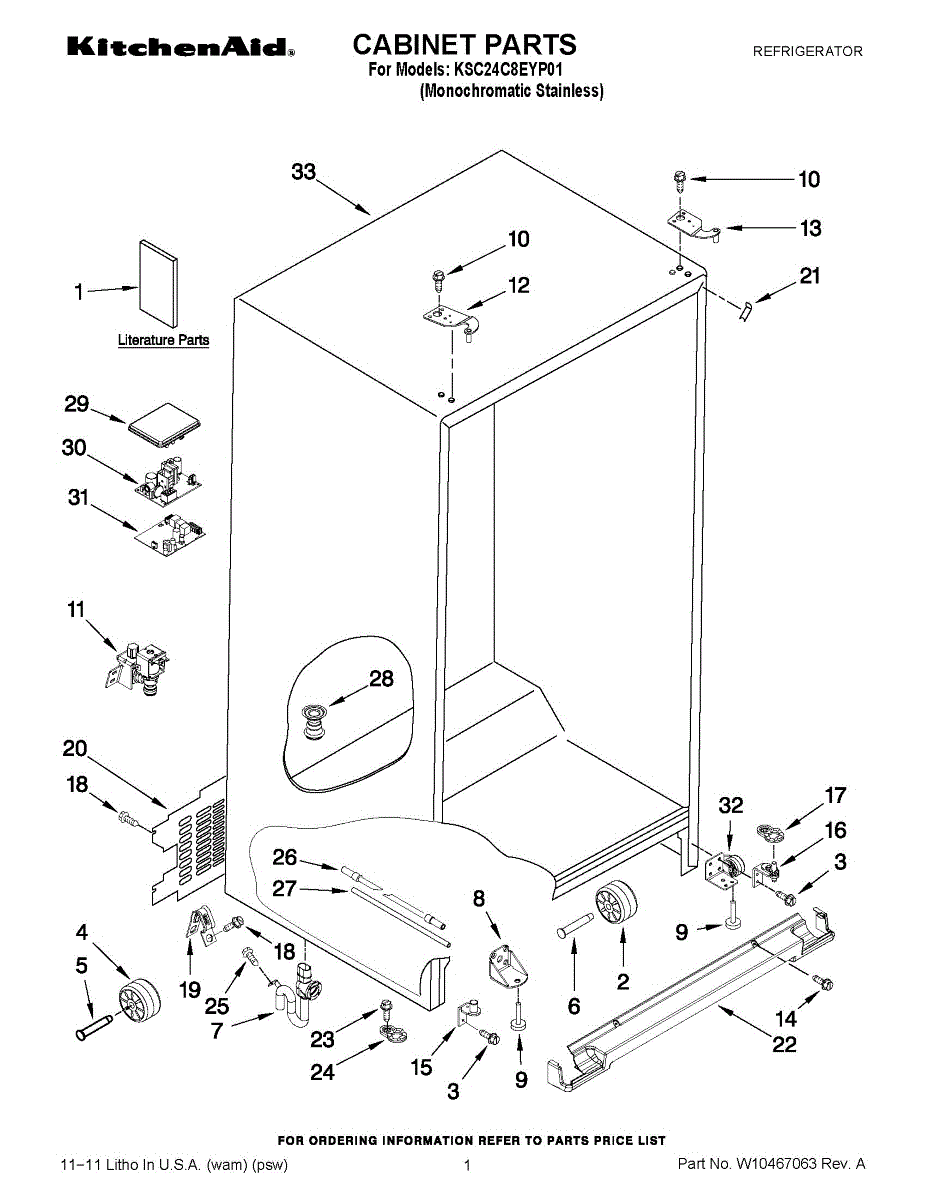

Parts for Kitchenaid KSC24C8EYP01: 01 - Cabinet Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 1/4-20 screw is a direct replacement fastener used to secure appliance panels, brackets, and assemblies. It restores proper fit and prevents rattling or loose components for safe, reliable operation. What it does:

• Fastens panels, mounting brackets, and components in place
• Replaces missing or stripped screws that cause loose or rattling parts
• Maintains alignment of assemblies to prevent wear and vibration
• Works wherever a 1/4-20 machine screw is specified by the manufacturer

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Use the correct-size driver or socket to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• If the original screw was rusted or seized, apply penetrating lubricant and use proper extraction tools

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

Replacement bracket that secures and supports internal components, restoring firm mounting and reducing rattling. Replaces a worn or damaged bracket to help keep appliance parts aligned for quieter, more reliable operation. What it does:

• Provides a stable mounting point to hold internal components in place
• Reduces rattling, vibration, and misalignment caused by a loose or damaged bracket
• Restores proper component spacing to help prevent contact and wear
• Works as a direct replacement for a failed bracket to return proper function

• Disconnect the appliance from power (and water, if applicable) before servicing
• Handle edges carefully; wear gloves to avoid cuts during removal/installation
• Reuse existing fasteners unless new hardware is specified; ensure bracket is securely tightened and component alignment is checked

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This genuine replacement screw secures appliance panels and components where a 12-24 thread fastener is required, restoring proper fit and reducing rattles or loose parts. Easy swap to get panels tight again. What it does:

• Fastens panels, brackets, and internal components that use a 12-24 threaded screw
• Restores secure mounting when original screws are stripped, lost, or corroded
• Helps eliminate vibration-related noise from loose parts
• Works wherever a 12-24 x 1/2 in. screw is specified by the manufacturer

• One 12-24 x 1/2 in. screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Do not overtighten; stop when the part is snug and seated to prevent damage
• If replacing a stripped or damaged hole, inspect mating threads and repair as needed
• Disconnect power to the appliance before accessing internal components

This OEM Replacement Part is a single water inlet valve designed for use in Whirlpool refrigerators. Its key function is to supply water to the refrigerator's ice maker and water dispenser. When energized, this valve releases water from the supply line into the ice mold. If the water valve develops a crack, it will need replacement. The valve accommodates two different sizes of tubing: the smaller inlet measures 1/4", and the larger inlet measures 5/16".

By maintaining the integrity of this component, users can ensure the proper functioning of the refrigerator's ice maker and water dispenser. Always consult your appliance manual for accurate installation and replacement guidelines. This part is compatible
with select brands including Whirlpool, KitchenAid, Kenmore, and Maytag.

Color: Grey

The Hinge-Door is an OEM part for Whirlpool refrigerators. The refrigerator door hinge is a crucial component that allows the door to properly open and close while securely holding it in place. These hinges are responsible for smooth and reliable door operation through thousands of openings and closings.

Causes of a bad hinge can include wear and tear from prolonged use, stress from overloading the door, or accidental impact damage.

Symptoms of a bad hinge include:

• The door not closing properly or staying fully shut
• Difficulty or resistance when opening/closing the door
• The door sagging or wobbling excessively
• Noise or grinding sounds coming from the hinge area

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 threaded screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening where a missing or damaged screw causes loose parts or vibration. What it does

• Fastens panels, brackets, and small assemblies to the appliance frame
• Replaces stripped, corroded, or missing screws that cause rattling or loose components
• Helps maintain proper alignment of panels and controls for safer operation
• Suitable where an 8-18 threaded machine screw is specified by the manufacturer

• One replacement screw

• Disconnect power to the appliance before service to prevent shock or injury
• Use the correct driver to avoid stripping the screw head; do not force mismatched tools
• Tighten until snug — avoid over-tightening which can strip threads or crack plastic
• If replacing multiple fasteners, check mating threads and replace any damaged clips or anchors as needed

Color: Grey

This door hinge supports and pivots the appliance door for smooth, aligned opening and closing. Replacing a worn hinge restores proper closing and helps the latch and door seal make consistent contact. What it does:

• Provides the pivot point and structural support for the door
• Maintains door alignment for correct latch engagement and seal contact
• Helps prevent binding, sagging, uneven movement, and squeaks
• Common fix for doors that won't close fully or feel loose/wobbly
• Replaces hinges that are bent, cracked, or show excessive play

• 1 door hinge

• Disconnect power (and shut off gas/water if applicable) before servicing
• Support the door to prevent strain; removal may be required to access the hinge
• Remove hinge cover/trim and mounting screws; transfer any hardware to the new hinge
• After installation, verify alignment and closure; adjust as needed for proper latch and seal contact

This door hinge supports and pivots the appliance door for smooth, aligned opening and closing. Replacing a worn hinge restores proper closing and helps the latch and door seal make consistent contact. What it does:

• Provides the pivot point and structural support for the door
• Maintains door alignment for correct latch engagement and seal contact
• Helps prevent binding, sagging, uneven movement, and squeaks
• Common fix for doors that won't close fully or feel loose/wobbly
• Replaces hinges that are bent, cracked, or show excessive play

• 1 door hinge

• Disconnect power (and shut off gas/water if applicable) before servicing
• Support the door to prevent strain; removal may be required to access the hinge
• Remove hinge cover/trim and mounting screws; transfer any hardware to the new hinge
• After installation, verify alignment and closure; adjust as needed for proper latch and seal contact

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The cover-unit protects the appliance's control console and provides a finished appearance. It shields buttons, knobs and internal control components from dust, moisture and incidental damage so controls stay usable and the cabinet looks complete. What it does:

• Covers and protects the control console and the underlying control assembly
• Helps prevent debris and moisture from reaching buttons, switches and electronic components
• Restores the appliance's finished look when the original cover is cracked, broken or missing
• Keeps controls stable and reduces the chance of accidental contact or damage

• Disconnect power before servicing to avoid shock or injury
• Remove any trim or console fasteners before replacing the cover
• Handle carefully to avoid scratching the finish; use proper fasteners and align tabs during reassembly
• If controls or wiring are exposed or damaged, inspect wiring and control components.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

This base grille covers the lower front of the refrigerator in a midnight gray finish. It directs airflow to the condenser and protects internal components—restoring proper ventilation and a clean, finished look when the original is damaged or missing.

• Covers the toe-kick area and helps channel cooling air through the condenser compartment
• Protects coils and lower components from bumps and debris
• Restores the unit's finished appearance
• Common symptoms include a cracked or missing grille, loose/rattling panel, or broken mounting tabs

• Disconnect power before servicing; use gloves to protect hands from sharp edges
• Open the doors; remove any retaining screws or release the grille's clips, then pull the old grille forward
• Align the new grille with the mounting points and snap or screw into place
• Ensure vents are unobstructed and the grille is secure before restoring power

This door closing cam mounts at the bottom of the refrigerator door and mates with the hinge cam to raise and lower the door as it swings, promoting smooth self-closing action and a reliable gasket seal.

• Provides lift-and-drop detent at the lower hinge to guide door movement
• Helps the door self-close in the final inches for a consistent seal
• Supports proper door alignment to reduce air leaks and temperature fluctuations
• Common symptoms: door won't self-close, pops/clicks at the hinge, sags or binds, poor seal or moisture around the door

• Disconnect power and remove items from the door to reduce weight
• Support the door; remove hinge cover and lower hinge/pin, then lift the door off carefully
• Replace the cam on the door/hinge as designed; inspect the mating cam and hinge pin and lightly lubricate
• Reinstall, level, and verify smooth closing and proper gasket contact

Replacement silverware basket with integral handle in dark gray. Holds forks, knives and spoons in the lower dishwasher rack to keep utensils upright for better cleaning and easier loading, removal and transport. What it does:

• Holds and separates flatware to reduce nesting and promote water flow during wash cycles.
• Integrated handle makes it easy to lift the basket in and out of the rack for loading or unloading.
• Keeps small items from falling through the rack and reduces rattling during operation.
• Replace the basket if it is cracked, broken, or if utensils no longer stay securely in place.

• Installs in the lower dishwasher rack by sliding or snapping into existing rack slots; typically requires no tools.
• Make sure the basket sits level and the handle moves freely before running the dishwasher.
• Inspect for cracks or sharp edges and replace if damaged to avoid utensil loss or interference with spray action.
• Disconnect power first; this part itself does not require electrical work.

This water inlet tube routes supply water from the inlet valve into the appliance's internal water path, restoring a secure flow path and helping prevent leaks, spray, or fill problems caused by cracked, brittle, or clogged tubing.

• Directs water from the inlet valve into the unit's water system/tub
• Replaces tubing that is cracked, kinked, brittle, or mineral-clogged
• Helps resolve leaks near the inlet connection or water dripping during/after fill
• Improves fill performance when the original tube is restricted or collapsing

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water when lines are opened
• Note the tube's routing/orientation; transfer any fittings or clamps and avoid kinks
• Restore water and power, run a test fill, and inspect carefully for leaks

This water tube directs supply water where needed inside the appliance to restore reliable water flow and help prevent leaks. Use this replacement when the existing tube is cracked, split, or restricting water to the ice maker or dispenser. What it does:

• Routes water from the appliance supply line to internal components (ice maker, dispenser) for proper filling and operation.
• Replaces cracked, pinholed, or kinked tubing that can cause leaks or reduced water flow.
• Helps resolve intermittent or no-water symptoms at the dispenser or ice maker when caused by damaged tubing.
• Durable replacement to restore sealed connections and reduce drips at the tube fittings.

• Disconnect power and shut off the water supply before beginning any work.
• Drain residual water from lines and have towels/containers ready to catch spills.
• Ensure fittings and seals are seated properly; hand-start fasteners, then snug—do not overtighten.

This is a high-quality refrigerator power supply board. It's an internal component that is made to control the refrigerator functions. This part is made with small precision parts to help with timing defrost and cooling cycles. This part can be damaged or malfunction and stop operating correctly. This may prevent the refrigerator from running, cause strange sounds, or cause the refrigerator to run at the wrong temperature.If this part is damaged, it will need to be replaced. Before replacing the power supply board, make sure the refrigerator is unplugged from the wall. The process will require a flathead screwdriver and a nut driver. Use the tools to unthread the screws on the access cover. Depress the retaining tab to remove the inner cover and disconnect the wires. Press the tab to release the power supply board and snap in the new component. Make sure the wires are properly connected and reassemble.This genuine OEM replacement part is sold on an individual basis. It is directly acquired from the manufacturer and is designed to be compatible with refrigerators made by Kenmore, Whirlpool, Maytag, and KitchenAid.

Electronic control board that replaces the appliance's main control module to restore responsive controls and consistent operation. Manages user inputs, cycle timing and power to subsystems so the appliance runs as intended. What it does:

• Controls the appliance's user interface, timing and on/off signals for internal components
• Responds to touchpad/buttons and updates the display or status indicators
• Regulates cycle start/stop and sequencing for heating, motor, or valve functions
• Common symptoms: blank or flickering display, unresponsive buttons, failure to start or complete cycles, or control-related error messages

• Disconnect power before starting — electric shock risk; verify power is removed at the breaker
• Photograph and label all wiring and connectors before removal to ensure correct reinstallation
• Handle the board by its edges and avoid static discharge; do not touch exposed circuitry

Replacement bracket that secures and supports internal components, restoring firm mounting and reducing rattling. Replaces a worn or damaged bracket to help keep appliance parts aligned for quieter, more reliable operation. What it does:

• Provides a stable mounting point to hold internal components in place
• Reduces rattling, vibration, and misalignment caused by a loose or damaged bracket
• Restores proper component spacing to help prevent contact and wear
• Works as a direct replacement for a failed bracket to return proper function

• Disconnect the appliance from power (and water, if applicable) before servicing
• Handle edges carefully; wear gloves to avoid cuts during removal/installation
• Reuse existing fasteners unless new hardware is specified; ensure bracket is securely tightened and component alignment is checked
