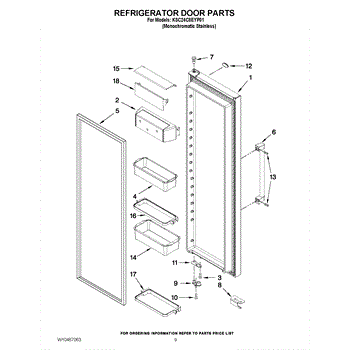

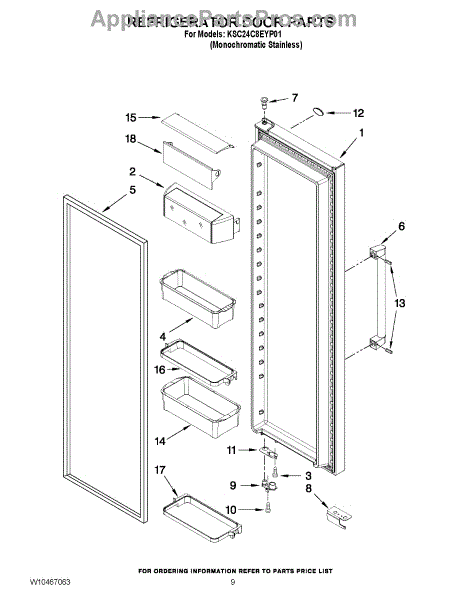

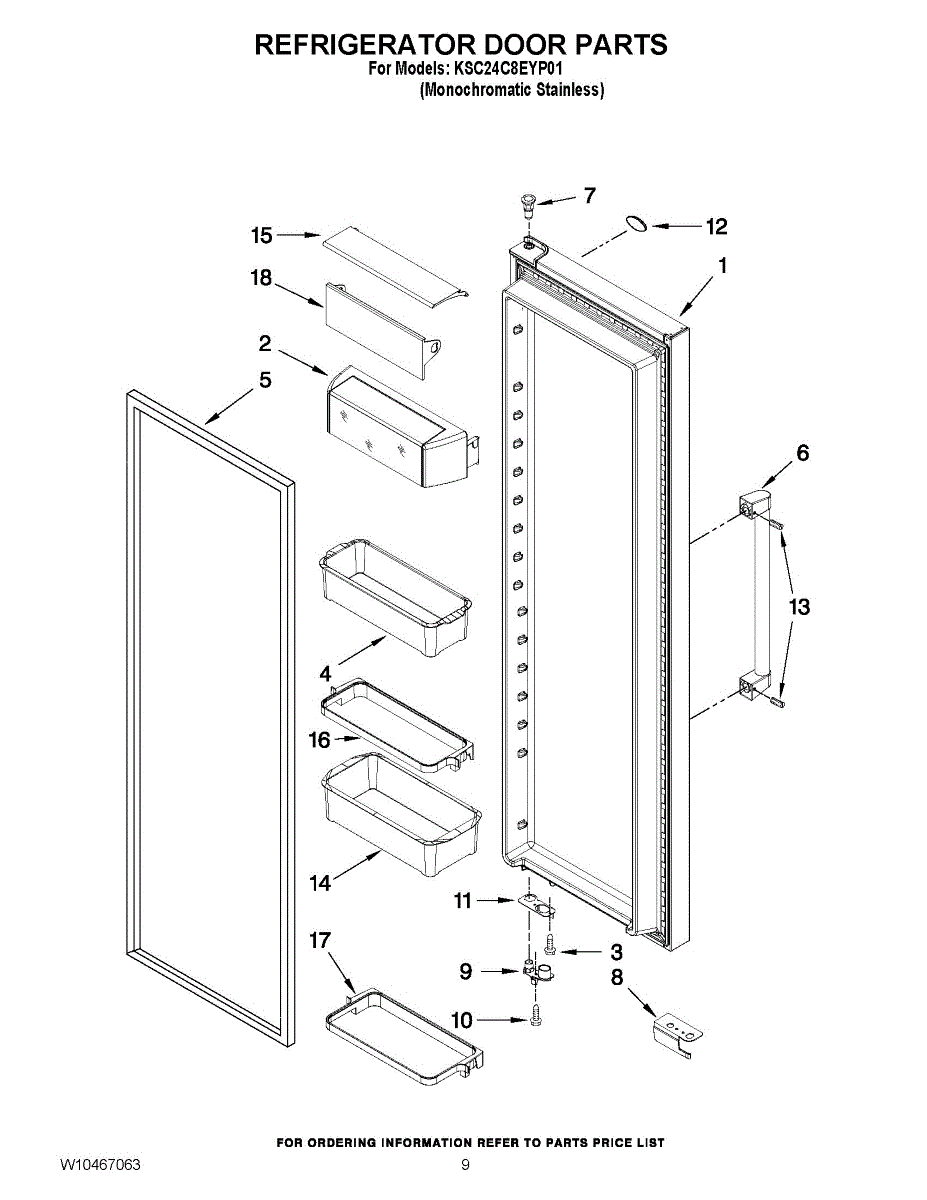

Parts for Kitchenaid KSC24C8EYP01: 06 - Refrigerator Door Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Door bin is an OEM replacement part for Whirlpool refrigerators. It is a component located inside the refrigerator door that provides storage for small items like condiments, eggs, or milk cartons. The door bin is designed with convenient dividers and slots to securely organize a variety of items within easy reach on the refrigerator door.

Causes of a bad door bin can include wear and tear over time, damage to the plastic material, or broken components like divider pieces.

Symptoms of a bad door bin include:

• Items falling through larger holes or cracks in the plastic
• Difficulty fitting various items inside the slots and compartments
• The entire bin sagging or collapsing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

The Door Bin is an OEM replacement part for Whirlpool refrigerators. It provides handy storage space within the refrigerator door for smaller food items like condiments, eggs, and snacks. Measures about 14 inches wide by 4 inches high by 6 inches deep.

Causes of a bad door bin can include cracks or breaks developing from repeated opening/closing of the door over time, or misalignments that prevent proper sliding and seating of the bin.

Symptoms of a bad door bin include:

• Difficulty removing or replacing the bin
• Sliding issues where the bin does not slide smoothly
• Gaps that allow cold air to escape
• The bin coming loose during opening/closing of the door

This OEM Whirlpool part restores useful storage functionality to the door. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover-wire protects and organizes a machine's wire harness to help prevent chafing and accidental contact with hot or moving parts. It keeps wiring routed and out of the way for safer, more reliable appliance operation. What it does:

• Shields wiring from abrasion and contact with sharp edges or moving components
• Helps prevent intermittent electrical faults caused by rubbing or pinched wires
• Keeps harnesses neatly routed for easier service and reduced strain on connections
• Useful when you see visible wear on insulation or wires rubbing against chassis parts

• One cover-wire as shown

• Disconnect power to the appliance before inspecting or replacing wiring components
• Verify correct routing and orientation; secure into existing clips or mounting locations
• Do not splice, modify, or stretch the part; replace if damaged
• If you see melted insulation, burnt wiring, or connector damage, replace affected wiring/components per OEM guidance

The Door Closure Cam is an OEM replacement part for Whirlpool refrigerators. It is a small lever located inside refrigerator doors that engages the latch bolt when closing. The closure cam ensures doors are securely fastened shut to maintain optimal cooling temperatures.

Causes of a bad closure cam can include worn or loose mounting points preventing engagement, cracked or broken lever components, or door latch mechanisms that inhibit full closure.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing fully or latching securely
• Cool air escaping around door edges
• Higher energy bills from excessive compressor run times
• Interior condensation or frost buildup from improper seals

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

This replacement bracket secures and supports a component in your appliance. Replace a bent, cracked, or missing bracket to restore proper alignment and stable mounting, helping reduce vibration, rattling, and premature wear on connected parts. What it does:

• Holds the related component firmly in place
• Helps maintain correct alignment of the assembly
• Reduces unwanted movement, vibration, and noise
• Common signs it may be needed: loose or shifting component, rattling sounds, visible damage, or a missing bracket

• 1 bracket

• Disconnect power and shut off water or gas supply before servicing
• Wear cut-resistant gloves; brackets and surrounding panels may have sharp edges
• Note the original orientation and reuse existing fasteners as applicable
• After installation, verify alignment and secure fit per your model's parts diagram

This screw fastener secures appliance panels and components to keep assemblies stable during normal use. A simple replacement for damaged or missing screws that restore proper fit and reduce rattling. What it does:

• Holds appliance panels, brackets, or trim in place to prevent movement
• Helps stop vibrations and rattling caused by loose hardware
• Replaces stripped or corroded screws that no longer tighten properly
• Restores a flush, secure fit where a matching screw is required

• One screw as shown

• Disconnect power and follow safety procedures before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the screw head
• Seat the screw straight and tighten until snug; do not overtighten to avoid damaging parts
• Keep removed hardware organized to ensure correct reassembly

This refrigerator door bin mounts on the fresh food door to replace a cracked or missing shelf. Restores secure, organized storage for bottles and condiments and helps keep items from tipping when you open the door. What it does

• Mounts to the refrigerator compartment door liner to add shelf storage
• Holds jars, bottles, condiments, and small items securely
• Common failure signs: cracked plastic, broken tabs, bin falls off or won't stay seated
• Loss of door storage space or items tipping/spilling during door use

• 1 door bin

• Remove items from the door; lift the old bin up and out of the slots
• Align the new bin's hooks/tabs with the door slots and press down until fully seated
• Do not force; if it won't seat easily, verify the bin's position and your model's diagram
• Confirm the door closes freely before reloading; avoid overloading to prevent damage

This replacement lid fits the refrigerator utility/bin drawer and restores a secure cover to keep stored items contained and organized. It replaces cracked, broken or warped lids so the bin functions as intended. What it does:

• Covers and protects items stored in the utility/bin drawer
• Replaces lids that are cracked, chipped or no longer latch properly
• Helps prevent items from shifting or falling into other compartments
• Restores a proper seal and alignment of the utility/bin cover

• Unplug or disconnect power to the appliance before servicing for safety
• Remove the bin/drawer per the manufacturer instructions to access the lid
• Align hinge tabs or mounting points and snap or fasten the lid into place
• Handle carefully; plastic edges or mounting points can be fragile during installation

The Door Bin Frame is an OEM part for Whirlpool refrigerators. This part supports the removable door bins, which are used for storing smaller items like beverages, condiments, or dairy products.

Causes of a bad part can include physical impact or mishandling, excessive force applied when loading or unloading the door bins, or general wear and tear over time, leading to deterioration of the frame's materials or mechanisms.

Symptoms of a bad Door Bin Frame include:

• Difficulty in inserting or removing the door bins
• Door bins not fitting securely or rattling within the frame
• Visible cracks, breaks, or damage to the frame itself

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the door bin frame used on select refrigerators. It supports the clear bin/front, creating a sturdy storage shelf on the inner door for bottles, condiments, and other items. Replace a cracked or missing frame to restore secure door storage.

• Holds and supports the door bin/front on the refrigerator door
• Helps keep items organized and stable during door opening/closing
• Common failure signs include cracks, breaks, or a bin that won't stay seated
• Replacing restores proper fit and capacity of the door storage area

• Unplug the appliance before servicing
• Remove the existing bin components; transfer any reusable inserts/fronts
• Align the new frame with the door mounting slots and snap/slide into place
• Ensure the bin is fully seated and level before loading items

Color: clear. Measures about 13 inches wide by 5 inches high.
