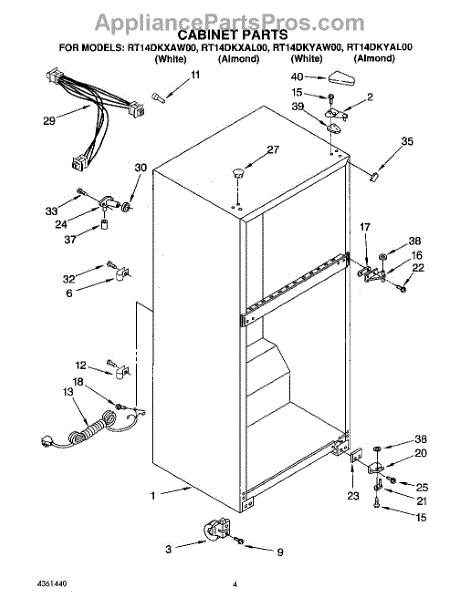

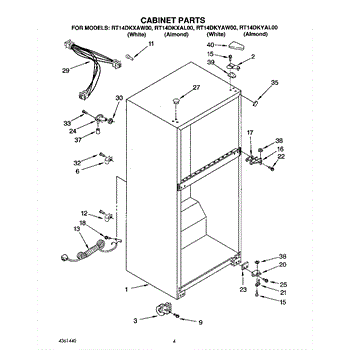

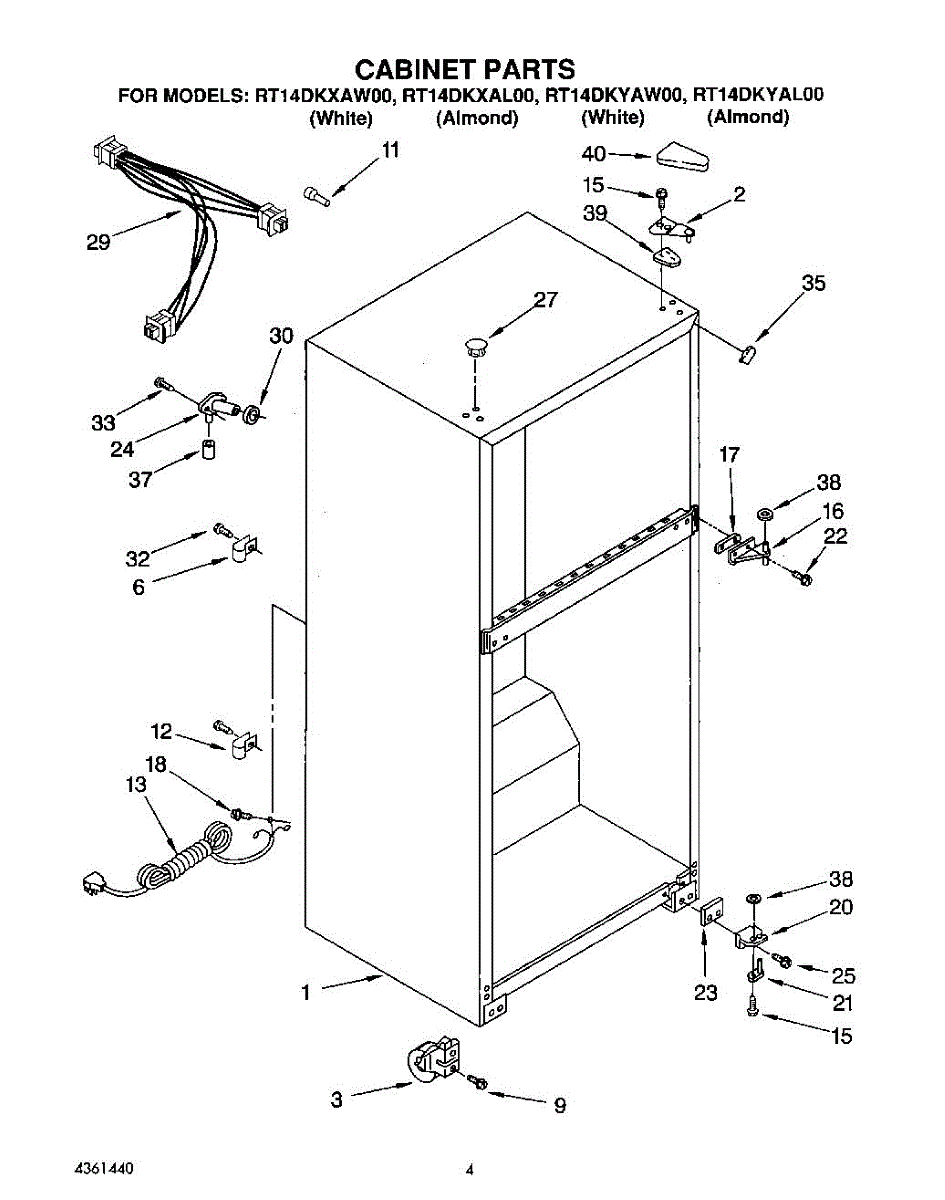

Parts for Roper RT14DKYAW00: 03 - Cabinet Parts

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This is the center hinge for the refrigerator doors. It supports and aligns the doors at the midpoint so they open smoothly and seal properly, helping maintain temperatures and reliable day-to-day operation.

• Provides the middle pivot point between the upper and lower doors
• Keeps door alignment and spacing correct for a tight gasket seal
• Common symptoms: door sagging or rubbing, squeaking/grinding, door not closing or popping open, uneven gaps
• Replace if the hinge bracket or pin is bent, worn, or corroded

• Disconnect power and clear items from the doors before starting
• Support the doors; a second person is recommended when removing hinge screws
• Note the order of any shims/spacers or washers and transfer them to the new hinge
• After installation, align doors and verify full gasket contact all around

Size: 8 x 1/2 ab.

Due to manufacturer changes, if D shaft hinge pin is needed use part number WP2325483.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Color: white.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

Size: 8 x 1/2 ab.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: White

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

This hinge cover replaces a damaged or missing hinge trim to protect and conceal the hinge assembly and restore the appliance's finished appearance. It fits over the hinge area and helps reduce dirt buildup and exposed hardware. What it does:

• Covers and protects hinge hardware, hiding screws and sharp edges
• Helps keep dirt, lint, and moisture out of the hinge area
• Restores the appliance's original, finished look
• Common symptoms: cracked, broken, or missing cover; exposed hinge hardware; cosmetic damage or debris buildup

• Refer to your model diagram for correct orientation and fastener locations
• Basic hand tools may be required; some models need the hinge loosened or partially removed
• Disconnect power and/or unplug the appliance before starting work when applicable
• Handle edges carefully to avoid cuts; follow OEM instructions for reassembly
