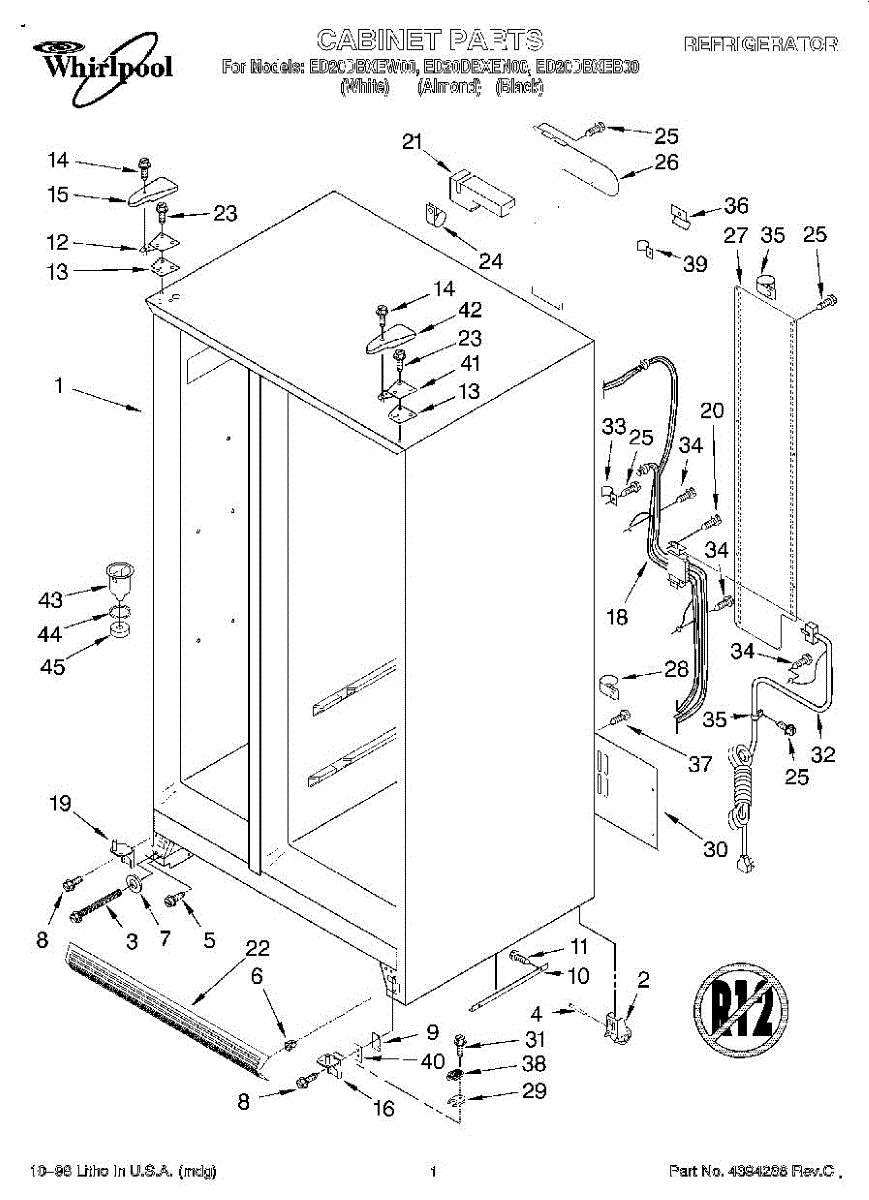

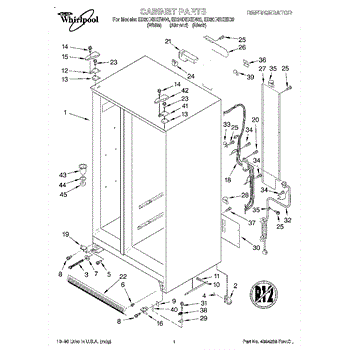

Parts for Whirlpool ED20DBXEB00: 01 - Cabinet Parts

Secures panels, trim, and valance pieces in refrigerators. Replace when original clip is broken, cracked, or missing to restore proper fit and prevent loose parts.

Panel fastener screw for refrigerators and freezers. Secures cabinet panels, trim, and components. Replace if missing, stripped, or damaged.

Size: 8-18 x 3/8 inch.

Replacement mounting screw for securing panels, brackets, and components in various appliances. Replaces missing, stripped, or damaged fasteners.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Color: white. Measures about 38 inches wide by 4 inches high.

Size: 8-32 x 1/2 inch.

Cam kit for refrigerator door hinges. Includes black and white cams that install at door bottom and hinge. Replace when cracked, broken, or worn.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

Includes both shims as seen in the photo

Water pooling in freezer or fridge? A clogged or cracked defrost drain funnel causes leaks. DIY fix in 30-45 minutes by accessing the rear freezer panel.

Creates a watertight seal at water connections to prevent leaks. Replace when cracked, flattened, or worn. Confirm fit with your model number.

Seals the drain tube connection to prevent leaks and ice buildup in your freezer. Replace if you see water pooling or ice forming at the freezer bottom.

Epoxy repair kit - aluminum tubing.

Size: 1/2 inch.

Size: 5/8 inch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This specialized Torx wrench is designed to remove and install screws with star-shaped heads commonly found in refrigerator components. It provides the proper grip and torque needed for secure fastening of internal parts. Use this tool when replacing refrigerator components that require Torx screws for assembly.

Size: 3/4 inch.

This insulation bag fits inside the refrigerator or freezer door panel to help maintain consistent internal temperatures. It acts as a thermal barrier that prevents warm outside air from affecting the sealed compartment. Replace it if you notice condensation forming on the door interior, inconsistent temperatures, or if the existing insulation is torn, compressed, or missing.

Sealer for refrigerant line insulation.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 lb.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Size: 3/16 inch.

Fix squeaking or grinding ice makers with appliance-grade grease. Lubricates moving parts in refrigerators and freezers. Simple DIY application.

Color: White. Size: 13 oz. Spray paint primer. can.

Fix loose wiring or rattling sounds in your refrigerator with this terminal block clip kit. Secures harnesses and panels to restore proper fit.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
