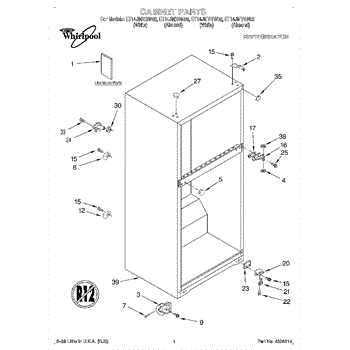

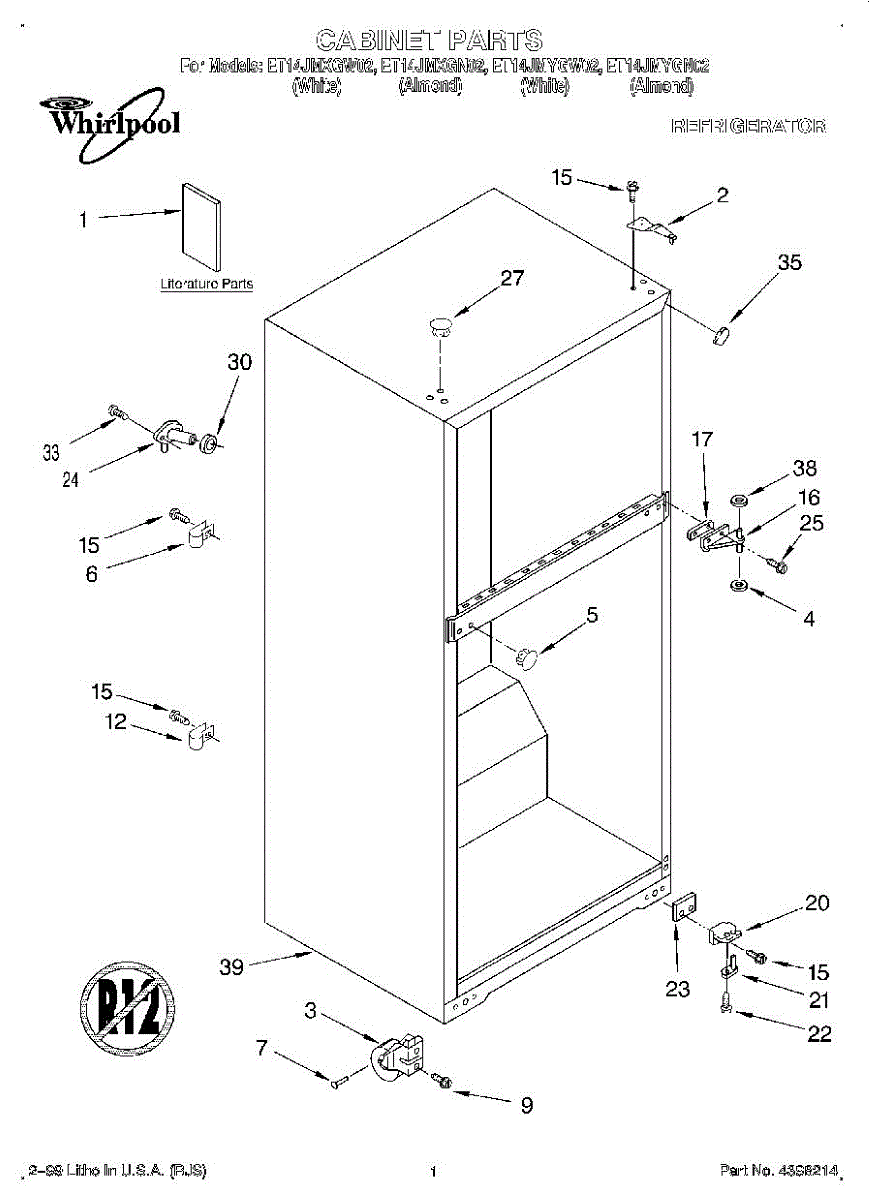

Parts for Whirlpool ET14JMXGN02: 01 - Cabinet, Literature Parts

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

Flat washer used on refrigerator door hinge assembly. Reduces friction and distributes load for smooth door operation.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Replacement center hinge for refrigerator doors. Mounts between upper and lower doors to provide support and alignment. Replace if cracked or worn.

Door hinge butt for top-mount refrigerators. Mounts between cabinet and door to support hinge pin assembly. Replace if cracked, broken, or worn out.

Door hinge shim adjusts refrigerator door height and alignment at the lower hinge. Replace when worn to restore smooth closing and proper gasket seal.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Secures panels, brackets, and internal components in appliances. Replace missing, stripped, or corroded screws to restore secure assembly and alignment.

Color: white.

Seals refrigerator door to prevent air leaks and temperature loss. Replace when worn, cracked, or no longer forming a tight seal. Verify fit by model.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

White plastic filler cap for refrigerator door panels. Replaces broken, cracked, or missing caps. Installs into door trim to complete appearance.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.
