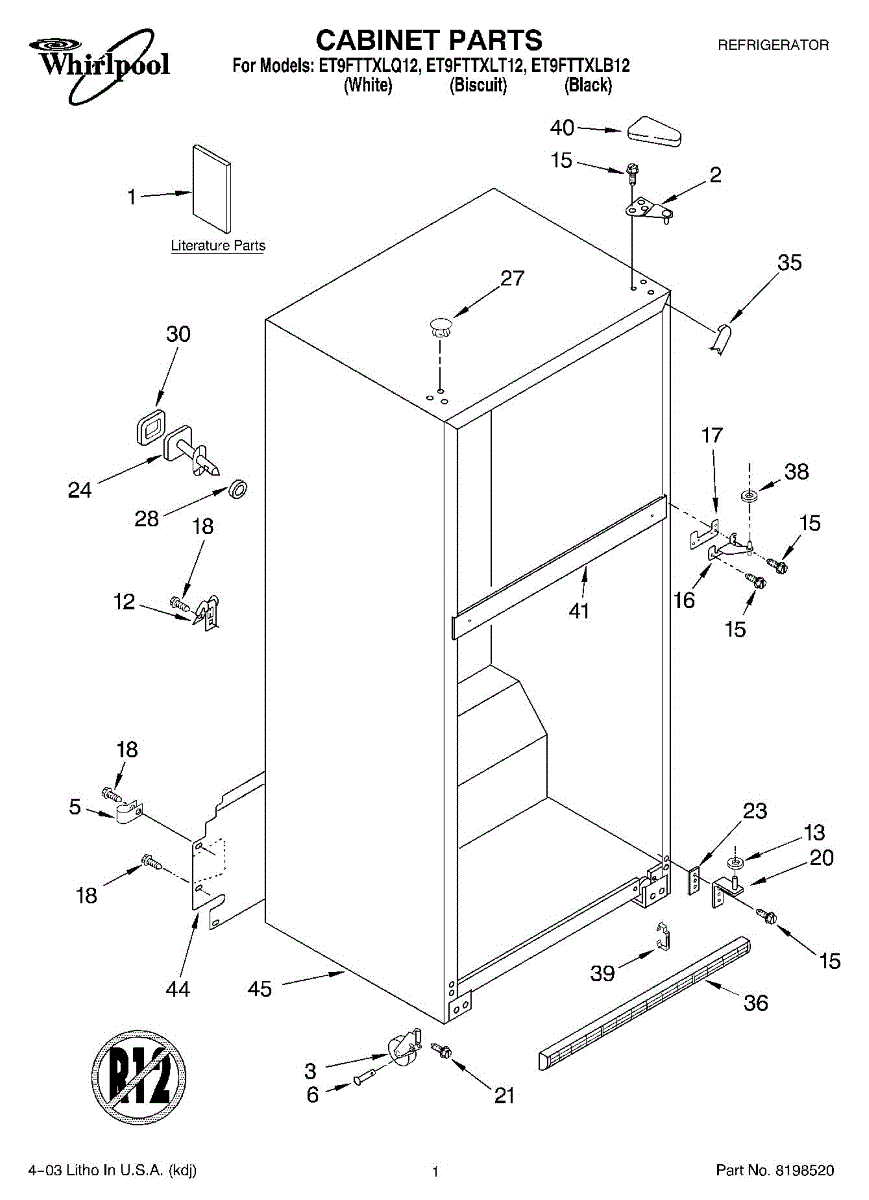

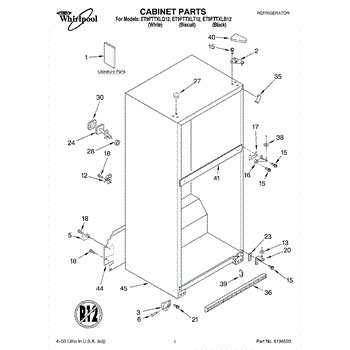

Parts for Whirlpool ET9FTTXLT12: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

Front cabinet roller wheel for refrigerators. Mounts under the cabinet to allow smooth rolling and positioning. Replace if cracked, broken, or worn out.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Center door hinge connects and supports refrigerator doors. Replace if bent, broken, or lost during moving. Guides smooth door operation and alignment.

Hinge center shim spacer that maintains proper door spacing and alignment. Replace when worn, missing, or cracked to prevent door rubbing and uneven gaps.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage

Supports the refrigerator door at the bottom pivot point. Replace if your hinge is rusted, bent, cracked, or broken to restore proper door alignment.

This washer tub mounting bolt secures the tub assembly to its support points. Replacing worn or missing hardware helps keep the tub aligned and stable through wash and spin, reducing vibration and noise. What it does:

• Anchors the tub assembly to

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Covers unused mounting holes on refrigerator cabinet or trim for a finished look. Replace if cracked, broken, or missing to prevent dirt entry.

Color: white.

Color: Biscuit

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

White grille for refrigerator ice/water dispenser area on door. Provides finished surface and catches drips. Replace when cracked, stained, or missing.

White grille for refrigerator ice/water dispenser area on door. Provides finished surface and catches drips. Replace when cracked, stained, or missing.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

This small hinge cover caps and secures the appliance lid/cover hinge, restoring proper alignment and preventing wear on the hinge joint for smoother opening and closing. What it does:

• Protects the hinge pivot and keeps the cover seated correctl

Black hinge cover that conceals and protects the door hinge area. Replace if cracked, broken, or missing to restore a clean, finished look.

Replace a cracked, broken, or missing hinge cover on your refrigerator. Snaps over the hinge assembly to conceal hardware and restore a clean finish.
