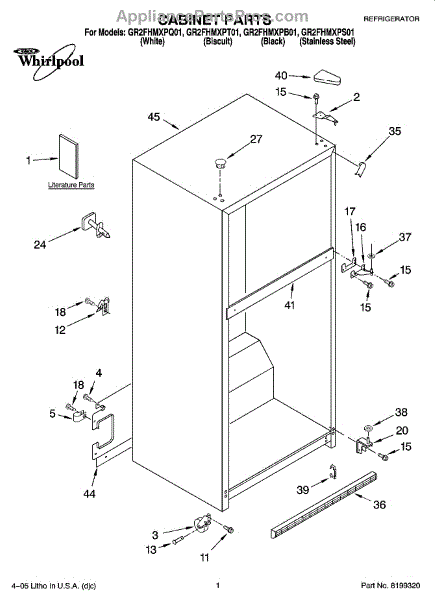

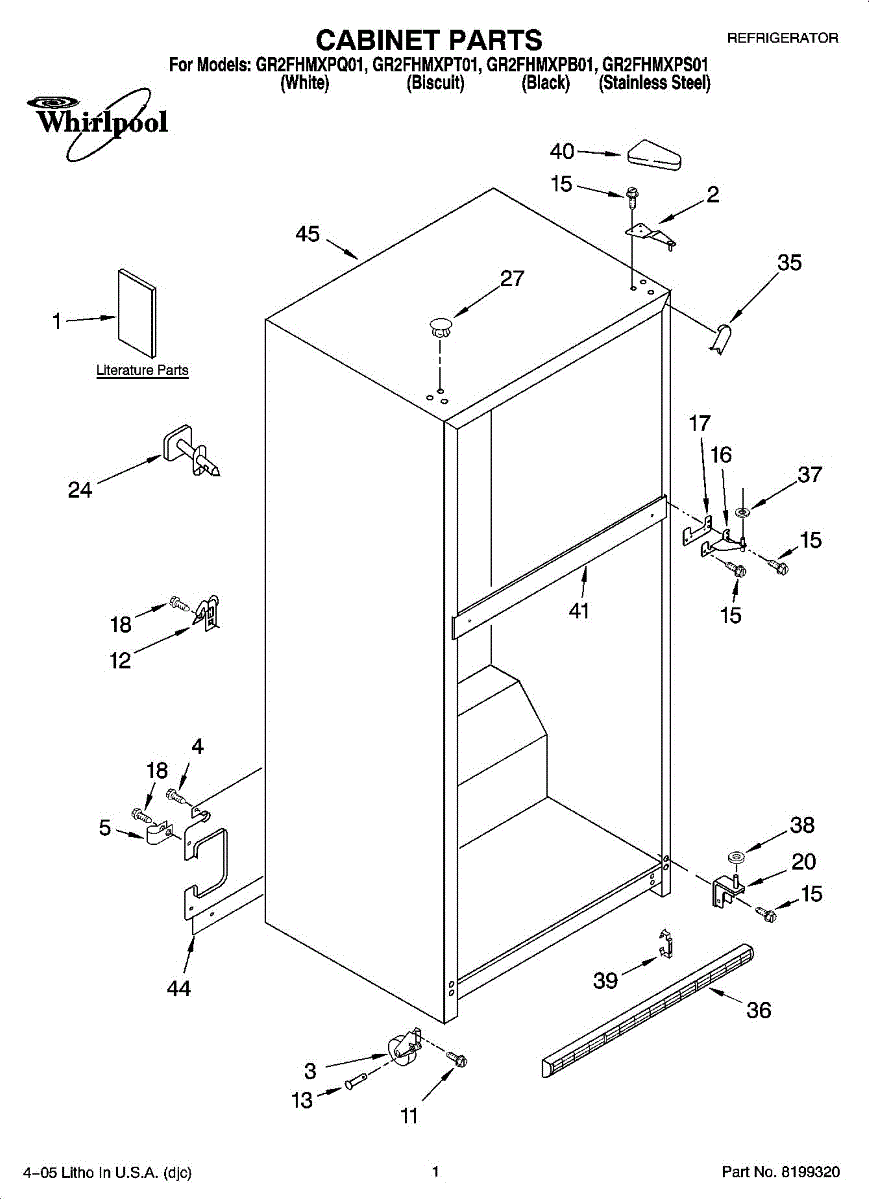

Parts for Whirlpool GR2FHMXPS01: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

The Refrigerator Roller is an OEM part for Whirlpool refrigerators. This component allows for easy movement of the refrigerator, enabling smooth sliding and positioning during installation or cleaning. Does not include the leveling screw. For complete assembly order part number AP5988919.

Causes of a bad refrigerator roller can include regular wear and tear, exposure to heavy loads, or damage from moving the refrigerator across uneven surfaces.

Symptoms of a bad Refrigerator Roller include:

• Difficulty moving the refrigerator
• Unstable or uneven positioning
• Noisy or squeaky movement
• Visible damage to the roller, such as cracks or breaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This washer tub mounting bolt secures the tub assembly to its support points. Replacing worn or missing hardware helps keep the tub aligned and stable through wash and spin, reducing vibration and noise. What it does:

• Anchors the tub assembly to its mounting bracket or frame
• Helps maintain alignment under load and during high-speed spin
• Replace if the bolt is stripped, rounded, rusted, or missing
• Symptoms can include excessive vibration/banging, tub shifting or scraping, and rattling hardware

• 1 mounting bolt

• Disconnect power and water before servicing; wear appropriate PPE
• Support the tub to relieve stress on the mounting points before removal
• Start threads by hand to avoid cross-threading; tighten bolts evenly across all mount points
• Do not overtighten; follow for torque guidance

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Hinge center shim (spacer) that restores proper hinge spacing and helps keep appliance doors aligned. Use when a worn or missing center spacer causes door rubbing, misalignment, or uneven gaps. What it does:

• Maintains correct hinge spacing to keep the door aligned and gaps even.
• Replaces a worn or missing center spacer that can cause door rubbing or sagging.
• Supports smooth hinge movement so the door opens and closes consistently.
• Low-profile spacer—refer to the appliance diagram for exact placement.

• Disconnect power to the appliance and follow all safety precautions before beginning work.
• Remove the door per the manufacturer's instructions and note hinge orientation and any existing shims.
• Install the shim in the center hinge position, verify alignment, and test the door operation.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

This hole plug covers and protects unused mounting or access holes on the appliance cabinet or trim, giving a finished appearance and preventing dirt or moisture from entering. It's a simple cosmetic and protective replacement. What it does:

• Covers exposed holes in panels, trim, or end caps to improve appearance
• Helps keep out dirt, moisture and small debris from unused openings
• Restores a clean, finished edge after part removal or repair
• Commonly used where a small plastic plug is pressed into a hole for a flush fit

• One hole plug

• Press into the opening until flush; no tools required for most installations
• Ensure the hole is clean and dry before installing for best fit
• Replace only with the correct size plug to avoid loose fit or damage
• Disconnect power and follow appliance safety guidelines if working near electrical components

Color: white.

Color: Biscuit

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small hinge cover caps and secures the appliance lid/cover hinge, restoring proper alignment and preventing wear on the hinge joint for smoother opening and closing. What it does:

• Protects the hinge pivot and keeps the cover seated correctly
• Helps prevent looseness, wobble, or misalignment of the lid/cover
• Reduces metal-on-metal wear and guards against rubbing or rattling noises
• Restores normal lid movement when the original hinge cover is cracked, missing, or worn

• Disconnect power to the appliance before starting any work
• Remove any screws or trim panels that block access to the hinge; keep fasteners for reassembly
• Handle plastic components carefully to avoid cracking; align before tightening
• If other hinge hardware is damaged or loose, inspect and replace as needed for a complete repair

This hinge cover conceals and protects the door hinge area, providing a clean, finished look while helping keep dust and debris out. The black finish matches compatible appliances for a seamless appearance.

• Covers the door hinge to protect hardware and improve appearance
• Helps prevent dust and debris from entering the hinge area
• Common fix when the original cover is cracked, broken, loose, or missing
• Cosmetic part; does not correct door alignment issues caused by hinge wear

• Unplug the appliance before beginning any repair
• Open the door and remove any visible screws or clips securing the cover
• Lift off the old cover and align the new cover over the hinge
• Reinstall screws/clips and verify the cover is seated securely

This hinge cover replaces a damaged or missing hinge trim to protect and conceal the hinge assembly and restore the appliance's finished appearance. It fits over the hinge area and helps reduce dirt buildup and exposed hardware. What it does:

• Covers and protects hinge hardware, hiding screws and sharp edges
• Helps keep dirt, lint, and moisture out of the hinge area
• Restores the appliance's original, finished look
• Common symptoms: cracked, broken, or missing cover; exposed hinge hardware; cosmetic damage or debris buildup

• Refer to your model diagram for correct orientation and fastener locations
• Basic hand tools may be required; some models need the hinge loosened or partially removed
• Disconnect power and/or unplug the appliance before starting work when applicable
• Handle edges carefully to avoid cuts; follow OEM instructions for reassembly
