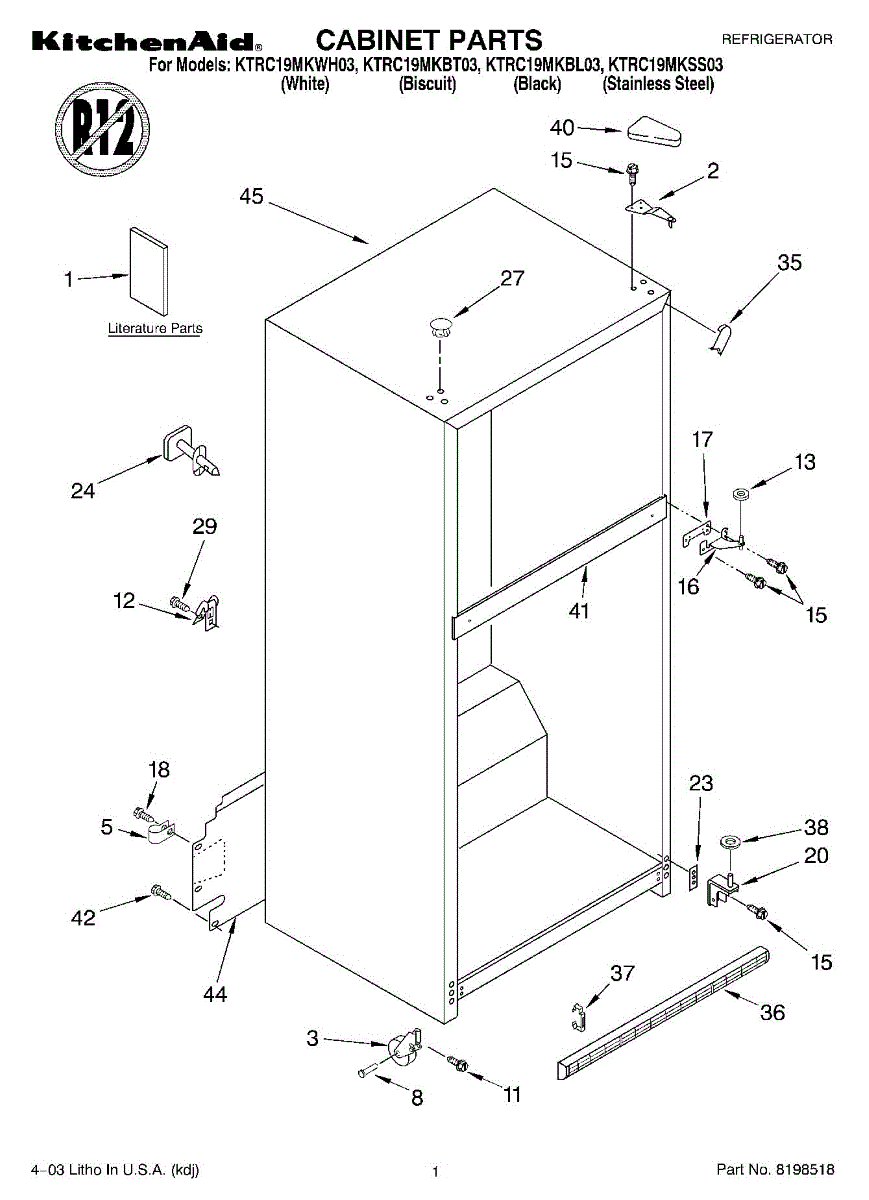

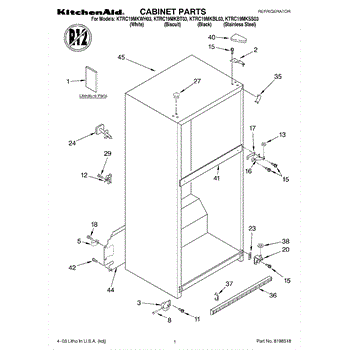

Parts for Kitchenaid KTRC19MKWH03: 01 - Cabinet Parts

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

Front cabinet roller wheel for refrigerators. Mounts under the cabinet to allow smooth rolling and positioning. Replace if cracked, broken, or worn out.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

This washer tub mounting bolt secures the tub assembly to its support points. Replacing worn or missing hardware helps keep the tub aligned and stable through wash and spin, reducing vibration and noise. What it does:

• Anchors the tub assembly to its mounting bracket or frame
• Helps maintain alignment under load and during high-speed spin
• Replace if the bolt is stripped, rounded, rusted, or missing
• Symptoms can include excessive vibration/banging, tub shifting or scraping, and rattling hardware

• 1 mounting bolt

• Disconnect power and water before servicing; wear appropriate PPE
• Support the tub to relieve stress on the mounting points before removal
• Start threads by hand to avoid cross-threading; tighten bolts evenly across all mount points
• Do not overtighten; follow for torque guidance

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Center door hinge connects and supports refrigerator doors. Replace if bent, broken, or lost during moving. Guides smooth door operation and alignment.

Hinge center shim spacer that maintains proper door spacing and alignment. Replace when worn, missing, or cracked to prevent door rubbing and uneven gaps.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Supports the refrigerator door at the bottom pivot point. Replace if your hinge is rusted, bent, cracked, or broken to restore proper door alignment.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Covers unused mounting holes on refrigerator cabinet or trim for a finished look. Replace if cracked, broken, or missing to prevent dirt entry.

Color: white.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Color: Biscuit

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

White grille for refrigerator ice/water dispenser area on door. Provides finished surface and catches drips. Replace when cracked, stained, or missing.

White grille for refrigerator ice/water dispenser area on door. Provides finished surface and catches drips. Replace when cracked, stained, or missing.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

This small hinge cover caps and secures the appliance lid/cover hinge, restoring proper alignment and preventing wear on the hinge joint for smoother opening and closing. What it does:

• Protects the hinge pivot and keeps the cover seated correctly
• Helps prevent looseness, wobble, or misalignment of the lid/cover
• Reduces metal-on-metal wear and guards against rubbing or rattling noises
• Restores normal lid movement when the original hinge cover is cracked, missing, or worn

• Disconnect power to the appliance before starting any work
• Remove any screws or trim panels that block access to the hinge; keep fasteners for reassembly
• Handle plastic components carefully to avoid cracking; align before tightening
• If other hinge hardware is damaged or loose, inspect and replace as needed for a complete repair

Black hinge cover that conceals and protects the door hinge area. Replace if cracked, broken, or missing to restore a clean, finished look.

Replace a cracked, broken, or missing hinge cover on your refrigerator. Snaps over the hinge assembly to conceal hardware and restore a clean finish.

Size: 8-18 x 1/2 inch.
