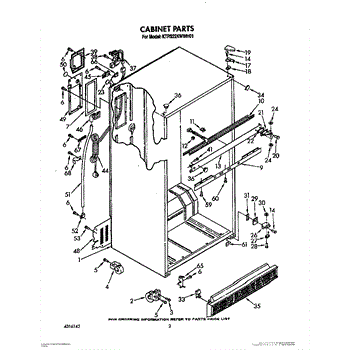

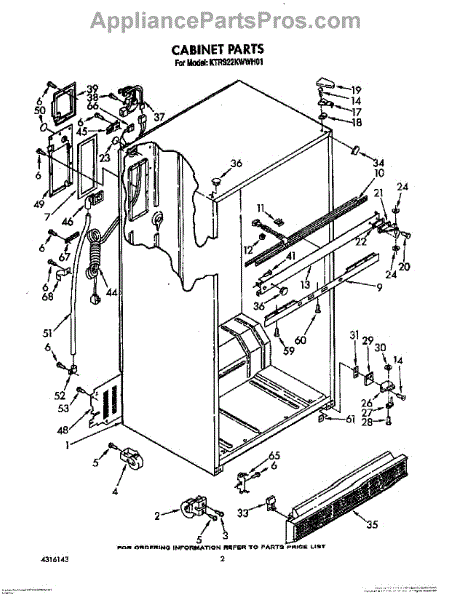

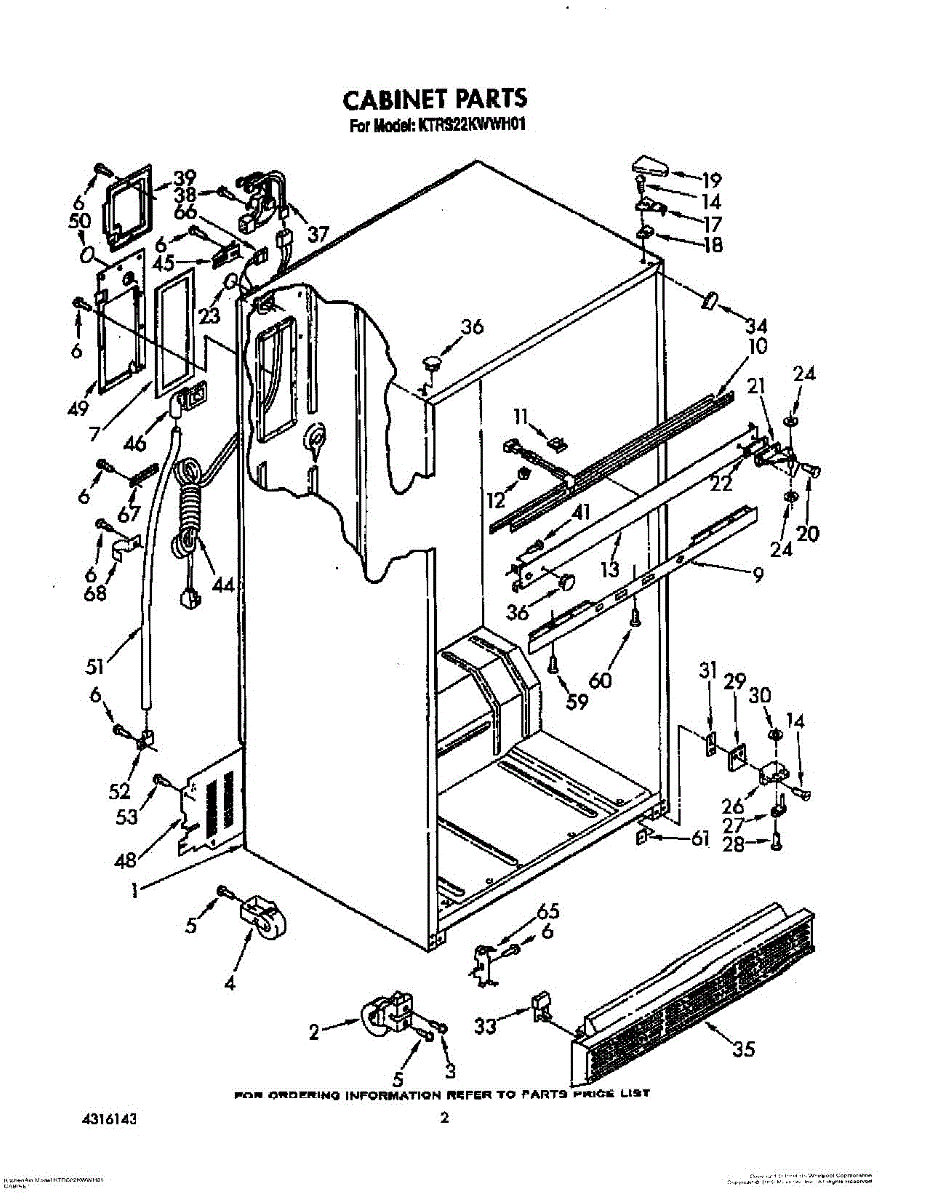

Parts for Kitchenaid KTRS22KWAL01: 02 - Cabinet Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued and is no longer available.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Size: 8 x 1/2 ab.

White.

This plain flat washer helps secure fasteners and evenly distribute load under nuts or bolts to prevent damage and loosening. A simple replacement when a washer is missing, rusted, or worn. What it does:

• Provides a smooth bearing surface between fastener and component to reduce wear
• Helps distribute clamping force to prevent stress on parts
• Reduces loosening from vibration when used with the correct fastener
• Common service part for assemblies where a thin metal spacer is needed

• Disconnect power and water to the appliance before beginning any repair
• Inspect the mating fastener and seating surface; replace any damaged hardware
• Slide the washer onto the bolt or stud with the flat faces against the mating surfaces; tighten fastener to secure but avoid overtightening

This washer is a small hardware spacer used in appliance assemblies to distribute load and maintain proper spacing under a fastener or rotating component. Replacing a worn or missing washer helps restore alignment, reduce noise, and keep parts secure.

• Distributes fastener load to protect mating surfaces
• Maintains spacing/alignment between components
• Can act as a thrust surface to reduce friction and wear
• Typical symptoms: looseness or wobble, scraping/squeaking noises, or parts that won't stay tight

• Disconnect power; shut off gas and/or water as applicable
• Note the order/orientation of washers, spacers, and clips during disassembly; take a photo for reference
• Inspect related parts (retainers, bushings) and replace if worn
• Tighten fasteners per manufacturer guidance; avoid overtightening and verify smooth operation after reassembly

Black

Color: Black. Measures about 33 inches wide by 5 inches high. White and Almond are no longer available.

Size: 8-32 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening

Clip for bottom grill. If your original clip is riveted, order screw WP489478.
