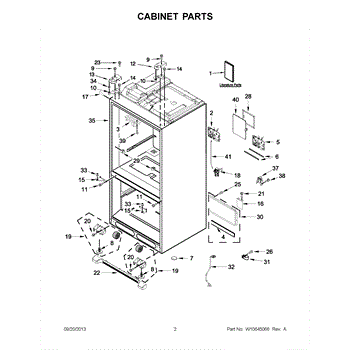

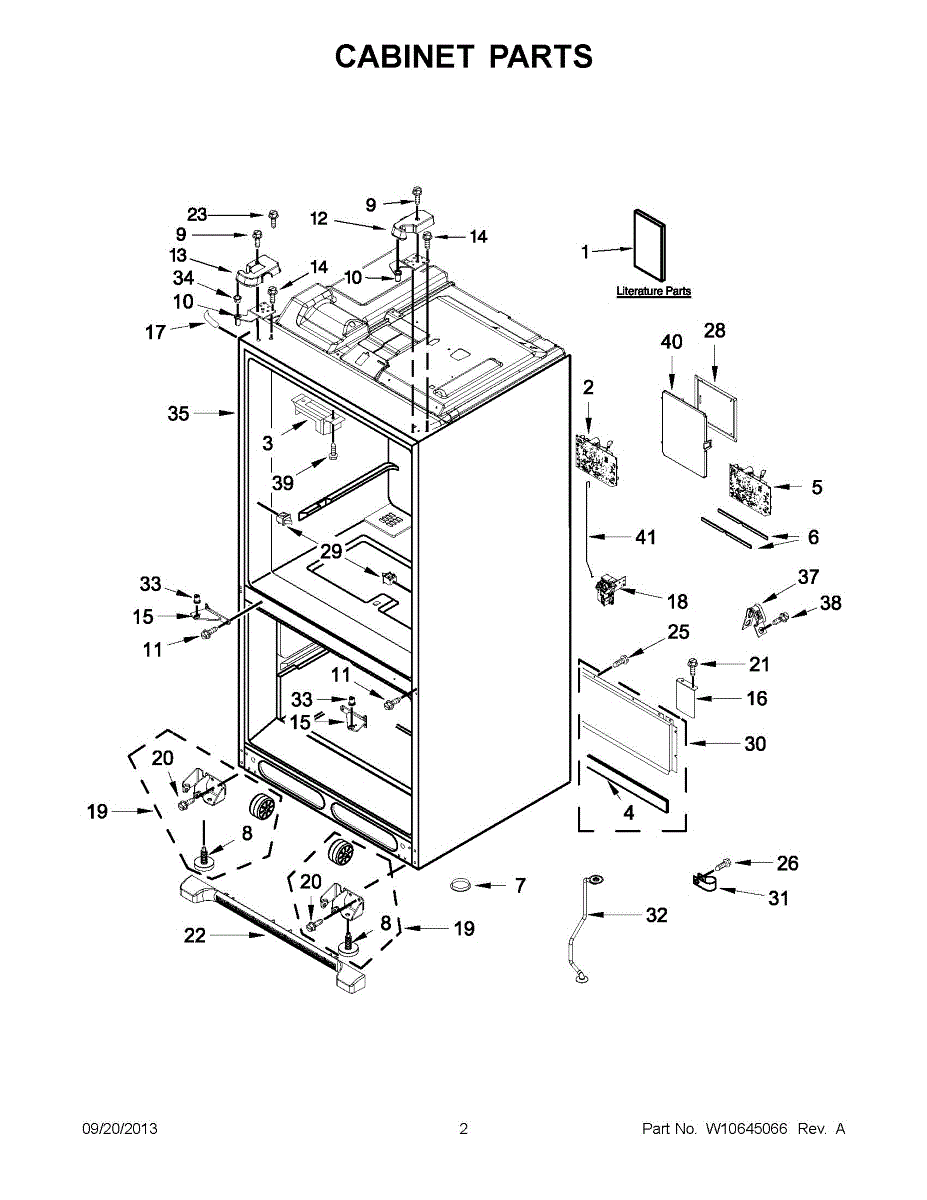

Parts for Kitchenaid KFIV29PCMS03: 02 - Cabinet Parts

The Electronic Control Board is an OEM part for Whirlpool refrigerators. This part manages the refrigerator's functions, including temperature regulation, defrost cycles, and the operation of fans and compressors.

Causes of a bad electronic control board can include electrical surges, exposure to moisture, or general wear and tear over time.

Symptoms of a bad electronic control board include:

• Inconsistent or incorrect temperatures
• The refrigerator not cooling or freezing properly
• Error codes or flashing lights on the display
• The refrigerator failing to start or cycling on and off frequently

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine main control board for refrigerators. The main control board is what handles the functions of the fridge, including defrost times and temperature control. The board can become damaged over time and the electrical components could wear out from regular use. If the control board is not working properly, the refrigerator may not be able to maintain a proper temperature.If the control board is faulty, it needs to be replaced as soon as possible. Always disconnect the refrigerator before beginning any repairs. Be sure to wear gloves to protect the hands and work carefully with the small electrical parts so that they aren't damaged during installation.This genuine OEM replacement part is manufactured to exact standards and will provide a perfect fit for compatible machines from Whirlpool, Maytag, Jenn-Air, Estate, Kenmore, and others. The assembly is sold individually and does not include any hardware or wiring accessories.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Top-left refrigerator door hinge assembly that restores the cabinet pivot and keeps the door aligned for a proper seal. Replaces a worn or damaged top hinge to reduce door sag and improve opening/closing action. What it does:

• Provides the top pivot and mounting point for the refrigerator door; a failed hinge can cause door sag or uneven gaps.
• Secures the door to the cabinet so the gasket can seal properly; symptoms include cold loss or visible top gap.
• Restores smooth opening and closing when binding, scraping, or wobbling occurs at the top of the door.
• Replaces corroded, bent, or broken hinge parts that prevent proper door alignment.

• Disconnect power to the appliance before starting and remove food/items from the door.
• Support the door while removing/installing the hinge—use a second person or prop to prevent the door from falling.
• Keep original mounting hardware; replace any damaged fasteners and tighten securely without over-torquing.
• After installation, check door alignment and gasket contact; adjust hinge or strike as needed for a consistent seal.

This top hinge assembly fits the right-hand refrigerator door. Replacing a worn or damaged hinge restores smooth door movement and correct alignment so the door closes securely and the gasket seals to maintain proper temperature. What it does:

• Supports and pivots the door at the top
• Keeps the door aligned for even gaps and reliable gasket contact
• Replaces a bent, loose, or broken hinge to stop door sagging or rubbing
• Common symptoms include popping/clicking at the top, poor closing, or uneven spacing

• One right-hand top hinge assembly

• Disconnect power before servicing
• Have a second person support the door while removing the hinge
• Remove the top hinge cover and screws, lift the door off, install the new hinge, and reinstall screws
• Rehang and align the door; confirm the gasket seals evenly before restoring power

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

Color: Grey

This hinge cover assembly replaces a damaged or missing refrigerator hinge trim to protect the hinge, hide mounting hardware, and restore a finished appearance. It's a direct-fit exterior trim piece that improves safety and looks. What it does:

• Covers and protects the door hinge and mounting hardware from dust and damage
• Hides exposed screws and metal for a clean, finished appearance
• Prevents debris buildup around the hinge area that can interfere with movement
• Commonly replaced when cracked, broken, or missing, or when the hinge area looks worn

• Disconnect power to the appliance before beginning any service
• Use basic hand tools; retain associated screws and brackets during removal
• Align cover over the hinge and secure without over-tightening to avoid cracking
• If hinge hardware is bent or damaged, replace hardware before installing the cover

This hinge screw secures the door hinge to the appliance cabinet or door. Replacing a missing or stripped screw restores a tight, aligned hinge connection for smooth opening and reliable sealing.

• Fastens the hinge to the frame or door to prevent looseness
• Helps maintain door alignment for smooth opening/closing
• Direct replacement for lost, rusted, or stripped hinge screws
• Common symptoms: loose hinge, door sagging, rubbing/binding, or poor sealing

• Disconnect power before service; if working on a refrigerator, also shut off the water supply
• Support the door before loosening or tightening hinge hardware
• Start threads by hand to avoid cross-threading; tighten securely without over-torquing

The Door Hinge is an OEM part for Whirlpool refrigerators. It is responsible for allowing for smooth opening and closing of the door. It also maintains the alignment of the door and prevents any sagging or misalignment issues.

A bad door hinge can occur due to wear and tear, excessive weight on the door, or accidental damage. If you notice symptoms such as difficulty in opening or closing the refrigerator door, a loose or sagging door, or an improper seal, it may be time to replace the center door hinge.

Symptoms of a bad door hinge include:

• Difficulty in opening or closing the refrigerator door
• Loose or sagging door
• Improper seal leading to temperature fluctuations

Repair your refrigerator by replacing the faulty or worn-out center door hinge with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Color: Grey

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It plays a crucial role in supplying water to the refrigerator's ice maker and water dispenser. This valve opens and closes to allow water to flow into the appliance as needed, ensuring that you have access to fresh ice and cold water whenever you need it.

Symptoms of a bad Water Inlet Valve include:

• The refrigerator’s ice maker not producing ice or producing very small or malformed ice cubes.
• No water being dispensed, or the water dispenser running slowly.
• Leaking water from the valve area, which may indicate a crack or failure in the valve itself.

Causes of a bad water inlet valve can include mineral build-up from hard water, which can block the flow or cause the valve to stick open or closed; wear and tear over time that affects the valve’s ability to function properly; or electrical failures that prevent the valve from receiving the signal to open or close.

This OEM part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This front toe-kick grille mounts across the bottom of the refrigerator. It restores a clean, finished look while helping direct airflow through the condenser area and shielding components from bumps, dust, and debris.

• Provides the finished kickplate across the lower front of the cabinet
• Helps direct ventilation airflow through the condenser compartment
• Replace if cracked, warped, missing, or if it won't stay attached
• Can eliminate rattling from a loose or damaged kickplate

• Disconnect power before servicing
• Remove the old grille by releasing snap tabs or removing screws (varies by model)
• Align the new grille with the mounting slots and press firmly until it seats, or reinstall screws
• Ensure vent openings are clear and that doors open/close without interference

This is a genuine mounting screw used to secure appliance panels and components. It provides reliable fastening to keep parts aligned and reduce vibration-related noise for safer, quieter operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Prevents parts from loosening and causing rattling or misalignment
• Maintains proper part positioning for reliable operation
• Helps reduce vibration and noise when panels are fastened correctly

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Disconnect power before servicing electrical appliances to avoid shock
• If a screw is corroded or damaged, replace all similar fasteners in that area for best results

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Refrigerator Door Switch is an OEM replacement part for Whirlpool refrigerators. It is a crucial component that monitors the opening and closing of the refrigerator door, ensuring proper operation and energy efficiency.

Causes of a bad Door Switch can include physical damage, wear and tear over time, or electrical malfunctions.

Symptoms of a faulty Refrigerator Door Switch include:

• Interior lights remaining on even when the door is closed
• Compressor failing to cycle on and off as intended
• Condensation or frost buildup due to improper sealing
• Error codes or warning lights related to the door switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This unit compartment cover is the rear access panel for the refrigerator's machine area. It protects internal components and helps channel condenser airflow to support proper cooling performance while keeping dust and debris out of the compartment.

• Encloses and protects the compressor, condenser, and wiring in the rear machine compartment
• Directs condenser fan air through the coil to aid heat removal and stable temperatures
• Helps reduce noise and block debris entry; restores a clean, finished back panel
• Use when the original cover is bent, cracked, missing, or warped
• Helps if you notice rattling from the back, exposed components, or irregular cooling due to disrupted airflow

• Disconnect power and pull the refrigerator away from the wall for access
• Remove screws securing the old panel; note vent orientation and any tabs
• Position the new cover and fasten with the original hardware; do not overtighten
• Restore power and ensure the ventilation openings remain clear for proper airflow

This door cam coupler links the hinge cam components that control your refrigerator door's movement. Replacing a worn coupler restores smooth opening/closing and proper alignment so the gasket seals correctly and the door stays shut.

• Couples the hinge cam surfaces to guide door travel and detent action
• Helps the door close smoothly and stay open at designed stop points
• Maintains door alignment for even gasket contact and sealing
• Common symptoms of failure: clicking/grinding at the hinge, door sagging or misalignment, door not closing fully or popping back open

• Disconnect power and remove items from the door to reduce weight
• Support the door while removing hinge fasteners; lift door straight off the hinge pin
• Note the original coupler's orientation and install the new part the same way
• Reassemble, then check door alignment and verify a full perimeter gasket seal

A replacement rubber grommet that cushions and protects openings where wiring or components pass through metal panels. Restores proper fit and helps prevent rubbing, chafing, and vibration-related noise. What it does:

• Cushions and isolates wiring, harnesses or shafts from metal edges
• Prevents abrasion and chafing that can cause wire damage or shorts
• Reduces vibration and squeaks where parts pass through panels
• Recommended when grommet is cracked, torn, flattened, or missing

• Disconnect power before inspecting or replacing the grommet
• Remove surrounding panels as needed to access the damaged grommet
• Press-fit into the panel opening; ensure the grommet seats fully and the wire/harness sits in the groove
• Replace any damaged wiring or clips discovered during installation; avoid sharp tools that can nick the rubber

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This factory screw secures appliance components so they stay aligned and firmly attached during everyday use. Replacing a missing or damaged screw helps stop rattles, looseness, and poor fit that can affect performance over time.

• Fastens panels, brackets, or hardware to keep assemblies tight
• Helps correct issues like loose handles, vibrating panels, or misaligned parts
• Restores proper fit after a screw is stripped, corroded, or lost
• Built to match the original thread and length for reliable engagement

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct driver to avoid stripping the head or threads
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Replace any companion fasteners that are worn or missing for even clamping
