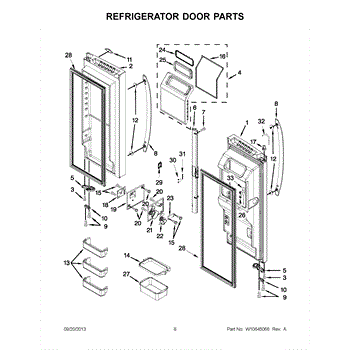

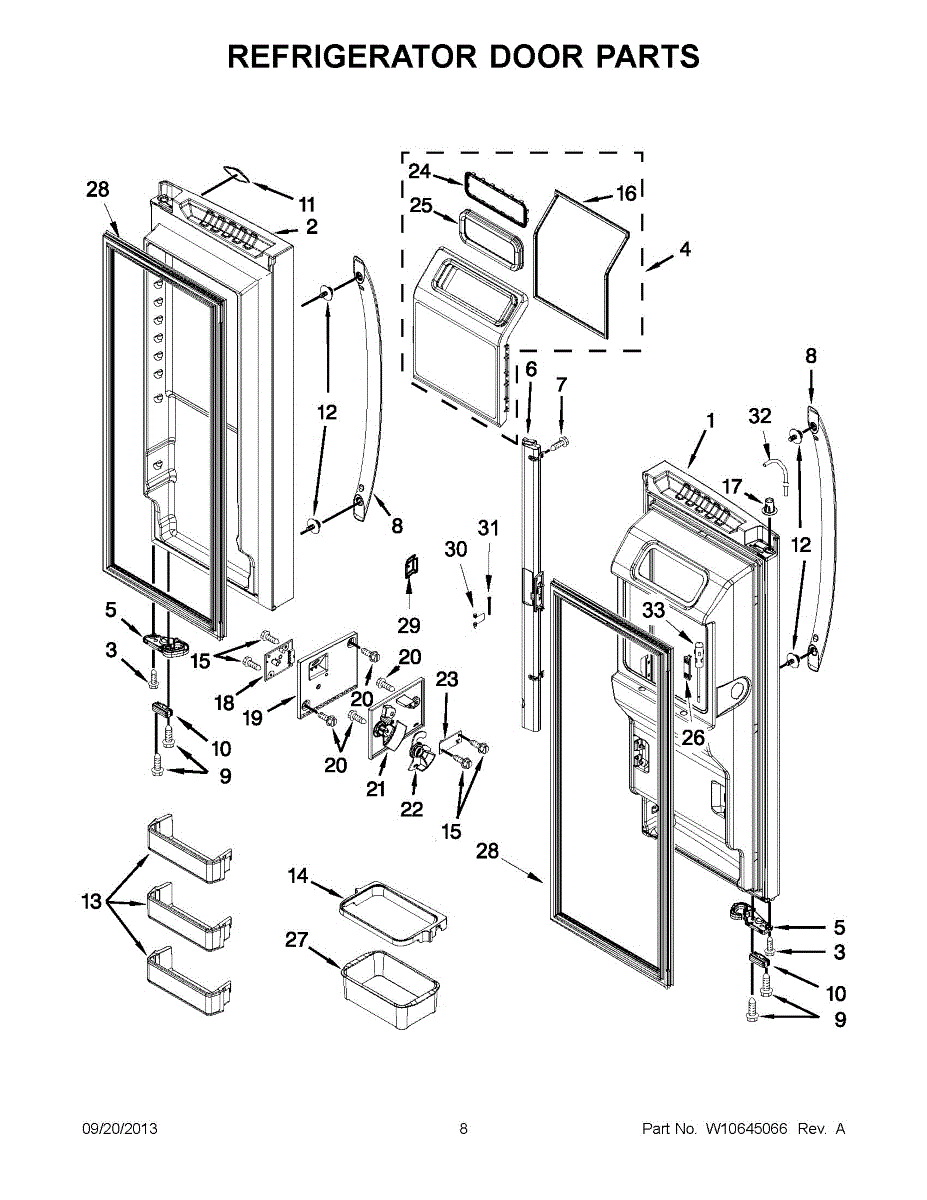

Parts for Kitchenaid KFIV29PCMS03: 05 - Refrigerator Door Parts

This is a replacement 8-18 thread screw used to secure panels and components on compatible Whirlpool appliances. It provides a simple, reliable fastener to restore proper fit and reduce rattling or loose parts. What it does:

• Fastens panels, brackets, or small components where an 8-18 thread screw is required
• Restores secure attachment to stop vibrating, loosening, or misalignment
• Works wherever the OEM 8-18 thread screw is specified in the appliance
• Small, durable fastening solution for routine part replacement

• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread into the mating hole carefully; do not cross-thread
• Tighten until snug—avoid overtightening which can strip threads or crack plastic
• Disconnect power and follow appliance safety guidelines before accessing internal parts

This door assembly replaces the ice compartment door on compatible 36-inch refrigerators, restoring a proper seal and access to the ice area for reliable ice dispensing and storage. Designed to match OEM fit and finish. What it does:

• Replaces a cracked, warped, or damaged ice compartment door to prevent drafts and ice melting
• Restores proper alignment for the ice chute and door closure
• Helps stop moisture buildup and ice clumping inside the compartment
• Improves appearance by replacing a scratched or discolored door

• One complete ice compartment door assembly

• Disconnect power to the refrigerator before starting any work
• Handle the assembly carefully to avoid damaging trim, clips, or the finish
• Installation may require removing interior panels or freezer shelving; keep track of fasteners

This door closer secures the appliance door and helps it close smoothly so the unit seals correctly. It restores proper door engagement and reduces gaps that can cause leaks or operation errors. What it does:

• Acts as the door latch/closer to hold the door shut during operation
• Helps the door close smoothly and stay aligned for a tight seal
• Commonly replaces worn or broken closers that prevent the door from latching
• Can resolve symptoms like a door that won't stay closed, won't latch, or closes unevenly

• Disconnect power and any fuel source before beginning work
• Remove the door or access panel per your model's instructions to reach the closer
• Inspect mounting points and strike before installing; align the latch for smooth operation
• Test the door several times after installation to ensure proper engagement and sealing

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This trivet is a metal oven broiler support that holds the broiler pan and helps position food for even broiling. It restores correct spacing and support inside the oven so broiling and roasting perform as intended. What it does:

• Supports the broiler pan or drip tray so food sits at the proper height from the broiler element
• Helps promote even browning and consistent broiling results
• Replaces a bent, warped, or missing trivet that can cause unstable pans
• Fits into the oven cavity where the original trivet installs

• One oven trivet

• Install by sliding or seating the trivet into the factory support slots; no tools usually required
• Ensure the oven is completely cool and disconnected from power before handling
• Handle carefully—edges may be sharp and the part may be heavy when metal

This replacement bin door frame restores the outer trim that holds a refrigerator door bin or shelf in place, providing a secure fit and a finished appearance for the storage area. What it does:

• Replaces a cracked, warped, or broken bin door frame that lets the bin wobble or fall out
• Restores proper alignment so doors and bins sit flush and close cleanly
• Prevents gaps that can allow cold air loss around the bin area
• Returns a clean, finished look to the refrigerator interior

• Disconnect power to the appliance before starting any repair
• Remove the old frame by releasing any retaining clips or screws; use hand tools as required
• Handle plastic parts carefully to avoid damage from prying; align new frame before fastening

6 - 19 x .250

This door gasket seals the refrigerator door to help maintain consistent internal temperature and improve energy efficiency by preventing warm air from entering. It replaces a worn, torn, or compressed seal to restore proper closure. What it does:

• Creates an airtight seal between the refrigerator door and cabinet to help keep food cold.
• Helps prevent frost buildup and reduces moisture intrusion around the door.
• Can stop cold air leaks that may cause the compressor to run more frequently.
• Commonly replaced when the seal is cracked, torn, flattened, or no longer seats properly.

• One door gasket as shown

• Remove power or unplug the appliance before starting any repair.
• Install by seating the gasket into the door channel and tightening any retaining screws or clips if required; some gaskets require gentle heating to form correctly.
• Inspect the door liner and mounting channel for damage or debris before installing.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. This board manages the ice maker’s production by monitoring the ice level in the ice bin, ensuring that ice is made when needed and halting production when the bin is full.

Causes of a bad ice level control board can include electrical issues such as power surges, wear and tear over time, or damage from moisture or debris.

Symptoms of a bad ice level control board include:

• The ice maker not producing ice
• Continuous ice production even when the bin is full
• Error codes related to the ice maker
• Irregular or inconsistent ice production

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This chute door retainer secures the ice chute door in place so the dispenser opens and closes properly, helping keep ice inside the bin and preventing jams at the dispenser opening. What it does:

• Holds the ice chute/door assembly in the correct position during dispensing
• Helps ensure the ice door seals and swings closed to keep cold air in the bin
• Reduces jammed or stuck ice at the dispenser opening
• Works with the chute/door linkage so the dispenser actuates smoothly

• One chute door retainer as shown

• Disconnect power to the refrigerator before beginning any service
• Remove ice bin and any obstructions, then unclip or unscrew the old retainer and replace with the new part
• Reassemble components in reverse order and verify proper door movement before restoring full use

This replacement door shelf bin mounts on the refrigerator door to hold condiments, bottles, and small items. Replacing a cracked or missing bin restores secure door storage and helps keep contents organized and easy to reach.

• Provides a stable storage shelf on the fresh-food door
• Replaces bins with cracks, broken tabs, or that won't stay attached
• Helps prevent tipping or spills when opening/closing the door
• Restores original door storage capacity and organization

• Compare to your original to confirm the correct door position
• Engage lower hooks in the door liner slots, then rotate up until top tabs snap in
• Ensure the bin is fully seated before loading; avoid overloading with heavy items
• Transfer any removable dividers or mats from the old bin if your model uses them

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp
